3V Sweeping Siren Alarm
#siren
#LTC1799
#74HC14
#frequency generator
#Schmitt trigger
#oscillator
#audio sound generator
#3V power
#alarm system
#sound generator
Description: A loud sweeping siren-type audio sound generator powered by 3V. The circuit utilizes an LTC1799 precision frequency generator from Linear Technology and a 74HC14 hex Schmitt trigger from Texas Instruments to perform various functions. One section is configured as a simple 7Hz square wave oscillator. The triangle waveform across the capacitor generates the low-frequency sweeping signal for the siren. Two resistors bias the LTC1799 for a center frequency of approximately 2KHz. A flyback DC to DC converter circuit produces a 40V peak signal, which is activated and deactivated according to the output of the LTC1799. The output connects to a quality piezoelectric beeper with a resonant frequency of about 2.5KHz. The result is a loud siren that draws only 40mA from a 3V supply. A suitable piezoelectric device is the Kobitone part number 254-PB515-ROX (Mouser part number 245-PB516). For a smaller alternative, the Murata PKM17EPP-2002-BO (Digikey part number 490-4688) can be used, though it may not be as loud.
The described circuit is an effective audio sound generator designed to produce a loud and attention-grabbing siren-like sound. The LTC1799 frequency generator is crucial for establishing the base frequency of the audio output. When configured, it allows for precise control over the frequency and duty cycle of the output signal, which is essential for generating the desired sweeping effect.
The 74HC14 hex Schmitt trigger serves multiple purposes within the circuit, including signal conditioning and waveform shaping. Its role as a square wave oscillator at 7Hz provides the modulation necessary for creating the sweeping sound characteristic of sirens. The triangle waveform produced across the capacitor is integral to generating a low-frequency signal, which, when combined with the square wave, results in a rich audio experience.
Biasing the LTC1799 with two resistors enables the circuit to maintain a center frequency around 2KHz, ensuring that the output remains within the optimal range for auditory perception. The flyback DC to DC converter is a critical component that steps up the voltage to 40V, allowing the circuit to drive the piezoelectric beeper effectively. The beeper, with its resonant frequency near 2.5KHz, is selected for its ability to produce a loud sound while maintaining efficiency.
The overall design ensures that the circuit operates with low current draw, consuming only 40mA from a 3V supply, which enhances its suitability for battery-powered applications. The choice of piezoelectric devices, such as the Kobitone and Murata models, provides options for users depending on size and loudness requirements, allowing for flexibility in design choices based on specific project needs.A very loud sweeping siren type audio sound generator powered by 3v. The circuit uses a LTC1799 precision frequency generator from Linear Technology. A 74HC14 hex Schmitt trigger from Texas Instruments is also used to perform several other functions. One section is wired as a simple 7Hz square wave oscillator. The triangle waveform across that capacitor generates the low frequency sweeping signal for the siren. Two resistors bias the LTC1799 for a center frequency of about 2KHz. A flyback DC to DC converter circuit, produces a 40v peak signal, which is turned on and off according to the output of the LTC1799.
The output is connected to a quality piezoelectric beeper, which has a resonant frequency of about 2. 5KHz. The result is a siren which is quite loud but draws only 40ma from a 3v supply. A piezoelectric device from Kobitone, part number 254-PB515-ROX, (Mouser part number 245-PB516) shown above works well.
If you want something much smaller, although not quite as loud, try the Murata PKM17EPP-2002-BO shown above (Digikey part number 490-4688).
The described circuit is an effective audio sound generator designed to produce a loud and attention-grabbing siren-like sound. The LTC1799 frequency generator is crucial for establishing the base frequency of the audio output. When configured, it allows for precise control over the frequency and duty cycle of the output signal, which is essential for generating the desired sweeping effect.
The 74HC14 hex Schmitt trigger serves multiple purposes within the circuit, including signal conditioning and waveform shaping. Its role as a square wave oscillator at 7Hz provides the modulation necessary for creating the sweeping sound characteristic of sirens. The triangle waveform produced across the capacitor is integral to generating a low-frequency signal, which, when combined with the square wave, results in a rich audio experience.
Biasing the LTC1799 with two resistors enables the circuit to maintain a center frequency around 2KHz, ensuring that the output remains within the optimal range for auditory perception. The flyback DC to DC converter is a critical component that steps up the voltage to 40V, allowing the circuit to drive the piezoelectric beeper effectively. The beeper, with its resonant frequency near 2.5KHz, is selected for its ability to produce a loud sound while maintaining efficiency.
The overall design ensures that the circuit operates with low current draw, consuming only 40mA from a 3V supply, which enhances its suitability for battery-powered applications. The choice of piezoelectric devices, such as the Kobitone and Murata models, provides options for users depending on size and loudness requirements, allowing for flexibility in design choices based on specific project needs.A very loud sweeping siren type audio sound generator powered by 3v. The circuit uses a LTC1799 precision frequency generator from Linear Technology. A 74HC14 hex Schmitt trigger from Texas Instruments is also used to perform several other functions. One section is wired as a simple 7Hz square wave oscillator. The triangle waveform across that capacitor generates the low frequency sweeping signal for the siren. Two resistors bias the LTC1799 for a center frequency of about 2KHz. A flyback DC to DC converter circuit, produces a 40v peak signal, which is turned on and off according to the output of the LTC1799.
The output is connected to a quality piezoelectric beeper, which has a resonant frequency of about 2. 5KHz. The result is a siren which is quite loud but draws only 40ma from a 3v supply. A piezoelectric device from Kobitone, part number 254-PB515-ROX, (Mouser part number 245-PB516) shown above works well.
If you want something much smaller, although not quite as loud, try the Murata PKM17EPP-2002-BO shown above (Digikey part number 490-4688).
High power siren
ICla and IClb are configured as a slow astable multivibrator, while IClc and ICld are arranged as a fast astable multivibrator. The output from the slow astable modulates the frequency of the fast astable, and the output from the fast...
Wailing Alarm Siren
IC2 is configured as a low-frequency astable multivibrator with a cycle period of approximately 6 seconds. The gradually varying ramp waveform generated at capacitor C1 is fed into the emitter follower transistor Q1, which subsequently frequency modulates the alarm generator...

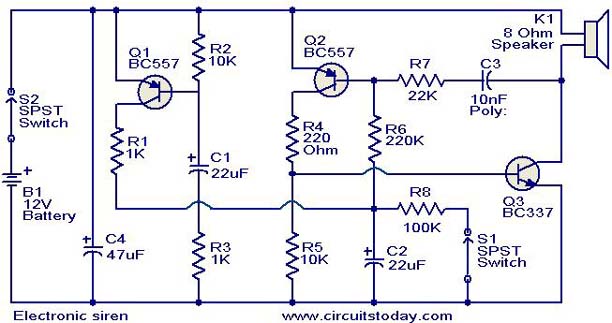

Electronic siren circuit
This is a compact electronic siren circuit based on three transistors. This circuit is suitable for incorporation with other alarm or siren projects such as burglar alarms, automatic factory sirens, or a simple push-to-on alarm. The electronic siren circuit described...
siren 100db
A robber will not remain in an area with an ear-piercing sound, as they cannot hear if someone is approaching. It is the best deterrent available. The "F" contact on the piezo is "feedback" and is not required in this...

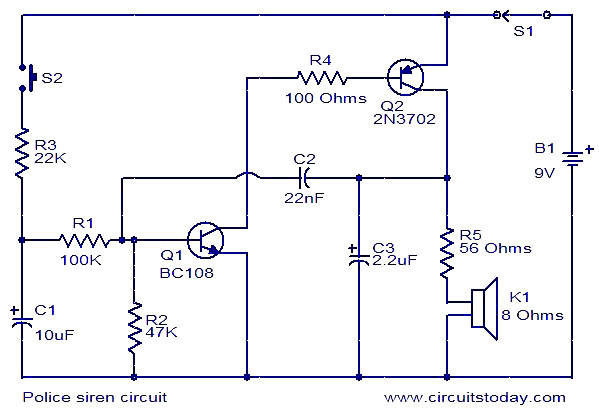

Police siren
The circuit described here generates an alarm sound similar to a police siren. When the push button switch S2 is pressed, capacitor C1 charges, which gradually turns transistor Q1 ON. When switch S1 is released, capacitor C1 discharges, causing transistor...
The SC (Schmitt Comparator) Head
I'll eventually post an explanation, but in the meantime, here it is. Meanwhile, a slightly refined version (with flashing LEDs to indicate "lock") was posted a few weeks later:
The provided description indicates a project involving a circuit that utilizes flashing...
ring bell electronic circuit
This circuit generates an oscillating frequency of approximately 1 kHz, which can be adjusted by changing the value of resistor R1. The speaker will emit a continuous beep sound at this frequency.
The circuit utilizes a basic oscillator configuration, likely...
Police siren
This blog showcases project documentation of various projects completed by members of the Association of Experimental Electronics. Some projects are beginner-friendly, while others are intended for more advanced solderers. The core components of this sequencer were assembled during the Modular...

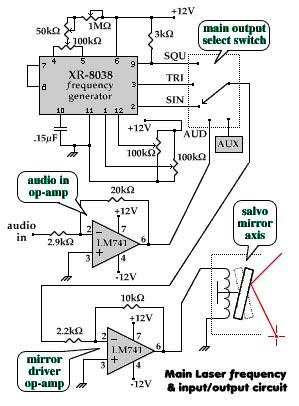

XR-8038 precision frequency generator
