555 alarm doorbell and lighting controller circuit
#555 timer
#Hall effect sensor
#doorbell
#lighting control
#delay circuit
#automatic door
#astable multivibrator
#DN838
#alarm system
#home automation
Description: The controller circuit illustrated in Figure 15-24 consists of a switch-type Hall integrated circuit DN838 and an astable multivibrator, which is based on the 555 timer IC. This circuit is suitable for various applications, including automatic door opening, delay alarms, automatic light shut-off, and doorbell functions.
The controller circuit features a Hall effect sensor (DN838) that detects magnetic fields and can be activated by a magnet. When the sensor is triggered, it sends a signal to the astable multivibrator, which generates a continuous square wave output. The 555 timer in astable mode is configured with resistors and capacitors, determining the frequency and duty cycle of the output signal.
In automatic door opening applications, the Hall sensor can be positioned near a door frame, and when a user approaches with a magnet (e.g., on a key fob), the door can be programmed to open automatically. For delay alarms, the output from the 555 timer can be used to trigger an audible alarm after a predetermined time, providing a warning before activation.
The circuit can also control lighting systems by using the astable multivibrator to turn lights on and off automatically, based on the presence of a magnetic field detected by the Hall sensor. This feature is beneficial for energy-saving applications. Additionally, the circuit can function as a doorbell, where the Hall sensor detects the presence of a visitor and activates a chime or buzzer.
Overall, the combination of the Hall integrated circuit and the astable multivibrator provides a versatile and efficient solution for various automation tasks in residential and commercial settings.As the figure 15-24 shows, the controller circuit is composed of the switch type Hall integrated circuit DN838 and the astable multivibrator (composed of the 555), this circuit can be used in wide range of applications such as the automatic door opening, automatic delay alarm, automatically turns off the lights and also it can be used as the doorbell. The a..
The controller circuit features a Hall effect sensor (DN838) that detects magnetic fields and can be activated by a magnet. When the sensor is triggered, it sends a signal to the astable multivibrator, which generates a continuous square wave output. The 555 timer in astable mode is configured with resistors and capacitors, determining the frequency and duty cycle of the output signal.
In automatic door opening applications, the Hall sensor can be positioned near a door frame, and when a user approaches with a magnet (e.g., on a key fob), the door can be programmed to open automatically. For delay alarms, the output from the 555 timer can be used to trigger an audible alarm after a predetermined time, providing a warning before activation.
The circuit can also control lighting systems by using the astable multivibrator to turn lights on and off automatically, based on the presence of a magnetic field detected by the Hall sensor. This feature is beneficial for energy-saving applications. Additionally, the circuit can function as a doorbell, where the Hall sensor detects the presence of a visitor and activates a chime or buzzer.
Overall, the combination of the Hall integrated circuit and the astable multivibrator provides a versatile and efficient solution for various automation tasks in residential and commercial settings.As the figure 15-24 shows, the controller circuit is composed of the switch type Hall integrated circuit DN838 and the astable multivibrator (composed of the 555), this circuit can be used in wide range of applications such as the automatic door opening, automatic delay alarm, automatically turns off the lights and also it can be used as the doorbell. The a..
load electronic small 555
This is a license to use the files to manufacture up to 12 boards. If additional boards are required, please make contact. It is important to note that the order must specify the intent to produce 12 or fewer boards....
dc motor control pwm 555
This simple DC motor control or PWM circuit using a 555 IC can be utilized to regulate the speed of a DC motor. The circuit is straightforward and can be assembled quickly if all components are readily available.
The described circuit...
Touch Activated Alarm System
The 555 timer IC can be of various types, all of which are pin-compatible. However, some CMOS variants may lack sufficient power to drive a transistor, in which case a standard 555 timer should be used. If a 12V power...
Voltage Controlled Switch with 555
The old and omnipresent NE555 can be very good at something it was not meant for: driving relays or other loads up to 200 mA. The picture shows an example circuit: if the input level rises over 2/3 of the...
12V power inverter using 555 timer circuit
This 12V power inverter circuit can be utilized to power small devices that require 240 volts. It is particularly advantageous for operating 240-volt appliances using a 12-volt car battery. Unlike typical feedback oscillator inverters, this design employs a 555 timer...
555 Fm Circuit Circuit
Circuit for applying a DC-coupled FM or PPM to a 555 configured as an oscillator. IC-1 is a Motorola MC-1374P, and IC-2 is a National LH0002C. L1 and L2 are Mouser Electronics #421IF200. C1 and C2 are silver mica capacitors...
Inexpensive Pulse Generator For Logic Troubleshooting
This pulse generator is constructed using a 555 timer integrated circuit (IC) and can be integrated into a probe for logic troubleshooting. Resistor R1 controls the frequency, providing a range of approximately 5 to 200 Hz. Capacitor C2 can be...

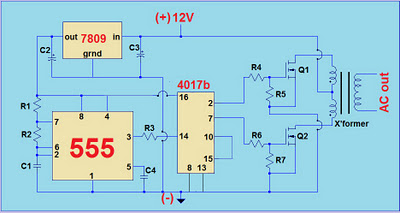

12V-220V Modified Sine-wave Inverter Circuit
