alarm door bell circuit using ne555 part 1
Description: The primary components of this doorbell circuit include two NE555 timer integrated circuits (ICs). When the switch S1 is pressed momentarily, the loudspeaker emits a bell tone for the duration determined by the time period of the monostable multivibrator configuration using IC1.
This doorbell circuit utilizes two NE555 timer ICs to create a simple yet effective signaling mechanism. The first timer, configured in monostable mode, is responsible for generating a pulse when the switch S1 is activated. This switch acts as a momentary contact, allowing the circuit to respond only when pressed.
Upon activation, the monostable multivibrator (IC1) produces a high signal for a predetermined duration, which is set by an external resistor and capacitor connected to the timer. The output of IC1 is connected to a loudspeaker, which generates the bell tone. The duration of the sound can be adjusted by changing the values of the resistor and capacitor, providing flexibility in the length of the audio signal.
The second NE555 timer (IC2) can be utilized for additional features, such as creating a visual indicator (e.g., an LED) that illuminates when the doorbell is pressed or for controlling the volume of the sound output. This timer can be configured in astable mode to produce a continuous tone or to modulate the sound output for different effects.
The circuit should be powered by a suitable DC power supply, typically ranging from 5V to 15V, depending on the specifications of the NE555 timers and the loudspeaker. Proper attention should be given to the power ratings of the components to ensure reliable operation.
Overall, this doorbell circuit design is straightforward, making it an excellent project for beginners in electronics, while also offering possibilities for customization and expansion for more advanced users.The main part of this doorbell circuit are two NE555 timer ICs. When some one presses switch S1 momentarily, the loud speaker sounds a bell tone as long as the time period of the monostable multivibrator built around IC1.
This doorbell circuit utilizes two NE555 timer ICs to create a simple yet effective signaling mechanism. The first timer, configured in monostable mode, is responsible for generating a pulse when the switch S1 is activated. This switch acts as a momentary contact, allowing the circuit to respond only when pressed.
Upon activation, the monostable multivibrator (IC1) produces a high signal for a predetermined duration, which is set by an external resistor and capacitor connected to the timer. The output of IC1 is connected to a loudspeaker, which generates the bell tone. The duration of the sound can be adjusted by changing the values of the resistor and capacitor, providing flexibility in the length of the audio signal.
The second NE555 timer (IC2) can be utilized for additional features, such as creating a visual indicator (e.g., an LED) that illuminates when the doorbell is pressed or for controlling the volume of the sound output. This timer can be configured in astable mode to produce a continuous tone or to modulate the sound output for different effects.
The circuit should be powered by a suitable DC power supply, typically ranging from 5V to 15V, depending on the specifications of the NE555 timers and the loudspeaker. Proper attention should be given to the power ratings of the components to ensure reliable operation.
Overall, this doorbell circuit design is straightforward, making it an excellent project for beginners in electronics, while also offering possibilities for customization and expansion for more advanced users.The main part of this doorbell circuit are two NE555 timer ICs. When some one presses switch S1 momentarily, the loud speaker sounds a bell tone as long as the time period of the monostable multivibrator built around IC1.
Recordable electronic doorbell
The recordable electronic doorbell consists of a recording and playback integrated circuit (IC), resistors R1-R6, capacitors C1-C4, a microphone (BM), a speaker (BL), control buttons S1 and S2, a battery (GB), and an LED (VL). Resistors R1-R5 should be selected...
Electronic Buzzer with IC timer NE555 circuit diagram
This easy electronic buzzer circuit is built based on a timer that operates to generate frequency. The IC timer NE555 is used as an astable multivibrator operating at approximately 1 kHz, producing a sound when powered on. The sound frequency...
fogger timer
On Halloween night, there are often periods of 5, 10, or even 15 minutes when no trick-or-treaters are present. It seemed inefficient to have the fogger continuously emitting fog during these breaks using a standard fogger timer. Therefore, a custom...
Two way Loudspeaker cross-over
The resistance of loudspeakers is characterized in a frequency depending on the destination and their press. Loudspeakers are distinguished, as for the destination, in loudspeakers of low frequencies, woofer intermediate, mid-range and high tweeter. Their resistance in Ω is 4Ω,...
radio wave alarm
This simple alarm circuit can effectively alert users to the presence of an intruder, providing notification before they even reach the doorstep.
The circuit is designed to be straightforward and efficient, utilizing basic electronic components to create an effective security solution....
Sequential-timer
The timer circuit provides independent control over the output's on and off intervals, which can vary from 0.055 seconds to 30 minutes, and remains relatively unaffected by power-line transients. IC1 is a CMOS programmable timer chip that consists of 24...

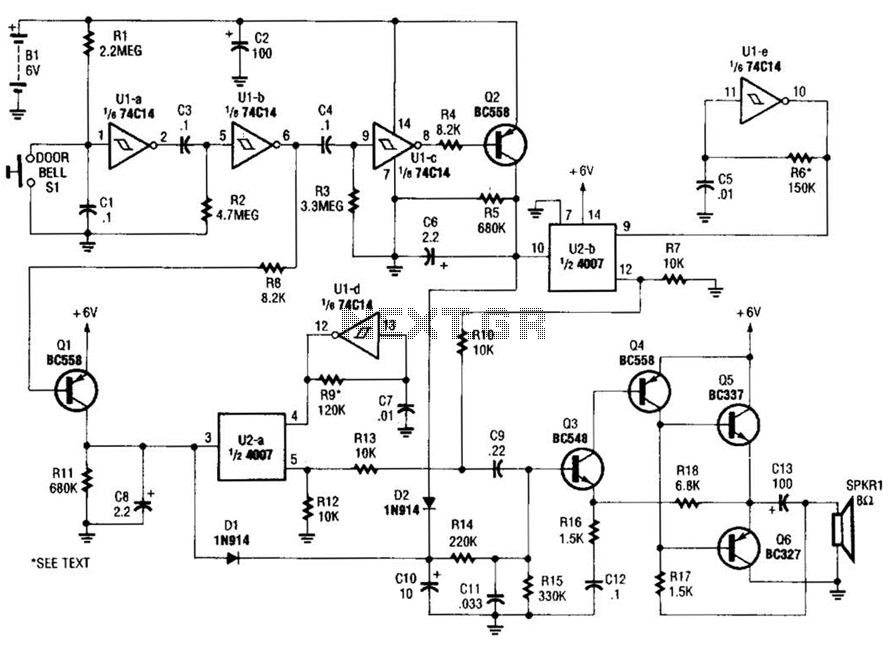

Electronic Doorbell Circuit
When the doorbell switch is pressed, two monostable stages are sequentially activated, applying bias to a pair of voltage-controlled resistor stages. These stages modulate the outputs from a pair of tone generators. The resulting signals are then fed to an...

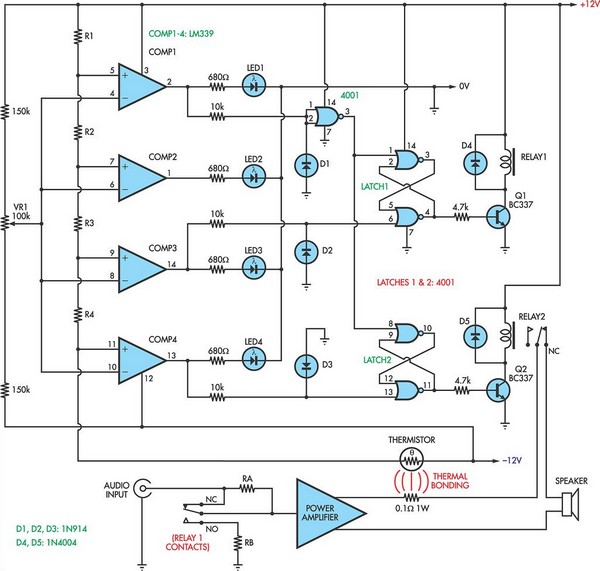

Loudspeaker Protector Monitors Current Circuit
When the voltage on the non-inverting input of each comparator exceeds the voltage at its inverting input, the output transitions to a high state, activating the corresponding LED. NOR gate latches are connected to the outputs of the third and...
Simple NE555 IC Testing Circuit
The NE555 is one of the most commonly used timer integrated circuits (ICs). It is a monolithic timing circuit capable of producing accurate and highly stable time delays or oscillations. Similar to general-purpose operational amplifiers, it is reliable, easy to...
