Assortment of Siren Circuits
Description: Assortment of siren circuits. This month, three different types of siren circuits are being created based on the 555 timer. The first circuit simulates the siren of a British police car. It utilizes two 555 timers.
The design of the first siren circuit, which emulates the sound of a British police car, incorporates two 555 timer integrated circuits (ICs) configured in astable mode. The astable configuration allows the circuit to generate a continuous square wave output, which can be adjusted in frequency to create the desired siren effect.
In this circuit, the first 555 timer is responsible for generating a base frequency, while the second 555 timer modulates this frequency to produce a varying pitch characteristic of a police siren. The frequencies can be adjusted by changing the resistor and capacitor values connected to each timer. For instance, using a potentiometer in series with a resistor can provide a variable frequency output, allowing for fine-tuning of the siren sound.
The output from the second 555 timer is typically fed into a small audio amplifier to drive a speaker, ensuring that the siren sound is audible. An additional feature may include a LED indicator that flashes in sync with the siren sound, enhancing the visual effect of the circuit.
Power supply considerations are essential, with a typical configuration using a 9V battery or a regulated power supply to ensure stable operation of the timers. Proper decoupling capacitors should be placed across the power supply pins of the 555 timers to minimize noise and ensure reliable performance.
In summary, the first siren circuit design effectively simulates the sound of a British police car using two 555 timers, with attention to frequency modulation, output amplification, and power supply stability.Assortment of Siren Circuits. This month I am making 3 different types of siren circuits based on the 555 timer. The first circuit simulates the siren of a British police car. It uses two.
The design of the first siren circuit, which emulates the sound of a British police car, incorporates two 555 timer integrated circuits (ICs) configured in astable mode. The astable configuration allows the circuit to generate a continuous square wave output, which can be adjusted in frequency to create the desired siren effect.
In this circuit, the first 555 timer is responsible for generating a base frequency, while the second 555 timer modulates this frequency to produce a varying pitch characteristic of a police siren. The frequencies can be adjusted by changing the resistor and capacitor values connected to each timer. For instance, using a potentiometer in series with a resistor can provide a variable frequency output, allowing for fine-tuning of the siren sound.
The output from the second 555 timer is typically fed into a small audio amplifier to drive a speaker, ensuring that the siren sound is audible. An additional feature may include a LED indicator that flashes in sync with the siren sound, enhancing the visual effect of the circuit.
Power supply considerations are essential, with a typical configuration using a 9V battery or a regulated power supply to ensure stable operation of the timers. Proper decoupling capacitors should be placed across the power supply pins of the 555 timers to minimize noise and ensure reliable performance.
In summary, the first siren circuit design effectively simulates the sound of a British police car using two 555 timers, with attention to frequency modulation, output amplification, and power supply stability.Assortment of Siren Circuits. This month I am making 3 different types of siren circuits based on the 555 timer. The first circuit simulates the siren of a British police car. It uses two.
Advanced LED Flasher with 555
This circuit uses three easily available 555 timer ICs. All three work as astable multivibrators. The first 555 has an on period and off period equal to 1 sec. This IC controls the on/ off periods of the other 2...

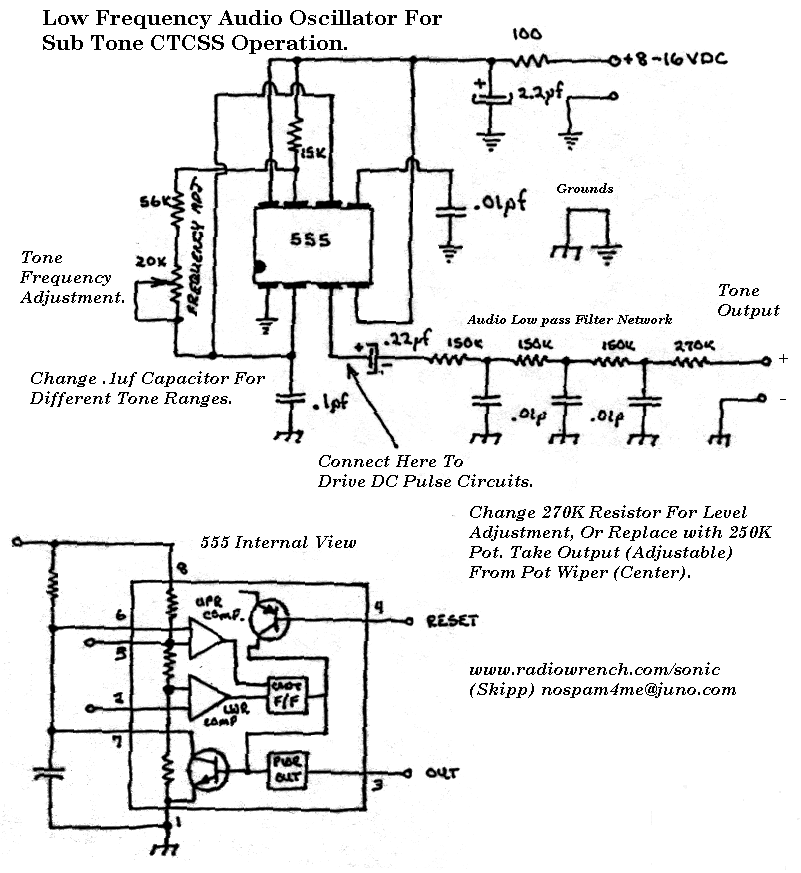

Low Frequency CTCSS PL Sub-Tone Audio Oscillator
The lf555afosc1.pdf file download contains a diagram with annotations for a Sub-Tone (CTCSS or "PL") Oscillator, designed using the well-known 555 timer IC configured for astable multivibrator operation. The component values are selected to position the tone range near the...

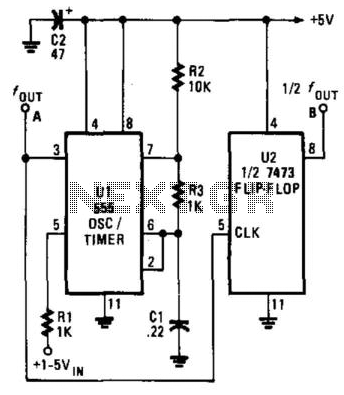

Simple 555 Vco
The Voltage-Controlled Oscillator (VCO) has an output frequency that ranges from 1500 Hz at Vcontrol = 1 V to 300 Hz at Vcontrol = 5 V. The resistive component R1 or the capacitive component C1 can be adjusted to modify...
Flyback Transformer circuit with 555
The 555 is wired as an astable and the capacitor is charged only through the 4.7Kohm trimmer (notice the diode) and discharged only through the 2.2 Kohm trimmer, making the duty cycle fully adjustable. The square wave is then fed...
American Police Car Siren by IC 555
The second circuit simulates the siren of an American police car. It utilizes two 555 timers. The 555 timer on the right is configured as an alarm tone generator, while the second 555 timer on the left operates as a...
Siren Circuit
Siren Circuit. This circuit generates a sound siren when switch S1 is pressed, increasing the sound frequency as capacitor C1 charges. The sound frequency decreases when switch S1 is released.
The siren circuit operates based on the charging and discharging characteristics...
555 capacitance tester circuit diagram
The tester comprises a dual time base circuit using a 556 timer and various RC components. The right side of the circuit features the 556 timer (556 1/2) along with resistors R2, R3, capacitors C2, C3, and additional components configured...

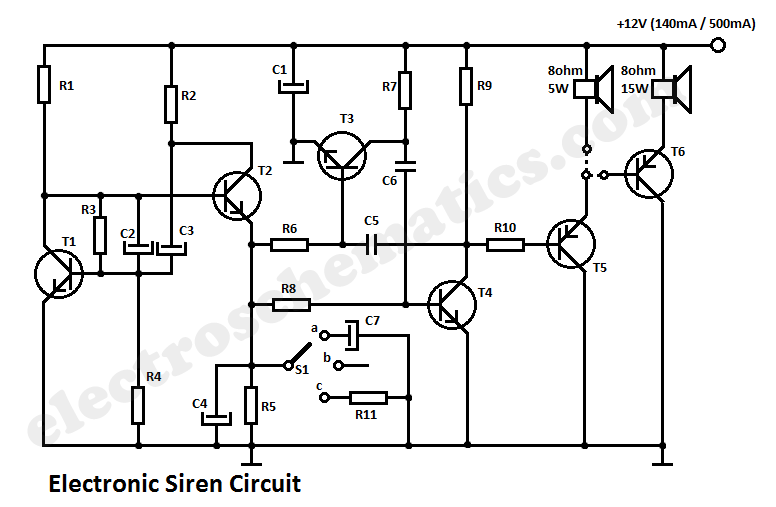

Simple Siren Circuit
This circuit generates a tone that resembles a siren. The generator section consists of a combination of PNP and NPN transistors that form a free-running multivibrator. If capacitor C2 were connected to the positive line of the power supply, it...

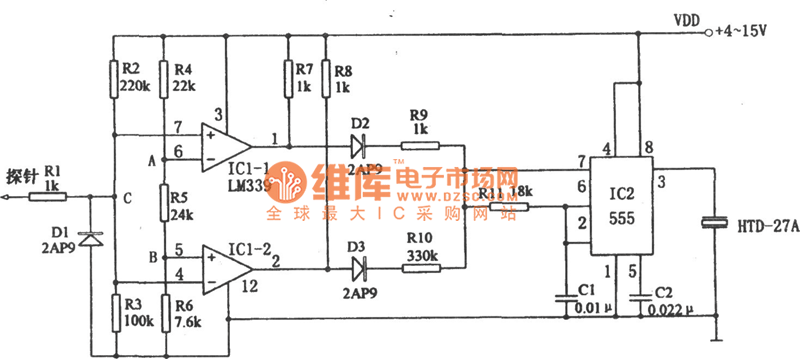

Circuit Diagram of Audio Logic Level Probe Composed of 555
The above picture illustrates an audio logic level probe circuit, which consists of a voltage comparator, a multivibrator, and piezoelectric ceramics (HTD). The multivibrator and piezoelectric components together form the audio circuit, which operates at an audio frequency to evaluate...
