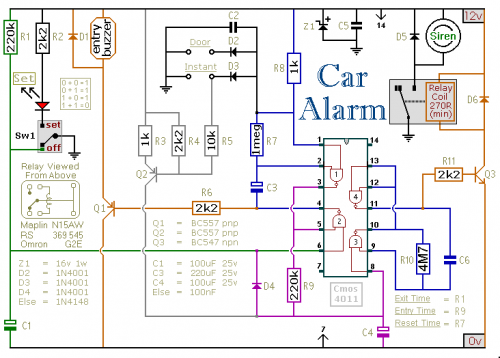

Description: This car alarm circuit includes Exit and Entry delays, an instant alarm zone, an intermittent siren output, and an automatic reset function. By incorporating external relays, it is possible to immobilize the vehicle and activate the lights.
The car alarm circuit is designed to enhance vehicle security by providing a range of features that deter unauthorized access. The Exit and Entry delays are crucial for allowing the user time to enter or exit the vehicle without triggering the alarm. Typically, these delays are adjustable, allowing the user to set the duration based on personal preferences.
The instant alarm zone is a critical feature that activates the alarm immediately upon unauthorized entry into specific areas of the vehicle, ensuring rapid response to potential threats. The intermittent siren output serves to draw attention to the alarm condition without causing continuous disturbance, which can be beneficial in residential areas.
The automatic reset function ensures that the alarm system resets itself after a designated period, preventing unnecessary battery drain and allowing the user to regain control of the system without manual intervention. This feature can be particularly useful in scenarios where the alarm is triggered accidentally.
Additionally, the integration of external relays provides flexibility in enhancing the alarm system's capabilities. By utilizing these relays, users can immobilize the vehicle's ignition system or fuel pump, rendering the vehicle inoperable to unauthorized users. Furthermore, the ability to flash the lights serves as a visual deterrent and alerts nearby individuals to the alarm condition.
Overall, this car alarm circuit is designed to provide comprehensive security solutions tailored to meet the needs of vehicle owners, combining functionality with ease of use to ensure maximum protection against theft and unauthorized access.This car alarm circuit features Exit and Entry delays, an instant alarm zone, an intermittent siren output and automatic Reset. By adding external relays you can immobilize the vehicle and flash the lights..
Create a circuit that enables the activation of a relay to control an LED. The relay operates at 12 V, while the available input voltage is 5 V. An NPN transistor will be utilized to switch the power to the...
Configured with capacitive coupling by inserting a small capacitor between the phototransistor and the bipolar transistor, this relay circuit will respond only to rapid changes.
This relay circuit utilizes capacitive coupling to enhance its responsiveness to fast signal changes. The configuration...

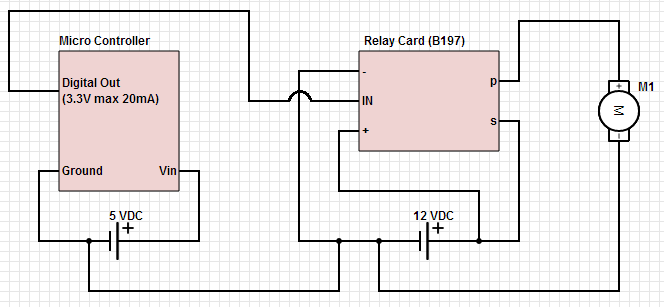

The objective is to control a 12 VDC device (on/off) from a microcontroller using a relay card. The relay requires a 12 VDC operating power supply.
To achieve the control of a 12 VDC device using a microcontroller and a relay...

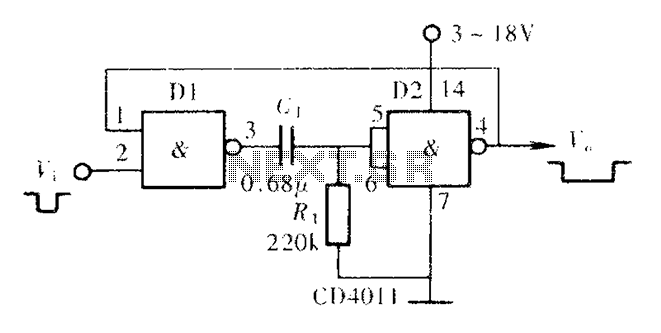

A CMOS NAND gate or NOR gate can form a monostable multivibrator, commonly referred to as a single-shot. This circuit is extensively used to delay pulse signals, allowing for signal stretching and shaping. The main principle involves utilizing the threshold...
The one-shot and decay functions could be added to create an ideal phasor gun sound.
To design a circuit that generates a phasor gun sound using one-shot and decay functions, the following components and configuration can be utilized. The one-shot function...
This circuit is designed for children's entertainment and can be installed on bicycles, battery-powered cars, motorcycles, as well as on models and various games and toys. When switch SW1 is positioned as depicted in the circuit diagram, it generates the...
ECL integrated circuit non-saturated digital logic circuits. CMOS and ECL interface circuit shown in cross.
ECL (Emitter Coupled Logic) integrated circuits are designed to operate in a non-saturated mode, providing high-speed digital logic functionality. These circuits are characterized by their fast...
The lamp relay delay circuit is illustrated in Figure 7. Components S131 and SB2 are light buttons mounted in different locations. The lamp can operate with F. LEDs (LED1 and LED2) should be installed in SB1 and SB2 to indicate...
The common clock oscillator illustrated in Fig. 68-19A has two minor issues: it may not oscillate if the transition regions of its two gates differ. If it does oscillate, it might occasionally operate at a slightly lower frequency than predicted...
