Heat Or Light Activated Alarm Circuit
Description: The tone generated by a 555 oscillator can be activated by heat or light, which causes Q1 to conduct transistor Q2 (TIP 3055). Q2 (TIP 3055) functions as an audio amplifier and speaker driver.
The circuit utilizes a 555 timer configured in astable mode to generate a square wave output that produces a tone. The activation mechanism relies on a heat or light sensor, which, when triggered, allows current to flow through Q1, a transistor that acts as a switch. This switching action enables Q2, also a TIP 3055 transistor, to amplify the audio signal generated by the 555 timer.
In this configuration, the 555 timer's output frequency can be adjusted by varying the resistor and capacitor values connected to it. The output from the 555 timer feeds into the base of Q2, which amplifies the signal significantly. The TIP 3055 is chosen for its ability to handle higher currents and voltages, making it suitable for driving a speaker directly.
The circuit may include additional components such as resistors for biasing the transistors, capacitors for filtering, and possibly a diode for protection against back EMF generated by the speaker. The speaker, connected to the collector of Q2, produces sound when the amplified signal drives it. This arrangement allows for a responsive audio output that reacts to environmental changes detected by the heat or light sensor. The tone generated by a 555 oscillator can be turned on (activated) by heat or light. That causes Ql to conduct transistor W2 (TIP 3055). Q2 (TIP 3055) acts as an audio amplifier and speaker driver.
The circuit utilizes a 555 timer configured in astable mode to generate a square wave output that produces a tone. The activation mechanism relies on a heat or light sensor, which, when triggered, allows current to flow through Q1, a transistor that acts as a switch. This switching action enables Q2, also a TIP 3055 transistor, to amplify the audio signal generated by the 555 timer.
In this configuration, the 555 timer's output frequency can be adjusted by varying the resistor and capacitor values connected to it. The output from the 555 timer feeds into the base of Q2, which amplifies the signal significantly. The TIP 3055 is chosen for its ability to handle higher currents and voltages, making it suitable for driving a speaker directly.
The circuit may include additional components such as resistors for biasing the transistors, capacitors for filtering, and possibly a diode for protection against back EMF generated by the speaker. The speaker, connected to the collector of Q2, produces sound when the amplified signal drives it. This arrangement allows for a responsive audio output that reacts to environmental changes detected by the heat or light sensor. The tone generated by a 555 oscillator can be turned on (activated) by heat or light. That causes Ql to conduct transistor W2 (TIP 3055). Q2 (TIP 3055) acts as an audio amplifier and speaker driver.

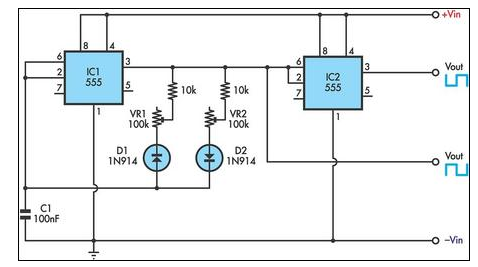

555 Timer Circuit With Variable On/Off Times
This circuit allows for the independent variation of the on/off times of a 555 timer across a wide range. This capability is not achievable with a conventional 555 timer circuit.
The described circuit enhances the functionality of the standard 555 timer...
Monoflop practical circuit
Primarily utilized for single-shot timing, shaping, and delay applications. This is achieved through a monostable trigger circuit using the 555 integrated circuit.
The 555 timer IC is a versatile component widely employed in various electronic applications, particularly in generating precise timing...
Device that it is self-running
If the input is coming from a function generator's typical output clip leads, then the "black" lead or "-" or "ground" is connected to the circuit's ground. The ground of Pin 3 of a 555 timer must also be common...
oscillator
An oscillator is an electronic circuit that converts energy from a direct-current source into a periodically varying electric output.
An oscillator is a fundamental component in various electronic systems, serving the purpose of generating oscillating signals, typically in the form of...
audio tone control with 2 transistor
The first BC109C transistor functions as a buffer, offering the circuit an input impedance of approximately 250,000 ohms and a voltage gain just below unity. As the Baxandall tone control circuit is a passive design, it attenuates all audio frequencies....
Two transistor siren
The circuit diagram illustrates a simple two-transistor alarm circuit powered by a 9V PP3 battery. In this configuration, the two transistors are arranged to create an oscillator. The frequency of the oscillator increases when switch S2 is pressed and decreases...
