Infrared sensing automatic door control circuit diagram with KC778B
#infrared sensor
#KC778B
#PIR
#automatic door
#light control
#manual control
#security system
#motion detection

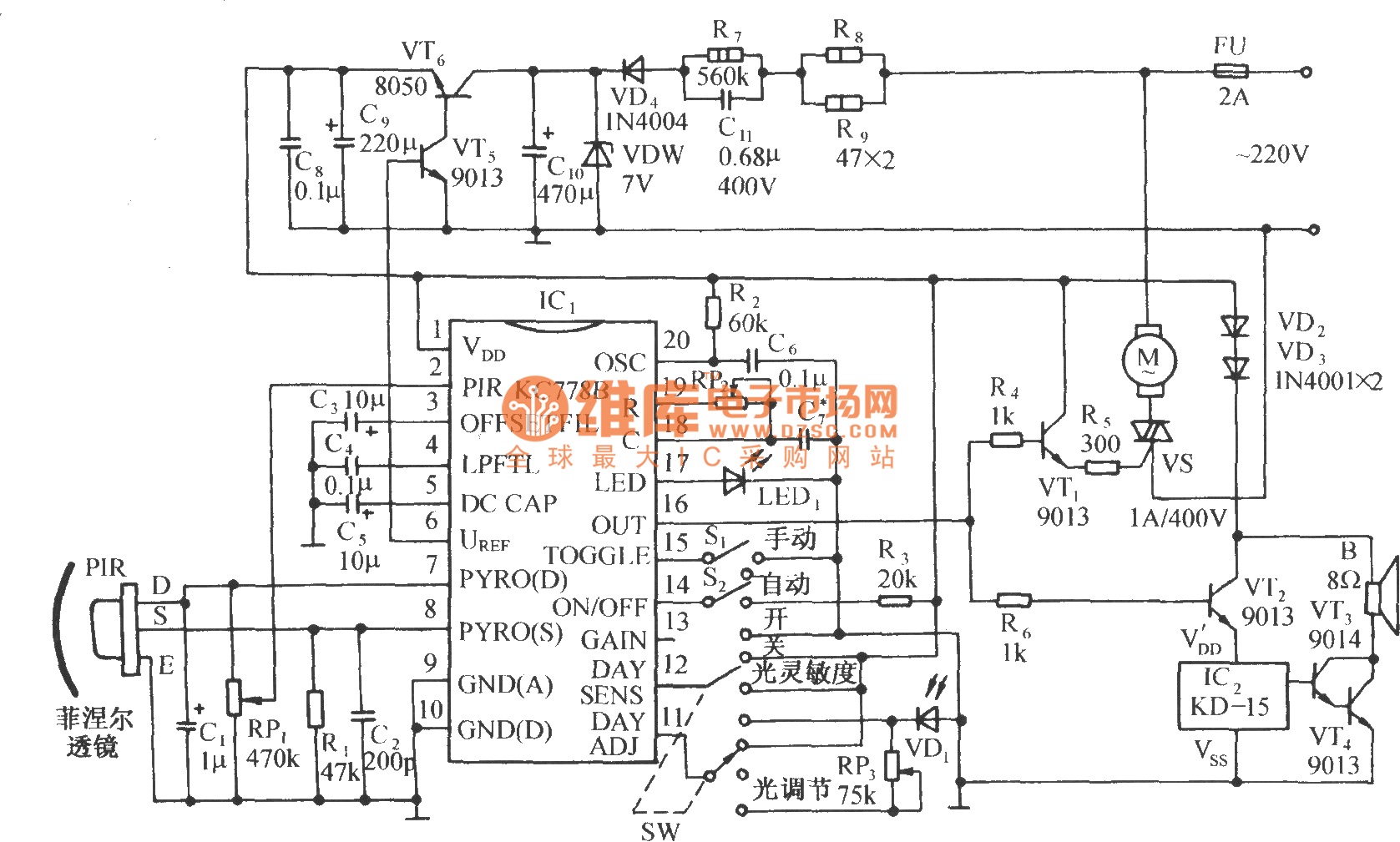

Description: The circuit is depicted in the diagram. It is a control circuit that consists of the infrared-specific integrated circuit KC778B, which serves as the central component. Surrounding it are a pyroelectric infrared sensor head (PIR), a light control and adjustment circuit, a three-state selection control, an automatic restart function, and a manual control block.
The circuit utilizes the KC778B integrated circuit, which is specifically designed for infrared applications. This component is crucial for processing signals received from the pyroelectric infrared sensor head (PIR), which detects motion by sensing changes in infrared radiation. The PIR sensor is strategically positioned to optimize its field of view, allowing it to effectively monitor the designated area for any movement.
Additionally, the light control and adjustment circuit enables users to regulate the intensity and duration of the light output based on the detected motion. This feature is particularly useful in applications such as automatic lighting systems in residential and commercial settings, where energy efficiency is a priority.
The three-state selection control allows for versatile operation modes, such as automatic, manual, and off settings. This flexibility provides users with the ability to customize the circuit's functionality according to their specific needs. The automatic restart function ensures that the circuit resumes operation seamlessly after a power interruption, enhancing reliability and convenience.
Lastly, the manual control block offers an alternative means of operation, allowing users to override automatic settings when necessary. This comprehensive control over the circuit's functions makes it suitable for a variety of applications, including security systems, automated lighting solutions, and energy management systems. The integration of these components within the circuit design ensures efficient performance and adaptability to various operational requirements.The circuit is shown as the chart. It is a control circuit which composed of infrared specific integrated circuit KC778B and KC778B is the center of the circuit. It s surrounded by a pyroelectric infrared sensor head PIR, light control and light control adjustment circuit, a three-state select control, automatic restart function and manual control block s..
The circuit utilizes the KC778B integrated circuit, which is specifically designed for infrared applications. This component is crucial for processing signals received from the pyroelectric infrared sensor head (PIR), which detects motion by sensing changes in infrared radiation. The PIR sensor is strategically positioned to optimize its field of view, allowing it to effectively monitor the designated area for any movement.
Additionally, the light control and adjustment circuit enables users to regulate the intensity and duration of the light output based on the detected motion. This feature is particularly useful in applications such as automatic lighting systems in residential and commercial settings, where energy efficiency is a priority.
The three-state selection control allows for versatile operation modes, such as automatic, manual, and off settings. This flexibility provides users with the ability to customize the circuit's functionality according to their specific needs. The automatic restart function ensures that the circuit resumes operation seamlessly after a power interruption, enhancing reliability and convenience.
Lastly, the manual control block offers an alternative means of operation, allowing users to override automatic settings when necessary. This comprehensive control over the circuit's functions makes it suitable for a variety of applications, including security systems, automated lighting solutions, and energy management systems. The integration of these components within the circuit design ensures efficient performance and adaptability to various operational requirements.The circuit is shown as the chart. It is a control circuit which composed of infrared specific integrated circuit KC778B and KC778B is the center of the circuit. It s surrounded by a pyroelectric infrared sensor head PIR, light control and light control adjustment circuit, a three-state select control, automatic restart function and manual control block s..

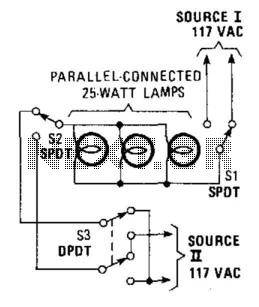

3-Way Light Control
This hookup is useful in certain house wiring situations where only two wires are available between switches, rather than the usual three-way setup that requires three wires. SI and S2 are standard three-way switches, while S3, a double-pole double-throw (DPDT)...

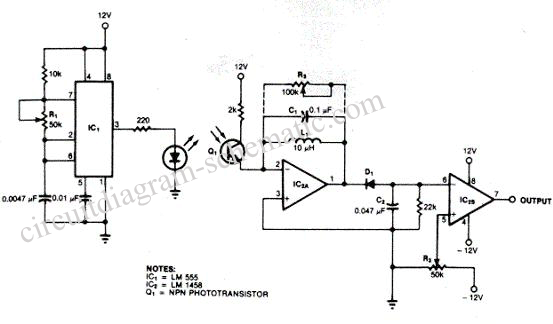

Motion Detectors with Infrared Sensors
Motion detectors commonly utilize ultrasonic sensors due to their sensitivity and rapid response. However, a significant drawback of these sensors is their tendency to react to environmental vibrations, such as sounds from passing cars or planes, leading to unexpected false...

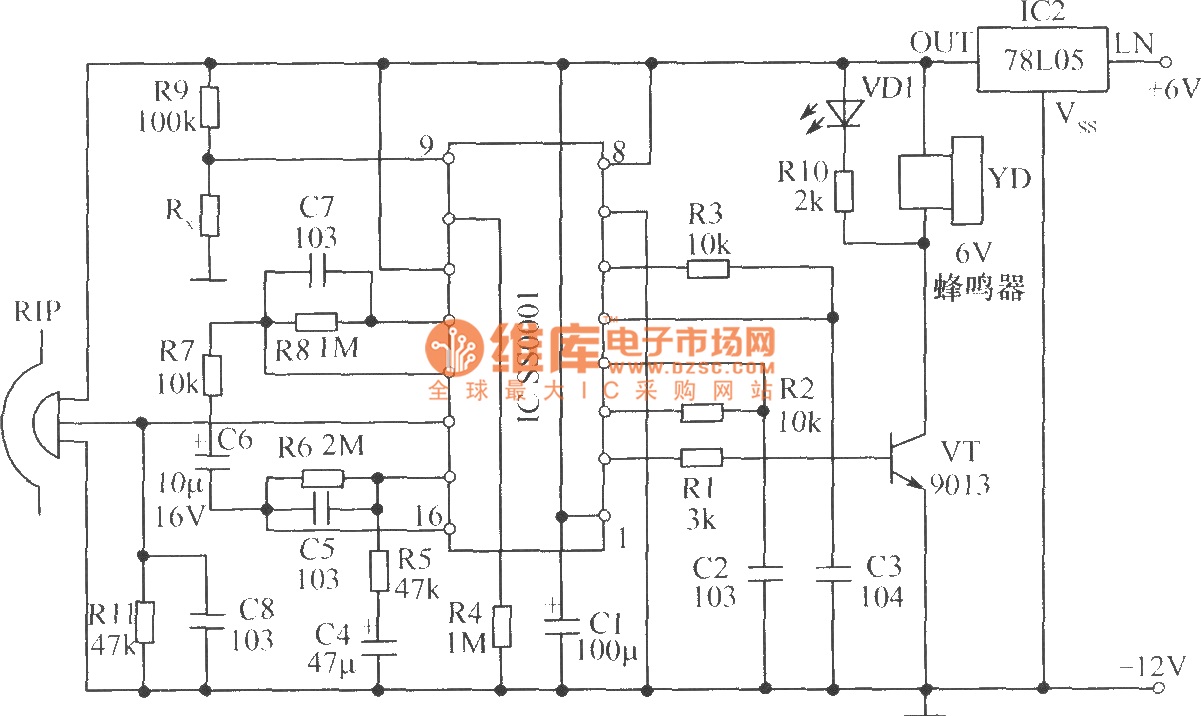

Human infrared thermal release alarm
The human infrared thermal release alarm can detect the infrared radiation emitted by the human body at any time of the day or night, triggering both sound and light alarms. This device is particularly suitable for electronic security applications. The...

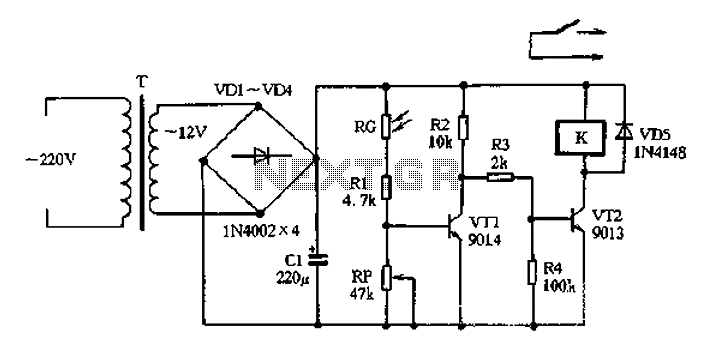

Light control relay control lamp
The circuit operates on 220V AC input, which is transformed to approximately 12V DC using a step-down transformer (T), a diode bridge rectifier (VDI-VD4), and a filter capacitor (C1). This setup is designed to power the entire circuit. The light...
PIR Motion Sensor

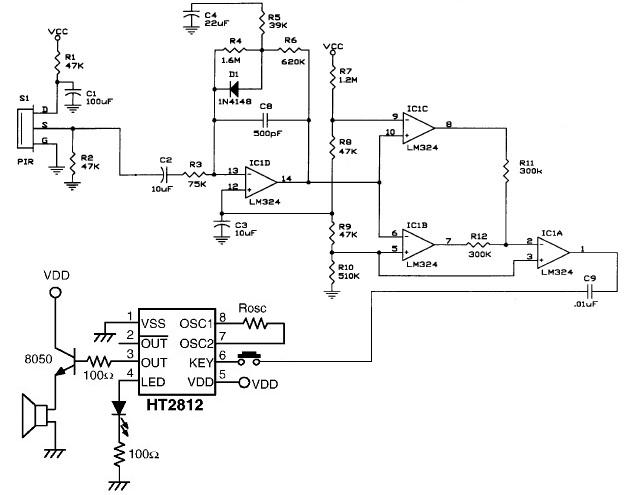

The following circuit illustrates a PIR motion sensor circuit diagram. Features include simplicity and high efficiency, with operational amplifiers used to generate sound.
The PIR (Passive Infrared) motion sensor circuit is designed to detect motion based on changes in infrared radiation...

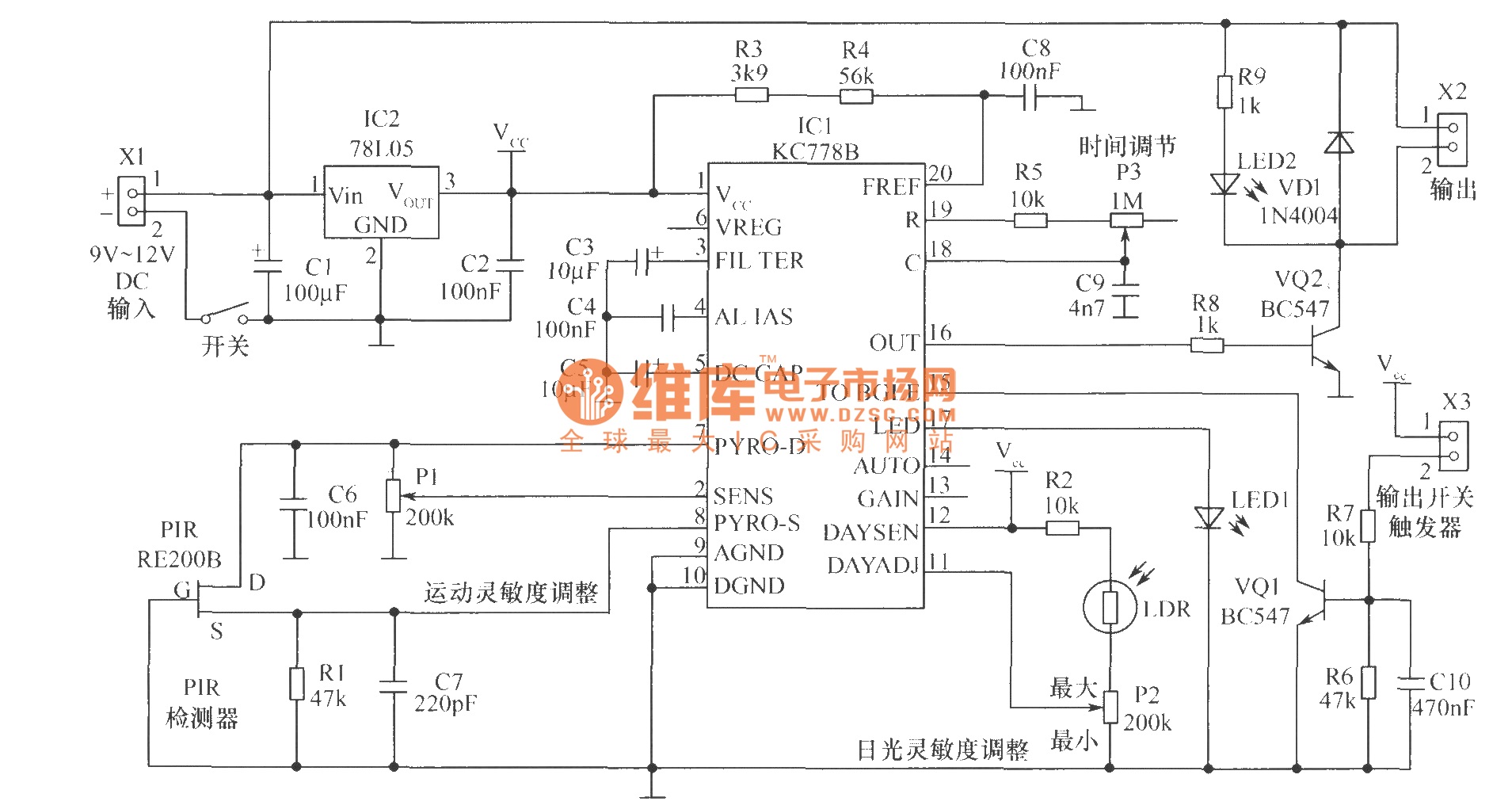

Object motion detector circuit diagram
The core component of the motion detection circuit is the motion detection chip IC1 (KC778B). The signal frequency from the PIR sensor is low, ranging from 0.1Hz to 10Hz, while the bandwidth is quite broad, which the chip will optimize....
Human infrared thermal release alarm
The human infrared thermal release alarm can detect the infrared radiation emitted by the human body at any time of the day or night, triggering both sound and light alarms. This device is particularly suitable for electronic security applications. The...

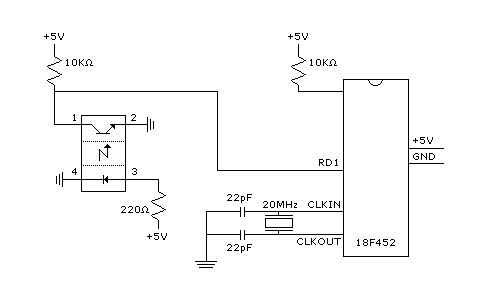

QRD1114IR Sensor
Initially, a PIR Motion Sensor was selected for testing to detect motion in front of the sensor; however, it proved to be insufficiently sensitive. Therefore, a QRD1114 IR Sensor was considered as a substitute. In this test, both sensors were...

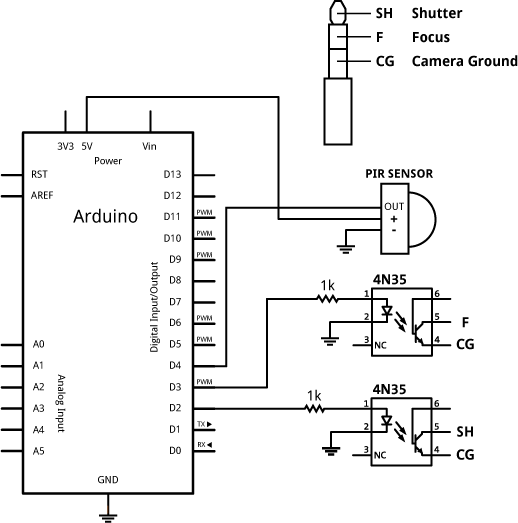

Motion Activated Camera
