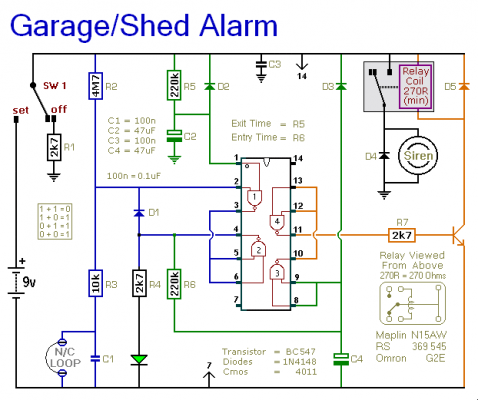

Description: This is a basic single-zone burglar alarm circuit. Its features include automatic exit and entry delays, as well as an optional siren cut-off timer. It has an extremely low standby current, making it ideal for battery-powered operation. This circuit can be used in caravans, mobile homes, lock-ups, or any location where mains power is not available.
The single-zone burglar alarm circuit is designed to provide effective security with minimal power consumption. It operates by detecting unauthorized entry into a designated area. The circuit typically incorporates a passive infrared (PIR) sensor or a magnetic reed switch that triggers the alarm when movement or breach is detected.
The automatic exit and entry delays are crucial features that allow users to arm and disarm the system without triggering the alarm. The exit delay provides a set amount of time for the user to leave the area, while the entry delay allows for re-entry without immediate alarm activation, providing a grace period for disarming the system.
The optional siren cut-off timer is another significant feature, allowing the alarm to sound for a predetermined duration before automatically silencing. This can help prevent unnecessary disturbances and battery drain while still ensuring that an alert is raised during an intrusion.
The circuit's low standby current is essential for battery-powered applications, as it extends the operational life of the system. This is particularly important in remote locations where frequent battery replacements may not be feasible.
In terms of implementation, the circuit can be designed using discrete components such as resistors, capacitors, and transistors, or it can utilize integrated circuits for a more compact solution. The choice of components will depend on the desired features, cost, and available space for installation.
Overall, this burglar alarm circuit is a versatile and efficient solution for enhancing security in various settings where conventional mains-powered systems are impractical.This is a basic single-zone burglar alarm circuit. Its features include automatic Exit and Entry delays - and an optional Siren Cut-Off timer. It has an extremely small standby current. This makes it ideal for battery-powered operation. Use it in your caravan, mobile home, lock-up, or anywhere mains power is not available..
The single-zone burglar alarm circuit is designed to provide effective security with minimal power consumption. It operates by detecting unauthorized entry into a designated area. The circuit typically incorporates a passive infrared (PIR) sensor or a magnetic reed switch that triggers the alarm when movement or breach is detected.
The automatic exit and entry delays are crucial features that allow users to arm and disarm the system without triggering the alarm. The exit delay provides a set amount of time for the user to leave the area, while the entry delay allows for re-entry without immediate alarm activation, providing a grace period for disarming the system.
The optional siren cut-off timer is another significant feature, allowing the alarm to sound for a predetermined duration before automatically silencing. This can help prevent unnecessary disturbances and battery drain while still ensuring that an alert is raised during an intrusion.
The circuit's low standby current is essential for battery-powered applications, as it extends the operational life of the system. This is particularly important in remote locations where frequent battery replacements may not be feasible.
In terms of implementation, the circuit can be designed using discrete components such as resistors, capacitors, and transistors, or it can utilize integrated circuits for a more compact solution. The choice of components will depend on the desired features, cost, and available space for installation.
Overall, this burglar alarm circuit is a versatile and efficient solution for enhancing security in various settings where conventional mains-powered systems are impractical.This is a basic single-zone burglar alarm circuit. Its features include automatic Exit and Entry delays - and an optional Siren Cut-Off timer. It has an extremely small standby current. This makes it ideal for battery-powered operation. Use it in your caravan, mobile home, lock-up, or anywhere mains power is not available..
Burglar alarm circuit

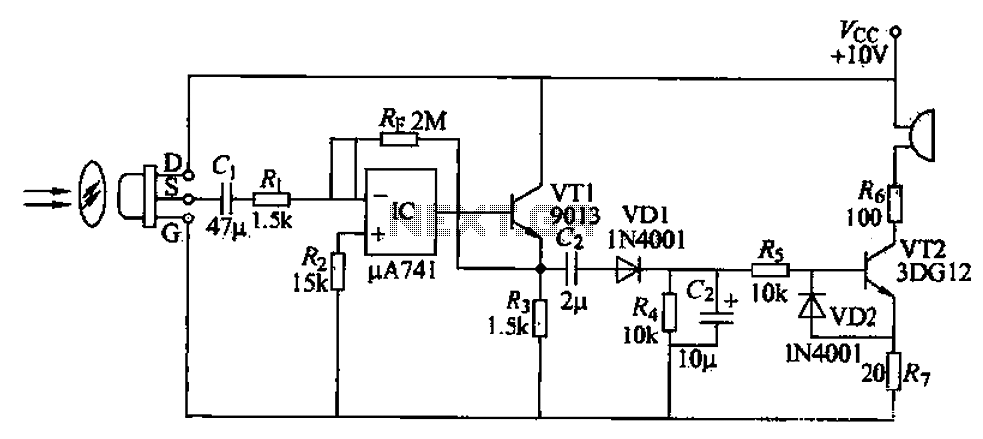

A simple burglar alarm circuit utilizes a pyroelectric sensor (IRA-E100SZI). When human movement is detected, it triggers an electric buzzer alarm. The sensor receives signals through an AC amplifier, which is then converted by a rectifier circuit into a DC...
with scr new alarm Window foil burglar
This is a simple yet effective burglar alarm circuit designed to be mounted on windows for detecting break-ins. The circuit employs a fine wire element arranged as a network within the window glass for sensing any breach. Under normal conditions,...
Low Cost Burglar Alarm For Boats

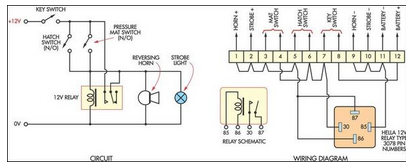

This low-cost burglar alarm utilizes a 12V strobe light and a truck reversing horn as the visible and audible outputs, respectively, while the alarm system operates on a 12V power supply.
The burglar alarm circuit is designed to provide an economical...
garageshed alarm
This is a simple single-zone burglar alarm circuit. Its features include automatic exit and entry delays. It is designed to be used with commonly available normally-closed input devices such as magnetic reed contacts, micro switches, foil tape, and passive infrared...
Simple Burglar Alarm

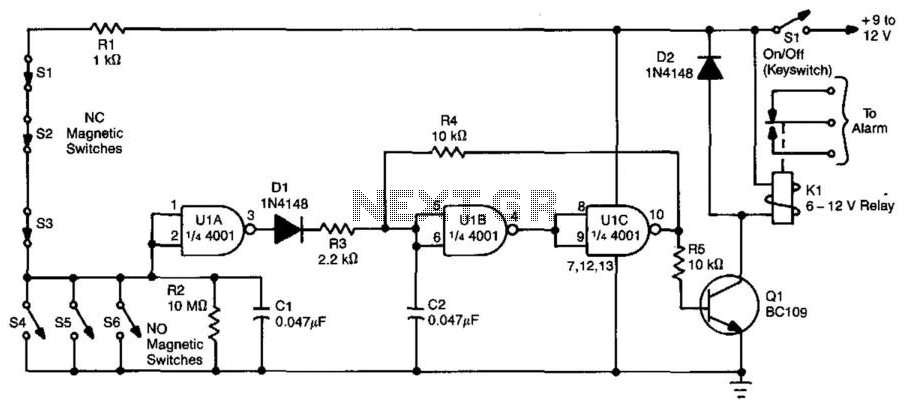

This simple alarm circuit utilizes a single integrated circuit (IC) and a driver transistor, allowing the use of either normally open (NO) or normally closed (NC) sensors. When a sensor is triggered, the input to U1A transitions to a low...
Security alarm

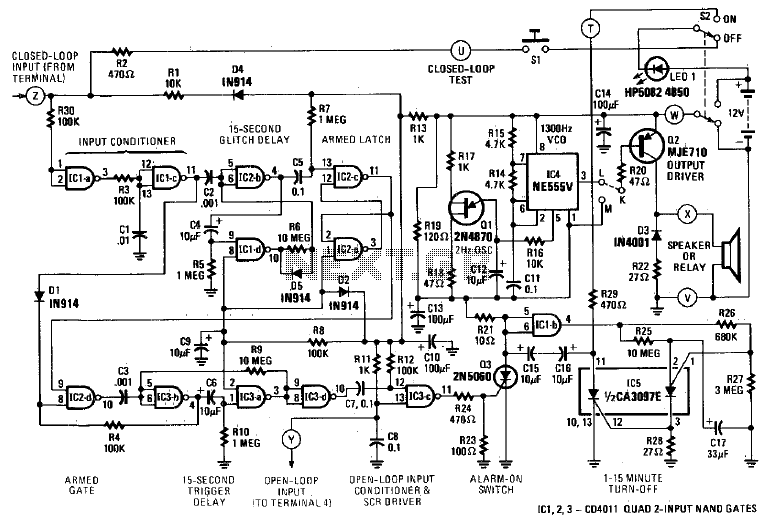

This alarm features both open-loop and closed-loop detection systems along with an automatic alarm shutoff mechanism. It provides a 15-second delay for exit and entrance. Additionally, the alarm activation time can be adjusted from 1 to 15 minutes.
The alarm system...
Electronic Locker Guard
Protect your locker or briefcase from theft using this pocket-sized gadget. It emits a loud police siren to attract attention. The circuit utilizes a single integrated circuit (IC).
This circuit is designed to provide a compact and effective security solution for...
Midnight Security Light Circuit Schematic

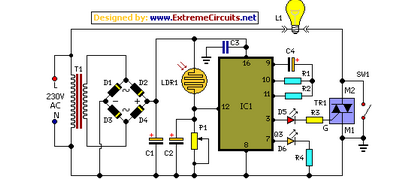

Most thefts occur after midnight when individuals enter the second phase of sleep known as 'paradoxical sleep.' Here is an energy-saving circuit that causes...
An energy-saving circuit designed for security applications can be particularly beneficial during the late-night hours when individuals...
Modular Burglar Alarm

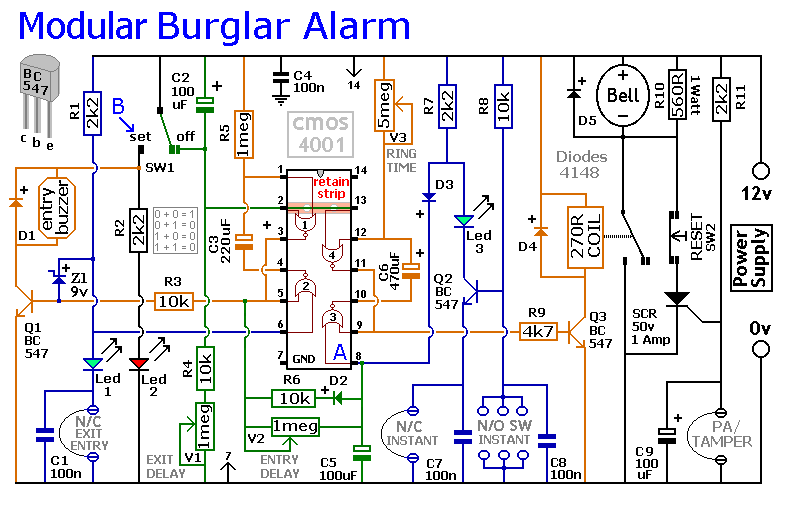

This circuit includes automatic exit and entry delays along with a timed bell cut-off. It accommodates both normally-closed and normally-open contacts and features a 24-hour personal attack/tamper zone. The circuit is permanently connected to a 12-volt supply, and its operation...
