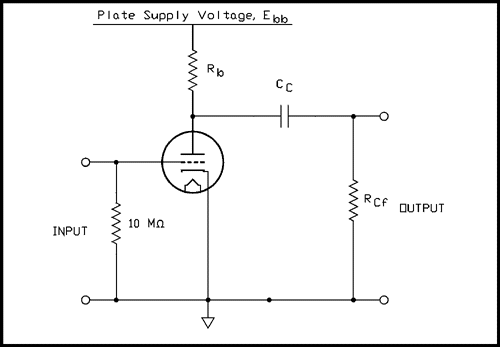

Description: This stage may be driven by another resistance-coupled amplifier stage, in which case the resistor on the left labeled RC is RCf for the previous stage. The resistor on the right labeled RCf is the grid resistor of the next or following stage. The resistor labeled RC serves one purpose: to hold the grid at, or very near, ground potential. The cathode resistor Rk develops the negative voltage for the grid. A note about ground: the concept of ground is a result of human thinking and has nothing to do with the operation of the circuit. The tube does not recognize ground; it simply operates according to its design. Electrons flow from the bottom end of the cathode resistor upwards. When they enter the tube, they are emitted from the cathode and flow to the plate, where they are absorbed. They then exit the tube and continue flowing upwards through the plate resistor, eventually reaching the power supply, where they return to the bottom line of the circuit. The upper end of each resistor is at a higher voltage than the lower end. It is also true that the lower end of each resistor is at a lower voltage than the upper end. Voltage or electrical potential can be thought of as altitude. Ground can be considered as sea level. While sea level cannot be moved, the point from which altitude is measured can be changed. For example, if the front yard is 600 feet above sea level, the top of a bush might be at 605 feet, and the top of a tall tree at 670 feet. This information could also be expressed by taking the front yard as zero altitude, where the top of the bush would be at 5 feet, and the top of the tree at 70 feet. Alternatively, if the top of the bush is taken as zero altitude, the surface of the front yard would be at -5 feet, and the top of the tree would be at 65 feet. The actual altitude of the front yard, the top of the bush, or the top of the tree does not change; only the reference point for measurement is altered. This concept is particularly important. If the top end of the cathode resistor is at +1.5 volts, the grid will be at ground potential, defined as 0 volts. If the reference point is shifted so that the cathode is at 0 volts, the bottom end of the cathode resistor will be at -1.5 volts. Since the grid is at the same voltage as the bottom end of the cathode resistor, the grid is at -1.5 volts. This method allows the grid of a tube to be negative without requiring a negative power supply, commonly referred to as "self-bias." The necessity for the grid of a tube to be negative arises because when both the grid and cathode are at zero volts, the tube conducts heavily. Any attempt to drive the grid positive will result in grid current, necessitating a very low impedance source to achieve this. It should be noted that there are specific applications in radio transmitters where this condition is utilized to achieve higher efficiency. In audio applications, the plate current must be able to vary around its steady value; therefore, the grid must be set to a slightly negative voltage to allow current to flow in either direction. When the grid is slightly negative, it repels some electrons, resulting in fewer electrons reaching the plate. As the grid becomes increasingly negative, even fewer electrons are allowed through, causing the plate current to diminish. Eventually, a point is reached where no electrons can pass through, and the plate current is said to be cut off. The resistor in the plate returns the electrons to the power supply and converts any change in the tube's plate current.
In the described circuit, the interaction between the components, particularly the resistors and the tube, creates a system capable of amplifying signals effectively. The resistance-coupled amplifier stage utilizes RCf to maintain appropriate voltage levels between stages, ensuring that the grid remains stable. The critical function of the cathode resistor Rk in developing a negative voltage for the grid is fundamental to the operation of the tube.
The self-biasing mechanism illustrated here allows for the control of the tube's conduction state without the need for additional negative voltage supplies. By manipulating the reference ground level, the circuit designer can achieve desired operating conditions for the tube, thus facilitating audio signal modulation. The relationship between the grid voltage and the plate current is a key aspect of the design, as it establishes the operational characteristics of the amplifier.
This circuit exemplifies the principles of electron flow, voltage potential, and the significance of biasing in tube amplifiers, providing a robust framework for understanding and designing similar electronic systems. The described methodology highlights the importance of precise voltage management in achieving optimal performance in audio amplification applications.This stage may be driven by another resistance coupled amplifier stage in which case the resistor on the left labeled RC is RCf for the previous stage. The resistor on the right labeled RCf is the grid resistor of the next or following stage. The resistor labeled RC serves one purpose; that is to hold the grid at, or very near, ground potential.
T he cathode resistor Rk develops the negative voltage for the grid. A note about ground. The concept of ground is a result of human thinking and has nothing to do with the operation of the circuit. The tube doesn`t know from ground it just does what it does. We humans can arbitrarily move the ground and the circuit won`t care or even know. Electrons are flowing from the bottom end of the cathode resistor upwards. When they get inside the tube they are emitted from the cathode and flow to the plate where they are absorbed.
They emerge from the tube and continue flowing upwards through the plate resistor and eventually reach the power supply where they are returned to the bottom line of the circuit. The upper end of each resistor is at a higher voltage than the lower end. It is also true to say that the lower end of each resistor is at a lower voltage than the upper end. Think of voltage or electrical potential as altitude. Up is up and down is down. Ground is sea level. Now in altitude we can`t move sea level but we can decide where we want to measure altitude from. Let`s say your front yard is 600 feet above sea level. The top of a bush has an altitude of 605 feet and the top of a tall tree has an altitude of 670 feet.
You could give the same information by taking the front yard as zero altitude and the top of the bush would be at 5 feet and the top of the tree at 70 feet. And further more you could take the top of the bush as zero altitude and the surface of your front yard would be at -5 feet and the top of the tree would be at 65 feet.
The actual altitude of your front yard, the top of the bush or the top of the tree didn`t change during all of this thinking just the way we humans thought about it. The last part of that example is particularly important. The top of the bush was at 0 altitude and the yard was at -5 feet. Now let`s go back into the house and sit down in front of the computer again. Let`s say the top end of the cathode resistor is at +1. 5 volts. The grid will be at ground potential which is, by definition, 0 volts. But now let`s move what we call zero. If we say the cathode is at 0 volts the bottom end of the cathode resistor will be at -1. 5 volts. Now we have already established that the grid is at the same voltage as the bottom end of the cathode resistor.
So, the grid is at -1. 5 volts. This is how we can make the grid of a tube negative without having a negative power supply. This is often referred to as "self bias". Why does the grid of a tube have to be negative When the grid is at zero, and so is the cathode, the tube is conducting heavily. That is about as far as it can go. Any attempt to drive the grid positive will result in grid current and a vary low impedance source is required to make it go that way.
(It should be noted that there are some applications, in radio transmitters, where this condition is used to obtain higher efficiency than would otherwise be possible. ) In audio work the plate current must be able to go up and down from its steady value so we must set the grid somewhat negative so the current can move in either direction.
When the grid is slightly negative it repels some of the electrons and not as many get through to the plate. As the grid is made more and more negative, fewer and fewer electrons get through and the plate current gets smaller and smaller.
A point is finally reached where no electrons can get through and plate current is said to be cut off. The resistor in the plate returns the electrons to the power supply and converts any change in the tube`s plate current i
