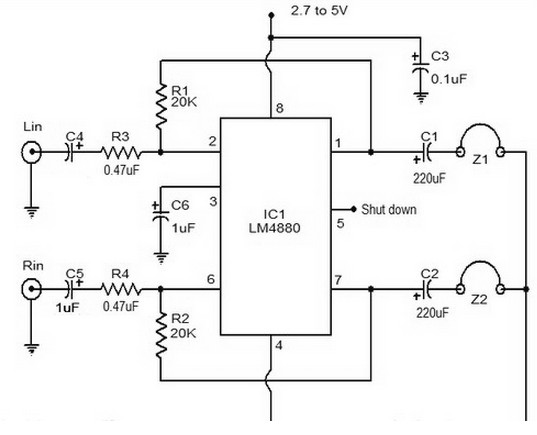

Description: The LM4880 is a dual audio HiFi amplifier integrated circuit from National Semiconductor. This headphone amplifier circuit is specifically designed to produce high-quality audio output with a minimal number of components. The LM4880 integrated circuit is capable of delivering 250 mW per channel into an 8-ohm load. The IC has a total harmonic distortion (THD) of 0.1% and operates within a voltage range of 2.7V to 5V DC. In the circuit, the resistors R1 and R2 function as feedback resistors. Capacitors C4 and C5 serve as DC input decoupling capacitors, while filtering capacitor C3 provides power and reduces noise. The amplifier automatically shuts off when a low logic level is applied to the shutdown pin (pin 5). The capacitor C6 operates as a half-supply filter.
The LM4880 is designed for applications requiring high fidelity audio amplification, making it suitable for portable audio devices, headphones, and other audio output systems. The dual-channel output allows for stereo sound, enhancing the listening experience. With a power output of 250 mW into an 8-ohm load, it is capable of driving standard headphones and small speakers effectively.
The feedback resistors R1 and R2 are critical for maintaining stability and controlling the gain of the amplifier. The choice of resistor values will determine the overall gain of the circuit, which can be calculated using the formula: Gain = 1 + (R2/R1). Careful selection of these components ensures optimal performance and minimizes distortion.
Capacitors C4 and C5 are employed to decouple the DC input, which prevents fluctuations in the power supply from affecting the amplifier's performance. This is crucial in maintaining sound quality, as any noise or ripple in the supply voltage can translate into audible artifacts in the output.
C3 serves as a filtering capacitor that helps to smooth out any remaining noise in the power supply, providing clean power to the amplifier. This is particularly important in audio applications where clarity and fidelity are paramount.
The shutdown feature, controlled by pin 5, allows for power savings when the amplifier is not in use. When a low logic signal is applied to this pin, the amplifier enters a low-power state, reducing overall power consumption. This feature is beneficial in battery-operated devices, extending their operational life.
Finally, C6's role as a half-supply filter assists in stabilizing the amplifier's operation by providing a reference voltage, which helps in maintaining consistent performance across varying load conditions. Properly implementing these components within the circuit ensures that the LM4880 achieves its intended purpose of delivering high-quality audio amplification with minimal distortion and noise.LM4880 is a dual audio HiFi amplifier IC from National Semiconductor. This headphone amplifier circuitis specifically designed to produce high quality audio output with a minimum amount of components. LM4880 integrated circuit capable of delivering 250mW per channel into 8ohm load. IC has a THD of 0.1% and has a voltage range of 2.7V to 5VDC. In th e circuit shown above, the resistors R1 and R2 are the feedback resistor. C4 and C5 are DC input decoupling capacitor. Filtering capacitor C3 provide power and reduce noise. The amplifier automatically shuts off whena low logic level is given to the shut down pin(pin5). The capacitor C6 is working at half-supply filtering.
The modified inverting amplifier employs an active clamp to precisely limit the output swing. Consideration must be given to the VBE of the transistors. The output swing is restricted by the base-emitter breakdown of the transistors. A straightforward circuit configuration...
For all the subsequent tests, a high-quality signal generator from BlackStar was utilized. The PicoScope trace displayed below illustrates a pure 1 kHz tone from the signal generator. It is important to note that while the screenshots below depict the...

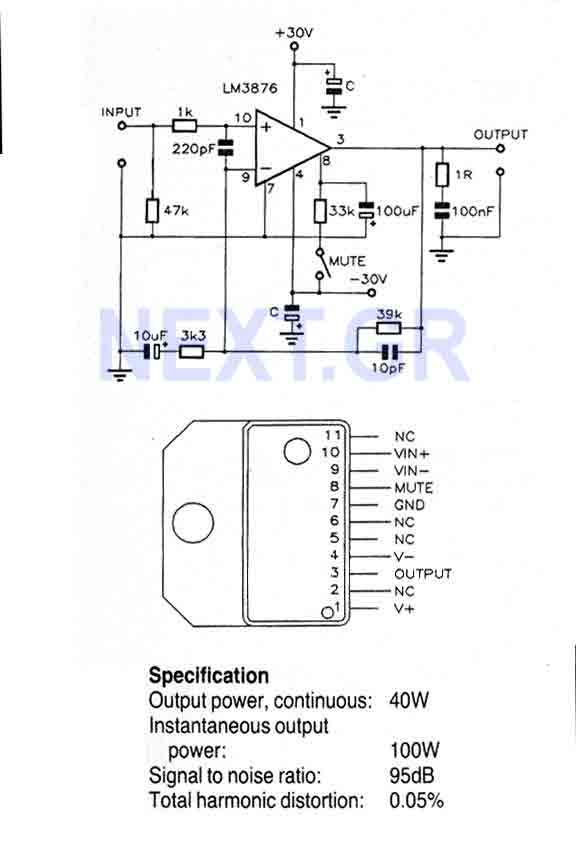

This Circuit is based on the LM3876. A 11-pin plastic package IC with high performance audio power amplifier, an output mute function which can be used to eliminate switch-on and switch-off "thumps" to the loudspeaker load. It is capable of...

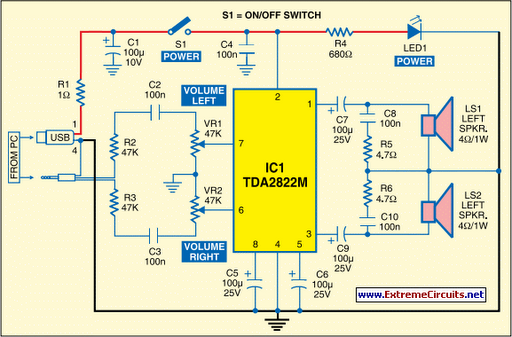

This circuit for multimedia speakers designed for PCs utilizes a single-chip architecture, operates on a low-voltage power supply, is compatible with USB power, facilitates easy heat dissipation, is cost-effective, offers high flexibility, and has a wide temperature tolerance. Central to...
This is a HiFi pre-amplifier circuit diagram with low noise output. It offers a very wide frequency range from approximately 10 Hz to 100 kHz, which enhances audio performance.
The HiFi pre-amplifier circuit is designed to amplify weak audio signals while...

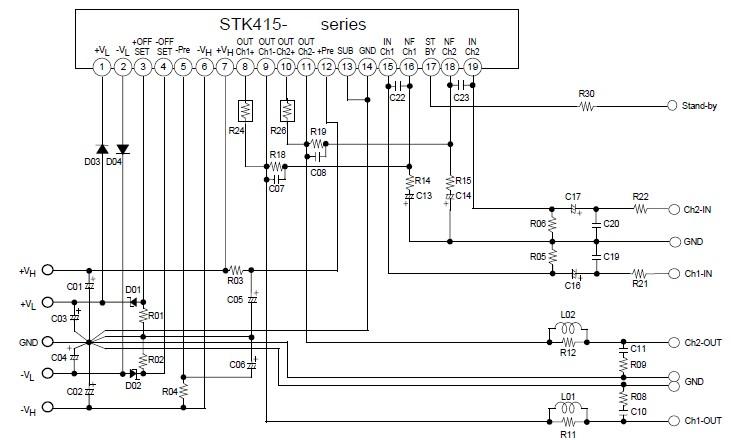

This electronic project stereo amplifier is based on the STK415-090-E class H audio power amplifier hybrid integrated circuit (IC), which includes a built-in power supply switching circuit. The STK415-090-E class H audio power amplifier achieves high efficiency in audio power...

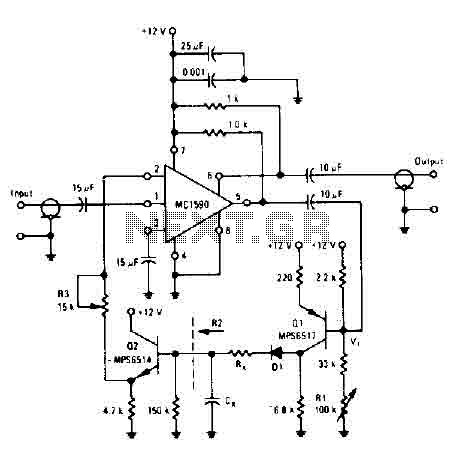

The amplifier drives the base of a common emitter PNP MPS6517, operating with a voltage gain of approximately 20. The RL control adjusts the quiescent point of transistor Q, allowing varying amounts of input signal to exceed the reference voltage...

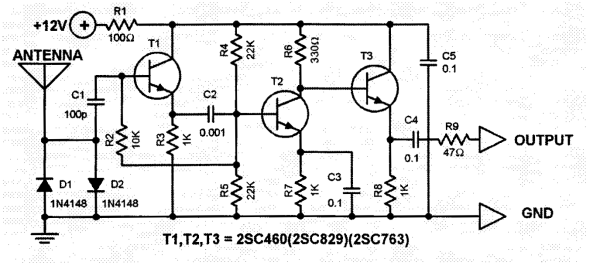

The total gain of the car antenna amplifier is approximately 30 dB, with an input impedance of around 10 kΩ at 30 MHz. The amplifier should be mounted directly at the base of the antenna to prevent signal losses attributed...

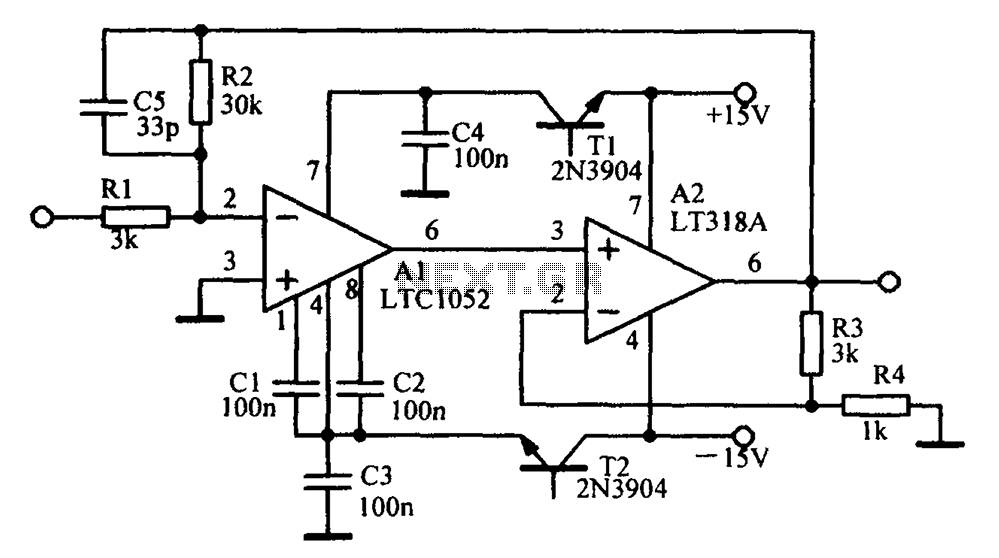

Amplifying circuit diagram to enhance the output current and voltage.
An amplifying circuit is designed to increase the amplitude of an input signal, resulting in a higher output current and voltage. This type of circuit is commonly utilized in various electronic...
