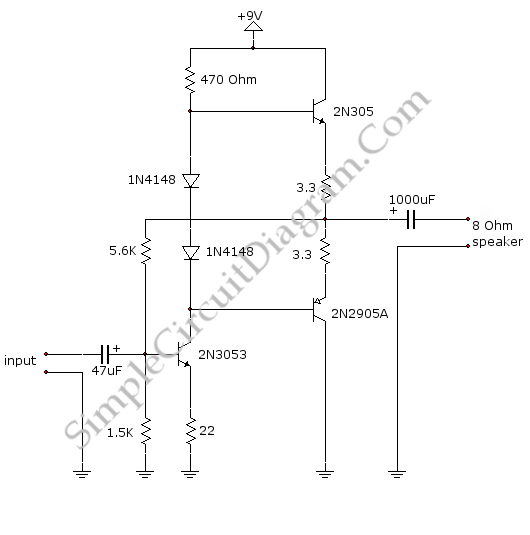

Small Discrete Audio Power Amplifier circuit

This is a small audio amplifier, similar to those used in small transistor radios. The circuit draws approximately 30 milliamps from a 9-volt supply and consists of two stages. The first stage is the input stage using a 2N3053 transistor,...

Preamplifier and high-to-low impedance converter

This circuit matches the very high impedance of ceramic cartridges, providing unity gain and low impedance output. By "loading" the cartridge with a 2.2MΩ input resistance, the cartridge characteristics are adjusted to closely compensate for the RIAA recording curve. The...

Audio Millivoltmeter

An AC millivoltmeter - calibrated in dB - with a range of 30V down to 3mV full scale (80dB range) would be extremely useful. Attach a microphone (electret mic capsules are quite good), and you have a relative sound level...

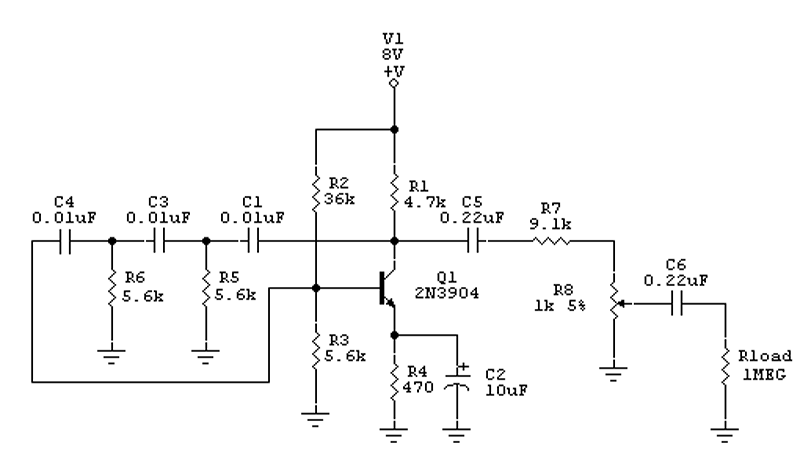

RC Audio Oscillator

This document presents the design of an audio oscillator that operates at approximately 1 kHz. The circuit is likely sourced from EMFRD, as Wes's book contains a wealth of valuable circuits. This versatile oscillator serves as a signal source for...

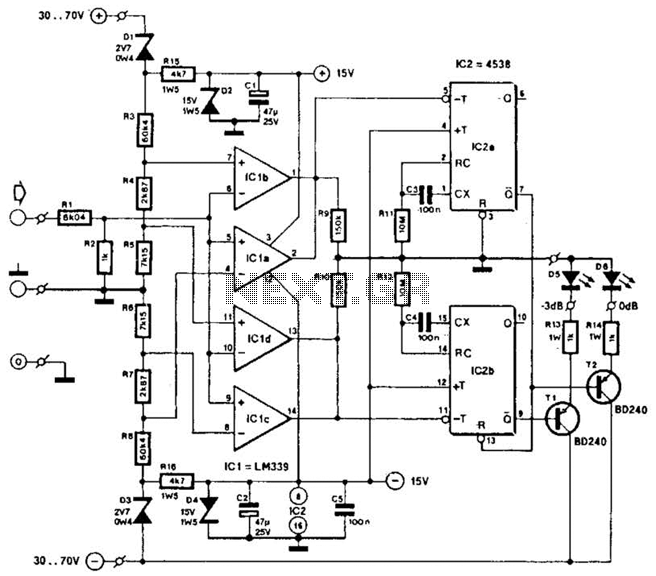

Af Drive Indicator Circuit

This circuit was utilized with an audio power amplifier to identify the point at which the output is -3 dB from maximum, indicated by LED D5, and at clipping, shown by LED D6. The indicator can be employed with any...

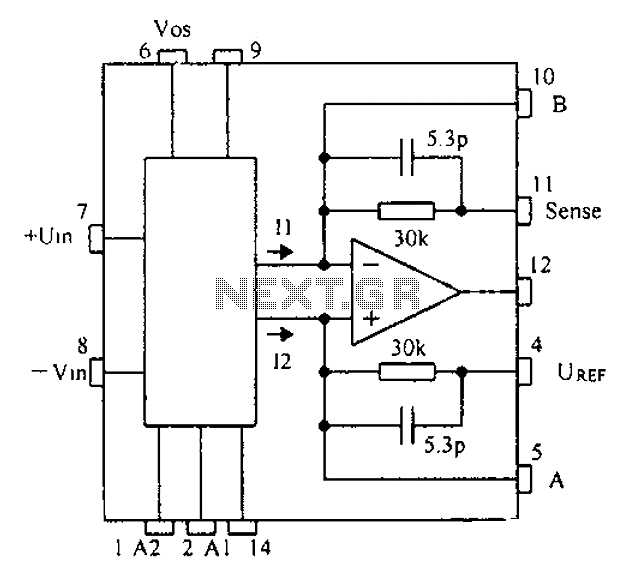

Based CNC programming gain instrumentation amplifier PGA202 203 schematic

Based on the CNC programming, a gain instrumentation amplifier circuit diagram utilizing the PGA202/203 is presented. The PGA202/203 series of programmable gain amplifiers are designed for high-performance applications requiring precise signal amplification. These integrated circuits offer a wide range of programmable...

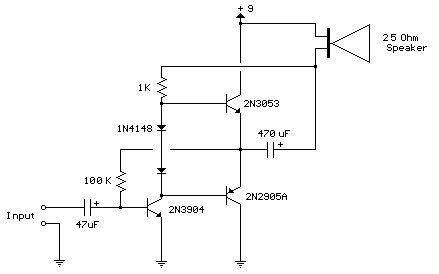

Improved 3 Transistor Audio Amp

Improved 3 Transistor Audio Amplifier. The load resistor for the driver transistor is connected directly to the positive supply. This configuration has a disadvantage in that as the output moves positive, the voltage drop across... The improved three-transistor audio amplifier circuit...

Power AmplifierCircuit and Schematics for 25 Watts-IC TDA2009

Power amplifier circuit diagram with schematics. This simple audio power amplifier circuit is designed for 25 watts output power using TDA 2009 IC, which has two channels (stereo), 12.5 W for each channel. The described power amplifier circuit utilizes the TDA...

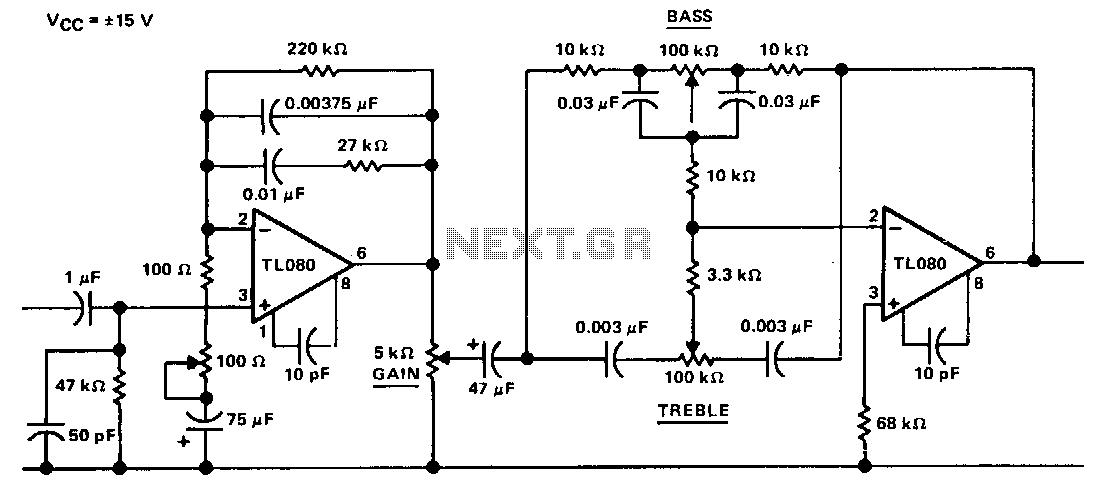

Ic-preamplifier-tone-control

The circuit represents an "Americanized" version of the Baxandall negative-feedback tone control. At very low frequencies, the reactance of the capacitors is sufficiently high that they can be treated as open circuits, with the gain being regulated by the bass...
