led How do I amplify a dc voltage that is too weak to trigger the base in a transistor
Description: The goal is to take the voltage output from a 3.5mm audio jack and use it to light up an LED based on the audio voltage levels. The left audio channel will be connected to the base of a 2222N transistor, which will serve as an amplifier to activate the LED. However, the voltage measured from the audio wire is approximately 0.2V to 0.02V, which is insufficient to trigger the transistor. The inquiry is whether there is a method to increase the voltage to properly activate the transistor, or if a transformer or operational amplifier (op-amp) would be necessary.
The circuit design involves utilizing a 2222N NPN transistor, which can amplify low-level signals. The audio signal from the 3.5mm jack is typically a small AC voltage, which may not be adequate to turn on the transistor directly due to its base-emitter voltage threshold, usually around 0.7V. To address this, several solutions can be implemented.
One approach is to employ a simple op-amp circuit configured as a non-inverting amplifier. By connecting the audio signal to the non-inverting input of the op-amp and adjusting the gain through feedback resistors, the output can be increased to a level sufficient to drive the base of the 2222N transistor. The op-amp's power supply should be chosen based on the desired output swing, typically a dual supply of ±5V or ±12V would be appropriate for most applications.
Alternatively, a transformer can be used to step up the voltage. A small audio transformer can be connected to the audio jack output, with the primary winding connected to the audio signal and the secondary winding providing a higher AC voltage. This increased voltage can then be rectified and filtered to provide a DC voltage that can drive the base of the transistor.
In both cases, it is crucial to ensure that the transistor is adequately biased to operate in the active region. A resistor should be placed between the base of the transistor and the output of the op-amp or transformer to limit the base current. The LED can be connected in series with a current-limiting resistor to the collector of the transistor, allowing it to light up when the transistor is activated.
In summary, to successfully light the LED using the audio signal from a 3.5mm jack, an op-amp or transformer can be utilized to boost the voltage sufficiently to trigger the 2222N transistor, enabling the LED to respond to the audio signal effectively.Take the voltage output from a 3. 5mm audio jack and have it light up an LED according to it`s voltage. I was going to attach the left audio cable to the base of a 2222n transistor which would act as my amplifier to trigger the LED to light. Unfortunately, the voltage reading off the wire is like. 2 or. 02 and isn`t high enough to tri gger the flow. Is there any way to increase the voltage to trigger the transistor or would I have to use a transformer of some sort (or an op amp )
The flashing LED light circuit, known as an astable multivibrator, is illustrated in the accompanying circuit diagram. This circuit comprises two transistors (TR1 and TR2), two electrolytic capacitors (C1 and C2), two LEDs (L1 and L2), and four resistors (R1...
This project operates red, amber, and green LEDs in the correct sequence for a single UK traffic light. The duration of the complete sequence—red, red & amber, green, amber—can be adjusted from approximately 7 seconds to about 2.5 minutes by...

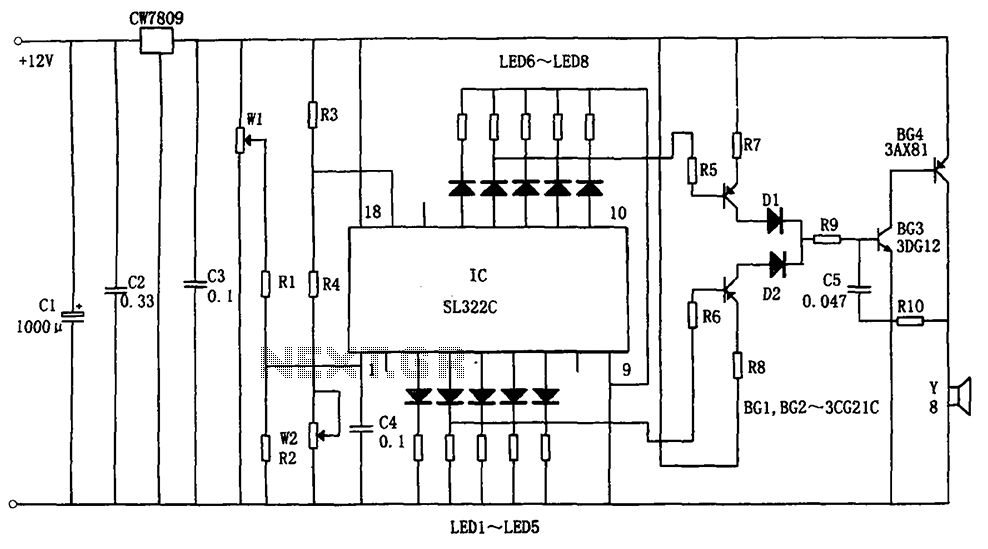

The circuit illustrated in the figure is a hydraulic oil level alarm system for automotive applications. It consists of a light-emitting diode (LED) driver, the SL322C integrated circuit (IC), a voltage regulator circuit (CW7809), and hydraulic oil level sensors (W1,...

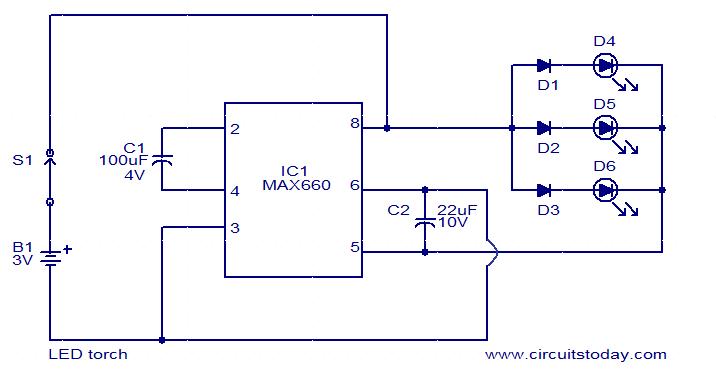

This circuit is a simple LED torch utilizing the MAX660 integrated circuit from MAXIM semiconductors. The MAX660 is a CMOS monolithic voltage converter IC capable of driving three bright white LEDs connected in parallel to output pin 8 of the...

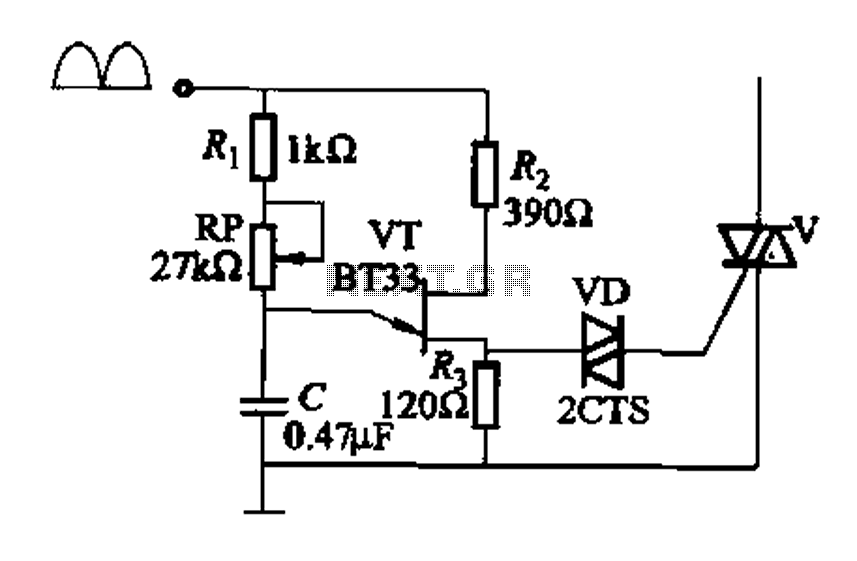

Figure 16-29 (a) illustrates the trigger output through a resistor R2, while Figure 16-29 (b) depicts the integration of a programmable unidirectional transistor (PUT) trigger circuit. The adjustable potentiometer RP can modify the conduction angle of the TRIAC to facilitate...

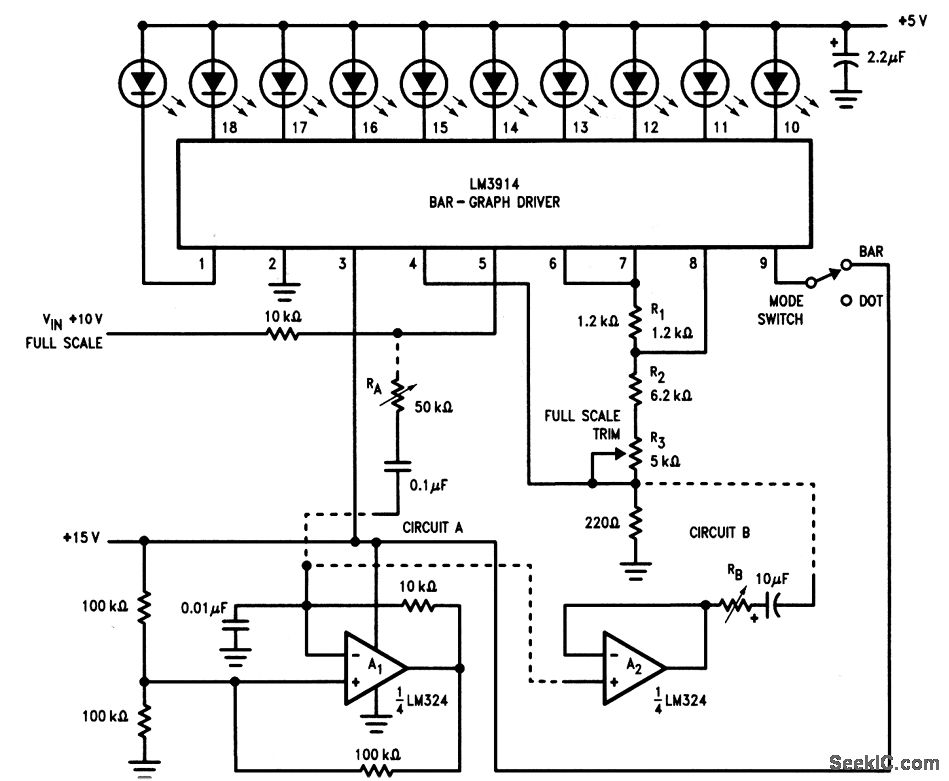

This circuit is an enhanced version of the display shown in Fig. 3-28, utilizing a triangular-wave oscillator. When the resistor RA is adjusted correctly, each incremental change in the input voltage (VIN) can be detected, allowing the glow from each...
The classic 6-transistor circuit, prevalent in the 1960s and 70s, utilizes NPN output devices and features a relatively high bias level. It operates on a single rail, with input and output coupled through electrolytic capacitors. The design incorporates a clever...

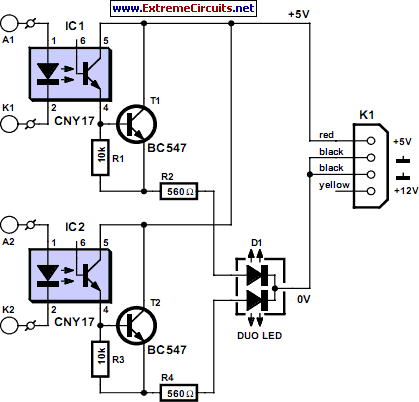

Most PC enclosures provide only a single LED to indicate hard disk access, with the LED being connected to the motherboard via a two-pin connector. However, this LED only works with IDE drives, and if a SCSI disk controller is...

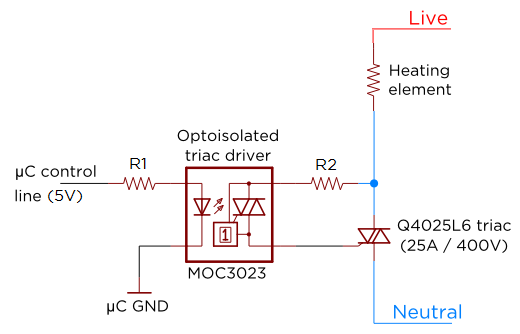

Several individuals have requested clarification on calculating resistor values for a triac circuit. This information may be beneficial for adapting the Sous Vader for custom builds. The circuit in question involves the resistor values R1 and R2 in an optoisolator,...
