Video cable driven by the MAX4104 4105 4304 4305 s an enlarged schematic

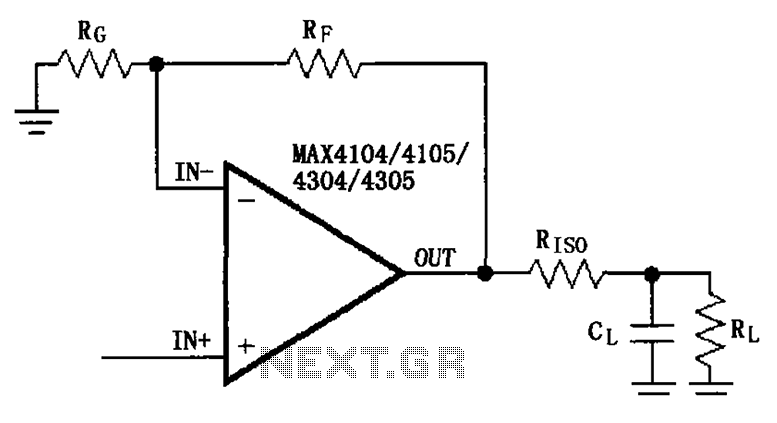

Description: The circuit illustrated in the figure features a MAX4104/4105/4304/4305 video cable driver amplifier. This circuit is designed for use with coaxial transmission lines, optimizing the amplification of video signals to minimize reflections and maximize power transfer. The output impedance of the amplifier is matched to the characteristic impedance of the transmission line, which is 75 ohms. In this configuration, the MAX4104/4105/4304/4305 amplifies the input video signal, which is then transmitted through the cable.

The MAX4104/4105/4304/4305 video cable driver amplifier circuit is engineered to enhance the transmission of video signals over coaxial cables. This is crucial for applications where signal integrity is paramount, such as in broadcasting or high-definition video systems. The design ensures that the output impedance of the amplifier is precisely aligned with the characteristic impedance of the coaxial cable, typically 75 ohms. This matching is essential to minimize signal reflections that can degrade the quality of the transmitted video signal.

The operational characteristics of the MAX4104/4105/4304/4305 amplifiers include high bandwidth and low distortion, making them suitable for high-frequency video applications. The configuration allows for the amplification of the video signal without introducing significant noise or distortion, which is critical for maintaining the clarity and fidelity of the video being transmitted.

In practical implementation, the circuit may include additional components such as capacitors for AC coupling, resistors for biasing, and possibly inductors for filtering, depending on the specific requirements of the application. Proper layout and grounding techniques are also essential to prevent interference and ensure optimal performance.

Overall, the MAX4104/4105/4304/4305 video cable driver amplifier circuit represents a robust solution for high-quality video signal transmission, leveraging the capabilities of the MAX series amplifiers to achieve superior performance in coaxial cable applications. As shown in FIG grounds MAX4104/4105/4304/4305 video cable driver amplifier circuit configured. MAX4104/4105/4304/4305 as a coaxial transmission line suitable for amplifying vi deo signals, for the transmission of the reflection minimum, to obtain the maximum power load, the output impedance of the amplifier is selected equal to the terminating impedance of the transmission line characteristic impedance (75 ). In this circuit, MAX4104/4105/4304/4305 interlocutory amplification, after the cable input video signal amplifier output, continue transmitted by the cable.
