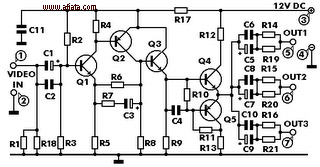

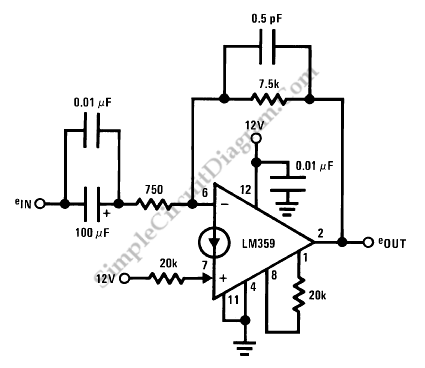

Description: This electronic circuit is a video signal amplifier that provides a broad bandwidth amplifier with a capacity of 5 MHz. It is designed to take video signals from a VCR and amplify them adequately to drive up to three monitors, TV sets (as long as they can accept direct video signals), or other VCRs for recording from one video source to up to three others. Additionally, this video signal amplifier allows for the recording from one video source to two others while simultaneously connecting a monitor to verify the recording process. The amplifier is particularly beneficial when the video recorder is positioned far from the monitor.
This video signal amplifier circuit is engineered to enhance the transmission of video signals over considerable distances, ensuring that signal degradation is minimized. The core component of the amplifier typically includes operational amplifiers configured for high-frequency performance to accommodate the 5 MHz bandwidth requirement.
The circuit may utilize a combination of resistors and capacitors to set the gain and bandwidth appropriately, ensuring that the output signal maintains a high fidelity to the original input signal. The amplifier's design should consider impedance matching to prevent reflections and losses that could occur when connecting multiple devices, such as monitors and VCRs.
In practical applications, the circuit can be powered using a regulated DC power supply, ensuring stable operation. The input stage may include a connector for the VCR output, while the output stage will feature multiple connectors to accommodate the three output devices.
For enhanced functionality, the circuit can be equipped with LED indicators to show the operational status, such as power on, signal presence, and overload conditions. Additionally, the layout of the circuit board should be designed to minimize noise interference, which can be critical in maintaining video quality.
Overall, this video signal amplifier circuit not only facilitates multiple connections but also ensures high-quality video transmission, making it an essential component in setups where multiple video outputs are required from a single source.This electronic circuit is a video signal amplifier that offers a broad band amplifier with a bandwidth of 5 MHz which will take the video signals from your VCR and will amplify them sufficiently to drive up to 3 monitors, TV sets (provided that they can accept direct video signals), or other VCRs for recording from one video to up to three others . The video signal amplifier will also make possible to record from one video to two others and at the same time have a monitor connected to check what you are recording. The amplifier is also very useful if the video recorder is far from the monitor
An NE592 or LM733 is utilized as a general-purpose video amplifier in this schematic. J2 and J3 deliver two anti-phase outputs. R2 functions as a gain control. The bandwidth is approximately 100 MHz.
The NE592 and LM733 are operational amplifiers specifically...

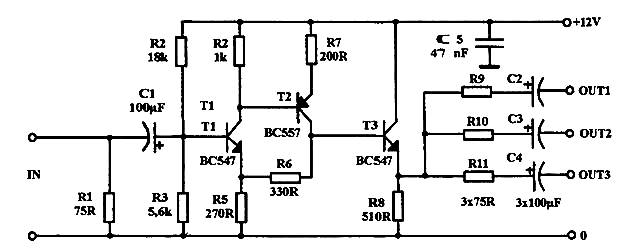

Video power amplifier circuit diagram. The circuit operates exclusively with AV compounds, where video and audio signals are transmitted separately. It is not suitable for connections involving "HF" antenna cables. Ensure that the video amplifier is included in the video...

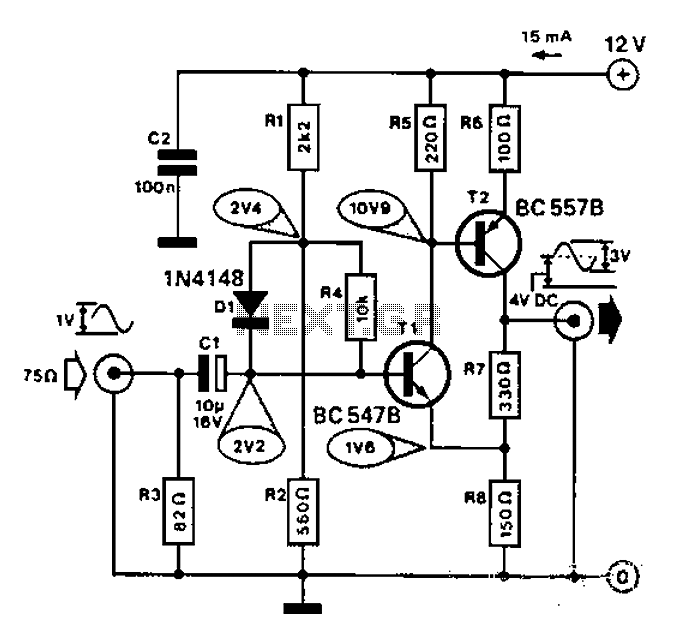

Commonly used for cameras or computers with black and white television connections, the amplifier has a gain of 3 and a bandwidth of 10 MHz.
The described circuit is an amplifier designed for applications involving cameras or computers that interface with...

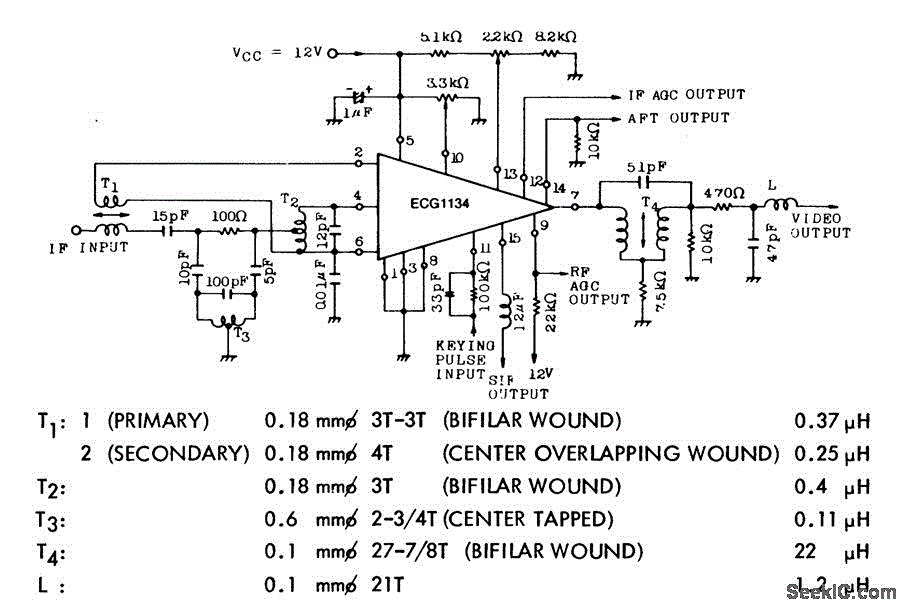

The EGG 1134 is a TV video processor that includes a picture intermediate frequency (IF) amplifier, a video detector, a video amplifier, keyed automatic gain control (AGC) with noise immunity, delayed AGC for the tuner, an automatic frequency tuning (AFT)...

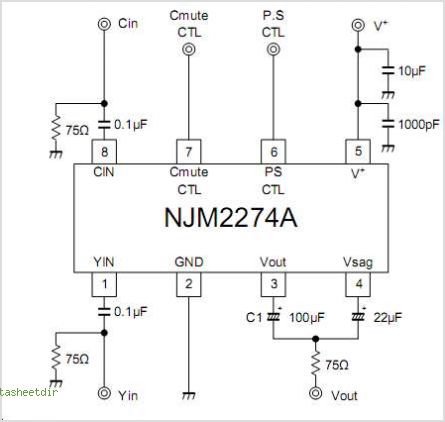

The NJM2574 is a low voltage video amplifier that includes a low-pass filter (LPF) circuit, a driver, and an internal clamp/bias function. It is designed to connect directly to a TV monitor using a composite input signal of 0.5V peak-to-peak....

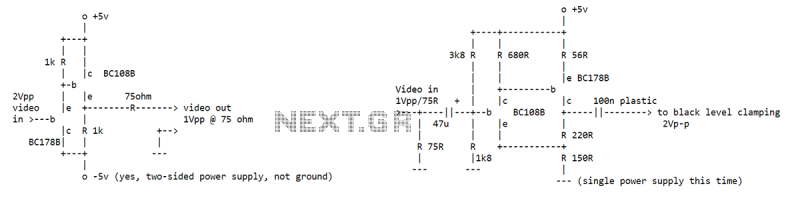

The signal sources in the analog output stage of the PC SVGA card are designed to present the correct impedance of 75 ohms on each line, utilizing five resistors. The input impedances of the transistors are sufficiently high to avoid...

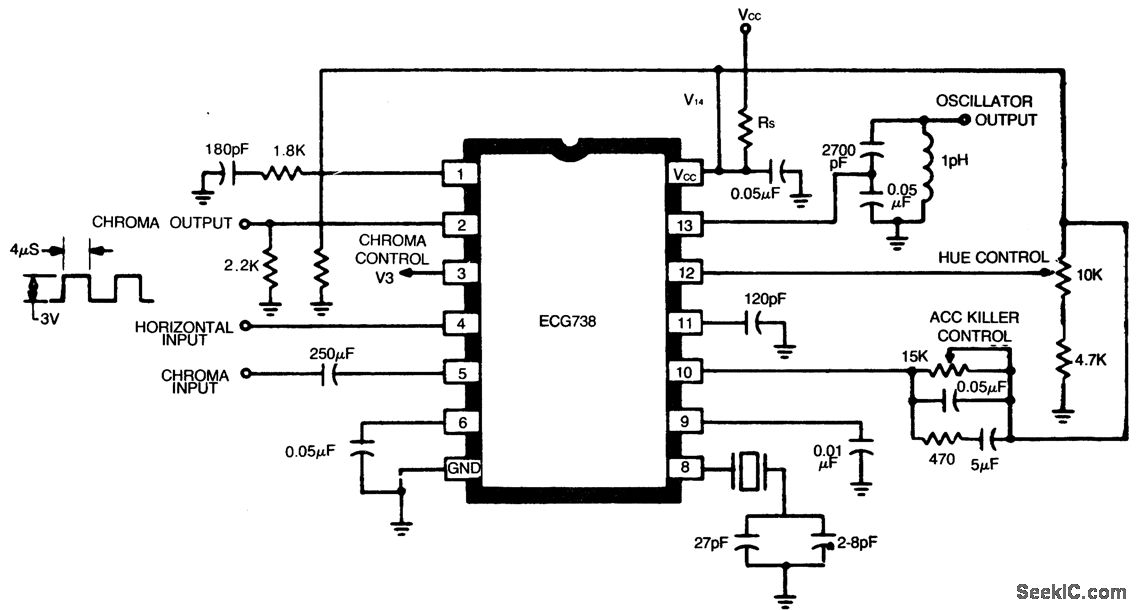

Color TV chroma processor with automatic color control (ACC), color killer, and an injection lock reference system. The typical power supply voltage is between 9 to 11.5 volts. The hue control range is 100 degrees. The oscillator output signal is...
I've seen an NE592 used as a video buffer amp at the end of a 75 ohm line. Used so that the 75 ohm line could drive all kinds of neat processing stuff without affecting the signal (that's what a...
Every electronic device that boosts electrical signals can be called an amplifier. The various amplifier types only differ in some specific features.
Amplifiers are crucial components in electronic circuits, designed to increase the amplitude of electrical signals. They play a vital...
