Description: I want to start building a tube compressor for my bass guitar. I found a compressor schematic with two ECC83 tubes, but it seems too old.
The design of a tube compressor for musical instruments, particularly for bass guitars, typically involves the use of vacuum tubes, such as the ECC83, which are known for their warm sound and harmonic distortion characteristics. The ECC83, also known as 12AX7, is a dual-triode tube that can be utilized in various configurations to achieve desired compression effects.
In a typical tube compressor schematic featuring two ECC83 tubes, one may expect to see the following components and configurations:
1. **Input Stage**: The input signal from the bass guitar is first fed into the circuit, often through a high-impedance input stage to preserve the signal integrity. This stage may include a coupling capacitor to block any DC offset and allow only the AC audio signal to pass through.
2. **Gain Stage**: The first ECC83 tube serves as the gain stage, where the input signal is amplified. The triodes can be configured in a common cathode arrangement to provide voltage gain. Resistors and capacitors are used to set the biasing of the tube and to shape the frequency response.
3. **Compression Circuit**: The signal then passes through a compression circuit, which may utilize a variable resistor or a light-dependent resistor (LDR) to control the gain dynamically based on the input signal level. This stage is critical for achieving the desired compression effect, allowing for a more consistent output level.
4. **Second Gain Stage**: The second ECC83 tube may serve as a make-up gain stage, where the compressed signal is amplified to the desired output level. This stage can also include tone-shaping components such as equalization circuits to enhance the tonal quality of the output.
5. **Output Stage**: The final output stage may include a coupling capacitor to block DC from reaching the output, ensuring that only the AC signal is sent to the next stage, such as a power amplifier or effects chain.
6. **Power Supply**: A suitable power supply is essential for the operation of the ECC83 tubes, typically providing high voltage (around 250V) for the anode and lower voltages for the heater. Proper filtering and regulation are necessary to ensure stable operation and minimize noise.
7. **Additional Features**: Depending on the design, additional features such as a bypass switch, LED indicators, or a blend control for mixing the dry and compressed signals may be included to enhance functionality.
This schematic can be adapted and modified based on specific requirements, such as desired compression ratios, attack and release times, and overall tonal characteristics. Careful consideration should be given to component selection and layout to ensure optimal performance and reliability of the tube compressor.hi i m wanted to start building a tube compressor for my bass guitar , i found a compressor schematic with two ecc83 , but it seems it s too old ,and..
Assistance is sought for building the N4GG audio intelligibility enhancer project as detailed in the ARRL Handbook. A circuit board has been ordered from Far Circuits, but there are difficulties in sourcing the necessary components. Attempts have been made to...

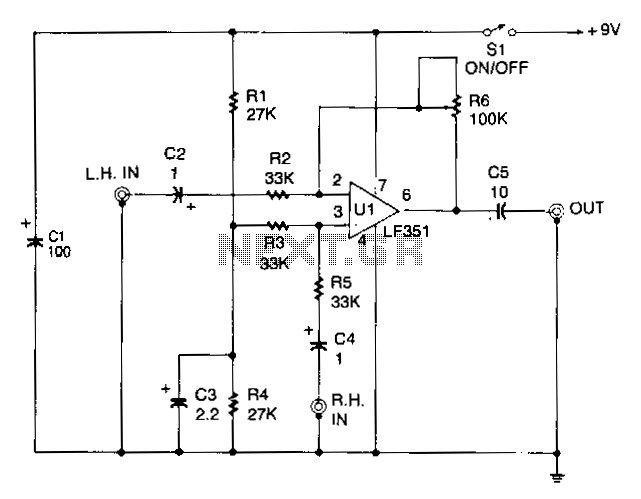

The circuit is designed to eliminate the vocal portion of an audio signal while preserving the instrumental portion. It achieves this by mixing two channels that are 180° out of phase, allowing the signals that create the center-stereo image to...
The project described here is one that you can just build and have working straight away although it is entirely possible that you will want to experiment a bit, and requires only a small handful of parts. In its simplest...

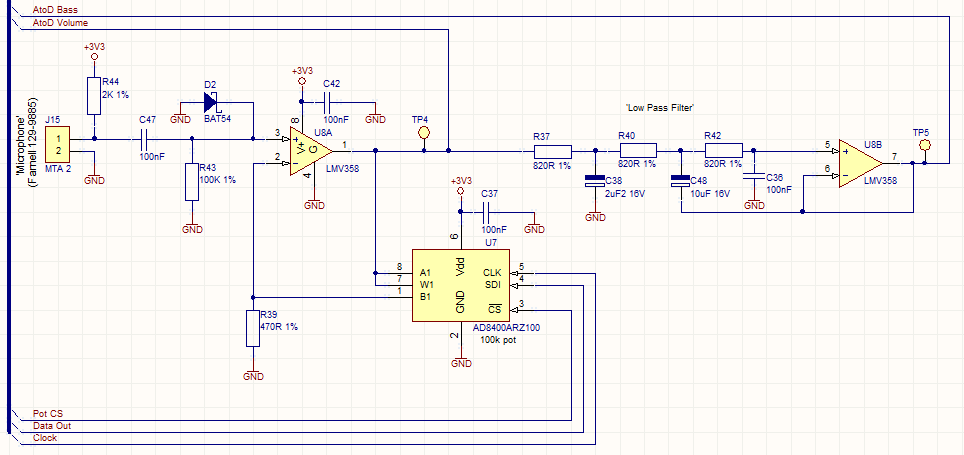

This circuit employs a digital potentiometer to enable the microcontroller to automatically adjust the circuit's gain according to the ambient audio volume. However, a standard potentiometer can be used if automatic adjustment is unnecessary. The low-pass filter design is based...

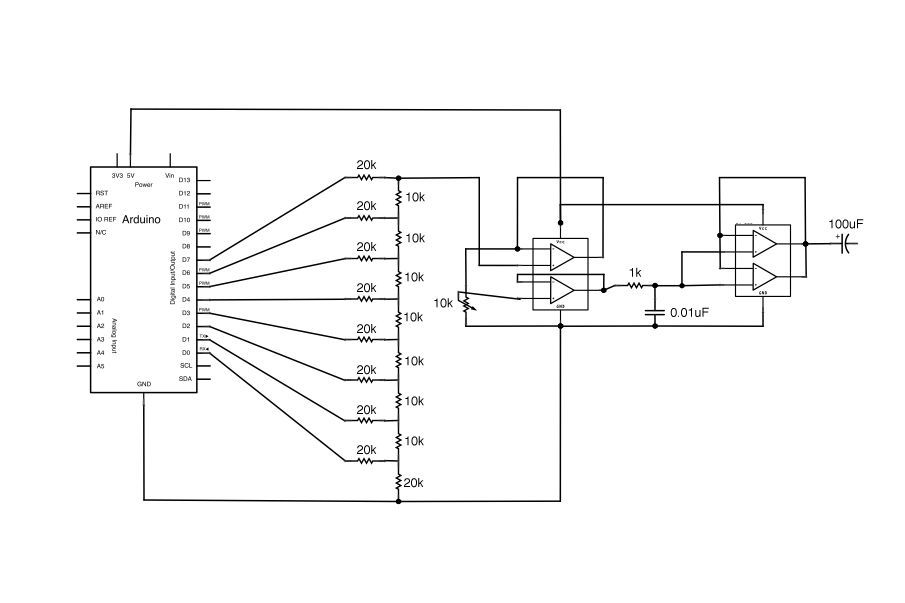

This Arduino-powered vocal effects box pitch shifts and distorts incoming audio signals to produce a wide variety of vocal effects. This project is an experiment with real-time digital signal processing using Arduino. It samples an incoming microphone signal at a...
You need to connect pins 1 and 13 of the 4053 to the virtual ground rail (top of C4), not the circuit's 0V rail.
The CD4053 is a triple 2-channel analog multiplexer/demultiplexer integrated circuit, widely used for routing analog signals...
A 4x10" Ashdown ABM bass cabinet is powered by a Hughes & Kettner bass amplifier head. There is an intention to modify the amplifier head to enhance its functionality.
The Ashdown ABM bass cabinet features four 10-inch speakers, which are designed...

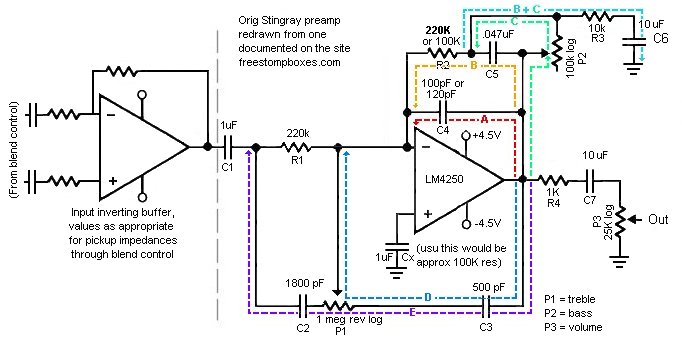

The schematic presented is for the original Music Man Stingray bass guitar preamp. It operates on a 9V DC power supply, and the voltage divider section has been omitted.
The Music Man Stingray bass guitar preamp circuit is designed to amplify...
