Description: This circuit is a high-performance charger for gelled electrolyte lead-acid batteries. The charger quickly recharges the battery and automatically shuts off when it reaches full charge. Initially, the charging current is limited to 2A. As the battery voltage rises, the current supplied to the battery decreases. When the current drops to 150 mA, the charger switches to a lower float voltage to prevent overcharging. When the start switch is activated, the output of the charger is set to 14 V. As the battery nears full charge, the charging current decreases, and the output voltage is reduced from 14 V to approximately 12.5 V, terminating the charging process. Transistor Q1 then activates an LED to provide a visual indication of full charge.
This high-performance charger circuit is designed specifically for gelled electrolyte lead-acid batteries, which are commonly used in various applications due to their reliability and efficiency. The circuit operates by initially supplying a constant current of 2A to the battery, ensuring a rapid recharge. This initial phase is crucial for quickly restoring the battery's capacity.
As the battery charges, its voltage increases, which in turn causes the charging current to decrease. This gradual reduction in current is essential for maintaining battery health and longevity. When the charging current falls to 150 mA, the circuit transitions to a float charging mode. This mode is characterized by a lower, stable output voltage that prevents overcharging, which can lead to battery damage.
The charger is activated by a start switch, which sets the output voltage to 14 V. This voltage is optimal for charging lead-acid batteries, ensuring effective energy transfer during the initial charging phase. As the battery approaches its full charge, the output voltage is carefully reduced from 14 V to approximately 12.5 V. This controlled decrease in voltage is critical for the safe termination of the charging process.
An important feature of this circuit is the use of a transistor (Q1) that serves as an indicator for the charging status. Once the battery reaches full charge, the LED connected to the transistor illuminates, providing a clear visual indication to the user. This feature enhances usability by allowing users to easily monitor the charging status without needing to measure the battery voltage directly.
In summary, this charger circuit combines efficient charging techniques with safety features to ensure the longevity and reliability of gelled electrolyte lead-acid batteries. Its automatic shut-off and visual indicators make it user-friendly and effective for various applications.This circuit is a high performance charger for gelled electrolyte lead-acid batteries. Charger quickly recharges battery and shuts off at full charge. Initially, charging current is limited to 2A. As the battery voltage rises, current to the battery decreases, and when the current has decreased to 150 mA, the charger switches to a lower float voltage preventing overcharge. When the start switch is pushed, the output of the charger goes to 14 V. As the battery approaches full charge, the charging current decreases and the output voltage is reduced from 14 V to about 12
5 V terminating the charging. Transistor Ql then lights the LED as a visual indication of full charge.
According to the manufacturer's data sheets, a 12V rechargeable lead-acid battery should be operated within a voltage range of 10.1V to 13.8V. Charging the battery above 13.8V can lead to potential damage.
Lead-acid batteries are commonly used in various applications due...

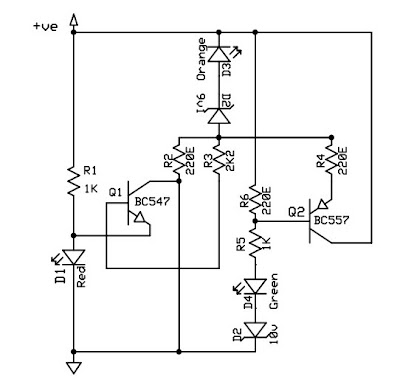

This circuit is a 12V battery checker that utilizes three LEDs to indicate different voltage levels. The red LED illuminates when the battery voltage is between 8V and 10V, the orange LED activates at voltages ranging from 10.5V to 12V,...
This automotive battery charger project is designed to charge 12V electrolyte lead-acid batteries.
The automotive battery charger circuit is engineered to efficiently charge 12V lead-acid batteries, which are commonly used in vehicles. The design typically incorporates several key components, including a...

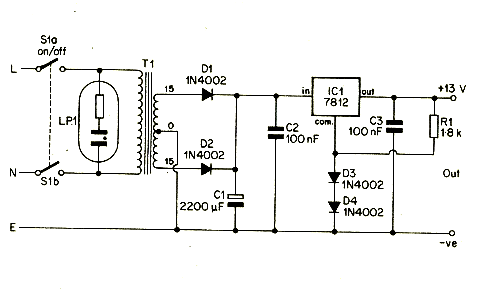

A 12V portable and mobile power supply circuit design that can be constructed at a low cost and requires minimal circuitry. This circuit provides an output current of 1 amp, which is well stabilized and smoothed.
The 12V portable power supply...
This circuit can function as a speed controller for a 12V motor with a continuous rating of up to 5A or as a dimmer for a 12V halogen or standard incandescent light.
The circuit utilizes a pulse-width modulation (PWM) technique to...
This is a battery charger indicator circuit diagram. When the battery is charging, it is indicated by an LED. This circuit can be used with a 12V battery with a charging current of less than 1A.
The battery charger indicator circuit...

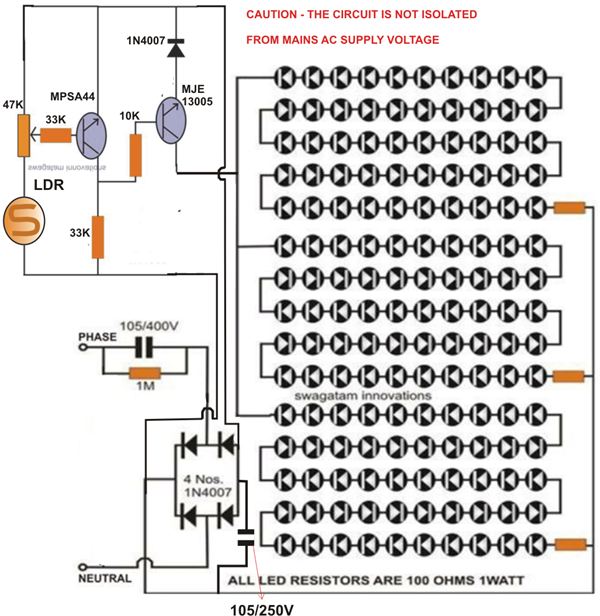

At times, it is quite frustrating to see street lights remaining switched on even during broad daylight. The current circuit for an automatic night light can effectively address this issue. This article explains how to construct such a system. It...
The circuit includes a current limiting feature that is more reliable than most commercial units. It employs three pass transistors that require heat sinks. Resistor R9 allows for fine-tuning of the output voltage to precisely 13.8 volts, while the resistor...
A current limiting circuit is designed to select a maximum current through a load, set to a maximum of 480 mA. As the load resistance increases, the series equivalent resistance (SER) of the limiting circuit decreases. When charging a capacitor...
