Description: The lithium-ion rechargeable battery charger described in the example operates using a constant voltage and current method. It is designed for charging 3.6V lithium-ion batteries commonly found in various mobile phones. The circuit's working principle involves a battery charger circuit, a charging control circuit, and protective features.
The lithium-ion rechargeable battery charger is engineered to deliver a reliable and efficient charging process for 3.6V lithium-ion batteries. This charger employs a constant voltage (CV) and constant current (CC) charging method, ensuring that the battery is charged safely and effectively without the risk of overcharging or overheating.
The circuit architecture typically includes several key components:
1. **Battery Charger Circuit**: This is the main component responsible for converting the input AC voltage to the required DC voltage for charging the lithium-ion battery. It often includes a transformer (if necessary), a rectifier to convert AC to DC, and a voltage regulator that maintains the output voltage at 4.2V, which is the maximum charging voltage for a single lithium-ion cell.
2. **Charging Control Circuit**: This circuit monitors the battery voltage and current throughout the charging process. It ensures that the charger operates within safe limits by adjusting the current supplied to the battery. When the battery voltage reaches the threshold (typically around 4.2V), the charging control circuit switches to constant voltage mode, maintaining the voltage while gradually reducing the current until the battery is fully charged.
3. **Protection Features**: Safety is paramount in lithium-ion battery charging. The charger includes various protective mechanisms such as over-voltage protection (OVP), over-current protection (OCP), and temperature monitoring. These features prevent damage to the battery and the charger itself by disconnecting the charging circuit if unsafe conditions are detected.
The charger may also incorporate an LED indicator to provide visual feedback on the charging status, such as charging, fully charged, or fault conditions.
In summary, this lithium-ion rechargeable battery charger is designed with efficiency and safety in mind, making it suitable for various applications, particularly in mobile devices that utilize 3.6V lithium-ion batteries.The lithium-ion rechargeable battery charger introduced in the example charges in constant voltage and current way.It is suitable for 3.6V lithium ion battery charging which are used in kinds of mobile phones. Circuit`s Work Principle The lithium-ion rechargeable battery charger consists of battery charger circuit,charging control circuit and protect..
A lithium-ion battery charging circuit is illustrated above. Initially, when charging begins, if the battery voltage is below 8.4V, the output of IC1 is inactive. As a result, Q2 remains off, and the LM317 operates in constant current mode. When...
Powering the system is required by many applications while charging the battery simultaneously. Interaction between the system and charger may result in a...
Power management in electronic systems is critical, particularly in applications that necessitate simultaneous operation and battery charging. This...

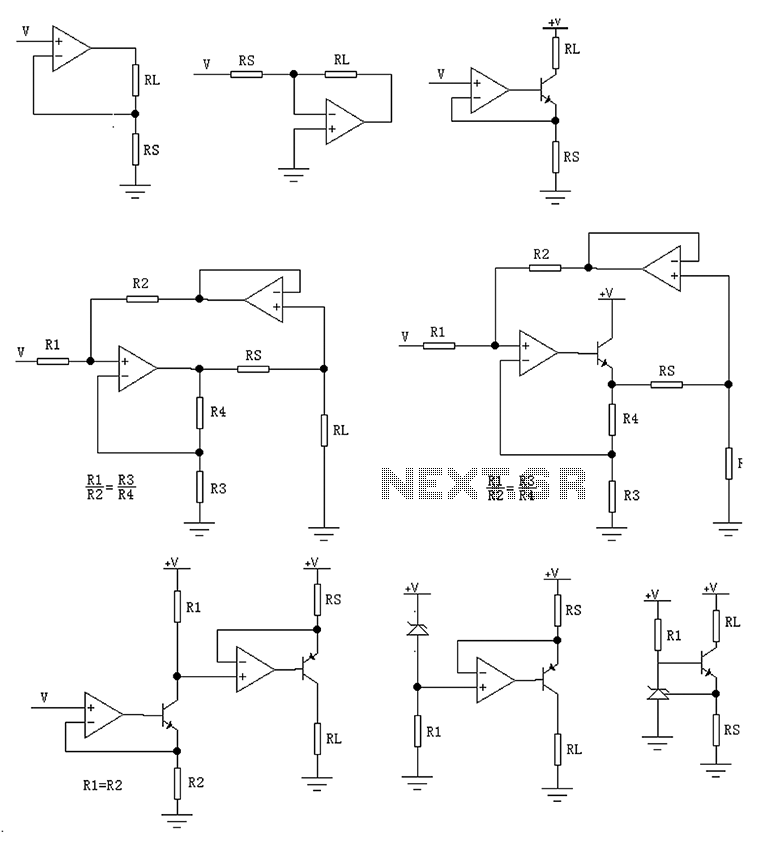

This is an adjustable constant current regulator circuit. This circuit can be used in a bench power supply to prevent the circuits that are tested from being damaged.
The adjustable constant current regulator circuit is designed to provide a stable output...
Rechargeable lithium-ion (Li-ion) batteries are widely used today, powering devices such as laptops, tablets, cell phones, MP3 players, digital cameras, and various portable electronics. This application note examines the use of an LPC111x microcontroller (MCU) for charging these batteries, highlighting...
The constant current charging circuit, which consists of a three-port voltage stabilizer, is illustrated in figure 2-21. The electric potential difference between pin-1 and pin-2 of the LM317 is 1.25V. Ignoring the shunting effects of resistors R3, R1, and the...
Overview Disabling Sections of a Circuit The "Suicide Switch" Overview Power management is a significant design consideration for battery-powered devices.
Power management is a crucial aspect of circuit design, particularly in battery-powered applications where energy efficiency directly impacts the operational lifespan...
In battery-powered applications in which power management is key, a microprocessor may adjust its core voltage corresponding to an increase or a decrease in clock speed, allowing full processing power when necessary but not wasting excess power when idle. The...
The circuit is designed to provide several constant current outputs to the load resistor RL. The first RL is floating and is rarely utilized. The second RL serves as a virtual ground and is not commonly used either. The third...

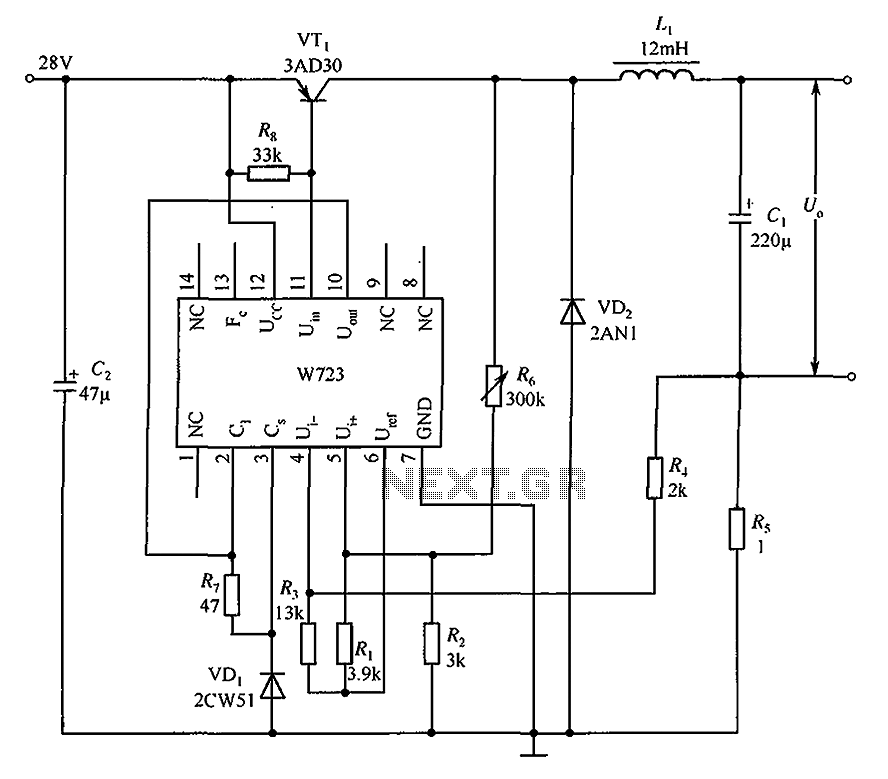

The Multiport W723 is an adjustable constant current regulator designed for use in switching regulator circuits, capable of delivering an output current of 1A. In the illustrated circuit, the W723 reference base voltage is approximately 7.2V. This voltage is divided...
