Description: This simple charger uses a single transistor as a constant current source. The voltage across the pair of 1N4148 diodes biases the base of the BD140 medium power transistor. The base-emitter voltage of the transistor and the forward voltage drop across the diodes are relatively stable. The charging current is approximately 15mA or 45mA with the switch closed. This suits most 1.5V and 9V rechargeable batteries. The transformer should have a secondary rating of 12V ac at 0.5amp, the primary should be 220/240volts for Europe or 120volts ac for North America.
This circuit is designed to charge rechargeable batteries efficiently while maintaining a constant current output. The key component in the circuit is the BD140 medium power transistor, which operates in the active region to provide a stable charging current. The biasing of the transistor's base is achieved through the voltage drop across two 1N4148 diodes, which ensures that the base-emitter voltage remains constant, thus stabilizing the charging current.
The charging current can be adjusted based on the position of a switch in the circuit, allowing for two different output levels: approximately 15mA and 45mA. This feature is particularly useful for charging batteries with varying capacities, accommodating both smaller 1.5V cells and larger 9V batteries.
The transformer used in this design is crucial for stepping down the mains voltage to a suitable level for charging. It should have a secondary output of 12V AC at a current rating of 0.5A. The primary winding should be rated for either 220/240V AC for European applications or 120V AC for North American use, ensuring compatibility with regional power standards.
Safety precautions are paramount when working with this circuit, particularly due to the presence of AC voltage and the potential for high current. Proper insulation, circuit protection, and adherence to electrical safety standards are recommended to prevent accidents and ensure reliable operation.This simple charger uses a single transistor as a constant current source. The voltage across
the pair of 1N4148 diodes biases the base of the BD140 medium power transistor. The base-
emitter voltage of the transistor and the forward voltage drop across the diodes are relatively stable. The charging current is approximately 15mA or 45mA with the switch closed. This
suits most 1.5V and 9V rechargeable batteries. The transformer should have a secondary rating of 12V ac at 0.5amp, the primary should be
220/240volts for Europe or 120volts ac for North America. WARNING: Take care with this circuit. Use a voltm
Q1 and Q2 are general-purpose transistors. The 10 kΩ input potentiometer is adjusted to a point just short of where Q1 turns on, as indicated by relay K engaging. K is any 5 V reed relay. With the specified values...
In a prior post titled "Timing is Everything," the application of PWM (Pulse Width Modulation) signals for controlling devices such as LEDs was discussed. This technique is particularly beneficial when working with digital devices, including microchips and microcontrollers, which often...

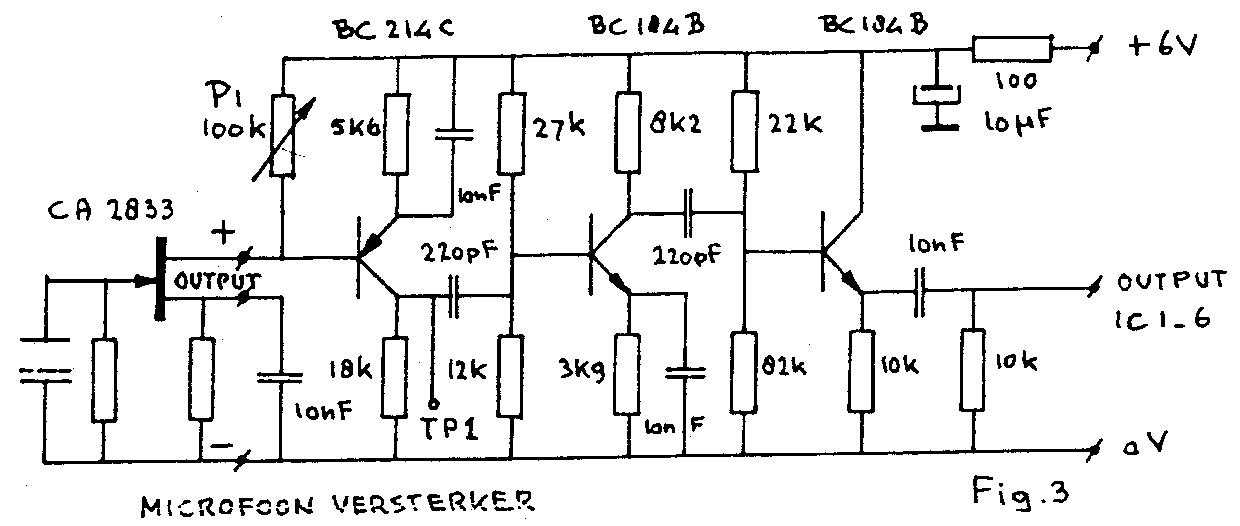

The microphone has high sensitivity in the audio range, but in the ultrasonic range, the sensitivity decreases rapidly. The receiver is very sensitive. To prevent overdriving and feedback due to the high sensitivity of the microphone in the audio range,...

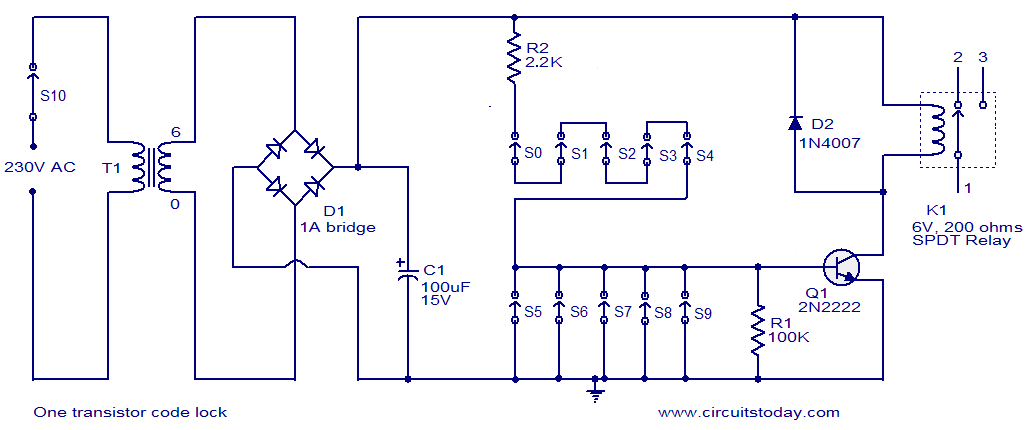

The circuit consists of a basic transistor switch with a relay connected at its collector as the load. This represents a straightforward electronic code lock circuit that employs a single transistor.
The circuit operates by utilizing a transistor as a switch...

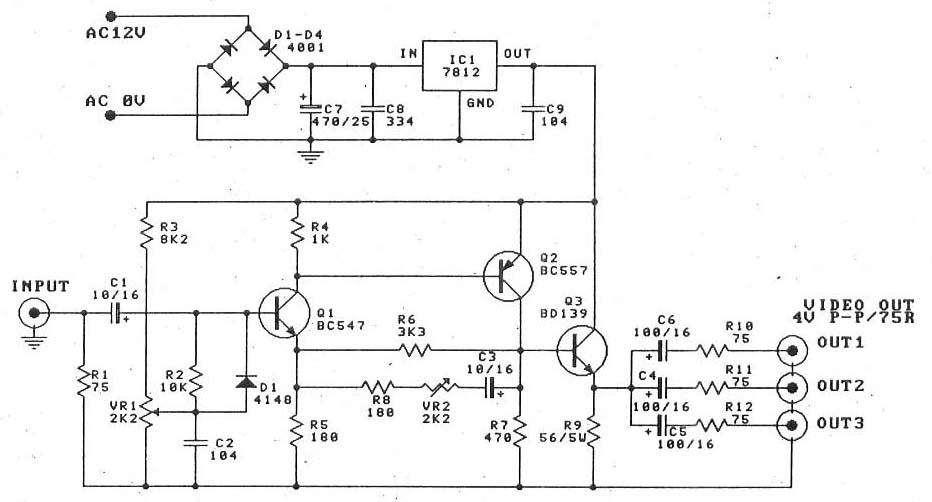

This is a video amplifier circuit or video splitter circuit, designed to strengthen video signals. It compensates for signal loss and is...
The video amplifier circuit serves as a crucial component in video signal distribution systems, ensuring that the integrity and...

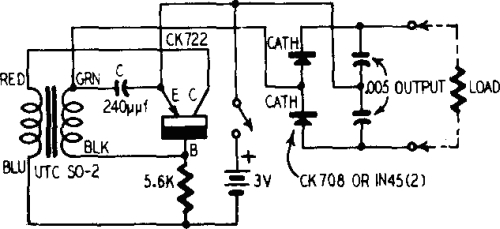

A battery is a low-impedance power source. It operates most efficiently and economically when providing low voltage at high current.
Batteries serve as essential components in various electronic circuits, functioning as a reliable source of energy. Their low-impedance characteristic allows for...
The circuit requires two transistors to drive a relay, which acts as a switch to activate a buzzer. Any number of normally-open switches may be applied. Mercury switches should be installed to ensure they close when the steering is engaged....

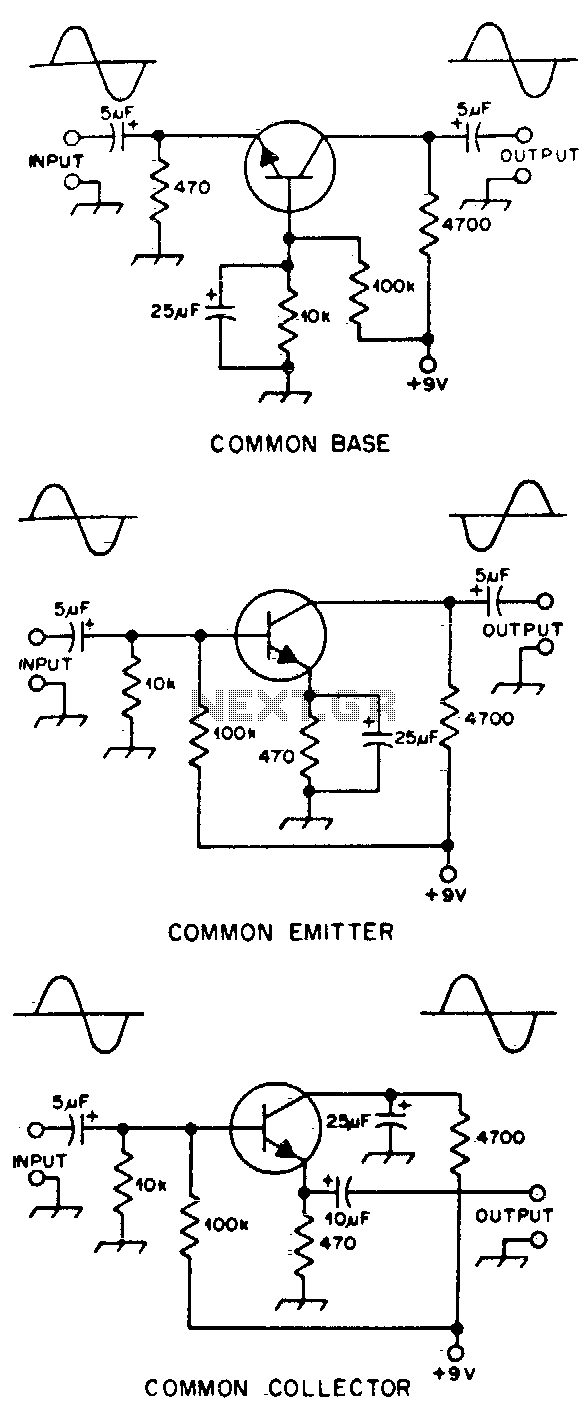

A common emitter amplifier functions as a signal amplification unit by utilizing a common emitter configuration, which inverts the output signal. This operation can be analyzed by observing the input signal waveform. During the first quarter of the period, the...
