Electronic Selector for 10 sources with Display-Relay Drive circuit
#selector
#relay drive
#display
#rotary switch
#optical indication
#electronic switching
#control circuit
#input selection
#multiplexing
#signal routing

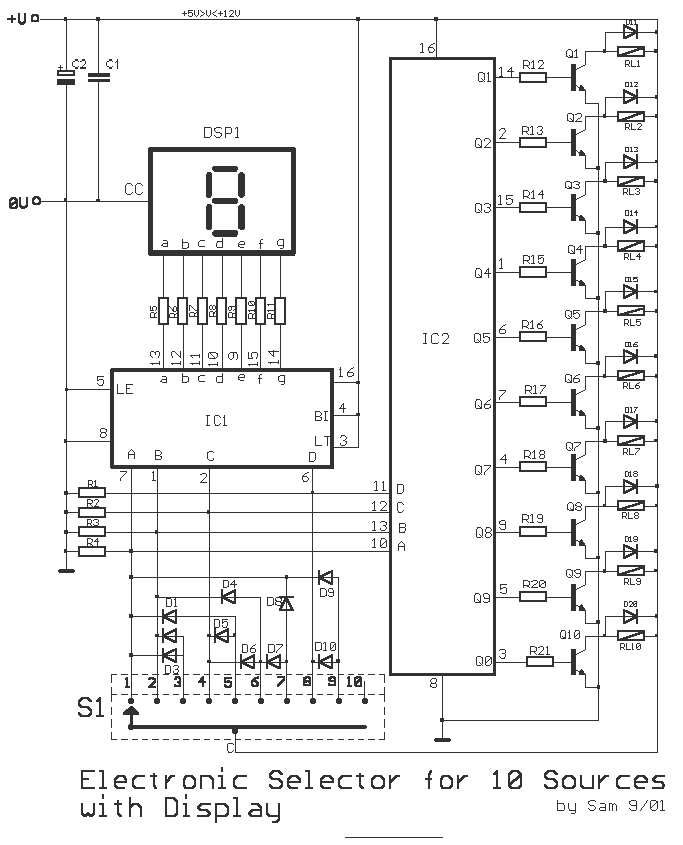

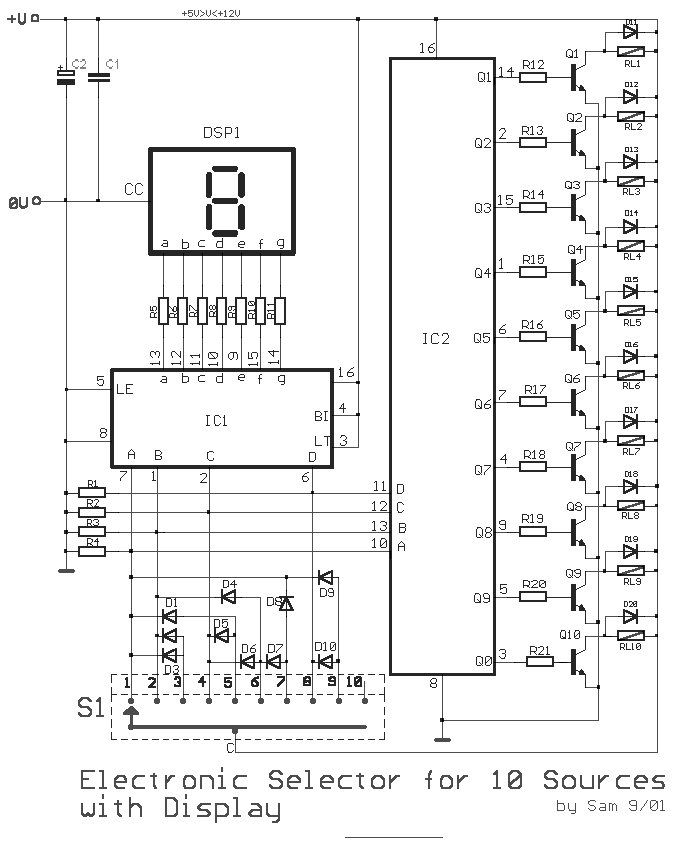

Description: This circuit is designed for the selection of alternative sources. It integrates mechanical selection through a rotating switch S1, electronic control of relays RL1 to RL10, and optical indication of the selection via the display DSP1.
The circuit operates by allowing the user to select between multiple power sources or signal inputs through a mechanical rotating switch (S1). This switch is connected to a series of relays (RL1 to RL10), which are electronically driven to switch the selected source to the output. Each relay corresponds to a specific input or source, enabling the circuit to handle various operational requirements.
The electronic drive for the relays is typically implemented using a microcontroller or a dedicated relay driver IC, which receives input from the rotating switch. This design ensures that the selected relay is activated while others remain deactivated, preventing cross-talk between sources. The relays are chosen based on their switching capacity to handle the required voltage and current levels of the signals being managed.
To provide visual feedback to the user, an optical indication is achieved through the display (DSP1). This display can be an LED array, LCD, or other types of visual indicators that illuminate or change state to reflect the current selection made via the switch. The display is updated in real-time as the switch is rotated, ensuring the user is always aware of which source is currently active.
The overall design emphasizes reliability and user-friendliness, making it suitable for applications where multiple sources need to be managed efficiently, such as in audio systems, power distribution systems, or laboratory setups. Proper consideration should be given to the layout of the circuit to minimize noise and interference, particularly in sensitive applications. Additionally, the selection mechanism should be robust to ensure longevity and consistent performance over time.This is a circuit for alternative sources selection. It combines mechanical selection using a rotating switch S1, the electronic drive of the relays RL 1-10 and also the optical indication of the selection by the Display DSP1..
The circuit operates by allowing the user to select between multiple power sources or signal inputs through a mechanical rotating switch (S1). This switch is connected to a series of relays (RL1 to RL10), which are electronically driven to switch the selected source to the output. Each relay corresponds to a specific input or source, enabling the circuit to handle various operational requirements.
The electronic drive for the relays is typically implemented using a microcontroller or a dedicated relay driver IC, which receives input from the rotating switch. This design ensures that the selected relay is activated while others remain deactivated, preventing cross-talk between sources. The relays are chosen based on their switching capacity to handle the required voltage and current levels of the signals being managed.
To provide visual feedback to the user, an optical indication is achieved through the display (DSP1). This display can be an LED array, LCD, or other types of visual indicators that illuminate or change state to reflect the current selection made via the switch. The display is updated in real-time as the switch is rotated, ensuring the user is always aware of which source is currently active.
The overall design emphasizes reliability and user-friendliness, making it suitable for applications where multiple sources need to be managed efficiently, such as in audio systems, power distribution systems, or laboratory setups. Proper consideration should be given to the layout of the circuit to minimize noise and interference, particularly in sensitive applications. Additionally, the selection mechanism should be robust to ensure longevity and consistent performance over time.This is a circuit for alternative sources selection. It combines mechanical selection using a rotating switch S1, the electronic drive of the relays RL 1-10 and also the optical indication of the selection by the Display DSP1..

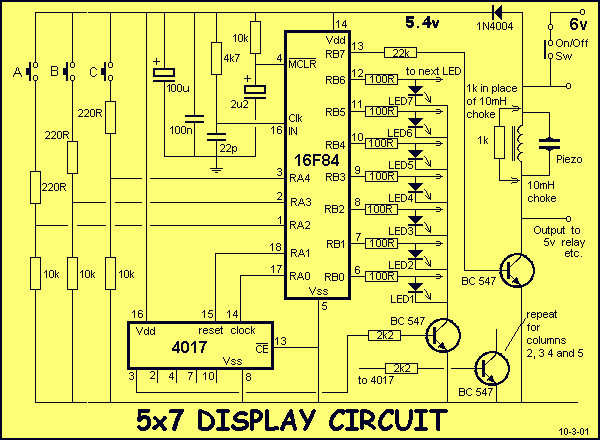

5x7 DISPLAY
You must be able to recognise components such as capacitors, diodes, zeners, transistors and resistors to build a 5x7 Display project. This information is covered in our BASIC ELECTRONICS course and a complete set of circuit symbols can be found...

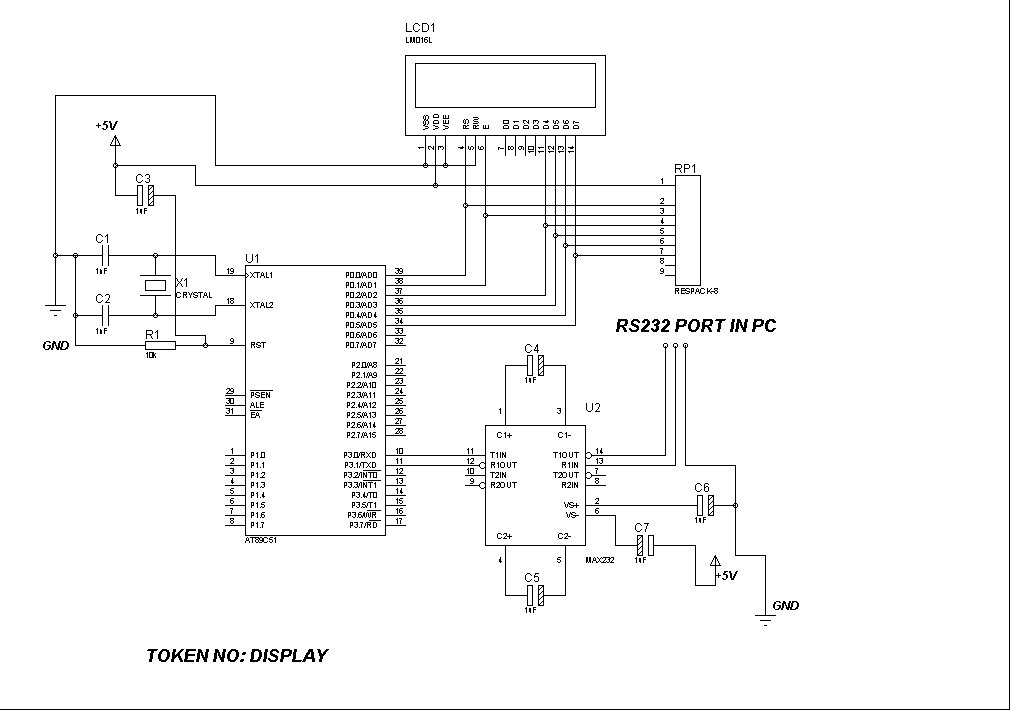

Token number display
Introduction: Token Display Systems are ideal for banks, airports, public dealing offices, hospitals, doctors' clinics, restaurants, and other locations where people must wait in line. These systems allow customers to wait comfortably without standing in line; they only need to...
A control circuit reversing braking and reverse grading speed control function

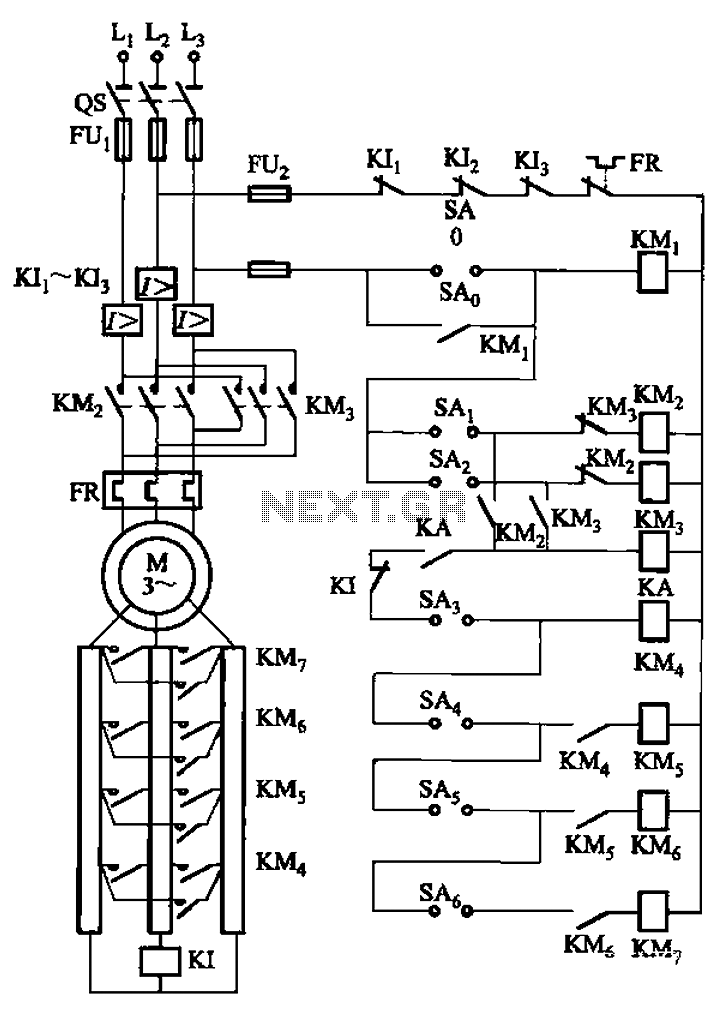

The circuit depicted in Figure 3-168 utilizes a controller for speed grading and reversing control. A reverse brake is connected to the rotor circuit through an overcurrent relay, labeled KI, for control. The current relay KIi to KI3 serves as...
Electronic 10 way Selector Relays
This is a circuit for alternative sources selection. It combines mechanical selection using a rotating switch S1, the electronic drive of the relays RL 1-10 and also the optical indication of the selection by the Display DSP1. The function is...

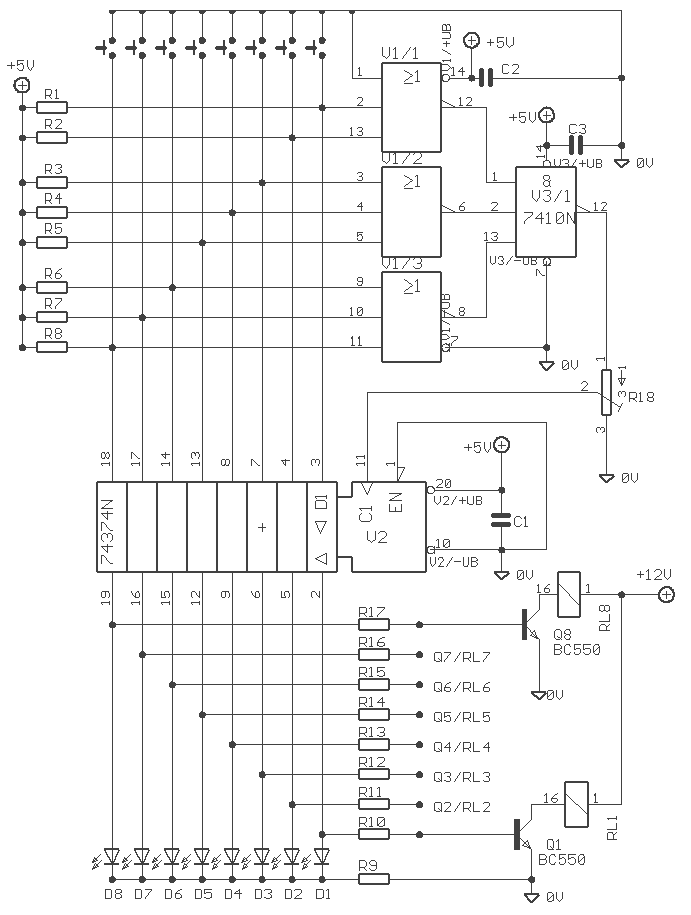

8 way electronic selector / switch
The Elect. Sel. 8 is a simple circuit, with a choice of 8 sources of any sort, of 8 independent switches. Each switch corresponding with a relay for example the switch S1 activates the RL1 etc. The uses of the...
Game-scoring Display ScreenCircuit

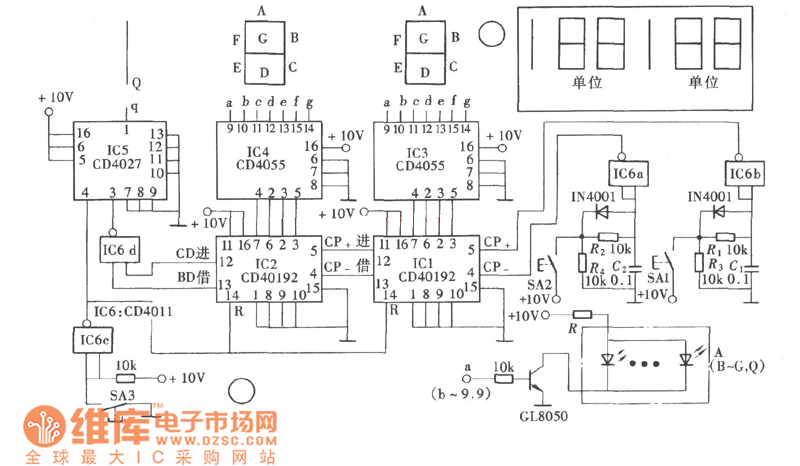

The game-scoring display screen circuit diagram is depicted in the image above. The circuit consists of an add/subtract scoring input circuit, an add/subtract scoring circuit, a counting-decoding display circuit, and a reset circuit.
