Description: The listed currents represent maximum values, and the actual current consumption will vary based on the circuit's operation. This precludes the simple use of a resistor in series to reduce voltage from 12 volts to 9 volts for powering the units. It is important to note that each circuit contains a 1N4007 diode in series with the power supply. This diode will result in a voltage drop of approximately 0.6 volts, suggesting that the circuits operate on less than 9 volts, likely around 8.4 volts. A recommended approach is to utilize several LM7809 voltage regulators to convert a 12-volt source to 9 volts. The relevant datasheet can be referenced for additional information. Currently, an LM338 voltage regulator is in use, which tends to generate significant heat, prompting considerations for using a 12-volt supply. The primary voltage for this project is 12 volts, powering components such as motors and LEDs, while only this particular circuit requires 9 volts. A dual power supply has been implemented to minimize noise from the motor circuit, which utilizes a PWM driver, in relation to the LED circuit, which operates on a separate LM338T constant current configuration. There is also the possibility of sharing the same power supply without encountering issues.
The circuit design involves managing multiple voltage levels to accommodate different components effectively. The use of the LM7809 voltage regulator is advantageous for stepping down the voltage from 12 volts to a stable 9 volts, which is essential for circuits sensitive to voltage variations. The LM7809 is a linear voltage regulator that can provide a maximum output current of 1.5 A and has built-in thermal overload protection, which is critical given the heat generation concerns noted with the LM338 regulator.
The presence of the 1N4007 diode in the circuit introduces an additional voltage drop, which must be accounted for in the design. The forward voltage drop of approximately 0.6 volts means that the effective voltage supplied to the circuit is around 8.4 volts when powered from a 12-volt source. This aspect is crucial to ensure that all components receive adequate voltage for optimal performance.
In terms of layout, a dual power supply design is beneficial for isolating the LED circuit from the motor circuit. Motors, especially when controlled by PWM drivers, can introduce electrical noise that may affect sensitive components like LEDs. By employing a separate LM338T constant current circuit for the LEDs, the design mitigates the risk of noise interference, thus enhancing the reliability and performance of both circuits.
When considering the possibility of sharing a single power supply, it is essential to implement adequate decoupling capacitors and possibly ferrite beads to filter out noise and transients that may arise from the motor circuit. Proper grounding techniques and layout considerations will further ensure that the two circuits can coexist without adverse effects on performance.
In conclusion, this design emphasizes the need for careful voltage management, thermal considerations, and noise reduction strategies to create a reliable and efficient circuit that meets the operational requirements of the various components involved.The currents listed are maximum values, the actual current used will vary on what the circuits are doing. That precludes just placing a resistor in series to drop 12 to 9 volts and run the units. Note that on each circuit there is a 1N4007 diode in series with the power. That diode will drop about. 6 volt leading me to believe the actual circuits run on less athn 9 volts and more like 8. 4 volts approximately. My choice would be to use a few LM7809 regulators to give you 9 volts from a 12 volt source. The data sheet can be found here. That is how I would likely go about it. Thanks for you suggestion, I use LM338 as voltage regulator (see picture) now and since it gets very hot I was thinking to use 12V somehow. My main voltage used by this project is 12V for motor, LED etc. Only this circuit needs 9V. I have made dual PSU to reduce noise from motor circuit (with PWM driver) to the LED circuit (another LM338T constant curren circuit).
Or perhaps they can share same PSU without any issues
Sometimes amateurs like to home-brew their power supplies instead of purchasing one off the shelf at any of the major ham radio retail dealers. The advantage to rolling your own power supply is that it teaches us how they work...
This AC to DC power supply can output 5A in continuous operation and 12A peak current. This type of DC power supply uses a PCB, allowing for two case types for IC1: TO-220 or TO-3. The regulation of this 12-volt...
D1 and D2 can be IN914B or HP2800-series diodes (for UHF). The loss is over 60 dB in the off state and less than 3 dB at 3.5 to 30 MHz (using common IN914B diodes).
The circuit utilizes D1 and D2...
A 9-12V DC power supply is connected to control point A or point B for an amateur communication receiver IF amplifier, offering two distinct options. The power frequency is set at 455 kHz with a bandwidth of 500 Hz. The...
The Dragon ZL-2801A is a DVD machine that utilizes a switching power supply circuit. The circuit primarily consists of an AC input circuit, a rectifier filter wave circuit, an oscillation circuit switch, a switch transformer (Tl), a secondary rectifier, and...
Up to 10 A continuous output current, or operation with 50 % ESD and 18 A peak current are possible without a fan if sufficient natural air flow is present and the ambient temperature does not exceed 30 °C. A...
The circuit tests whether a diode is open, shorted, or functioning correctly. If lamp A lights, the diode under test is functional. When lamp B is lit, the diode is good but connected backwards. When both lamps are lit, the...

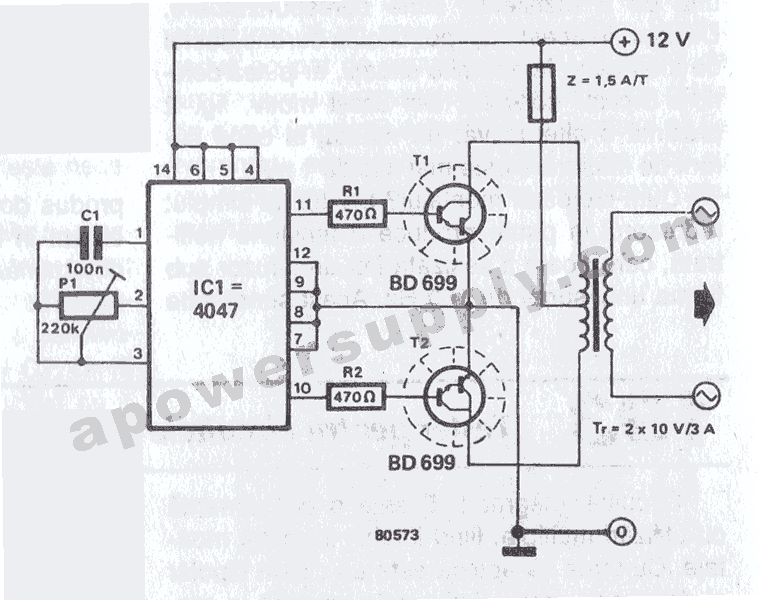

This circuit inverter converts a 12V DC battery to 220V AC, serving as a replacement for home energy. The inverter can power small electronic devices such as lamps, radios, phone chargers, and disc players. The central component of the inverter...
