Description: The serial interface is functioning correctly, as it reads the ID register accurately. However, the on-chip current sources do not appear to operate as expected. A 470-ohm resistor has been connected to IOUT1, and the IO register has been configured with a value of 0x03 to source 1mA on both IOUT1 and IOUT2. The expected voltage across the resistor is 470 mV; however, only 33 mV is being observed. Two identical boards have been tested to eliminate the possibility of a defective chip or poor soldering.
The circuit involves a serial interface that communicates with an integrated circuit (IC) capable of sourcing current through designated output pins, specifically IOUT1 and IOUT2. The configuration of the IO register with the value 0x03 indicates that both output pins are set to provide a current of 1mA. The presence of a 470-ohm resistor connected to IOUT1 is intended to allow for the measurement of the output voltage, which should theoretically be calculated using Ohm's Law (V = I × R). Therefore, with a current of 1mA flowing through a 470-ohm resistor, the expected voltage drop across the resistor should be 470 mV.
The observed voltage of only 33 mV suggests a significant discrepancy, indicating that the current sourcing capability of the circuit may be compromised. Potential causes for this issue could include incorrect configuration of the IO register, a malfunctioning current source within the IC, or issues related to the power supply or ground connections. The testing of two separate boards helps to rule out manufacturing defects, such as a faulty chip or poor soldering practices, reinforcing the need to investigate the internal circuitry of the IC or the associated components further.
To troubleshoot the issue, it may be beneficial to verify the supply voltage levels and ensure that the IC is receiving adequate power. Additionally, checking the integrity of the connections to the IOUT pins and confirming that the IO register is correctly programmed could provide insights into the problem. If the current sources remain non-functional, further analysis of the IC's specifications and operational limits may be necessary to determine if external factors are influencing its performance.The serial interface is working fine (Read the ID register correctly) but for some reason the on-chip current sources doesn`t seem to work. I have connected 470E resistor on IOUT1 and have configured the IO register (Value 0x03) so that 1mA is sourced on both IOUT1 & IOUT2.
I`m expecting to see 470 mV across the resistor, but I`m getting 33mV. I h ave tried making 2 of such boards to rule out possibility of bad chip or bad soldering,
This precision current source features output current ranges from 10 µA to 10 mA, with an output compliance of 30 V to -5 V. The output current is fully adjustable within each range using a calibrated ten-turn potentiometer. An error...
This circuitry facilitates the connection between the computer's Z RS-23 serial interface and the current ring circuitry. It converts the voltage signal of the transmission into a current signal of 20 mA, achieving a maximum speed of 1200 bits. The...

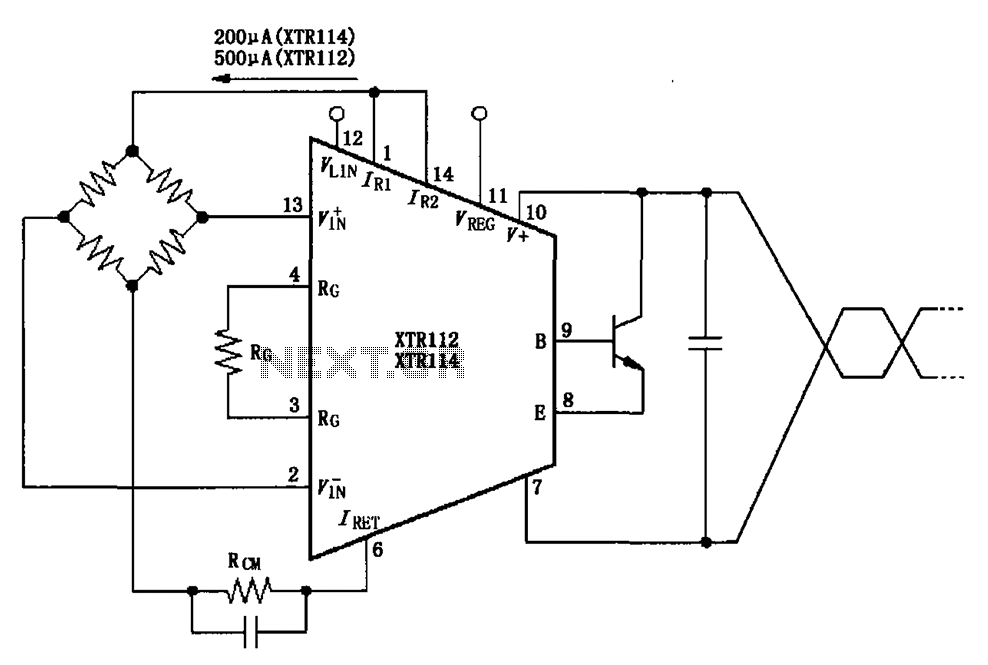

The two current sources within the chip (1 foot and 14 feet out) provide excitation. The output of each current source is 0.2 mA (XTR114) or 0.5 A (XTR112). The common mode input voltage is adjustable, ranging from 1.25 to...
