simple signal injector aids control loop analysis
#signal injection
#control loop analysis
#instrumentation amplifier
#dc to 200 kHz
#ground isolation
Description: A signal-injection circuit for control-loop analysis is flat from DC to 200 kHz, isolated from chassis ground, and easily constructed with a readily available instrumentation amplifier.
The signal-injection circuit is designed to facilitate control-loop analysis by providing a stable and consistent signal across a frequency range from direct current (DC) to 200 kilohertz (kHz). The circuit's flat frequency response ensures that it can accurately inject signals without introducing distortion or frequency-dependent variations, making it suitable for testing and analyzing control systems.
Isolation from chassis ground is a critical feature of this circuit. This isolation helps to prevent ground loops and other noise issues that can affect the accuracy of measurements. By maintaining a floating ground reference, the circuit can be used in various environments without the risk of interference from external electrical noise.
The circuit can be constructed using a standard instrumentation amplifier, which is readily available in the market. Instrumentation amplifiers are preferred for their high input impedance, low output impedance, and excellent common-mode rejection ratio (CMRR). These characteristics make them ideal for accurately amplifying small signals while rejecting noise and interference.
To build the circuit, the instrumentation amplifier is configured to accept input signals and provide an output that can be injected into the control loop under test. Additional components such as resistors, capacitors, and possibly a power supply may be required to complete the circuit and ensure proper operation. Careful selection of these components will further enhance the performance and reliability of the signal-injection circuit.
Overall, this signal-injection circuit serves as a valuable tool for engineers and technicians involved in control system analysis and testing, allowing for precise signal manipulation and measurement across a critical frequency range.A signal-injection circuit for control-loop analysis is flat from dc to 200 kHz, isolated from chassis ground and easily constructed with a readily available instrumentation amplifier..
The signal-injection circuit is designed to facilitate control-loop analysis by providing a stable and consistent signal across a frequency range from direct current (DC) to 200 kilohertz (kHz). The circuit's flat frequency response ensures that it can accurately inject signals without introducing distortion or frequency-dependent variations, making it suitable for testing and analyzing control systems.
Isolation from chassis ground is a critical feature of this circuit. This isolation helps to prevent ground loops and other noise issues that can affect the accuracy of measurements. By maintaining a floating ground reference, the circuit can be used in various environments without the risk of interference from external electrical noise.
The circuit can be constructed using a standard instrumentation amplifier, which is readily available in the market. Instrumentation amplifiers are preferred for their high input impedance, low output impedance, and excellent common-mode rejection ratio (CMRR). These characteristics make them ideal for accurately amplifying small signals while rejecting noise and interference.
To build the circuit, the instrumentation amplifier is configured to accept input signals and provide an output that can be injected into the control loop under test. Additional components such as resistors, capacitors, and possibly a power supply may be required to complete the circuit and ensure proper operation. Careful selection of these components will further enhance the performance and reliability of the signal-injection circuit.
Overall, this signal-injection circuit serves as a valuable tool for engineers and technicians involved in control system analysis and testing, allowing for precise signal manipulation and measurement across a critical frequency range.A signal-injection circuit for control-loop analysis is flat from dc to 200 kHz, isolated from chassis ground and easily constructed with a readily available instrumentation amplifier..

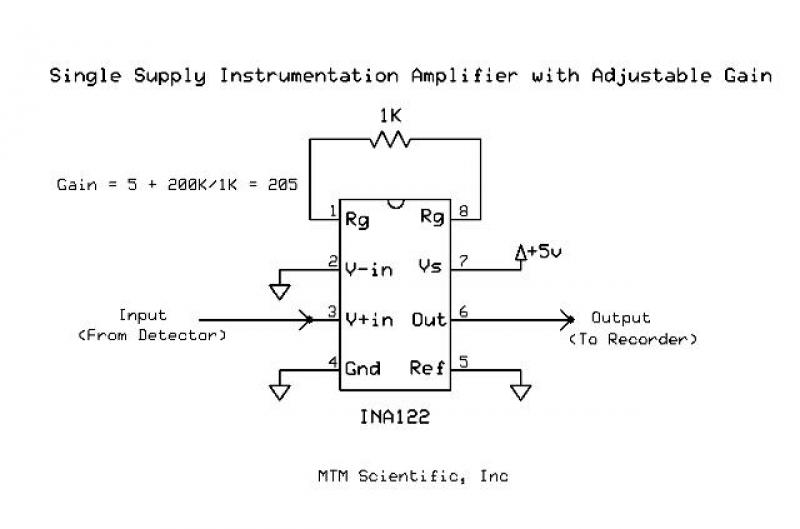

DC Instrumentation Amplifier Circuit
A common challenge for experimenters is increasing the gain of a low-level DC voltage for recording or analysis. Most instrumentation circuits require building a complicated project with dual power supplies and high-accuracy components. A simple solution is to use an...
High gain differential instrumentation amplifier
This circuit includes input guarding, cable bootstrapping, and bias current compensation. Differential bandwidth is reduced by Cl, which also makes common-mode rejection less dependent on the matching of input amplifiers.
The described circuit features several critical components designed to enhance performance...

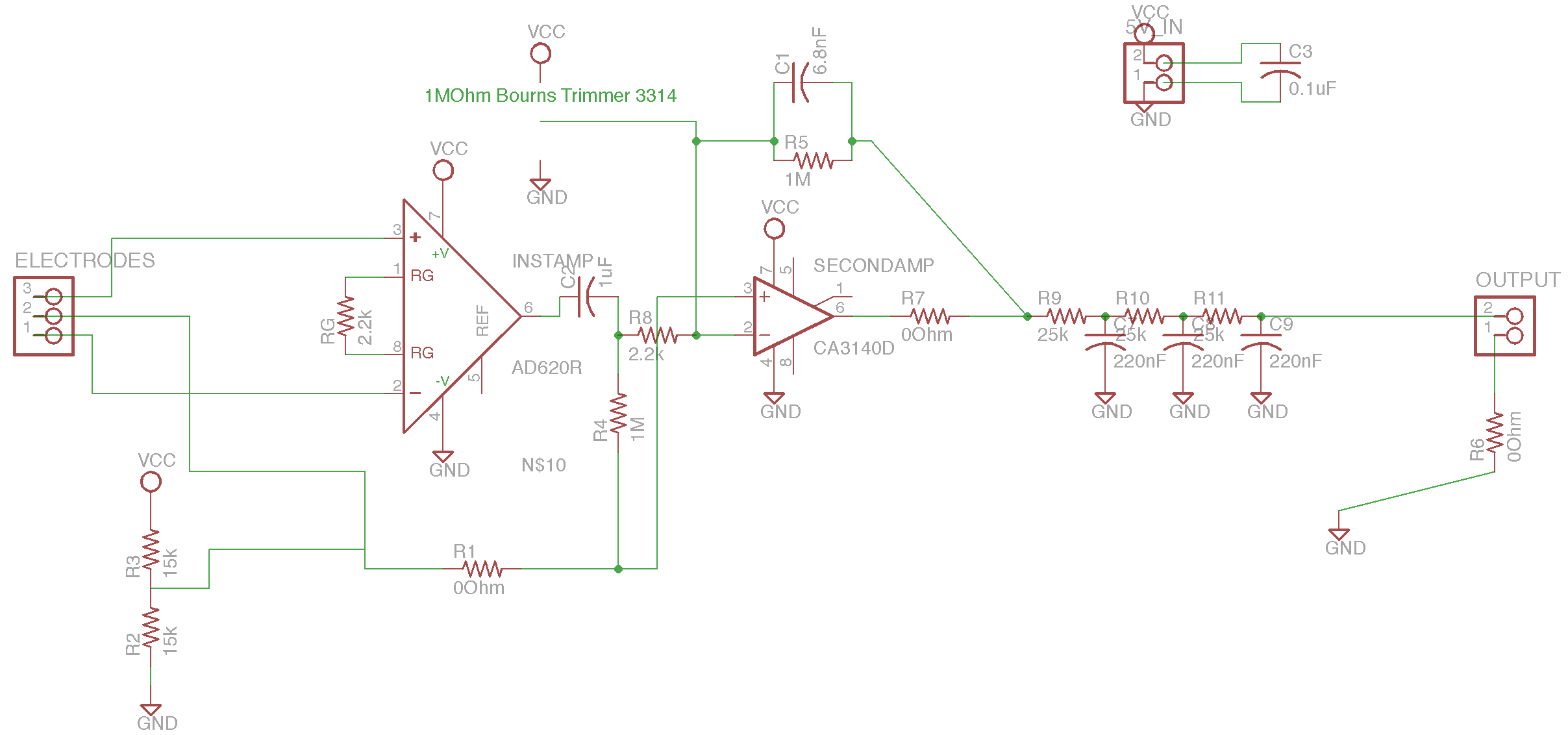

a simple electrocardiogram board
The circuit is based on the designs of Chipstein and Cornell, utilizing an instrumentation amplifier (AD620) to measure the voltage difference between two locations on the body. A second amplifier (CA3140) further amplifies this differential signal. A potentiometer is employed...
Instrumentation-amplifier
LTC1043 and LT1013 dual operational amplifiers are utilized to construct a dual instrumentation amplifier with only two packages. A single double-pole double-throw (DPDT) switch converts the differential input into a ground-referenced single-ended signal at the input of the LT1013. When...
Instrumentation Amplifier
In a single difference amplifier configuration, the AM-427 demonstrates excellent common-mode rejection and low noise voltage, which is primarily influenced by the resistor Johnson noise. The three-amplifier configuration presented circumvents the low input-impedance characteristics typical of difference amplifiers. Due to...
Micropower Single-Supply Instrumentation Amplifier
A schematic diagram of a micropower single-supply instrumentation amplifier circuit is presented. This circuit requires only 15µA of current and can provide over...
The micropower single-supply instrumentation amplifier circuit is designed for applications where low power consumption is critical. The amplifier...

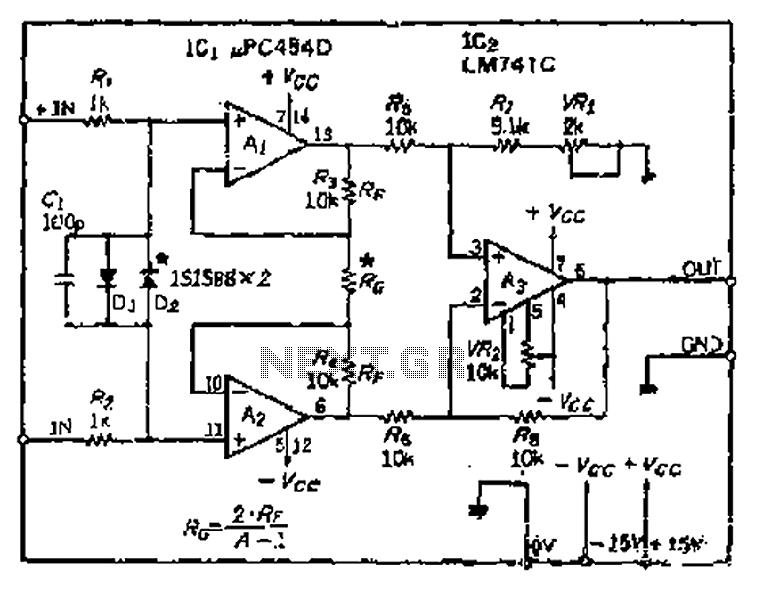

CMRR and high input impedance instrumentation differential amplifier circuit
All resistance values are equal, resulting in the Cantonese operational amplifier's gain (A) being equal to 1. However, by selecting smaller resistances, the gain can be adjusted. The circuit can achieve the desired gain through six configurations. Two heavy amplifiers,...

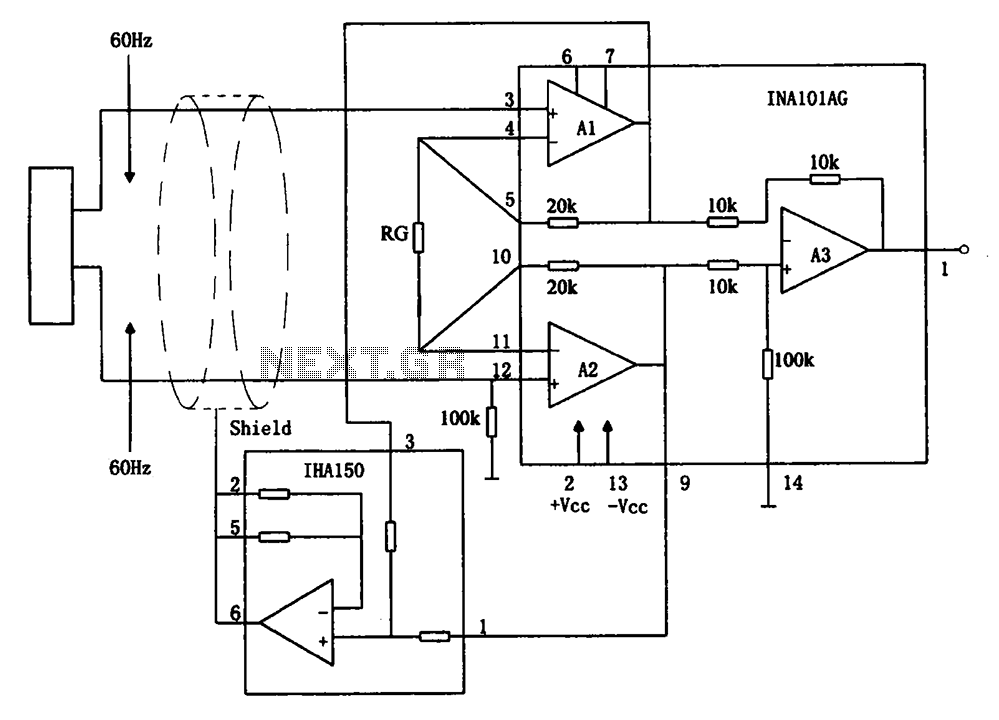

Eliminate hum instrumentation amplifier INA101 circuit
The circuit diagram illustrates a hum elimination instrument amplifier circuit. The amplifier stages A1 and A2 utilize the integrated operational amplifier INA101, followed by stage A3 which employs the INA105. A feedback circuit is incorporated to reduce the power of...
Ultra-precision-instrumentation-amplifier
This circuit operates from a single 5 V power supply. The LTC1043 switched-capacitor instrumentation building block facilitates a differential-to-single-ended transition using a flying-capacitor technique. The circuit alternately samples the differential input signal and charges the ground-referred capacitor C2 with this...
