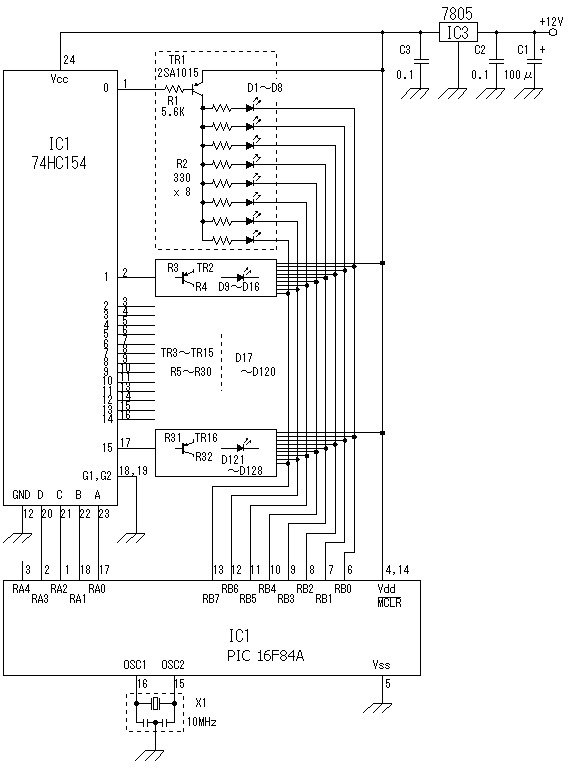

LED SignBoard with PIC 16F84A
Description: The pins RA3 to RA0 are used as outputs driving each column LED. The pins RB0 to RB7 are used as outputs driving signals for each column LED. The 74HC154 (Decoder 4 to 16) is the chip that decodes the signal into a binary digit. In the left figure, all the pins of the door are at a reasonable RA0 (Low), in which case only the output 0 of the 74HC154 decoder is logical 0 and the others are at logic 1. Therefore, only the transistor TR1 conducts and powers on the column of LEDs connected with it. The LEDs illuminated by this column will be determined by the logic state of the pins RB7-RB0. For example, in the left shape, because the pins RB0 and RB4 are logical 0 (Low), the LEDs D1 and D5 will illuminate. The remaining LEDs in the column connected to pins of door RB will remain extinguished. Also, the remaining LED columns will remain switched off because the transistors that supply them with power do not conduct.
In the figure, it can be seen that the LEDs light up every time, with the combination of the column gate RA and columns of the door of RB PIC16F84A. Note that the length of each lighting column with LEDs is 1/16. If an external circuit with registers holds data for each combination, the time of LED lighting can grow. However, this circuit does not utilize that feature.
Note that in each LED anode, there is a current-limiting resistor, which is necessary to protect the LEDs and the pins of the door RB from damage.
For timing, the processor uses a ceramic filter (resonator) or a 10MHz crystal along with two 22pF ceramic capacitors.
The voltage stabilization circuit (IC2) reduces the voltage from 12VDC to 5VDC, with capacitors used to smooth and filter the output. When all eight LEDs are lit simultaneously, the circuit's consumption reaches about 90 mA. A voltage regulator rated for 100 mA can be used for safety, but a 1 Ampere (1A) regulator is recommended for added security.
This circuit is designed to control an array of LEDs using a microcontroller (PIC16F84A) and a 4-to-16 line decoder (74HC154). The output pins from the microcontroller (RA0-RA3) select which column of LEDs to activate, while the pins (RB0-RB7) determine the specific LEDs within that column to illuminate based on their logic states. The use of transistors allows for driving higher currents through the LEDs while isolating the microcontroller from the load. The current-limiting resistors prevent excessive current from flowing through the LEDs, ensuring their longevity and preventing damage to the microcontroller's output pins. The timing circuit ensures accurate operation of the microcontroller, while the voltage regulation circuit provides stable power for reliable performance.The pins RA3 to RA0, are used as outputs driving each column LED. The pins RB0 to RB7 are used as outputs driving signal for each column LED. The 74HC154 (Decoder 4 to 16) is the chip that decodes the signal into a binary digit dekaexapsifio. In the left figure all the pins of the door at a reasonable RA 0 (Low), in which case only the output 0 of the 74HC154 decoder is logical 0 and the others at logic 1. Therefore only the transistor TR1 conducts and powered on the column of Led connected with it. For what Led by this column will turn determined by the logic state will find the pins RB7-RB0 door RB.
For example, the left shape, because the pins RB0 and RB4 are logical 0 (Low), the Led D1 and D5 will illuminate. The remaining Led the column is connected to pins of door RB will remain extinguished. Also will remain switched off and the remaining Led columns because the transistors that supply them with power do not lead me. In the figure you can see the Led light up every time, with the combination of the column gate RA, and columns of the door of RB PIC16F84A.
Note that the length of each lighting column with Led is 1 / 16. If you use an external circuit with registers hold data for each combination, the time of Led Lighting can grow. But the circuit will increase to one in our example is not used. Note that in each anode Led a resistance limiting current, which is necessary because the Led and protects the feet of the door RB from the disaster.
Timing Circuit For the timing of the processor used a ceramic filter (Resonator) or 10MHz crystal and two 22pF ceramic capacitors Feeder circuit The IC2 stabilize the voltage from 12VDC to 5VDC and capacitors to smooth and filter. If all eight LEDs light up simultaneously, the consumption of the circuit reaches about 90 mA. Stabilizer of the order of 100 mA can be used for security, but use a rate of one Ampere (1A).
In the figure, it can be seen that the LEDs light up every time, with the combination of the column gate RA and columns of the door of RB PIC16F84A. Note that the length of each lighting column with LEDs is 1/16. If an external circuit with registers holds data for each combination, the time of LED lighting can grow. However, this circuit does not utilize that feature.
Note that in each LED anode, there is a current-limiting resistor, which is necessary to protect the LEDs and the pins of the door RB from damage.
For timing, the processor uses a ceramic filter (resonator) or a 10MHz crystal along with two 22pF ceramic capacitors.
The voltage stabilization circuit (IC2) reduces the voltage from 12VDC to 5VDC, with capacitors used to smooth and filter the output. When all eight LEDs are lit simultaneously, the circuit's consumption reaches about 90 mA. A voltage regulator rated for 100 mA can be used for safety, but a 1 Ampere (1A) regulator is recommended for added security.
This circuit is designed to control an array of LEDs using a microcontroller (PIC16F84A) and a 4-to-16 line decoder (74HC154). The output pins from the microcontroller (RA0-RA3) select which column of LEDs to activate, while the pins (RB0-RB7) determine the specific LEDs within that column to illuminate based on their logic states. The use of transistors allows for driving higher currents through the LEDs while isolating the microcontroller from the load. The current-limiting resistors prevent excessive current from flowing through the LEDs, ensuring their longevity and preventing damage to the microcontroller's output pins. The timing circuit ensures accurate operation of the microcontroller, while the voltage regulation circuit provides stable power for reliable performance.The pins RA3 to RA0, are used as outputs driving each column LED. The pins RB0 to RB7 are used as outputs driving signal for each column LED. The 74HC154 (Decoder 4 to 16) is the chip that decodes the signal into a binary digit dekaexapsifio. In the left figure all the pins of the door at a reasonable RA 0 (Low), in which case only the output 0 of the 74HC154 decoder is logical 0 and the others at logic 1. Therefore only the transistor TR1 conducts and powered on the column of Led connected with it. For what Led by this column will turn determined by the logic state will find the pins RB7-RB0 door RB.
For example, the left shape, because the pins RB0 and RB4 are logical 0 (Low), the Led D1 and D5 will illuminate. The remaining Led the column is connected to pins of door RB will remain extinguished. Also will remain switched off and the remaining Led columns because the transistors that supply them with power do not lead me. In the figure you can see the Led light up every time, with the combination of the column gate RA, and columns of the door of RB PIC16F84A.
Note that the length of each lighting column with Led is 1 / 16. If you use an external circuit with registers hold data for each combination, the time of Led Lighting can grow. But the circuit will increase to one in our example is not used. Note that in each anode Led a resistance limiting current, which is necessary because the Led and protects the feet of the door RB from the disaster.
Timing Circuit For the timing of the processor used a ceramic filter (Resonator) or 10MHz crystal and two 22pF ceramic capacitors Feeder circuit The IC2 stabilize the voltage from 12VDC to 5VDC and capacitors to smooth and filter. If all eight LEDs light up simultaneously, the consumption of the circuit reaches about 90 mA. Stabilizer of the order of 100 mA can be used for security, but use a rate of one Ampere (1A).

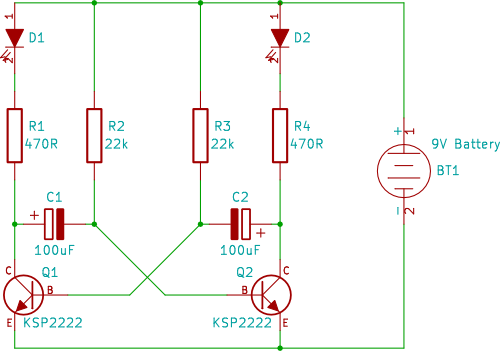

dual LED flasher
A two-transistor circuit that alternately flashes two LEDs on and off. This tutorial demonstrates how beginners in electronics can build this simple circuit on a breadboard.
This circuit utilizes two NPN transistors configured in a flip-flop arrangement, which allows for the...
SINGLE TRANSISTOR CODE PRACTICE OSCILLATOR
A 2N366 is configured as an audio feedback oscillator using an audio transformer. Adjust R1 for proper operation and the desired audio note.
The circuit utilizes a 2N366 transistor, which is a general-purpose NPN transistor, serving as the primary active component...

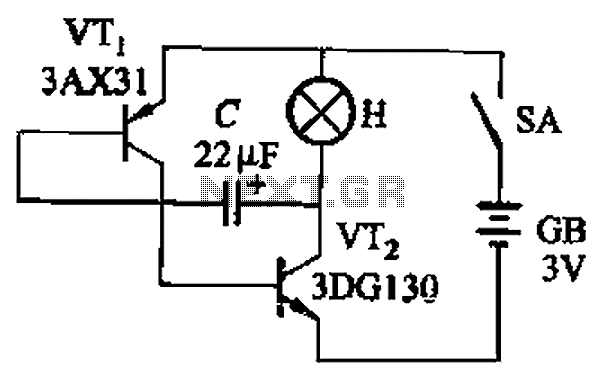

Blinker circuit 2
The circuit depicted in Figure 13-4 utilizes triode control. Two transistors, VTi and VTz, are coupled via a capacitor (C) to alternately turn on and off, producing a flashing light effect. The flash frequency is influenced by the capacitance of...

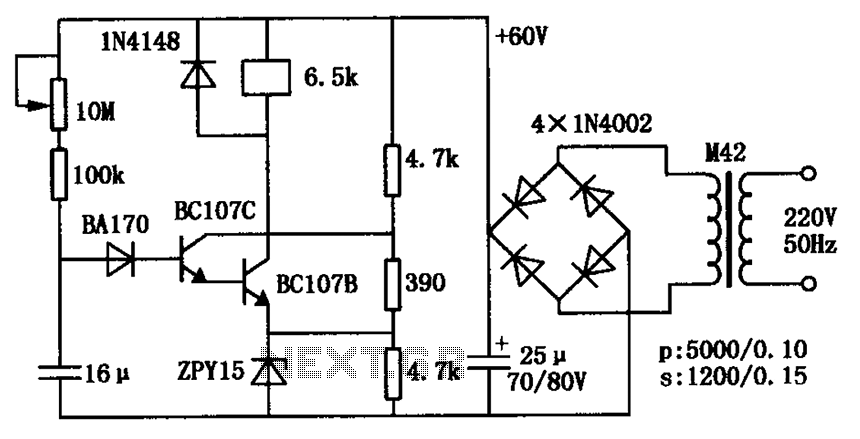

Length 1 minute delay relay pull transistor circuit diagram
The circuit consists of a transistor relay delay pull mechanism. Initially, with a 16 µF capacitor at zero voltage, both transistors are off, and the relay remains inactive. As the 16 µF capacitor charges over time, the voltage increases to...
OTL transistor radio in a power amplifier circuit
The transistor radio features a common output transformerless (OTL) power amplifier circuit. The VT5 component serves as the bias resistor for the driver stage. VT6 and VT7 form a complementary symmetry configuration, with VT6 being a germanium NPN transistor and...

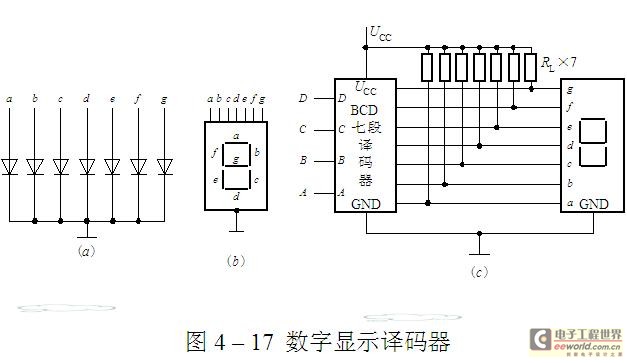

BCD seven sections of nixie tubes reveal the decoder circuit
The luminescent diode (LED) is constructed from gallium arsenide (GaAs), a specialized semiconductor material, and gallium arsenide phosphide. It can be used individually or assembled into segment-type or lattice LED display devices. The display unit consists of a sectional type...

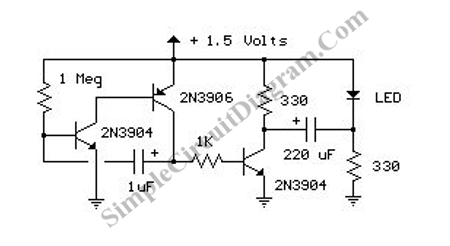

1.5V LED FLasher Using 3 Transistors
To make an LED function, a voltage source is required that exceeds the LED's forward bias voltage, which is typically greater than 1.5V (approximately 2V for red LEDs).
To effectively operate an LED, it is essential to provide a voltage source...

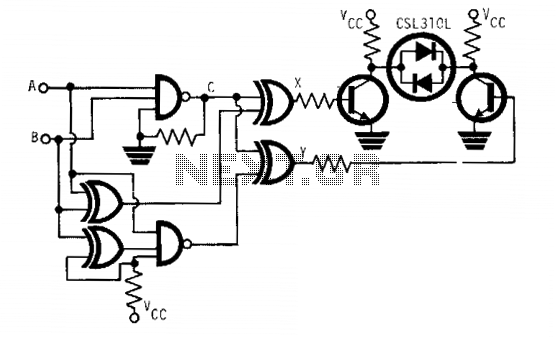

Led indicates logic states
