Frequency to Voltage converter circuit based on the TC9400 IC
#frequency to voltage
#TC9400
#F to V converter
#dual supply
#single supply
#signal conversion
#voltage converter
#IC circuit
#analog circuit

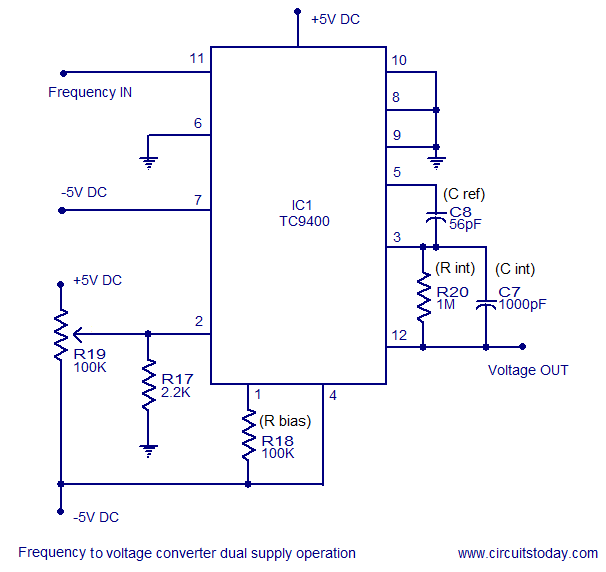

Description: A simple frequency to voltage converter circuit designed around the TC9400 F to V / V to F converter IC. Dual and single supply versions are provided.
The TC9400 is a versatile integrated circuit that converts frequency signals into corresponding voltage levels. This functionality is crucial in various applications, such as signal processing, instrumentation, and control systems. The circuit can be configured to operate in dual supply or single supply modes, offering flexibility depending on the specific requirements of the application.
In the dual supply configuration, the TC9400 typically requires a positive and a negative voltage supply, allowing it to handle bipolar input signals effectively. This configuration is beneficial when dealing with AC signals or when the input frequency can swing above and below ground. The circuit design will include appropriate bypass capacitors to ensure stable operation and minimize noise.
Conversely, the single supply configuration simplifies the power requirements and is suitable for applications where the input signal is always above ground. This setup often involves biasing the input signal to ensure that it remains within the operational range of the TC9400, allowing for accurate frequency-to-voltage conversion.
The basic operation of the TC9400 involves the input frequency being applied to the input pin of the IC, which then generates an output voltage proportional to the frequency. The output voltage can be calibrated using external resistors and capacitors, allowing for fine-tuning of the circuit to meet specific application needs. The circuit may also include additional components such as operational amplifiers for further signal conditioning or filtering to enhance performance.
Overall, the TC9400 frequency to voltage converter circuit is a reliable and efficient solution for converting frequency signals into voltage levels, adaptable to various power supply configurations and application requirements.A simple frequency to voltage converter circuit designed around the TC9400 F to V / V to F converter IC. Dual and single supply versions are given here..
The TC9400 is a versatile integrated circuit that converts frequency signals into corresponding voltage levels. This functionality is crucial in various applications, such as signal processing, instrumentation, and control systems. The circuit can be configured to operate in dual supply or single supply modes, offering flexibility depending on the specific requirements of the application.
In the dual supply configuration, the TC9400 typically requires a positive and a negative voltage supply, allowing it to handle bipolar input signals effectively. This configuration is beneficial when dealing with AC signals or when the input frequency can swing above and below ground. The circuit design will include appropriate bypass capacitors to ensure stable operation and minimize noise.
Conversely, the single supply configuration simplifies the power requirements and is suitable for applications where the input signal is always above ground. This setup often involves biasing the input signal to ensure that it remains within the operational range of the TC9400, allowing for accurate frequency-to-voltage conversion.
The basic operation of the TC9400 involves the input frequency being applied to the input pin of the IC, which then generates an output voltage proportional to the frequency. The output voltage can be calibrated using external resistors and capacitors, allowing for fine-tuning of the circuit to meet specific application needs. The circuit may also include additional components such as operational amplifiers for further signal conditioning or filtering to enhance performance.
Overall, the TC9400 frequency to voltage converter circuit is a reliable and efficient solution for converting frequency signals into voltage levels, adaptable to various power supply configurations and application requirements.A simple frequency to voltage converter circuit designed around the TC9400 F to V / V to F converter IC. Dual and single supply versions are given here..
6v to 12v converter circuits
A 6V to 12V DC converter circuit is designed to convert a lower voltage of approximately 6 volts to a higher voltage of 12 volts, albeit with a reduced current rating. This inverter circuit can deliver up to 800mA of...
240 110V voltage converter circuit diagram

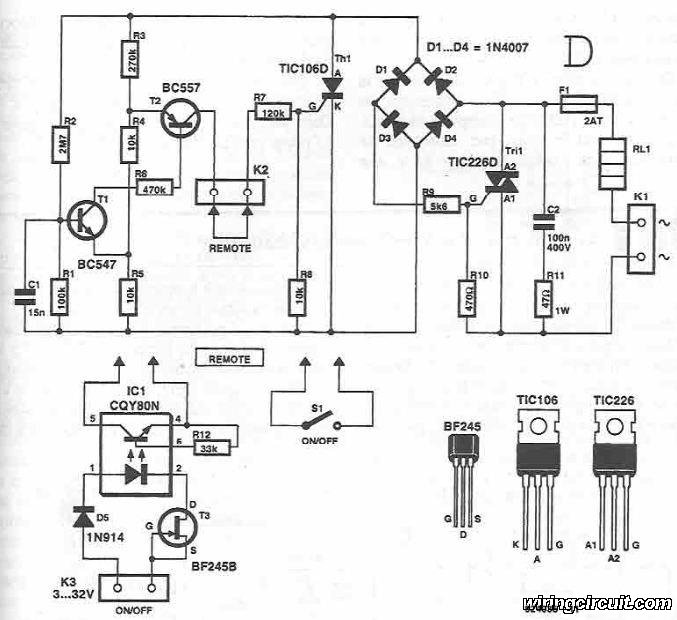

This circuit diagram illustrates the design of a straightforward AC voltage converter that transforms 240V AC power into 110V AC. The circuit can effectively be utilized to power electrical devices that necessitate a supply voltage of 110V.
The AC voltage converter...
Single supply AC buffer amplifier
The input is DC biased to the mid-operating point and is AC coupled. Its input impedance is approximately 500K ohms at low frequencies. For DC loads referenced to ground, the quiescent current is increased by the load current set at...
12V to 3V convertor
A 12V to 3V converter. This is a simple and inexpensive circuit designed to convert voltage from 12V to 3V. In fact, this is a basic regulator circuit.
This 12V to 3V converter circuit typically employs a linear voltage regulator, such...
Dual supply for audio amplifiers

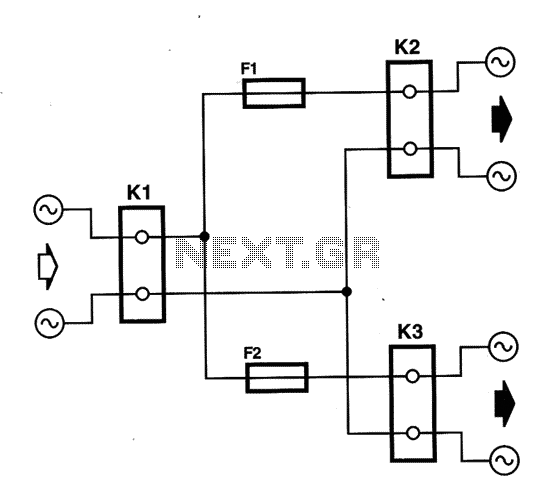

Most amplifiers operate at acoustic frequencies, sometimes requiring two or even three transformers instead of a single power transformer. This approach is more prevalent in high-end amplifiers, where enthusiasts often prioritize high fidelity over cost. In these setups, the primary...
5V From 4Aa Cells Circuit

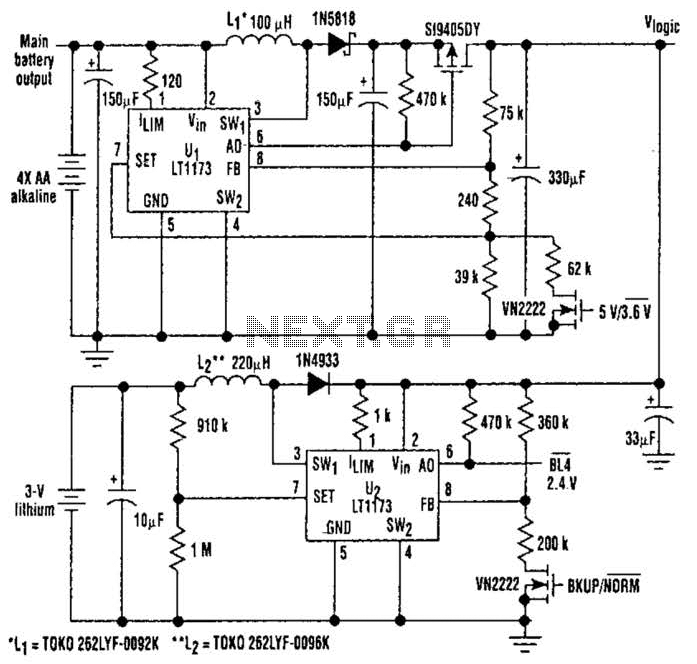

This unique logic-power-converter design allows for a switchable output of 3.6 V or 5 V at 200 mA using four AA cells. The supply features a MOSFET switch that can connect to a lithium backup battery, providing a 3.4 V...
12V to 9 or 6 v converter
This circuit allows transistorized devices, such as radios, cassette players, and other electrical appliances, to operate from a car's electrical supply. The accompanying table provides resistor values and specifies diode types for different voltage levels. If multiple voltage levels are...
12V to 220V converter circuit

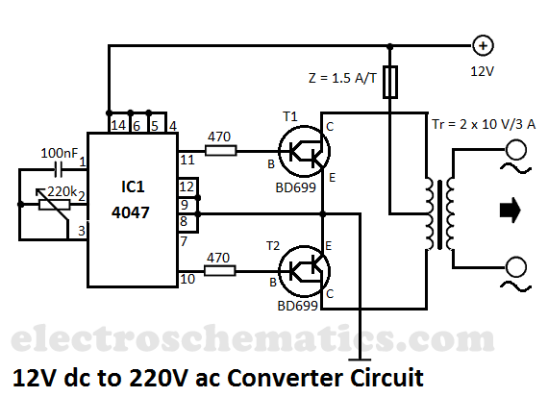

This DIY 12V to 220V voltage converter is built with a CMOS 4047, which serves as the main component for transforming 12V DC into 220V AC. The 4047 operates as an astable multivibrator, generating a symmetrical rectangular signal at pins...
