Lazy ISP Socket Adapter
Description: The Lazy Adapter is composed of a 20 pin DIP socket, a 20 pin DIP header, and a 6 pin ISP header, and a small phenolic circuit board to hold them all together. The green fiberglass PCB is a Dontronics DT104 SIMSTIC. I am tired of wiring up ISP sockets for every little breadboard I build, so I built this little adapter. It plugs into a 20 pin IC socket for an AVR on a breadboard. On the adapter is the 6 pin ISP header in the same configuration used on the STK-500. Besides saving me time, it also means I don't have to make room on the prototype for the ISP header. I've also made an 8 pin version for the ATTiny12.
More: The writing is simple: pins on the 20 pin socket are soldered to the corresponding pins on the 20 pin header. The six pins of the ISP header, as identified in the AVR910 application note from Atmel, are wired to the corresponding pins on the 20 pin socket, as identified by the AT90S2313 datasheet. Wiring for the 20 pin adapter. The wiring for the 8 pin adapter is similar, though the pin numbers are different. Below is a wiring diagram showing the adapter for the 20 pin AVR processors.
The Lazy Adapter is designed to facilitate the connection of AVR microcontrollers to programming and debugging tools without the need for repetitive wiring tasks. The primary components include a 20-pin Dual In-line Package (DIP) socket, a 20-pin DIP header, and a 6-pin In-System Programming (ISP) header, all mounted on a compact phenolic circuit board. The circuit board is made of green fiberglass, specifically a Dontronics DT104 SIMSTIC, which is known for its durability and reliability in prototyping applications.
The 20-pin DIP socket is intended to connect directly to an AVR microcontroller on a breadboard. This allows for easy insertion and removal of the microcontroller while maintaining a secure connection. The 20-pin DIP header serves as a pass-through connection, where each pin is carefully soldered to its corresponding pin on the DIP socket, ensuring that all signals and power connections are preserved.
The 6-pin ISP header is configured according to the standard layout used in Atmel's STK-500 programming kit, which simplifies the programming process. The wiring for the ISP header is based on the AVR910 application note, which provides pin assignments for programming various AVR microcontrollers. The wiring scheme connects the six ISP pins to specific pins on the 20-pin socket, as detailed in the AT90S2313 datasheet. This arrangement allows for seamless programming and debugging of the microcontroller without occupying additional space on the prototype board.
In addition to the 20-pin adapter, an 8-pin version has been developed for the ATTiny12 microcontroller. The wiring for this adapter is similar to that of the 20-pin version, although the pin assignments differ. A wiring diagram is typically provided to illustrate the connections for both the 20-pin and 8-pin adapters, ensuring clarity and ease of use for the designer. Overall, the Lazy Adapter is an efficient solution for streamlining the development process of AVR-based projects.The Lazy Adapter is composed of a 20 pin DIP socket, a 20 pin DIP header, and 6 pin ISP header, and a small phenolic circuit board to hold them all together. The green fiberglass PCB is a Dontronics DT104 SIMSTIC(This plug is in return for a favor.) I am tired of wiring up ISP sockets for every little breadboard I build, so I built this little adapter.
It plugs into a 20 pin IC socket for an AVR on a breadboard. On the adapter is the 6 pin ISP header in the same configuration used on the STK-500. Besides saving me time, it also means I don't have to make room on the prototype for the ISP header. I've also made an 8 pin version for the ATTiny12. The writing is simple: pins on the 20 pin socket are soldered to the corresponding pins on the 20 pin header. The six pins of the ISP header, as identified in the AVR910 application note from Atmel, are wired to the corresponding pins on the 20 pin socket, as identified by the AT90S2313 datasheet.
Wiring for the 20 pin adapter. The wiring for the 8 pin adapter is similar, though the pin numbers are different. Below is a wiring diagram showing the adapter for the 20 pin AVR processors.
More: The writing is simple: pins on the 20 pin socket are soldered to the corresponding pins on the 20 pin header. The six pins of the ISP header, as identified in the AVR910 application note from Atmel, are wired to the corresponding pins on the 20 pin socket, as identified by the AT90S2313 datasheet. Wiring for the 20 pin adapter. The wiring for the 8 pin adapter is similar, though the pin numbers are different. Below is a wiring diagram showing the adapter for the 20 pin AVR processors.
The Lazy Adapter is designed to facilitate the connection of AVR microcontrollers to programming and debugging tools without the need for repetitive wiring tasks. The primary components include a 20-pin Dual In-line Package (DIP) socket, a 20-pin DIP header, and a 6-pin In-System Programming (ISP) header, all mounted on a compact phenolic circuit board. The circuit board is made of green fiberglass, specifically a Dontronics DT104 SIMSTIC, which is known for its durability and reliability in prototyping applications.
The 20-pin DIP socket is intended to connect directly to an AVR microcontroller on a breadboard. This allows for easy insertion and removal of the microcontroller while maintaining a secure connection. The 20-pin DIP header serves as a pass-through connection, where each pin is carefully soldered to its corresponding pin on the DIP socket, ensuring that all signals and power connections are preserved.
The 6-pin ISP header is configured according to the standard layout used in Atmel's STK-500 programming kit, which simplifies the programming process. The wiring for the ISP header is based on the AVR910 application note, which provides pin assignments for programming various AVR microcontrollers. The wiring scheme connects the six ISP pins to specific pins on the 20-pin socket, as detailed in the AT90S2313 datasheet. This arrangement allows for seamless programming and debugging of the microcontroller without occupying additional space on the prototype board.
In addition to the 20-pin adapter, an 8-pin version has been developed for the ATTiny12 microcontroller. The wiring for this adapter is similar to that of the 20-pin version, although the pin assignments differ. A wiring diagram is typically provided to illustrate the connections for both the 20-pin and 8-pin adapters, ensuring clarity and ease of use for the designer. Overall, the Lazy Adapter is an efficient solution for streamlining the development process of AVR-based projects.The Lazy Adapter is composed of a 20 pin DIP socket, a 20 pin DIP header, and 6 pin ISP header, and a small phenolic circuit board to hold them all together. The green fiberglass PCB is a Dontronics DT104 SIMSTIC(This plug is in return for a favor.) I am tired of wiring up ISP sockets for every little breadboard I build, so I built this little adapter.
It plugs into a 20 pin IC socket for an AVR on a breadboard. On the adapter is the 6 pin ISP header in the same configuration used on the STK-500. Besides saving me time, it also means I don't have to make room on the prototype for the ISP header. I've also made an 8 pin version for the ATTiny12. The writing is simple: pins on the 20 pin socket are soldered to the corresponding pins on the 20 pin header. The six pins of the ISP header, as identified in the AVR910 application note from Atmel, are wired to the corresponding pins on the 20 pin socket, as identified by the AT90S2313 datasheet.
Wiring for the 20 pin adapter. The wiring for the 8 pin adapter is similar, though the pin numbers are different. Below is a wiring diagram showing the adapter for the 20 pin AVR processors.
AVR Color Clock
This page describes a color clock that displays the time using two RGB LEDs, one for hours and one for minutes. It uses standard color coding for components, with two additional colors to accommodate the twelve distinct color representations needed....
starting AVR development

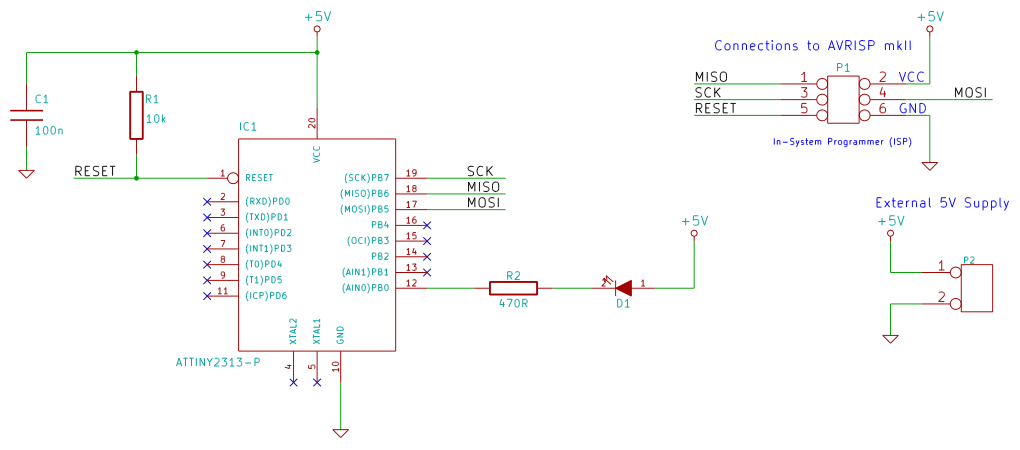

This tutorial examines the essential tools required for developing C programs on 8-bit AVR microcontrollers. It demonstrates how to write a C program and upload it to an AVR microcontroller, specifically utilizing an ATtiny2313 microcontroller breadboard circuit as a test...
ATtiny12 fuse
Plug an ATtiny12 into the 8 pin socket and hold down "GO!" button. The LED will come on at the end of the programming process, which only takes a couple hundred milliseconds. The fuses are now restored to their factory...
GVI Digital Remote Control
The GVI Digital Remote Control for DSLR cameras represents an advancement over previous remote controls for the Canon EOS 450D. This remote utilizes the AVR Microcontroller ATmega328 and is programmed using the Arduino IDE. It serves as a tool for...
burning hex files using usbasp

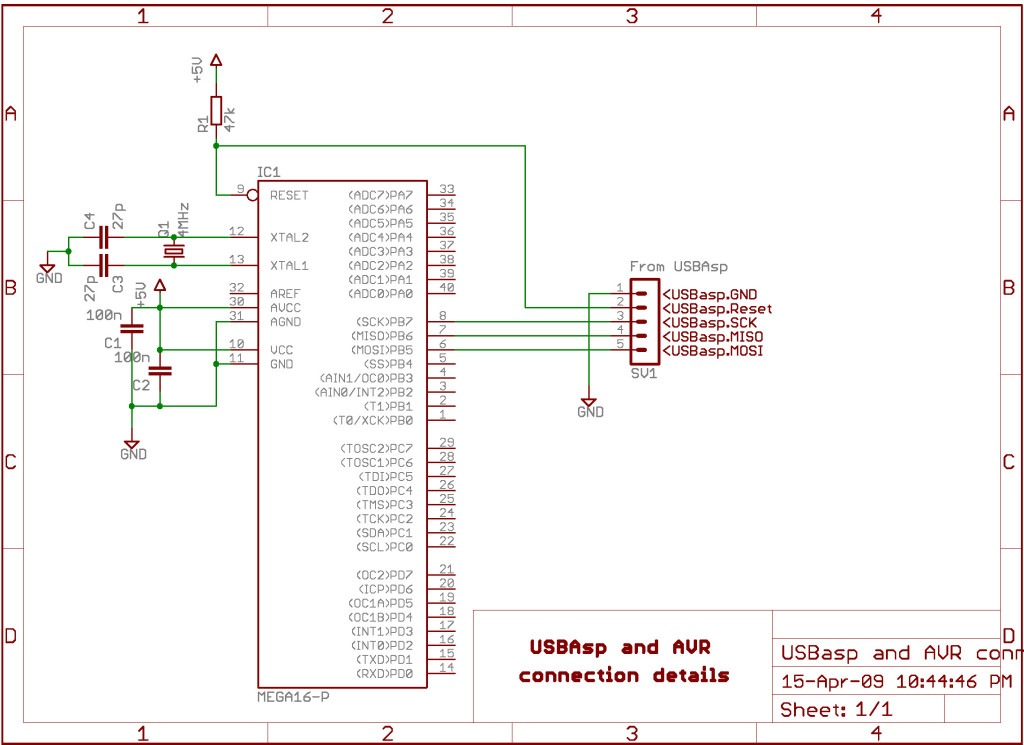

AVRDude is a program designed for burning hex code into microcontrollers. USBasp is a USB-based programmer for AVR microcontrollers. This tutorial will demonstrate how to use AVRdude to burn hex files into an AVR microcontroller using USBasp. The AVRdude software...
Adaptor for 8 and 28 pin AVR
This adaptor lets me program 8 or 20 pin DIP devices using the In-System Programmer (ISP) described in Atmel's AVR910 application note. This circuit provides power and clocks for the part to be programmed and power to the ISP circuit....
Morse Code Bicycle Safety Blinker
This project utilizes an AVR microcontroller as the first embedded systems project since college. The programming options were C and assembly, with assembly chosen due to familiarity and robust documentation in datasheets. Assembly provides a clear understanding of the operations,...
Fireflies based on tiny AVR

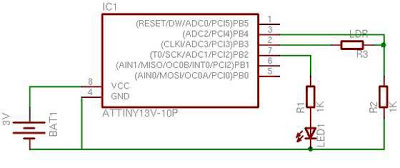

When first encountering this article, it is apparent that it presents an excellent project utilizing only a few components. Microcontroller projects based on LEDs are particularly appealing.
