H-bridge driving problemMOSFET frequently damage
#H-bridge
#MOSFET
#IRF740
#motor driver
#power electronics
#circuit protection
#inverter
#DC-AC conversion
#failure analysis
#high voltage
Description: An H-bridge is being utilized with IRF740 MOSFETs to convert 315V DC to 230V AC. However, the upper MOSFETs are frequently damaged within a few seconds, and the cause of this issue has not been identified.
The described circuit employs an H-bridge configuration using IRF740 MOSFETs to achieve DC to AC conversion. The H-bridge consists of four MOSFETs arranged in a bridge topology, allowing for the reversal of current direction through the load, thus generating an alternating current (AC) output from a direct current (DC) source. In this case, the input voltage is 315V DC, and the desired output is 230V AC.
The IRF740 is a high-voltage N-channel MOSFET with a maximum drain-source voltage of 400V and a continuous drain current rating of 9.2A. When designing circuits with such high voltages, it is crucial to ensure that the MOSFETs are adequately protected against over-voltage and over-current conditions. The frequent damage to the upper MOSFETs suggests that there may be issues related to gate drive signals, insufficient heat dissipation, or lack of protection against voltage spikes.
To mitigate these issues, several strategies can be employed. First, proper gate drive circuitry should be implemented to ensure that the MOSFETs are driven into saturation quickly and efficiently, minimizing the time they spend in the linear region where they can overheat. A gate driver IC designed for high-voltage applications may be beneficial.
Additionally, snubber circuits can be added across the MOSFETs to absorb voltage spikes that occur when the MOSFETs switch off. This can help protect the devices from transient voltages that could exceed their maximum ratings. Furthermore, thermal management is essential; using heat sinks or active cooling methods can help maintain the MOSFETs within their safe operating temperature range.
Lastly, it is advisable to examine the load characteristics and ensure that the circuit is not subjected to conditions that exceed the MOSFETs' ratings. Implementing current sensing and protection circuits can help prevent excessive current from damaging the components. By addressing these factors, the reliability of the H-bridge circuit can be significantly improved, reducing the likelihood of MOSFET failure.I`m using H-bridge with IRF740 (MOSFET) to convert 315VDC to 230VAC. But the upper mosfets are frequently get damage within few seconds. I can`t find..
The described circuit employs an H-bridge configuration using IRF740 MOSFETs to achieve DC to AC conversion. The H-bridge consists of four MOSFETs arranged in a bridge topology, allowing for the reversal of current direction through the load, thus generating an alternating current (AC) output from a direct current (DC) source. In this case, the input voltage is 315V DC, and the desired output is 230V AC.
The IRF740 is a high-voltage N-channel MOSFET with a maximum drain-source voltage of 400V and a continuous drain current rating of 9.2A. When designing circuits with such high voltages, it is crucial to ensure that the MOSFETs are adequately protected against over-voltage and over-current conditions. The frequent damage to the upper MOSFETs suggests that there may be issues related to gate drive signals, insufficient heat dissipation, or lack of protection against voltage spikes.
To mitigate these issues, several strategies can be employed. First, proper gate drive circuitry should be implemented to ensure that the MOSFETs are driven into saturation quickly and efficiently, minimizing the time they spend in the linear region where they can overheat. A gate driver IC designed for high-voltage applications may be beneficial.
Additionally, snubber circuits can be added across the MOSFETs to absorb voltage spikes that occur when the MOSFETs switch off. This can help protect the devices from transient voltages that could exceed their maximum ratings. Furthermore, thermal management is essential; using heat sinks or active cooling methods can help maintain the MOSFETs within their safe operating temperature range.
Lastly, it is advisable to examine the load characteristics and ensure that the circuit is not subjected to conditions that exceed the MOSFETs' ratings. Implementing current sensing and protection circuits can help prevent excessive current from damaging the components. By addressing these factors, the reliability of the H-bridge circuit can be significantly improved, reducing the likelihood of MOSFET failure.I`m using H-bridge with IRF740 (MOSFET) to convert 315VDC to 230VAC. But the upper mosfets are frequently get damage within few seconds. I can`t find..
motor Matching mosfets linear servo amplifier (AB)
The unit is designed to drive an 80V/10A motor. The current matching circuit is utilized, but there is uncertainty regarding the appropriateness of the MOSFET selection for this application.
The circuit for driving an 80V/10A motor typically requires careful consideration of...

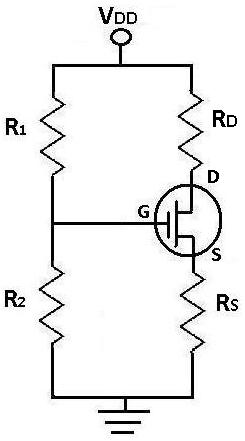

DC Analysis of a MOSFET Transistor Circuit
During DC analysis, all AC voltage sources are removed from the circuit since they are AC sources. DC analysis focuses solely on DC sources. Additionally, all capacitors are removed because, in a DC context, capacitors act as open circuits. Consequently,...
inverter 12v dc to 240v dc circuit
This inverter circuit is designed to power electric razors, stroboscopes, flash tubes, and small fluorescent lamps using a 12-volt car battery. Unlike conventional feedback oscillator inverters, this design features a separate oscillator from the output stage, allowing for easy adjustment...
60kv ignition coil driver circuit
The ignition coil driver circuit described is a highly regarded design, reportedly created by Jochen Kronjaeger. It is intended to operate from a 230V source, although a modified version can function effectively at 120V. The circuit requires two ignition coils...
HIGH VOLTAGE NEGATIVE ION GENERATOR
A modified black and white television flyback transformer is utilized in this circuit alongside a voltage multiplier to generate a negative voltage ranging from 9 kV to 14 kV. This high voltage is connected to a discharge needle to create...

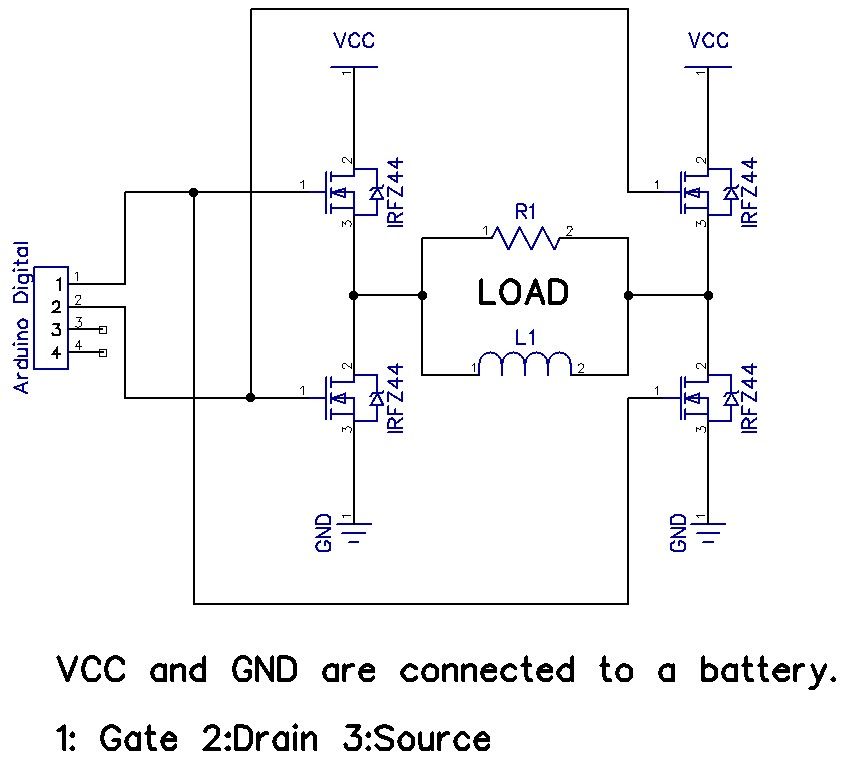

H-Bridge on a Breadboard
The H-Bridge is a circuit that can drive a motor in both forward and reverse directions. It can be a straightforward circuit that requires only a few components.
The H-Bridge circuit is a fundamental configuration used in motor control applications, allowing...

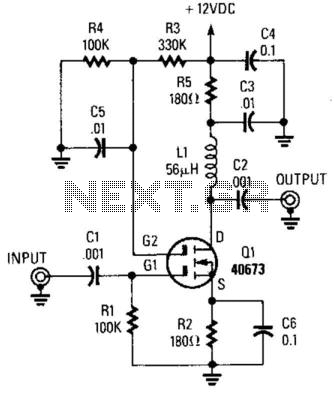

Mosfet Wideband Amplifier
For high-impedance (7,500 ohms) applications, this amplifier will provide a voltage gain of approximately -gm/ZL, where ZL is the load impedance in ohms and gm is approximately 12 x 10^-3 for the 40673 FET. The G2 voltage can be used...

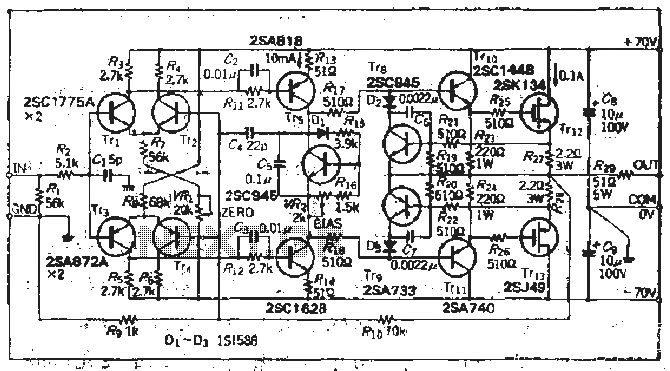

High voltage (120V), converting familiar fast (120V Shu us) power MOSFET Amplifier circuit
