Series-Wound Direction And Speed Motor Control
#motor control
#SCR
#series-wound motor
#speed control
#direction control
#silicon controlled rectifier
#DC motor
#power electronics

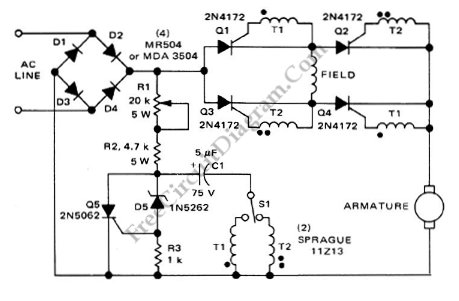

Description: This is a motor controller circuit that controls the speed and direction of series-wound motors. This circuit employs silicon controlled rectifiers (SCR).
The motor controller circuit is designed to manage both the speed and direction of series-wound motors, which are commonly used in various applications due to their high starting torque and simplicity. The core component of this circuit is the silicon controlled rectifier (SCR), a semiconductor device that allows for the control of power delivery to the motor by adjusting the phase angle of the AC supply.
The operation of the circuit begins with the application of a control signal to the gate of the SCR. This signal turns the SCR on, allowing current to flow through the motor. By varying the timing of the gate signal, the effective voltage applied to the motor can be controlled, thereby regulating the motor's speed. This phase control technique is particularly effective for series-wound motors, as it takes advantage of their inherent characteristics.
Furthermore, the circuit can also be configured to reverse the direction of the motor. This is typically achieved by employing a relay or an additional set of SCRs that can switch the polarity of the voltage applied to the motor. By implementing this feature, the motor controller provides versatility for applications that require bidirectional movement.
In terms of design, the circuit may include additional components such as diodes for flyback protection, capacitors for filtering, and resistors for current limiting. A microcontroller may also be integrated to provide more sophisticated control algorithms, such as PWM (Pulse Width Modulation) for smoother speed control and enhanced efficiency.
Overall, this motor controller circuit utilizing SCRs is a robust solution for applications requiring precise control over the operation of series-wound motors, making it suitable for industrial automation, robotics, and various other fields.This is a motor controller circuit that? control the speed? and direction of series-wound Motors. This circuit employs silicon controlled rectifiers (SCR).
The motor controller circuit is designed to manage both the speed and direction of series-wound motors, which are commonly used in various applications due to their high starting torque and simplicity. The core component of this circuit is the silicon controlled rectifier (SCR), a semiconductor device that allows for the control of power delivery to the motor by adjusting the phase angle of the AC supply.
The operation of the circuit begins with the application of a control signal to the gate of the SCR. This signal turns the SCR on, allowing current to flow through the motor. By varying the timing of the gate signal, the effective voltage applied to the motor can be controlled, thereby regulating the motor's speed. This phase control technique is particularly effective for series-wound motors, as it takes advantage of their inherent characteristics.
Furthermore, the circuit can also be configured to reverse the direction of the motor. This is typically achieved by employing a relay or an additional set of SCRs that can switch the polarity of the voltage applied to the motor. By implementing this feature, the motor controller provides versatility for applications that require bidirectional movement.
In terms of design, the circuit may include additional components such as diodes for flyback protection, capacitors for filtering, and resistors for current limiting. A microcontroller may also be integrated to provide more sophisticated control algorithms, such as PWM (Pulse Width Modulation) for smoother speed control and enhanced efficiency.
Overall, this motor controller circuit utilizing SCRs is a robust solution for applications requiring precise control over the operation of series-wound motors, making it suitable for industrial automation, robotics, and various other fields.This is a motor controller circuit that? control the speed? and direction of series-wound Motors. This circuit employs silicon controlled rectifiers (SCR).
DC Motor Controller using Transistor TIP31

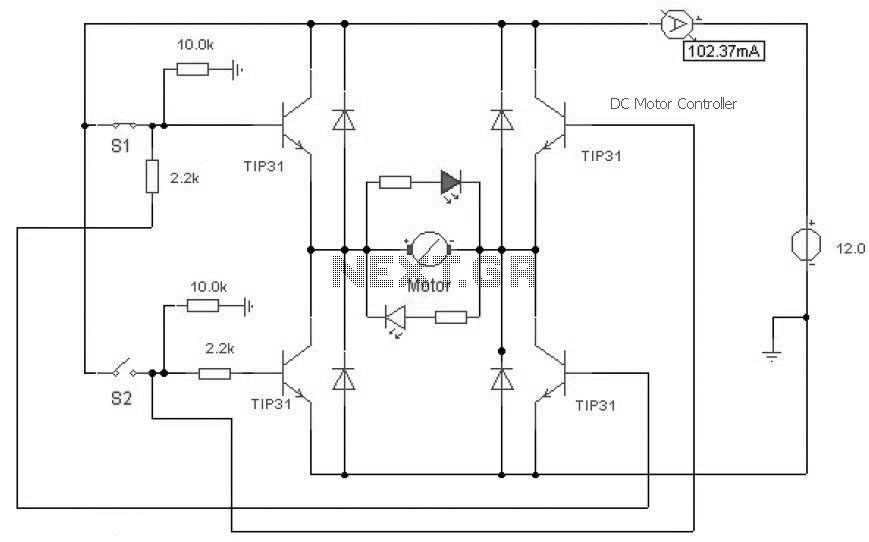

This is a DC motor controller circuit built using a TIP31 transistor based on the H-Bridge concept. The switches S1 and S2 are normally open, push-to-close buttons. The LED serves to indicate the direction of motor rotation.
The described DC motor...
5-motor hexapod circuit
This circuit has a long history, originating from an idea by Rich Piotter and later refined by Wilf Rigter and Bruce Robinson. The final result does not include the necessary motor drivers, which are typically H-bridge based, but presents a...
Dc static switch

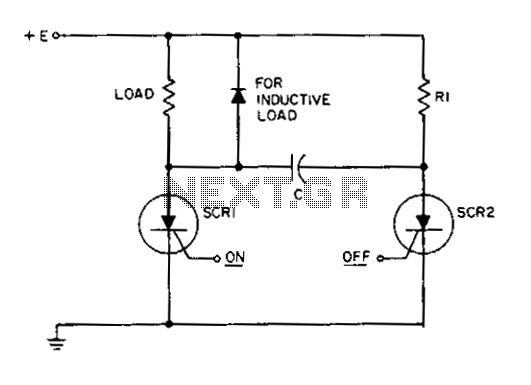

This circuit is a static SCR switch designed for use in a DC circuit. When a low-power signal is applied to the gate of SCR1, this SCR is triggered, allowing voltage to be applied to the load. The right plate...
Simple and practical power SCR trigger circuit diagram

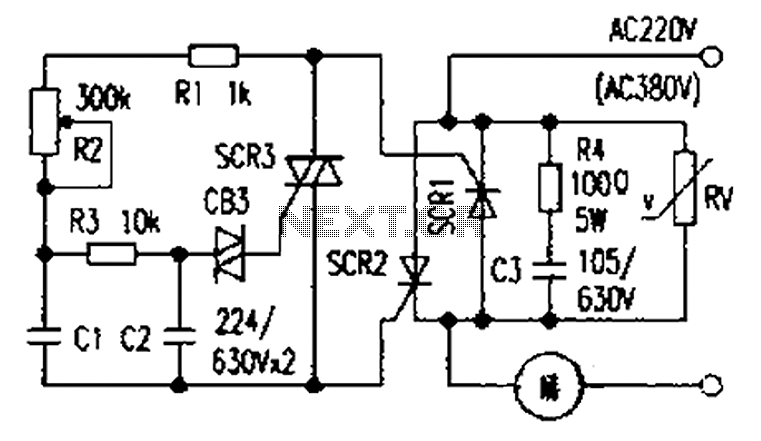

The presentation of a general power thyristor trigger circuit is more complex, and some components are difficult to procure. A successful trigger circuit has been constructed for only a few dollars. This circuit is designed to trigger a thyristor module...
Motor-tachometer speed control

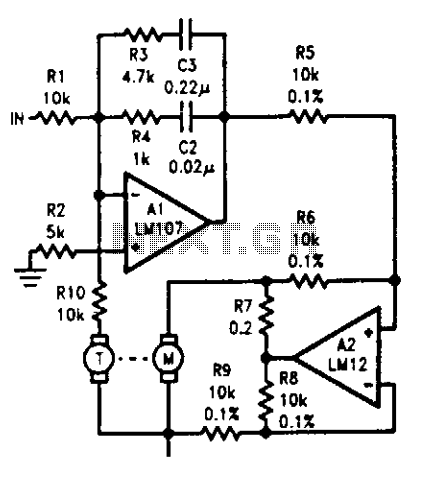

The tachometer, mounted on the same shaft as the DC motor, functions as a generator, producing a DC output voltage that is proportional to the motor's speed. A summing amplifier, labeled as Al, manages its output to ensure that the...
DC Motor Reversing Circuit
A DC motor reversing circuit using non-latching push button switches. Relays control forward, stop, and reverse action, and the motor cannot be switched from forward to reverse unless the stop switch is pressed first.
The described circuit employs a system of...
The 4Q2 DC Motor Speed Controller Circuit and Datasheet

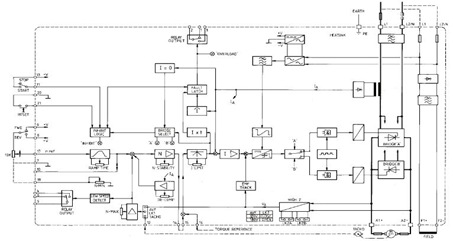

This figure represents the 4Q2 DC Motor Speed Controller Circuit Block Diagram, designed for comprehensive control of conventional shunt-wound and permanent magnet motors with a capacity of up to 75 kW, as specified in the datasheet. This type of DC...
A DC motor reverse brake circuit
The circuit depicted in Figure 3-200 (a) illustrates the operation of a reverse braking system. When reverse braking is initiated, the forward contacts of contactor KMi open, and the reverse brake contactor KM3 disconnects while the reverse contactor KM2 contacts...
DC motor reverse brake circuit
A DC motor reverse brake circuit is presented. To initiate braking, the stop button (SB2) is pressed, which disconnects the move-off contact, causing KM1 to lose power and release. Subsequently, the brake contactor (KM2) is activated. KM2 is designed for...
