200mA 12V Op Current Gain Stage

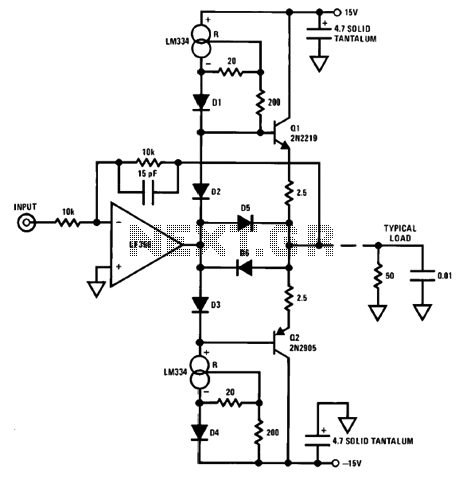

Description: An output booster is required to achieve the necessary current or voltage gain. A significant output is often needed in conjunction with the output power limitations of most integrated circuit (IC) processors. The following figure presents a circuit diagram of a typical current gain stage for designing booster stages that achieve power gain while maintaining good dynamic performance.
An output booster circuit is essential in applications where the signal needs to be amplified to meet specific current or voltage requirements. This circuit typically consists of a transistor-based configuration, which can be either a bipolar junction transistor (BJT) or a field-effect transistor (FET), depending on the desired characteristics and performance.
The fundamental purpose of the output booster is to enhance the output power while ensuring that the dynamic response of the system remains optimal. This is particularly important in scenarios where the load demands exceed the capabilities of the driving IC. The design includes feedback mechanisms to stabilize the gain and reduce distortion, which is crucial for maintaining signal integrity.
In a typical current gain stage, the input signal is fed into the base (or gate) of the transistor, which controls the flow of current from the collector (or drain) to the emitter (or source). The configuration can be set up in common emitter (or common source) mode to provide significant voltage gain, or in common collector (or common drain) mode to deliver high current gain with low output impedance.
The circuit may also incorporate additional components such as resistors for biasing, capacitors for coupling and bypassing, and inductors for filtering, which collectively aid in achieving the desired frequency response and stability. Careful selection of these components is necessary to optimize performance for specific applications, ensuring that the booster can handle the required power levels without introducing excessive noise or distortion.
Overall, the design of an output booster circuit is a critical aspect of electronic system design, particularly in high-performance applications where power efficiency and signal fidelity are paramount.An output booster is needed when you want to achieve the needed current/voltage gain. Great output commonly need in accociation with the the output power limitation of mostly IC processing. The following figure shows you circuit diagram of the typical current gain stage if you want to design a booster stages which achieve power gain while maintaining good dynamic performance.
Create an oscillator circuit using an operational amplifier and a 7.68 MHz crystal. The design should be similar to the schematic provided below, but specifically tailored for a 7.68 MHz crystal. The available components include the crystal, various capacitors, resistors,...

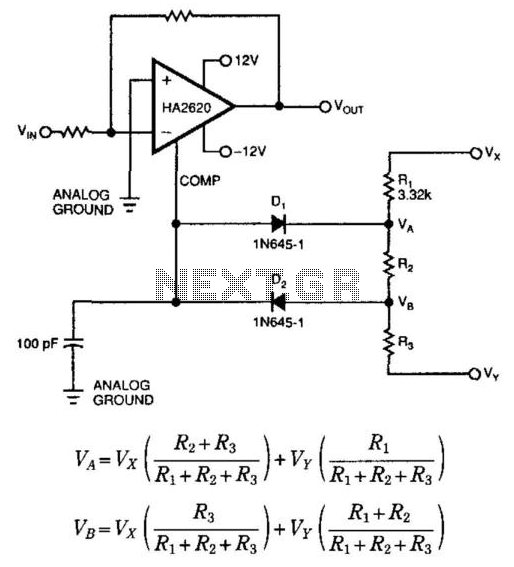

A simple clamping circuit can be added to a Harris 2620 high-speed operational amplifier (op-amp) to create a glitch-free amplifier and clipper. The pin that controls the device's bandwidth is a high-impedance, isolated input, which also tracks the output voltage...
A lens is a specialized perspective on the content within a repository. It can be considered a sophisticated type of list that enables users to view content from the viewpoint of trusted organizations and individuals.
A lens in this context serves...

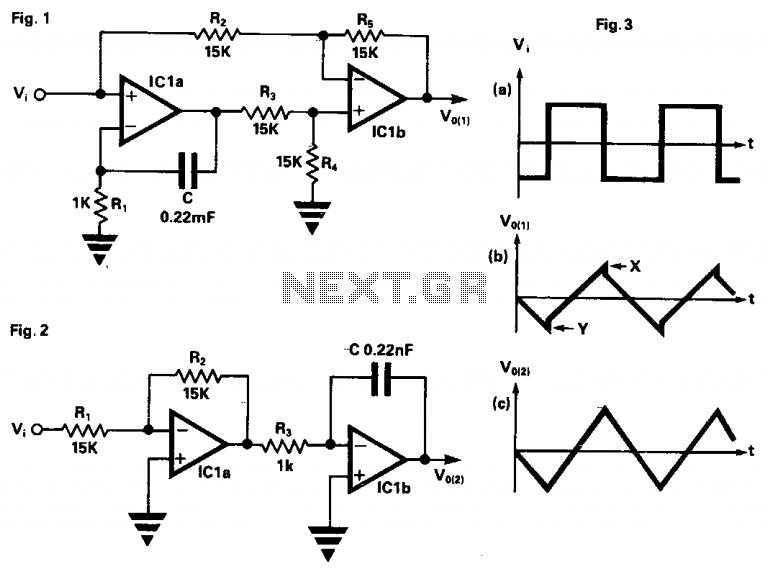

In the circuit depicted in Figure 1, ICla generates the integral term required for operation, but it also inadvertently produces an unnecessary proportional term. This proportional term is countered by IClb, resulting in a pure integral output. If the ratio...

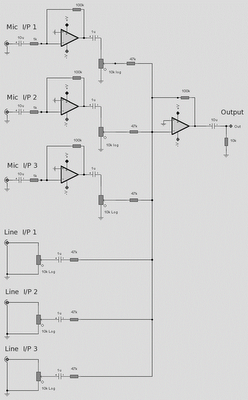

The microphone inputs are amplified approximately 100 times or 40 dB, with the total gain of the mixer, including the summing amplifier, reaching 46 dB. The microphone input is designed for microphones that produce an output of around 2 mV...

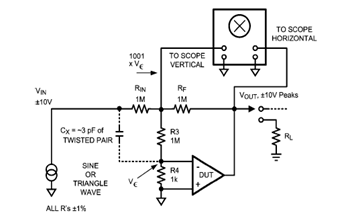

The diagram below illustrates a classic test fixture that has been utilized for an extended period to assist individuals in addressing non-linearity errors.
The classic test fixture depicted in the diagram serves as a fundamental tool in electronics testing and calibration....
A battery is a vital element of any battery-backed system. In many cases, the battery is more expensive than the system it is backing up. Hence, practical measures must be adopted to conserve battery life. As per manufacturer's data sheets,...

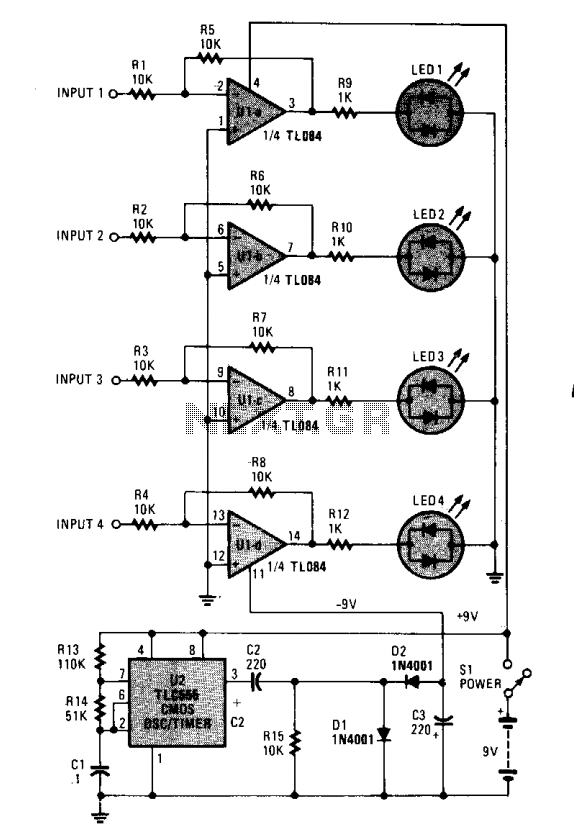

The monitoring circuit consists of four tri-color LEDs driven by an equal number of operational amplifiers configured as inverting amplifiers with a gain of one. Each LED is wired such that it illuminates red when the input to the op...
