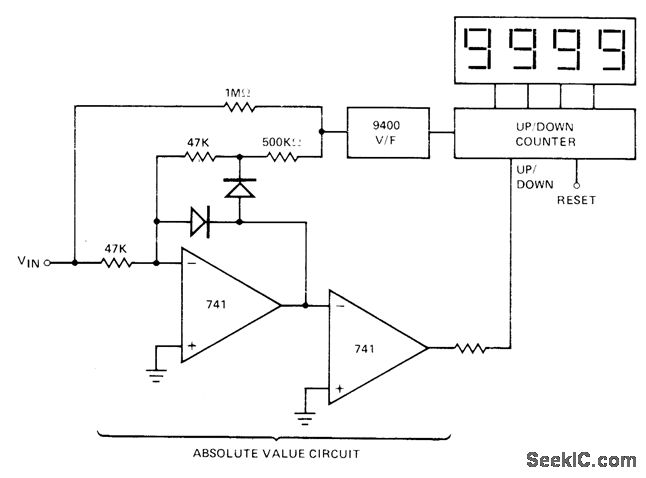

Description: The absolute-value integrator circuit generates the effect of producing negative frequencies when the input signal is negative. It accomplishes this by allowing the counter to count up for positive voltage and count down for negative voltage. The specific types of diodes used are not critical.
The absolute-value integrator circuit is designed to process analog signals by integrating the input voltage over time while maintaining a non-negative output. This is particularly useful in applications where it is necessary to analyze both positive and negative portions of a waveform without losing information due to the signal's polarity.
In this circuit, the input signal is fed into an integrator, which can be implemented using operational amplifiers (op-amps) configured for integration. The output of the integrator reflects the integral of the input voltage, effectively translating the input signal's area under the curve into a corresponding voltage level. To ensure that negative input voltages do not adversely affect the operation of the circuit, an absolute-value mechanism is employed. This can be accomplished using a combination of diodes and op-amps.
When the input signal is positive, the integrator counts up, reflecting the accumulation of positive voltage over time. Conversely, when the input signal turns negative, the absolute-value integrator allows the circuit to reverse the polarity of the negative voltage, effectively enabling the counter to count down. This dual counting mechanism results in the generation of negative frequencies, which can be particularly beneficial in various signal processing applications, such as in frequency modulation or in systems requiring phase detection.
The choice of diodes in this circuit is flexible, as long as they can handle the required forward current and reverse voltage. Standard silicon diodes are often sufficient, but Schottky diodes may be used for faster switching times if required by the application. The integration time constant can be adjusted by selecting appropriate resistor and capacitor values in the feedback loop of the op-amp, allowing for customization based on the desired response characteristics.
Overall, the absolute-value integrator circuit is a versatile tool in electronic signal processing, capable of transforming waveforms while preserving essential information about both positive and negative signal components.Absolute-value integrator circuit gives effect of generating negative frequencies when input signal is negative by making counter count up for positive voltage and count down for negative voltage. Diode types are not criticaL-M. O. Paiva, "Applications of the 9400 Voltage to Frequency Frequency to Voltage Converter, " Teledyne Semiconductor, Mounta

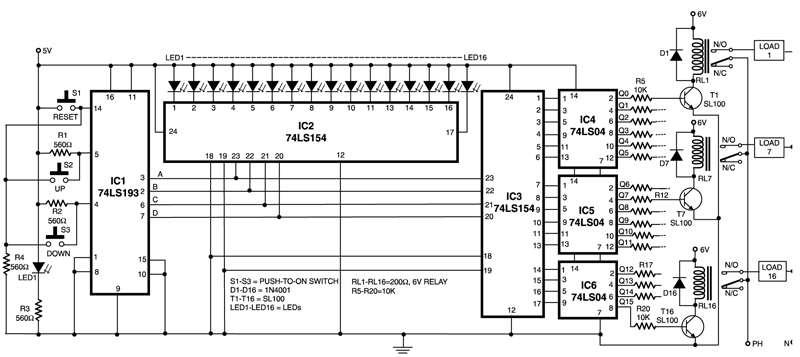

This circuit is capable of controlling one out of 16 devices using two push-to-on switches. An up/down counter functions as the master controller for the system, and visual feedback is provided through LEDs. The circuit employs IC1 (74LS193), which is...

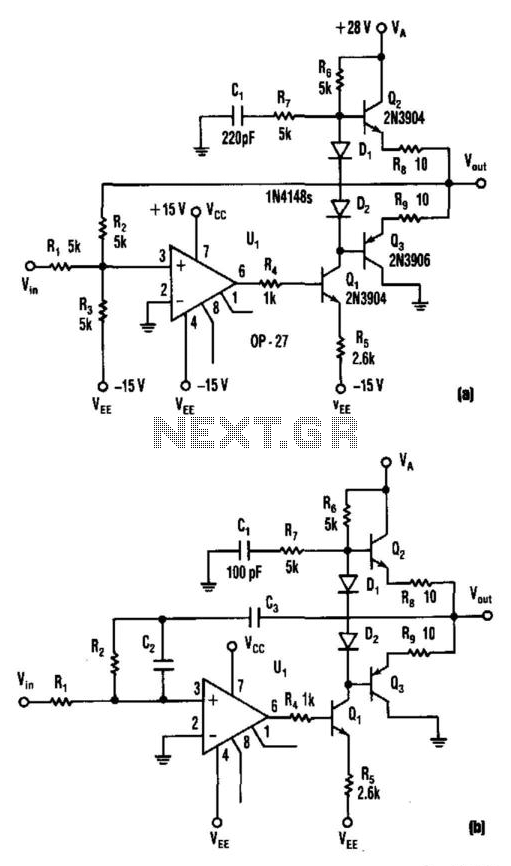

This circuit produces a 5 to 25 V output to drive a voltage-controlled oscillator (VCO) from a standard ±15 V supply system. Resistor R7 and capacitor C1 provide frequency compensation. Transistors Q1 through Q3 form an inverting amplifier with a...

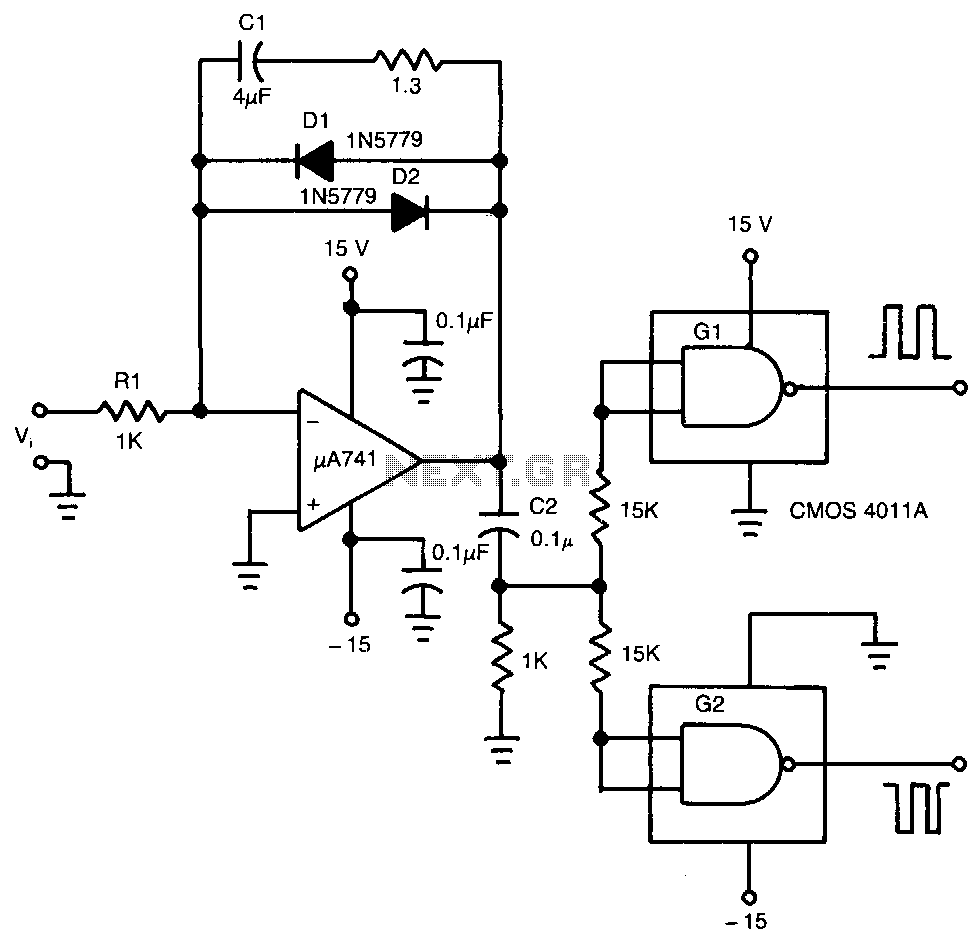

The input voltage, V1, causes capacitor C1 to charge, producing a ramp voltage at the output of the 741 operational amplifier. Diodes D1 and D2 are four-layer devices. When the voltage across C1 reaches the breakover voltage of either diode,...
This operational amplifier (op-amp) analyzer is designed to measure the current drawn by any device in a vehicle. It operates by detecting the minute voltage that develops across the battery cables when current flows.
To calibrate the unit, the current flow...
Digital counters have various applications in electronic circuits. In digital electronics, counters are utilized in different situations. This article presents the concept of a ring counter circuit, which functions as a register counter. An animation and simulation video of the...

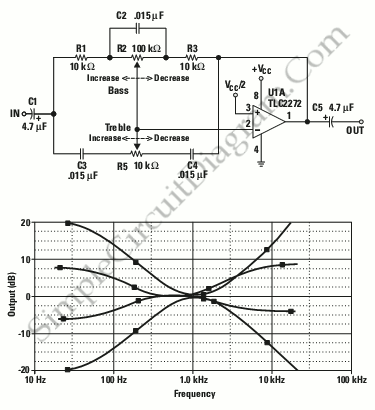

This is a single operational amplifier tone control circuit. The circuit functions as a hybrid low-pass, high-pass, and one-pole filter with both attenuation and gain.
