Description: The oscillator circuit consists of a 1MHz quartz crystal resonator and a NAND gate, with the output buffer stage provided by NAND gate 3. This circuit can be utilized for calibrating standard frequency.
The described oscillator circuit operates at a frequency of 1MHz, leveraging the properties of a quartz crystal resonator to achieve stable oscillations. The quartz crystal functions as a frequency-selective component, providing precise frequency control due to its inherent mechanical resonance characteristics. When integrated into the circuit, the crystal ensures that the oscillation frequency remains consistent and reliable, which is crucial for applications requiring accurate timing signals.
The NAND gate configuration is employed to create a feedback loop necessary for sustaining oscillations. In this setup, the output from the NAND gates is fed back into the circuit, allowing for continuous oscillation generation. The use of NAND gates is advantageous due to their versatility and the ability to implement various logic functions within the same circuit.
NAND gate 3 serves as the output buffer stage, providing a clean and robust signal that can drive other components or circuits without significant loading effects. This buffering is essential to maintain signal integrity, particularly when the generated frequency signal is interfaced with other electronic systems.
In practical applications, this 1MHz quartz crystal oscillator circuit can be utilized in various fields such as telecommunications, signal processing, and frequency calibration for precision instruments. The design's simplicity and effectiveness make it an ideal choice for generating stable clock signals in digital circuits and microcontroller applications.The oscillator circuit which is composed of the 1MHz quartz crystal resonator and the NAND gate is as shown in the figure, the NAND gate 3 is the output buffer stage. This circuit can be used to calibrate the standard frequency. Figure 1 The 1MHz quartz crystal oscillator circuit..
Last year, I found a 31 day pendulum wall clock (disassembled) in a box of parts at a swap meet and decided to try and put it together and regulate it with a quartz crystal oscillator. The escapement part that...
The oscillator employs a fundamental quartz crystal, capable of achieving an oscillation frequency of up to 10 MHz. The oscillator circuit is calibrated to the resonant frequency of the crystal. A capacitor, designated as C, with a value of less...

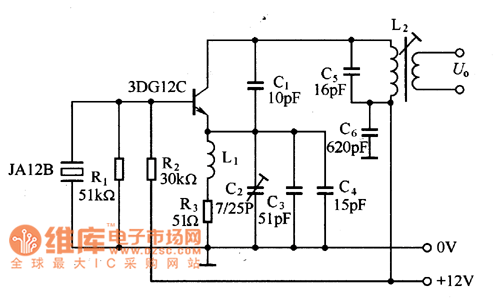

The 27MHz quartz crystal oscillator circuit is illustrated in figure 1. The biasing circuit consists of resistors R1, R2, and R3, while C6 serves as the bypass capacitor. The partial voltage circuit includes capacitors C1, C2, C3, and C4 to...
The circuit is an inverter configured as a linear amplifier. By incorporating a crystal and capacitors into the feedback path, the amplifier is transformed into an oscillator, enabling it to oscillate at or near the crystal's resonant frequency. Trimmer capacitor...

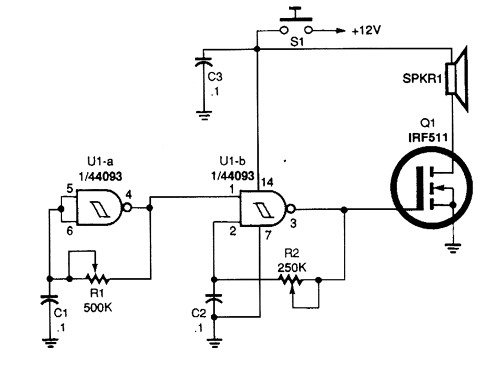

Gates U1-a and U1-b of the 4093 quad 2-input NAND Schmitt trigger are connected in variable, low-frequency square-wave oscillator circuits. The output of gate U1-a is connected to one of the inputs of gate U1-b. The square-wave output of gate...
The parts list specifies a ten-segment LED unit, but the illustration depicts two individual LEDs instead. This change is due to limited space on the breadboard for the switch assembly, two integrated circuits, and the bar graph. If space permits,...
Quartz crystals exhibit a property where their amplitude and phase characteristics repeat at uneven multiples of their fundamental frequency. Overtone crystals are specifically cut to enhance this property. Any crystal can be utilized at one or more of its harmonic...

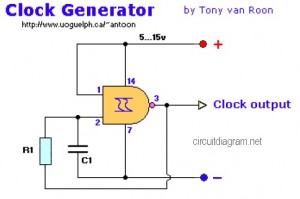

The following diagram represents a Clock Generator circuit that is constructed using NAND Gate logic integrated circuits (ICs). The circuit can utilize either IC 7400 or IC 4011. The 7400 is a TTL (Transistor-Transistor Logic) type, whereas the 4011 is...
The drive level of a crystal unit is indicated by the operating power level or current consumption. Operating the crystal unit at excessive power levels can degrade its characteristics, potentially causing frequency instability or physical failure of the crystal chip....
