How to connect a crystal oscillator to generate Square wave
Description: To generate a 1 MHz square wave, it is advisable to use a higher frequency crystal and divide it down for two reasons: (1) 4 MHz crystals are generally more affordable and easier to procure than 1 MHz crystals; (2) Achieving a precise 50.0000% duty cycle directly from a crystal can be challenging. In contrast, converting the signal from a crystal into a pulse wave (by passing it through one or two inverters) and then dividing it down will yield a waveform that naturally maintains a perfect 50% duty cycle.
To implement a circuit that generates a 1 MHz square wave using a higher frequency crystal, a typical approach involves the use of a 4 MHz crystal oscillator circuit. This circuit can be configured using a simple inverter or a series of inverters to shape the output signal. The crystal oscillator circuit would typically consist of a crystal connected in the feedback loop of an inverter gate, which will oscillate at the frequency of the crystal.
Once the 4 MHz signal is generated, it can be divided down to 1 MHz using a frequency divider circuit. A common method for frequency division is to use a flip-flop, specifically a D-type or T-type flip-flop. By connecting the output of the inverter to the clock input of the flip-flop, the output frequency will be halved. The resulting square wave will have a 50% duty cycle, which is ideal for many digital applications.
In summary, the circuit design involves the following key components: a 4 MHz crystal oscillator, one or two inverters for signal shaping, and a flip-flop for frequency division. This arrangement ensures that a clean, stable 1 MHz square wave is produced with the desired duty cycle, suitable for various electronic applications.If you want a 1MHz square wave, I would suggest using a higher frequency crystal and dividing it down, for two reasons: (1) 4MHz crystals are apt to be cheaper and easier to find than 1MHz ones; (2) Getting a 50. 0000% duty cycle from a crystal is a bit tricky; by contrast, if one converts the signal from a crystal into a pulse wave (just pass it through an inverter or two) and
divides that down, the resulting wave will "naturally" have a perfect 50% duty cycle. supercat Nov 19 `12 at 16:52

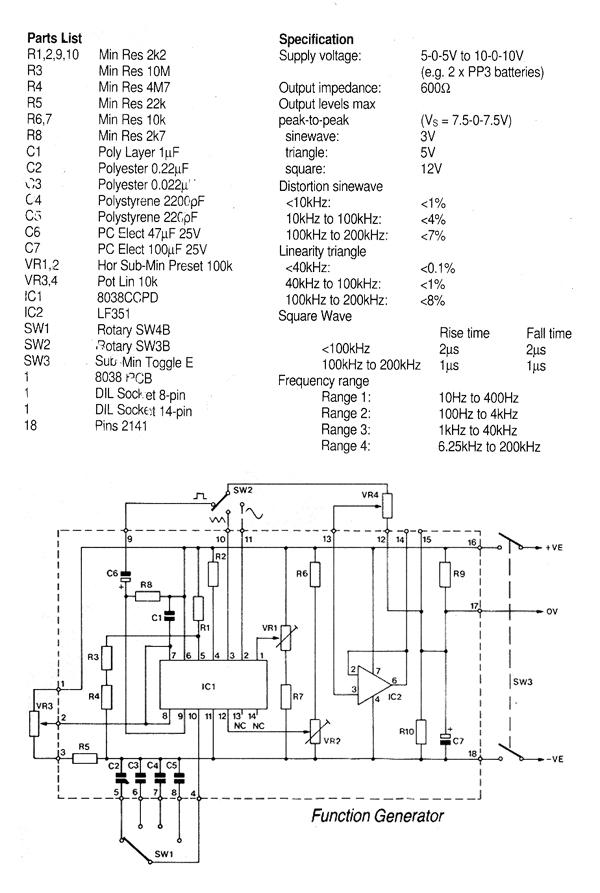

This generally results in a square wave if the frequency of oscillation is low enough relative to the amplifier's bandwidth. The schematic of a crystal-controlled oscillator features a low-frequency sine wave oscillator characterized by low distortion, wideband operation, and crystal...

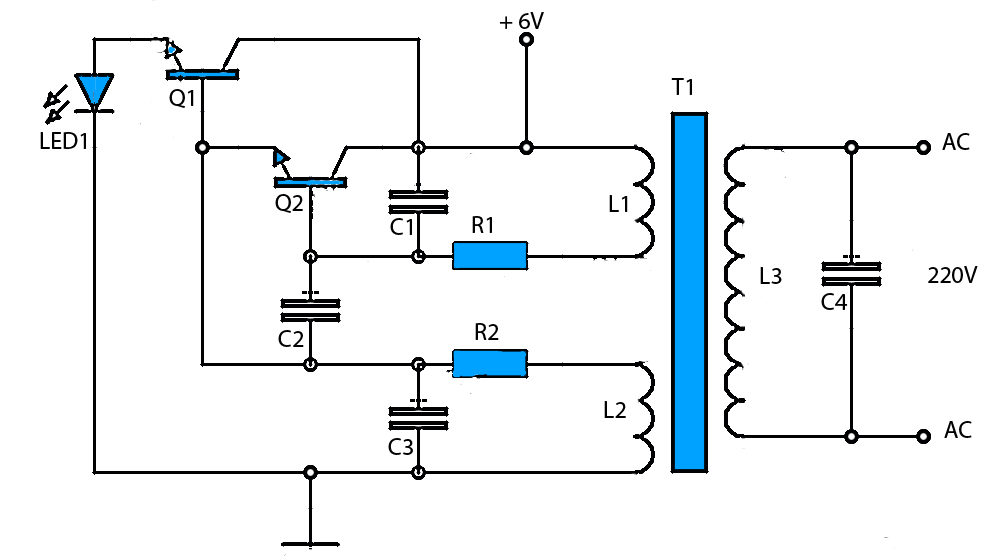

6V to 220V Inverter Schematic. Starting from a 6-Volt input on the DC current to produce a 220-Volt AC output.
The inverter circuit converts a low voltage DC input, specifically 6 volts, into a high voltage AC output of 220 volts....
An inverter, also known as an ondulator, is an electronic circuit designed to convert direct current (DC) into alternating current (AC). Its primary function is to alter the input voltage of direct current—typically sourced from a 12 or 24 V...

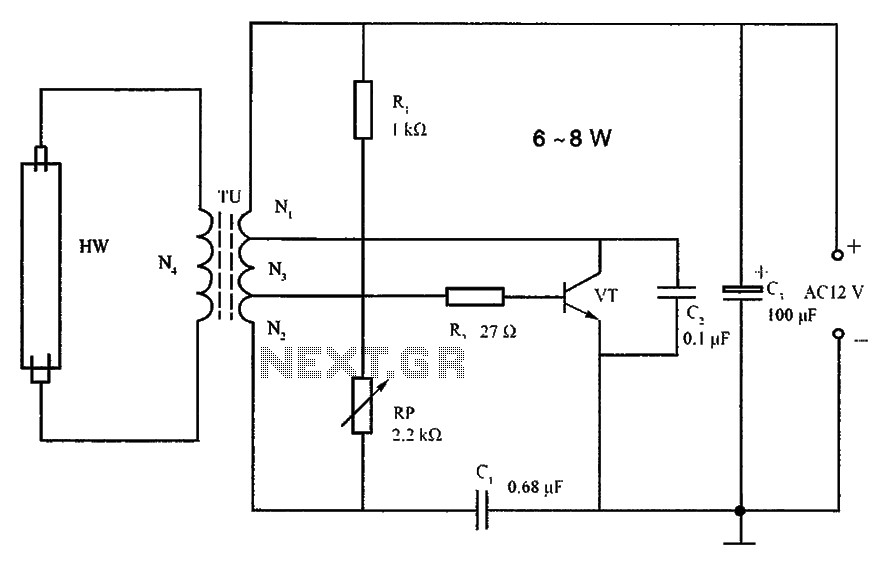

The lighting inverter circuit is designed for 6 to 8W fluorescent tubes. This circuit is appropriate for powering fluorescent tube circuits within the specified wattage. The parameters for the circuit are indicated in the accompanying figure. When utilizing a fluorescent...

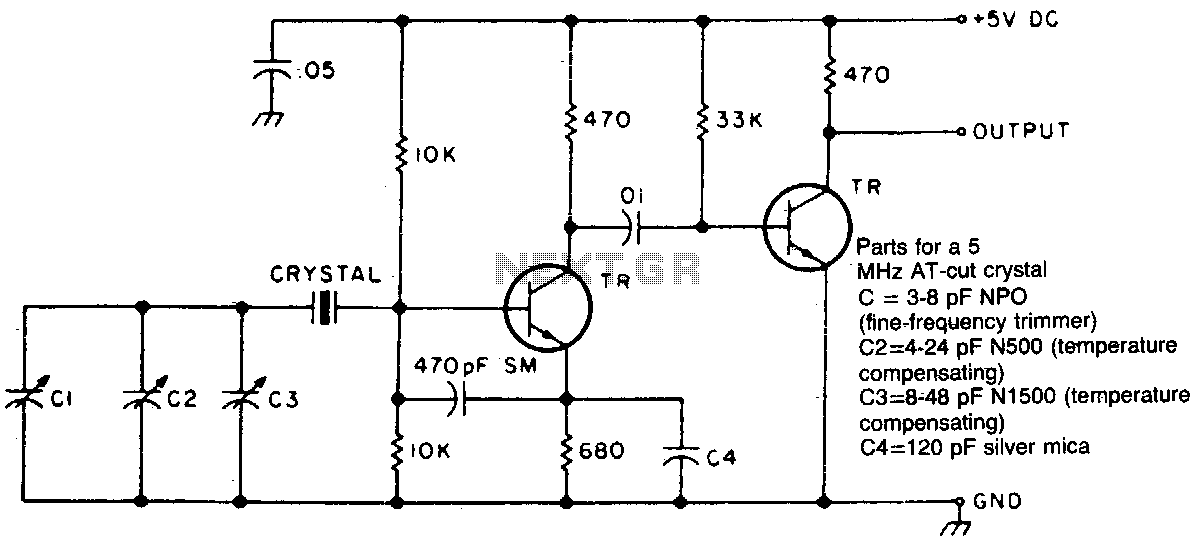

Two different negative-coefficient capacitors are blended to produce the desired change in capacitance to counteract or compensate for the decrease in frequency of the "normal" AT-cut characteristics.
The circuit utilizes a combination of two negative-coefficient capacitors to achieve a specific capacitance...
This simple circuit generates a good and stable 1V peak-to-peak square wave at 100Hz, 1KHz and 10KHz using a single 1.5V cell as power supply. An useful feature of this circuit is that frequency changes can be obtained by switching...

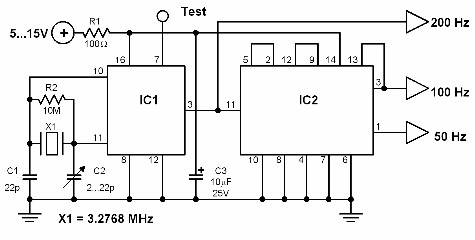

This circuit generates a 50 Hz timebase signal that is independent of the power line frequency. It is designed to provide the 50 Hz signal for electronic circuits that operate specifically with this clock frequency, primarily for circuits and electronic...

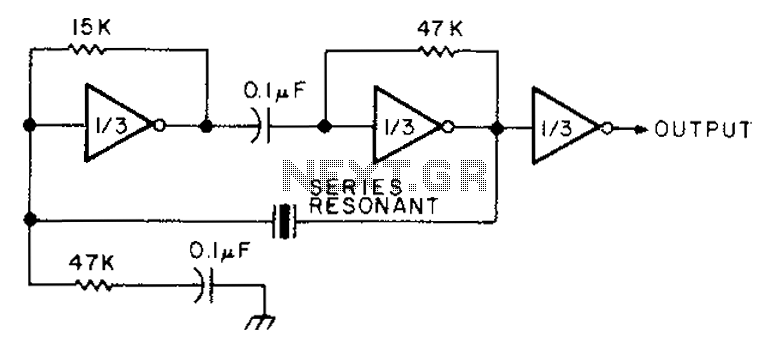

The circuit diagram illustrates the connection of all three components of the series resonant crystal and triple CD4049 inverter. The supply voltage range is between 3 to 15 volts, making it suitable for various applications. This design is compact and...
This is an example of a simple inverter that can be used to power a fluorescent lamp and a small strobe. This circuit will produce over 400 VDC from a 12 VDC, 2.5 A.
The described inverter circuit is designed to...
