The LC oscillator circuit for electronic cello
#LC oscillator
#Hartley oscillator
#frequency adjustment
#electronic cello
#signal amplitude
#base current
#load resistance
#audio signal
#improved circuit
Description: This circuit is an enhanced Hartley oscillator, which allows for frequency adjustment within a specified range by altering the base current. The output signal amplitude exceeds 6V when tested with a 6kΩ load resistance, making it suitable for use in electronic cello circuits.
The improved Hartley oscillator operates based on the principle of feedback and utilizes an inductor-capacitor (LC) tank circuit to generate oscillations. The configuration typically consists of two inductors and a capacitor, which together determine the oscillation frequency. The frequency of the output signal can be finely tuned by varying the base current through a transistor, which acts as the active component in the oscillator circuit.
In this circuit, the inductors are connected in a specific manner to create a tapped inductor configuration, which provides the necessary phase shift for sustained oscillations. The capacitor is connected across the inductor to form the resonant tank circuit. The resonant frequency (f) of the oscillator can be calculated using the formula:
f = 1 / (2π√(L_total * C))
where L_total is the equivalent inductance of the combined inductors and C is the capacitance. By adjusting the base current, the operating point of the transistor can be modified, which in turn affects the gain and oscillation conditions, allowing for frequency modulation.
The output of the oscillator is characterized by a peak amplitude greater than 6V when a load resistance of 6kΩ is applied, indicating a robust output suitable for driving other electronic components. This feature is particularly beneficial in applications such as electronic cello circuits, where a stable and adjustable frequency is required to produce desired sound characteristics.
Overall, the improved Hartley oscillator circuit exemplifies a versatile design that can be effectively implemented in various electronic applications, especially in musical instrument circuitry, due to its ability to deliver high output amplitudes and adjustable frequencies.This circuit is the improved hartley oscillator circuit, changing the base current can adjust the frequency in a given range. The output signal amplitude is higher than 6V in 6k? load resistance,and it is suitable for electronic cello circuits..
The improved Hartley oscillator operates based on the principle of feedback and utilizes an inductor-capacitor (LC) tank circuit to generate oscillations. The configuration typically consists of two inductors and a capacitor, which together determine the oscillation frequency. The frequency of the output signal can be finely tuned by varying the base current through a transistor, which acts as the active component in the oscillator circuit.
In this circuit, the inductors are connected in a specific manner to create a tapped inductor configuration, which provides the necessary phase shift for sustained oscillations. The capacitor is connected across the inductor to form the resonant tank circuit. The resonant frequency (f) of the oscillator can be calculated using the formula:
f = 1 / (2π√(L_total * C))
where L_total is the equivalent inductance of the combined inductors and C is the capacitance. By adjusting the base current, the operating point of the transistor can be modified, which in turn affects the gain and oscillation conditions, allowing for frequency modulation.
The output of the oscillator is characterized by a peak amplitude greater than 6V when a load resistance of 6kΩ is applied, indicating a robust output suitable for driving other electronic components. This feature is particularly beneficial in applications such as electronic cello circuits, where a stable and adjustable frequency is required to produce desired sound characteristics.
Overall, the improved Hartley oscillator circuit exemplifies a versatile design that can be effectively implemented in various electronic applications, especially in musical instrument circuitry, due to its ability to deliver high output amplitudes and adjustable frequencies.This circuit is the improved hartley oscillator circuit, changing the base current can adjust the frequency in a given range. The output signal amplitude is higher than 6V in 6k? load resistance,and it is suitable for electronic cello circuits..
LC Oscillator
An LC Colpitts oscillator is being designed based on the Colpitts oscillator configuration.
The LC Colpitts oscillator is a type of electronic oscillator that utilizes an inductor (L) and two capacitors (C1 and C2) to create a feedback loop that produces...
local oscillator
Zener diodes were utilized to derive a stabilized voltage for the Hartley oscillator. While sorting through a box of valves, suitable voltage stabilizer valves (CV287) were discovered. During this process, the ECC81 utilized in the local oscillator was noted to...
Hartley
A Hartley oscillator is shown at the right. It uses most of the same components as the Clapp oscillator. A capacitor is necessary to block the gate bias voltage from the tuned circuit. The tuning capacitor is a 100 pF...
High-stability oscillators (non-crystal)
Will an LC-based oscillator be able to demonstrate performance comparable to crystals under such conditions (possibly in unusual configurations like LC-opamp) so that any energy loss at each stage is recovered, resulting in a narrower bandwidth? Examine some amateur radio...
Lc Sine-Wave Generator

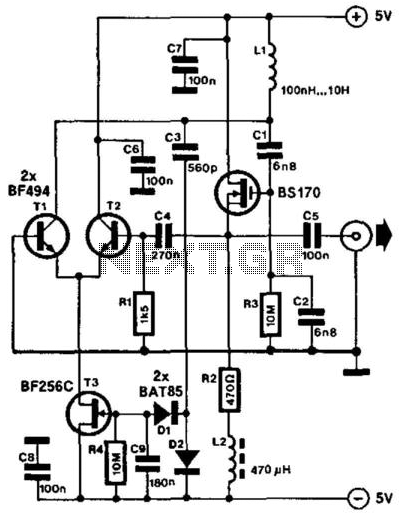

This compact LC oscillator operates within a frequency range of approximately 1 kHz to nearly 9 MHz and provides a low-distortion sine-wave output. The core of the circuit consists of a series-resonant circuit formed by inductor L1 and capacitors C2...
Can a Hartley Oscillator be built using Fixed Inductors
A Hartley Oscillator circuit can be constructed using a pair of series-connected coils. Two 22mH fixed inductors were utilized on a breadboard along with other necessary components. Testing the transistor amplifier independently indicated proper functionality; however, there is no evidence...
STABLE_HF_VFO

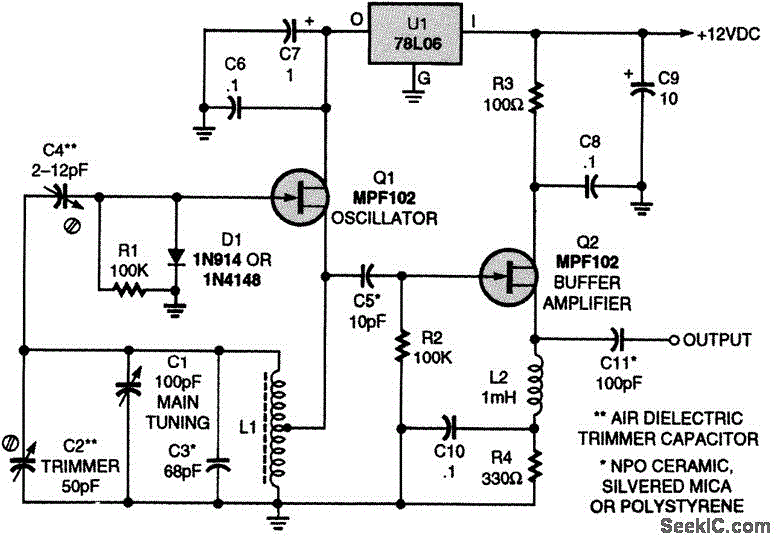

This circuit is a Hartley oscillator, characterized by the feedback to the JFET transistor (Q1) being supplied through a tap on the tuning inductance (L1). The tap's position typically ranges between 25% and 35% of the total coil length. A...
Hartley
A Hartley oscillator is shown at the right. It uses most of the same components as the Clapp oscillator. A capacitor is necessary to block the gate bias voltage from the tuned circuit. The tuning capacitor is a 100 pF...
hartley oscillators
Hartley oscillators are inductively coupled, variable frequency oscillators that can be series or shunt fed. They feature a center-tapped inductor and a tuning capacitor, which simplifies the circuit construction. The schematic includes a buffer stage and an amplifier stage designed...
