Description: This circuit is a Wien Bridge Sine Wave Oscillator. The primary challenge in generating a low distortion, constant amplitude sine wave is to achieve the appropriate loop gain in the amplifier. By utilizing the 2N3069 JFET as a variable resistor in the feedback loop of the voltage amplifier, this objective can be effectively accomplished. The LM103 Zener diode provides a reference voltage for the peak amplitude sine wave, which is corrected and input into the gate of the 2N3069. This design addresses multiple obstacles in the feedback channels, thereby stabilizing the loop gain.
The Wien Bridge Sine Wave Oscillator is a type of electronic oscillator that generates sine waves using a bridge circuit. The circuit typically consists of four resistors and two capacitors arranged in a bridge configuration, with the 2N3069 JFET acting as a variable resistor to control the gain of the amplifier. The oscillation frequency can be adjusted by changing the values of the resistors and capacitors in the bridge.
In this configuration, the LM103 Zener diode serves as a voltage reference, ensuring that the output amplitude remains stable. The feedback loop is crucial for maintaining oscillation; it must provide a gain that is equal to or slightly greater than one. The 2N3069 JFET, when operated in its linear region, adjusts its resistance based on the feedback voltage, dynamically stabilizing the loop gain.
The circuit operates by initially providing a small noise signal to the input. As the amplifier begins to oscillate, the feedback loop continuously adjusts the gain through the JFET until the desired amplitude is achieved. This method effectively minimizes distortion and ensures a clean sine wave output. The design's ability to produce a low distortion sine wave makes it suitable for applications in signal generation, testing, and audio synthesis.
To visualize the circuit, a schematic diagram typically includes the Wien Bridge configuration, highlighting the placement of the JFET and the Zener diode, along with the necessary passive components. The careful selection of these components and their arrangement in the circuit is essential for achieving optimal performance.This circuit is Wein Bridge Sine Wave Oscillator. The main problem in producing low distortion, constant amplitude sine wave to get the right loop gain amplifier. By using the 2N3069 JFET as variable resistor in the feedback loop voltage amplifier, this can be easily achieved.
LM103 zener diode provides a reference voltage to the peak amplitude si ne wave, are corrected and fed into the gate 2N3069, so many obstacles channels and, hence, the loop gain. Here is a schematic drawing:
The Wien bridge oscillator utilizes a balanced Wien bridge as its feedback network. Two-stage common source amplifiers provide a 360-degree phase shift to the signal. The attenuation of the bridge is calculated to be 1/3 at the resonant frequency. Therefore,...
The objective is to test a Wien bridge oscillator and ensure its proper functionality. There is a study of relevant material, but some concepts remain unclear.
The Wien bridge oscillator is a type of electronic oscillator that generates sine waves. It...
With this simple measuring device can: Determine the Zener voltage up to 25V. The connections of cathode and anode of each diode finding. Check if a diode fails. Silicon, germanium and Schottky diodes distinguish. LED test and the V forward...

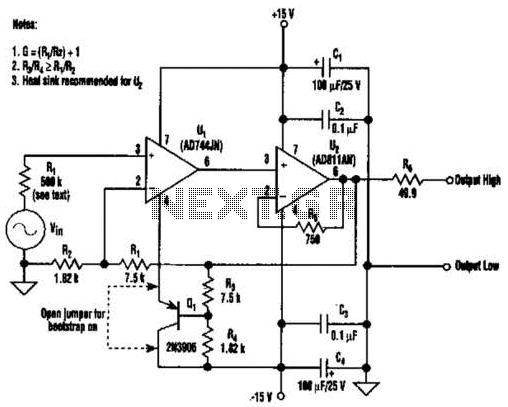

Bootstrapping the substrate of a JFET amplifier minimizes distortion resulting from the non-linearity of the JFET input capacitance. In the accompanying figure, a secondary feedback divider is used to bootstrap the substrate of U1, with R1 set to 500 kΩ...
JFET iPod preamplifier, DIY Hi-Fi, schematic
The JFET iPod preamplifier circuit is designed to amplify the audio signal from an iPod or similar portable audio device, enabling it to drive higher impedance loads such as amplifiers or speakers. This circuit typically...

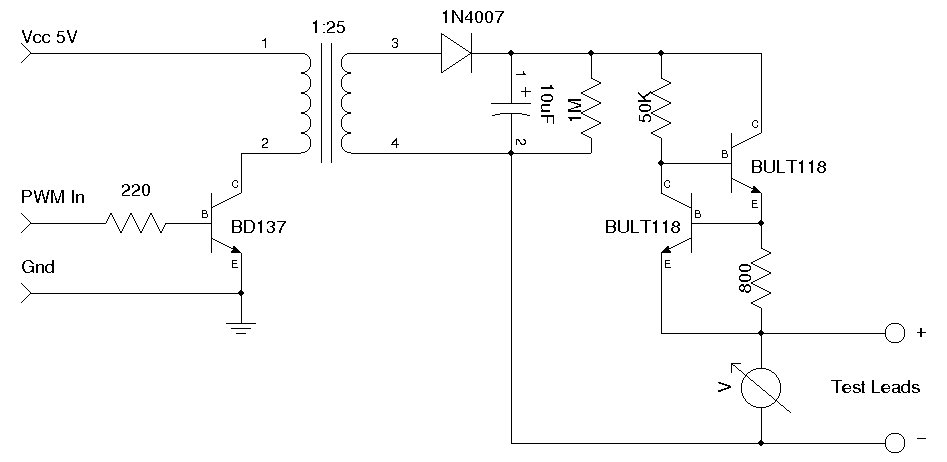

A simple Zener diode tester circuit, when combined with a PWM generator, can be utilized to measure the breakdown voltage of Zener diodes. More generally, it can also measure the breakdown voltages (e.g., BVceo, BVcbo) of BJTs (Bipolar Junction Transistors)....
The J201 JFET operates optimally at 10 volts, with a minimum current requirement of 0.5 mA. These specifications are considered ideal, but the actual performance can vary significantly, typically within a range of three to five times. Recent tests conducted...
The 2N4416 JFET exhibits very low harmonic distortion, making it ideal for smooth oscillation in electronic circuits. It is particularly effective in applications where minimal harmonic content is essential for high-performance mixer circuits. Below is the circuit diagram of a...

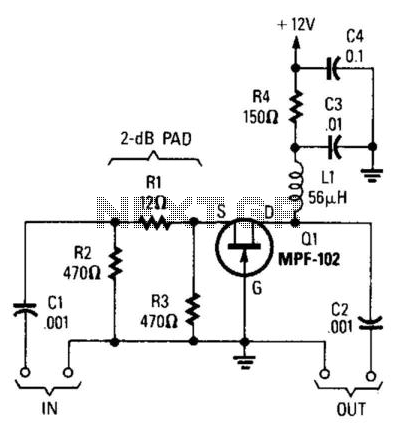

Using an MPF102 JFET, this circuit has a 50-ohm input impedance. The load impedance should be approximately 470 ohms. A 3:1 matching transformer can be utilized to return the impedance to 50 ohms. This circuit will exhibit a gain of...
