13.8V/40A Stabilized high Power Supply
#ham-radio
#stabilized
#high-power
#toroidal transformer
#Zener diode
#Darlington amplifier
#power transistors
#heatsink
#discrete components
Description: This power supply was designed for ham-radio use and has been in operation for over 10 years. Its design is very simple and practically immune to RF. It is assembled from discrete components, being the most costly element a 600VA toroidal transformer, which can be replaced by another with different characteristics, provided it has a voltage of between 17~20V and the right power for our needs. The reference voltage is obtained from a 7.5V Zenner diode (6V8 ~ 8V2) applied to Q2 which compares the voltage output by the resistive divider formed by R5, VR2 and R6, controlling the Darlington amplifier Q3 which is responsible for driving the output stage consisting of driver Q4 and 4 NPN power transistors 2N3771, which can be mounted directly to the heatsink without being isolated, because its collector is connected to ground. The source has maximum current limiter (Q1) adjustable via VR1 and overload indicator LED (DL2) and total protection against short circuit, with zero consumption in case of short circuit, can be maintained in this state indefinitely without danger. (Keep in mind that due to the high power of the PSU a occasional short with a high length or small section cable that has sufficient strength not to exceed the maximum current of 40A. Might not be considered a short circuit and cause the PSU supplying a high amount of power). The power rectifier diodes (D1, D2) are recommended metallic threaded type with the cathode grounded, mounted on a large enough heatsink isolated from the chassis. For the power transistors using a heatsink as big as possible, without being isolated as discussed above, may be part of the aluminum chassis of the box. We also recommend the use forced ventilation with a thermostat.
The power supply circuit is designed to deliver a stable output voltage suitable for ham-radio applications, characterized by its robustness and reliability over an extended operational period. The core of the power supply is the 600VA toroidal transformer, which is essential for stepping down the mains voltage to a usable level while providing sufficient current capacity. The transformer should be selected with a primary voltage compatible with the local mains supply and a secondary voltage in the range of 17V to 20V, ensuring that it meets the power requirements of the application.
The regulation of the output voltage is achieved through a feedback mechanism involving a 7.5V Zener diode (D3) that establishes a reference voltage. This reference is compared to the output voltage via a resistive divider composed of resistors R5, R6, and the variable resistor VR2, which allows for fine-tuning of the output voltage. The operational amplifier Q2 compares these voltages and adjusts the base current of the Darlington pair Q3, which in turn drives the output stage.
The output stage consists of a driver transistor Q4 and four power transistors (2N3771), configured in a parallel arrangement to handle the high current demands of the load. The collector of these transistors is grounded, allowing for direct mounting on a heatsink without electrical isolation. Adequate heatsinking is critical to prevent thermal failure, and the use of a large heatsink that may also serve as part of the chassis is recommended. Additionally, forced air cooling through a thermostat-controlled fan can enhance thermal management, ensuring that the transistors operate within safe temperature limits.
The current limiting feature is implemented using transistor Q1, which is adjustable via the potentiometer VR1. This feature prevents excessive current draw that could potentially damage the circuit or connected loads. The overload indicator LED (DL2) provides a visual indication of an overload condition, alerting the user to take corrective action.
Protection against short circuits is an essential aspect of the design. The power supply is engineered to enter a low-power state during a short circuit, effectively preventing damage and allowing for indefinite operation in this state without risk. It is important to note that certain conditions, such as using cables with appropriate ratings, may lead to situations where high current is supplied without triggering the short circuit protection.
The rectification of the AC voltage from the transformer is accomplished using power rectifier diodes (D1, D2), which should be of the threaded metallic type with their cathodes grounded. These diodes must be adequately heat-sinked to handle the power dissipation during operation. The careful selection and mounting of these components contribute significantly to the overall reliability and performance of the power supply.This power supply was designed for ham-radio use and has been in operation for over 10 years. Its design is very simple and practically immune to RF. It is assembled from discrete components, being the most costly element a 600VA toroidal transformer, which can be replaced by another with different characteristics, provided it has a voltage of between 17~20V and the right power for our needs. The reference voltage is obtained from a 7.5V Zenner diode (6V8 ~ 8V2) applied to Q2 which compares the voltage output by the resistive divider formed by R5, VR2 and R6, controlling the Darlington amplifier Q3 which is responsible for driving the output stage consisting of driver Q4 and 4 NPN power transistors 2N3771, which can be mounted directly to the heatsink without being isolated, because its collector is connected to ground.
The source has maximum current limiter (Q1) adjustable via VR1 and overload indicator LED (DL2) and total protection against short circuit, with zero consumption in case of short circuit, can be maintained in this state indefinitely without danger. (Keep in mind that due to the high power of the PSU a occasional short with a high length or small section cable that has sufficient strength not to exceed the maximum current of 40A.
Might not be considered a short circuit and cause the PSU supplying a high amount of power). The power rectifier diodes (D1, D2) are recommended metallic threaded type with the cathode grounded, mounted on a large enough heatsink isolated from the chassis. For the power transistors using a heatsink as big as possible, without being isolated as discussed above, may be part of the aluminum chassis of the box.
We also recommend the use forced ventilation with a thermostat.
The power supply circuit is designed to deliver a stable output voltage suitable for ham-radio applications, characterized by its robustness and reliability over an extended operational period. The core of the power supply is the 600VA toroidal transformer, which is essential for stepping down the mains voltage to a usable level while providing sufficient current capacity. The transformer should be selected with a primary voltage compatible with the local mains supply and a secondary voltage in the range of 17V to 20V, ensuring that it meets the power requirements of the application.
The regulation of the output voltage is achieved through a feedback mechanism involving a 7.5V Zener diode (D3) that establishes a reference voltage. This reference is compared to the output voltage via a resistive divider composed of resistors R5, R6, and the variable resistor VR2, which allows for fine-tuning of the output voltage. The operational amplifier Q2 compares these voltages and adjusts the base current of the Darlington pair Q3, which in turn drives the output stage.
The output stage consists of a driver transistor Q4 and four power transistors (2N3771), configured in a parallel arrangement to handle the high current demands of the load. The collector of these transistors is grounded, allowing for direct mounting on a heatsink without electrical isolation. Adequate heatsinking is critical to prevent thermal failure, and the use of a large heatsink that may also serve as part of the chassis is recommended. Additionally, forced air cooling through a thermostat-controlled fan can enhance thermal management, ensuring that the transistors operate within safe temperature limits.
The current limiting feature is implemented using transistor Q1, which is adjustable via the potentiometer VR1. This feature prevents excessive current draw that could potentially damage the circuit or connected loads. The overload indicator LED (DL2) provides a visual indication of an overload condition, alerting the user to take corrective action.
Protection against short circuits is an essential aspect of the design. The power supply is engineered to enter a low-power state during a short circuit, effectively preventing damage and allowing for indefinite operation in this state without risk. It is important to note that certain conditions, such as using cables with appropriate ratings, may lead to situations where high current is supplied without triggering the short circuit protection.
The rectification of the AC voltage from the transformer is accomplished using power rectifier diodes (D1, D2), which should be of the threaded metallic type with their cathodes grounded. These diodes must be adequately heat-sinked to handle the power dissipation during operation. The careful selection and mounting of these components contribute significantly to the overall reliability and performance of the power supply.This power supply was designed for ham-radio use and has been in operation for over 10 years. Its design is very simple and practically immune to RF. It is assembled from discrete components, being the most costly element a 600VA toroidal transformer, which can be replaced by another with different characteristics, provided it has a voltage of between 17~20V and the right power for our needs. The reference voltage is obtained from a 7.5V Zenner diode (6V8 ~ 8V2) applied to Q2 which compares the voltage output by the resistive divider formed by R5, VR2 and R6, controlling the Darlington amplifier Q3 which is responsible for driving the output stage consisting of driver Q4 and 4 NPN power transistors 2N3771, which can be mounted directly to the heatsink without being isolated, because its collector is connected to ground.
The source has maximum current limiter (Q1) adjustable via VR1 and overload indicator LED (DL2) and total protection against short circuit, with zero consumption in case of short circuit, can be maintained in this state indefinitely without danger. (Keep in mind that due to the high power of the PSU a occasional short with a high length or small section cable that has sufficient strength not to exceed the maximum current of 40A.
Might not be considered a short circuit and cause the PSU supplying a high amount of power). The power rectifier diodes (D1, D2) are recommended metallic threaded type with the cathode grounded, mounted on a large enough heatsink isolated from the chassis. For the power transistors using a heatsink as big as possible, without being isolated as discussed above, may be part of the aluminum chassis of the box.
We also recommend the use forced ventilation with a thermostat.
Variable zener diode
The circuit operates similarly to a zener diode across a wide range of voltages. The current flowing through the voltage divider formed by resistors R1 and R2 is significantly greater than the base current of the transistor, approximately 8 mA....
Discrete Voltage Regulator
The title of this article raises the question of why the extensive selection of fully integrated voltage regulators should be supplemented with a version built using discrete components. Specifically, what advantages does this circuit provide that the well-known three-terminal regulators...
5000W ultra-light high-power amplifier without switching-mode power supply
This circuit is for a 2x2, 500W RMS stereo amplifier that is super-light and does not utilize a switching-mode power supply. The circuit diagram displays only one channel, while the power supply is designed to support both channels. The audio...
Zener Diode checker
Many times we have found itself in the necessity to use a Zener diode and cannot to know the voltage of operation. Many times we cannot read the characteristics or the type that is written on her. In this case,...
Simple Under-Voltage Cut-Out
Sensitive low-current relay coils often operate at much lower voltages than their typical ratings. This can be undesirable in some applications, where low supply voltages can result in erratic system behavior. In some instances, this problem could be overcome simply...
zener diode tester schematic
The electronic scheme provided can be used to design a Zener diode tester utilizing a few electronic components. This Zener tester, in conjunction with a multimeter, allows for the precise measurement of the threshold voltage of a Zener diode. The...

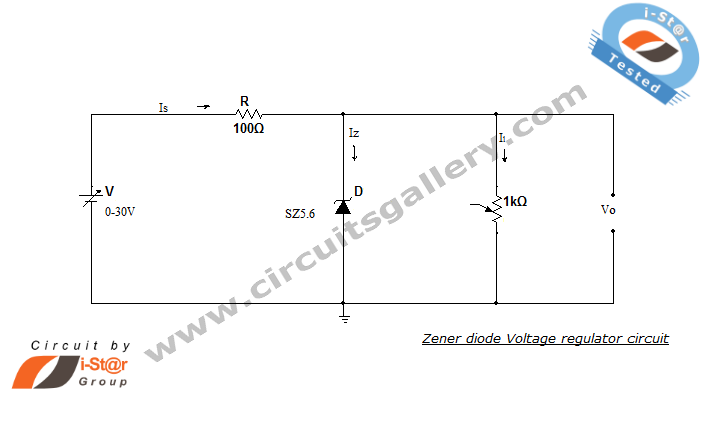

Voltage Regulator Using Zener Diode Circuit
