Description: This circuit is a dual voltage regulated power supply, +12, -12, 0 volt. It uses the 7812 and 7912 regulators. You need a 18VCT, 1A transformer at input. More: Caution: Input / Ground are reversed between the 7812 and 7912.
The described circuit functions as a dual voltage regulated power supply, providing three output voltages: +12V, -12V, and 0V. It employs two linear voltage regulators, the LM7812 for the positive voltage output and the LM7912 for the negative voltage output.
To begin, the circuit requires an 18V center-tapped transformer (18VCT) with a current rating of at least 1A. The center tap serves as the ground reference, while the two secondary windings provide the necessary voltages for the regulators. The AC voltage from the transformer is first rectified using a bridge rectifier, which converts the AC voltage to pulsating DC.
After rectification, filtering capacitors are utilized to smooth the pulsating DC voltage, ensuring that the voltage presented to the regulators is stable. Typically, a large electrolytic capacitor is placed at the output of the rectifier to minimize voltage ripple.
The LM7812 regulator is connected to the positive side of the rectified output, while the LM7912 is connected to the negative side. It is crucial to note that the input and ground connections are reversed between the two regulators. The LM7812 requires the input voltage to be connected to the output of the rectifier, while the ground pin should be connected to the center tap of the transformer. Conversely, the LM7912 has its input connected to the negative side of the rectified output, and its ground pin is also connected to the center tap.
Each regulator outputs a stable voltage of +12V and -12V, respectively. Additional decoupling capacitors are recommended at the output of each regulator to further enhance stability and transient response. These capacitors are typically in the range of 0.1µF to 10µF and help filter out high-frequency noise.
This power supply circuit is commonly used in various applications where dual polarity power is required, such as operational amplifier circuits, analog signal processing, and audio equipment. Proper thermal management should also be considered, as the regulators may dissipate significant heat depending on the load. Heat sinks may be necessary to ensure the regulators operate within safe temperature limits.This circuit is a dual voltage regulated power supply, +12, -12, 0 volt. It uses the 7812 and 7912 regulators. You need a 18VCT, 1A transformer at input. Caution: Input / Ground are reversed between the 7812 and 7912.
V1 creates a square wave oscillator, while D1 and D2 couple this square wave to a 12-V battery, raising the voltage to over 20 VDC. If this elevated voltage is not required, S1 can remain open. Q1 functions as a...
The circuit depicted features a secondary N3 center tap transformer (T) with a common point connecting diodes VD2 and VD3 to positive electrodes, along with capacitors C2, C6, C7, and negative electrodes connected to capacitors C9 and C10. Additional components...
The power supply receives +20 VDC from the rectifier/filter section. This voltage is applied to pins 11 and 12 of the uA723 voltage regulator, as well as to the collector of the 2N3055 series-pass transistor. The output voltage is sampled...
A light dimmer is quite uncommon in a caravan or on a boat. This document outlines how to create one, allowing for mood adjustment when needed.
A light dimmer circuit is an essential component for enhancing the ambiance in confined spaces...
This regulator is suitable for devices that need up to 1mA. For higher output current, the resistors would have to be scaled down in reverse proportion to the peak current expected. With the resistor values shown, the regulator draws a...

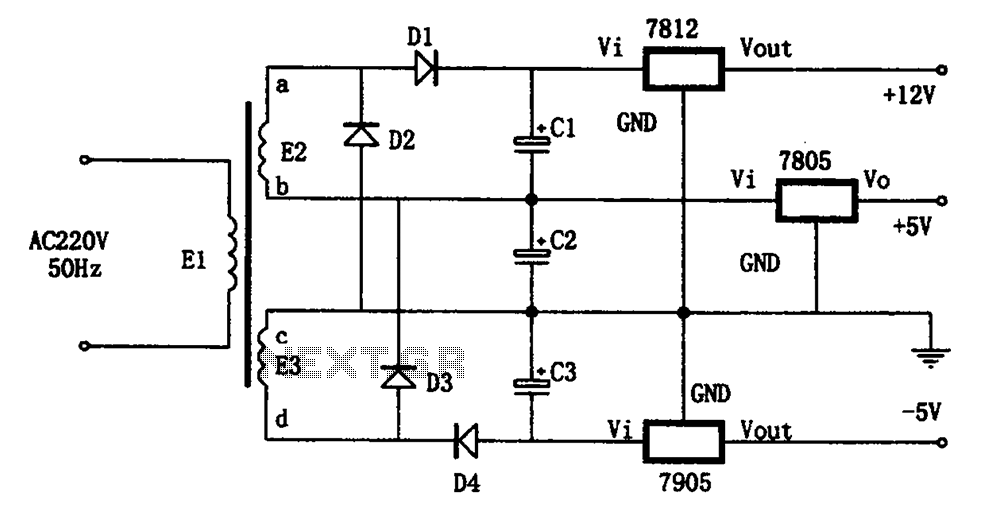

The circuit illustrated in the figure represents a specialized power supply configuration. It is straightforward in design and can be constructed using two identical secondary windings to generate three distinct DC voltage outputs: +5V, -5V, and +12V. The circuit features...
The battery should charge up to 14 volts. A reading of 10.7 volts indicates that one cell is shorted. A good way to diagnose this further is to look at the water level in the cells. The shorted cell will...
The circuit operates on the principle of a transformer, bridge rectifier, and conditioning for battery charging. The charging current can be adjusted to approximately 12V at 100A. For battery charging, a charging rate of 10 hours requires a charging current...
Open and short circuit tests on a transformer are conducted to determine the equivalent circuit of the transformer, assess its voltage regulation, and evaluate its efficiency.
The open circuit test is performed by applying the rated voltage to the primary winding...
