Description: This circuit is designed to protect a power supply or battery. The electric current will be interrupted by a relay when a short circuit occurs. Relays must be selected with a voltage rating equal to the input voltage. It is essential to include a 100µF capacitor with an appropriate voltage rating corresponding to the input voltage. If this is not feasible, a C106 can be used instead of the BRX46. Current adjustment can be achieved using a 10K potentiometer. If a fuse with a high current rating is utilized, the value of the 0R6 5W resistor should be reduced (e.g., to 0R47, 0R33, 0R22, or 0R1). Additionally, the wattage rating of the resistor should be increased accordingly.
This circuit operates as a protective mechanism for power supplies and batteries, primarily focusing on preventing damage due to short circuits. At the core of this circuit is a relay, which acts as a switch that opens or closes the circuit based on the presence of a fault condition. When a short circuit occurs, the relay is activated, thereby interrupting the flow of electric current and protecting the power supply or battery from potential damage.
The selection of the relay is critical; it must have a voltage rating that matches the input voltage of the circuit to ensure reliable operation. The inclusion of a 100µF capacitor is also vital, as it helps to stabilize the voltage and filter out any high-frequency noise that may affect the performance of the circuit. If a 100µF capacitor is not available, a C106 component can serve as a substitute for the BRX46, although it is advisable to verify compatibility with the circuit's specifications.
For current regulation, a 10K potentiometer can be integrated into the design. This allows for fine-tuning of the current flowing through the circuit, catering to different operational requirements. In scenarios where a fuse is employed to handle higher currents, adjustments to the 0R6 5W resistor are necessary. The resistance value may be lowered to 0R47, 0R33, 0R22, or even 0R1, depending on the specific current requirements. Furthermore, the power rating of the resistor must be increased to accommodate the higher energy dissipation that may occur under these conditions.
Overall, this circuit design emphasizes the importance of component selection and configuration to ensure effective protection of power supplies and batteries in various applications. Proper implementation will enhance the reliability and longevity of the electronic system.This circuit will protect your power supply or battery. The electric current will stopped by relay when electric current short occured, Relays must be chosen with a voltage value equals to the input voltage. Don`t omit using the 100uF capacitor with appropriate voltage value with respect to the input voltage.
If you can`t provide, you can use C106 instead of BRX46. You can adjust the current with using 10K potentiometer. If you will use the fuse with very high currents, lower the 0R6 5W resistor value (ex. 0R47, 0R33, 0R22 or 0R1). Watt value of the resistor should be increased also.
A DC shunt regulator power supply circuit is presented, which operates in parallel with a radio circuit. The circuit begins with an AC voltage of 22V, which is stepped down to 8V using a transformer. The 8V AC voltage is...
This current-limiting circuit, illustrated as part of a small bench power supply, can be utilized with any dual-rail current source. The section of the circuit to the left limits the current at the input to the dual voltage regulator (IC4...
Create a circuit that enables the activation of a relay to control an LED. The relay operates at 12 V, while the available input voltage is 5 V. An NPN transistor will be utilized to switch the power to the...

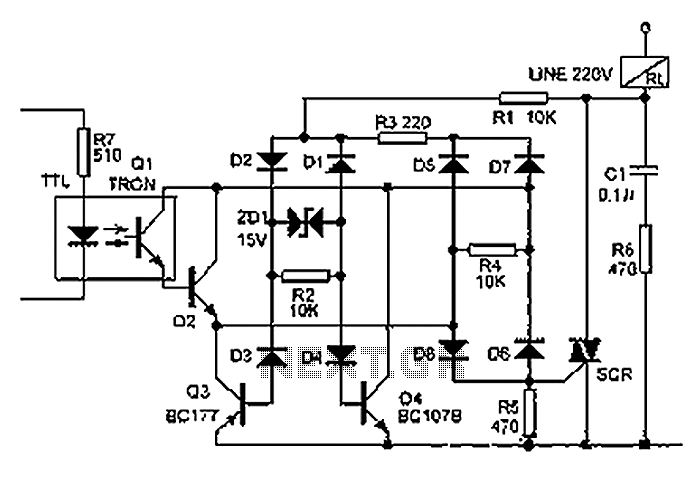

The relay illustrated in the figure operates based on non-inductive analog circuit theory. Its working principle involves a 220V power supply connected to a load (RL), resistors (R1, R3, R6), diodes (D1 to D8), and a zener diode (ZD1). Transistors...
A DC relay or contactor is utilized to enhance the excitation pull-in and release mechanisms in a circuit. The relay circuit, as depicted in Figure 6-28, facilitates improved return line efficiency. When the control relay KAi is activated, its normally...

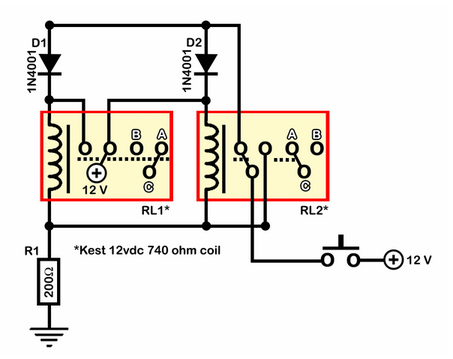

A relay circuit functions as a double-pole double-throw (DPDT) toggle, controlled by a momentary switch. The design emphasizes simplicity with minimal integration of components such as 555 timers or transistors. The circuit is depicted in an active state. Half of...
The inexpensive flashlight utilized a small (0.22 Farad) capacitor for energy storage, which provided approximately 6.6 Joules of energy, significantly less than 1/1000th of the energy contained in a single AA alkaline cell. As a standard "super capacitor," it had...

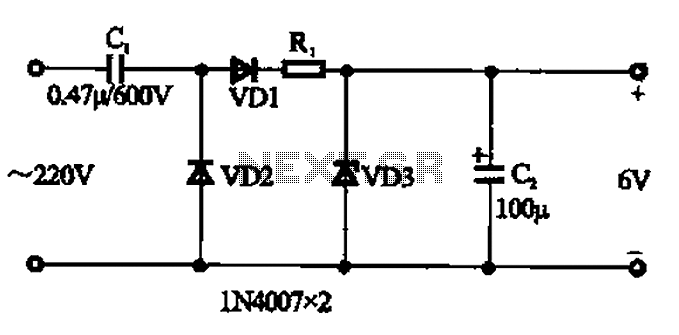

A capacitor step-down DC power supply circuit is presented. This circuit eliminates the need for power transformers, utilizing capacitive voltage drop rectification and regulation, which significantly reduces the overall size of the circuit. The circuit includes a capacitor step-down component,...
The circuit depicted in Figure 6-24 includes a relay coil with both ends connected in parallel to either a resistor Rf or an auxiliary diode VD. This configuration is equivalent to providing power after a short circuit, which increases the...
