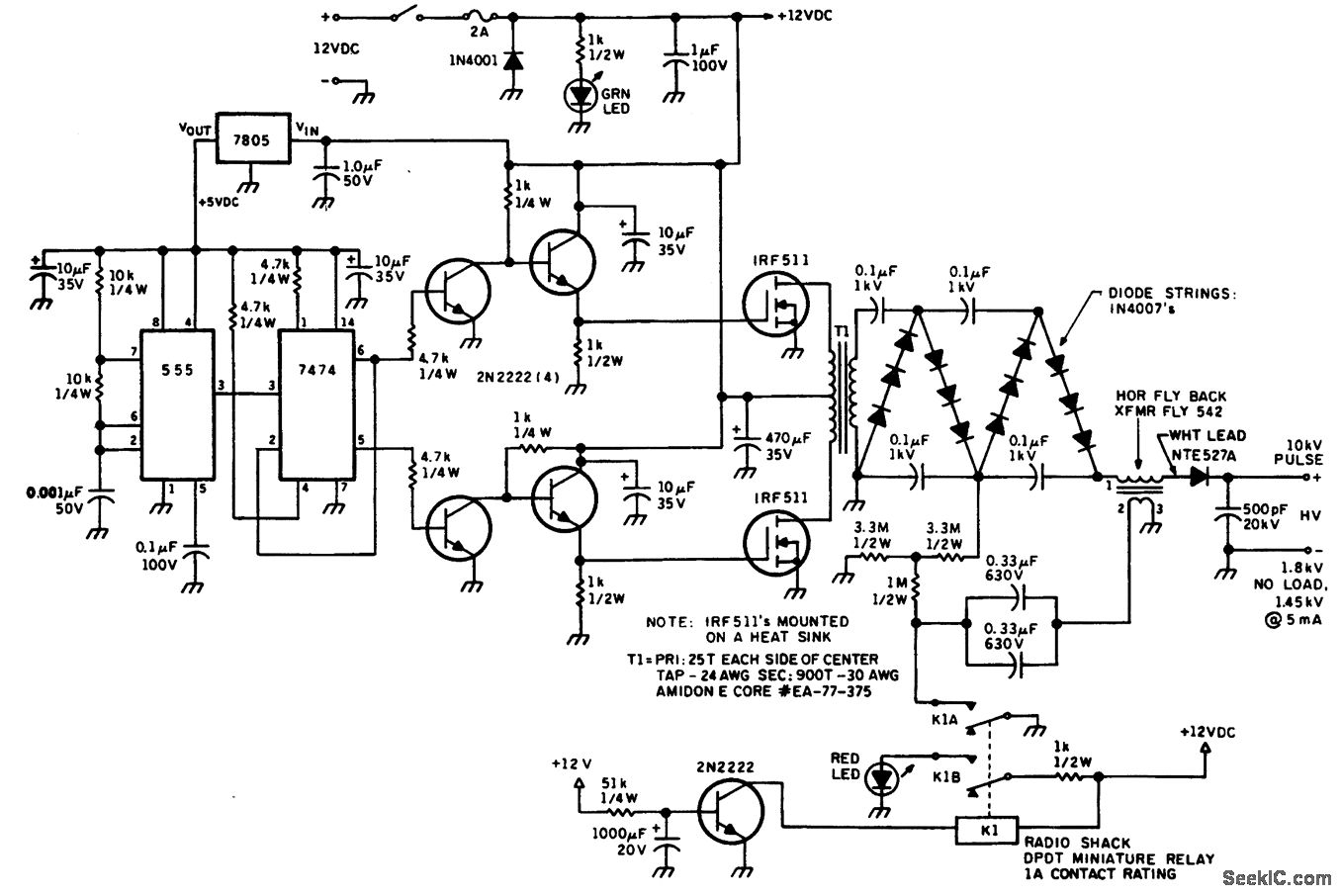

Description: The helium-neon laser requires two voltages: one in the range of 10 kV to initiate the laser, which is turned off once the discharge begins, and a lower-voltage power supply to sustain the discharge. The circuit diagram illustrates a method for generating the laser ignition voltage. A fraction of the main supply voltage is used to charge a capacitor. When triggered, the capacitor is discharged through a high-voltage ignition transformer in series with the main power supply output. When the supply is first turned on, a delay circuit allows the main supply to stabilize at full voltage and charge the capacitor. A non-latching relay operates to discharge the capacitor into the ignition coil on a one-shot basis after the timing delay. The high-voltage diode in series with the ignition coil and the capacitor rectifies the damped oscillatory waveform from the ignition coil, producing a single positive pulse across the laser tube to ionize the gas in the laser. Once the laser is ignited by the high-voltage pulse, the main power supply maintains the discharge.
The helium-neon laser circuit is designed to operate with two distinct voltage levels essential for its functionality. The initial high voltage, approximately 10 kV, is crucial for initiating the laser process. This high voltage is momentarily applied to ionize the gas mixture within the laser tube, allowing for the production of coherent light. Following the initial discharge, the high voltage is removed, and a lower voltage is maintained to sustain the laser's operation.
The circuit employs a capacitor charged by a fraction of the main supply voltage. This capacitor acts as an energy storage element, which is then discharged through a high-voltage ignition transformer. The ignition transformer elevates the voltage to the required level for the initial gas ionization. The design incorporates a delay circuit that ensures the main power supply reaches its full operational voltage before the capacitor is discharged. This delay is critical to prevent premature ignition and ensure stability in the system.
A non-latching relay is utilized to control the discharge of the capacitor into the ignition coil. This relay operates on a one-shot basis, meaning it will only activate once per trigger event, allowing for precise control over the timing of the ignition pulse. The high-voltage diode placed in series with the ignition coil serves to rectify the output from the ignition transformer, converting the damped oscillatory waveform into a single positive pulse. This pulse is then directed to the laser tube, effectively ionizing the gas and initiating the laser action.
Once the gas within the laser tube is ionized, the main power supply takes over to maintain the discharge, ensuring continuous operation of the laser. The overall design of this circuit is vital for achieving reliable and efficient laser performance, highlighting the importance of precise voltage control and timing in high-voltage applications.The helium-neon laser requires two voltages: a voltage in the range of 10 kV that starts the laser and then turns off once the discharge begins, and a lower-voltage power supply to sustain the dis-charge. The circuit diagram illustrates one method of generating the laser ignition voltage. A fraction of the main supply voltage is used to charge up a capacitor. When triggered, it is discharged through a high-voltage ignition transformer in series with the main power supply output. When the supply is first turned on, a delay circuit allows the main supply to stabilize at full voltage and charge up the capacitor.
A nonlatching relay operates to discharge the capacitor into the ignition coil on a one-shot basis after the timing delay. The HV diode in series with the ignition coil and the capacitor across the supply rectifies the damped oscillatory waveform out of the ignition coil, producing a single positive pulse across the laser tube to ionize the gas in the laser.
Once the laser is ignited by the HV pulse, the main power supply maintains the discharge.

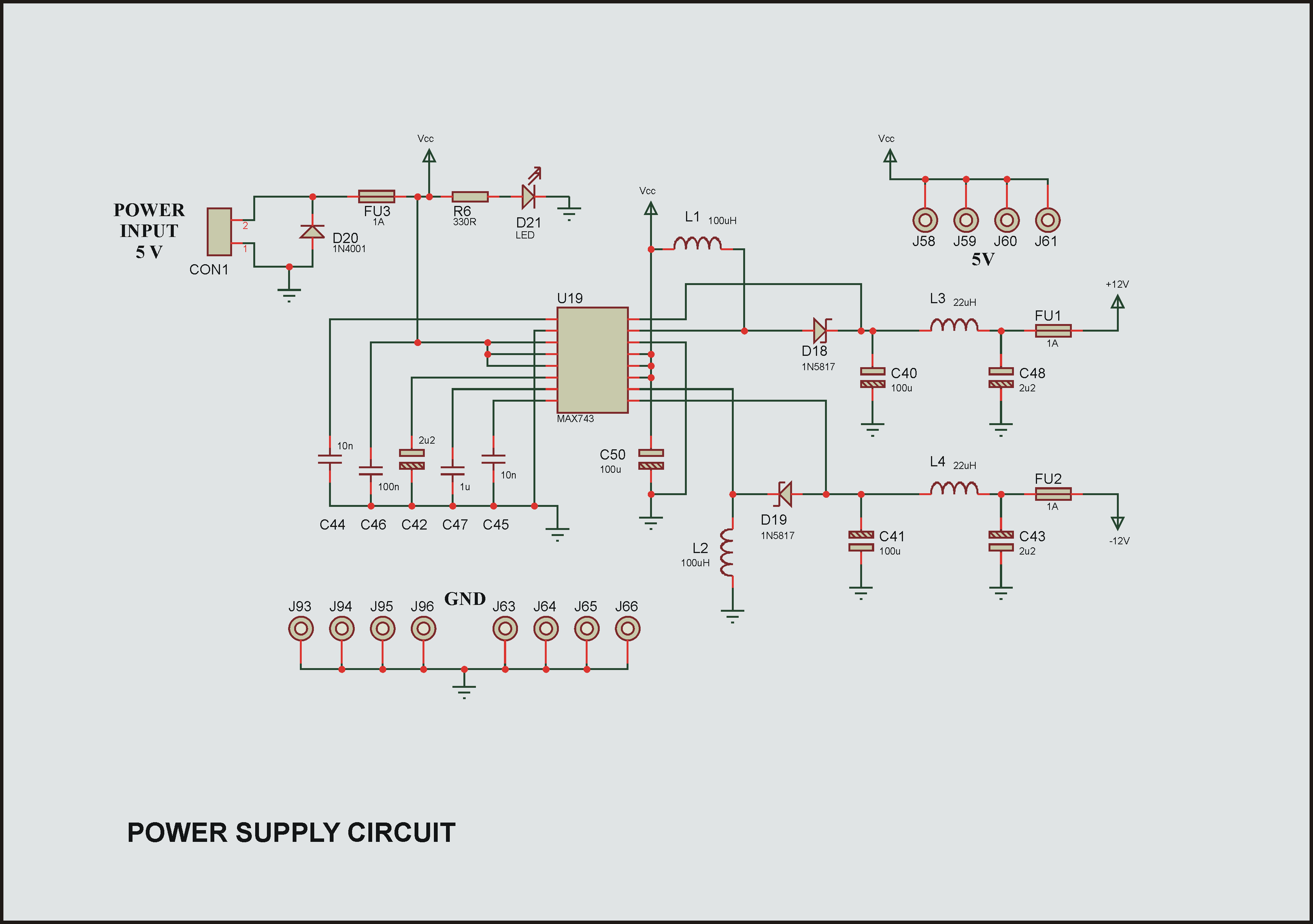

The Chameleon II Power Supply Circuits convert the raw input supply into stable voltage outputs necessary for the Chameleon interfaces. The outputs provided are +5V, +12V, and -12V.
The Chameleon II Power Supply Circuits are designed to ensure reliable operation of...

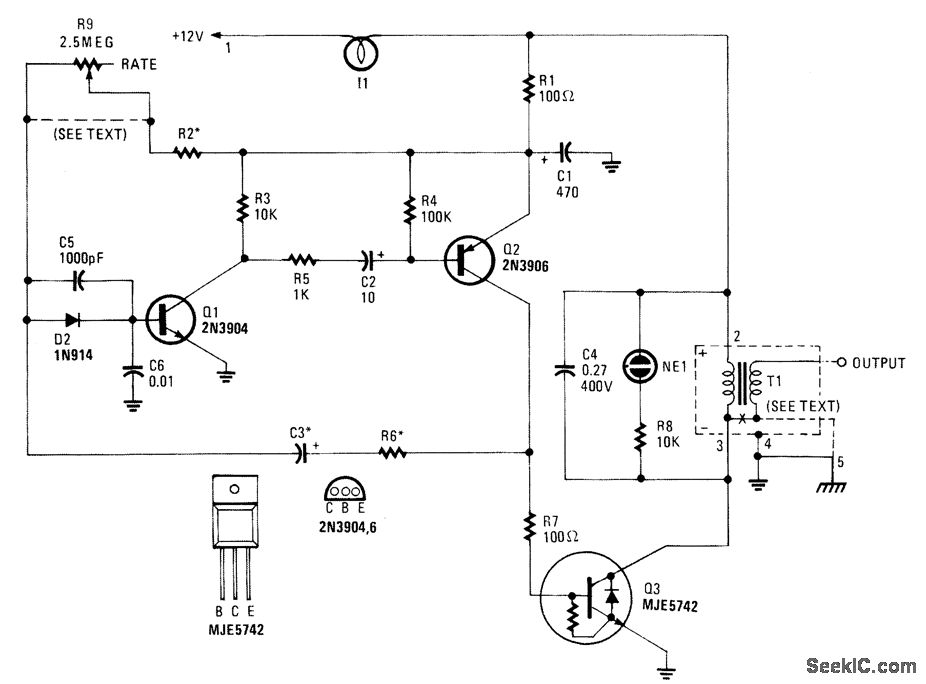

This high-voltage pulse supply generates pulses up to 30 kV. Transistors Q1 and Q2 create a multivibrator in conjunction with peripheral components R1 through R6 and capacitors C1, C2, C3, C5, C6, and diode D2. Resistor R9 adjusts the pulse...
This High Voltage power supply is able to generate up to 25-30kV DC Output from a 12-24v DC input. With a fully adjustable DC input power supply (0-24V/4A), it is possible to adjust the HV output between 5 to 30kV....
The DC voltage for the generator field winding is supplied by a three-phase thyristor rectifier. In instances of incorrect operation, phase misalignment, or system failure, the rectifier may generate hazardous conditions, leading to over-voltage insulation issues on the DC side...
This is a simple high-voltage inverter circuit. It uses an NPN transistor type 2N3055. This circuit is designed to invert low voltage to high voltage.
The high-voltage inverter circuit utilizing the 2N3055 NPN transistor serves as an effective means to convert...

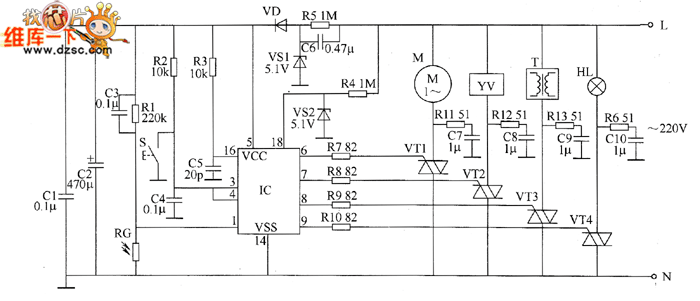

The industrial fuel oil furnace controller circuit consists of a power supply circuit, a testing and ignition control circuit, and a control implementation circuit, as illustrated in the accompanying diagram. The power supply circuit includes a step-down capacitor (C6), a...

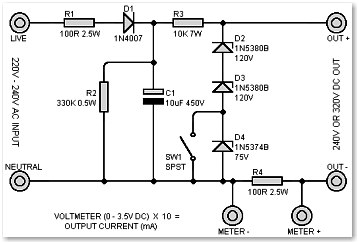

High voltage electrolytic capacitors in valve equipment can deteriorate if the equipment is unused for an extended period. This deterioration manifests as reduced capacitance and significantly increased leakage current. In some instances, the capacitor may become nearly short-circuited. Using equipment...
