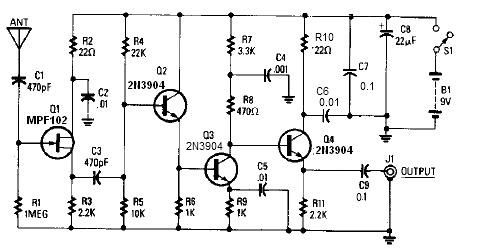

14-20dB gain simple active antenna circuit diagram
#active antenna
#transistor
#short-wave
#signal gain
#RF amplifier
#reception
#electronic circuit
#frequency
#antenna design
#signal strength
Description: A simple active antenna can be designed using this electronic circuit diagram. This active antenna utilizes transistors and a few common electronic components. In the practice of short-wave frequency reception, a general rule is that a longer antenna will result in a stronger received signal. However, there are situations where constructing a large antenna is not feasible due to various factors. Antennas that are significantly shorter than 1/4 wavelength exhibit a very small and highly variable impedance that depends on the received frequency, making it challenging to match impedances over a wide range of frequencies. For this RF circuit, a typical gain of 20 dB is achievable from 1 to 18 MHz, decreasing to 14 dB at 30 MHz. Various types of JFETs can be used in this active antenna circuit, including the MPF102, NTE451, ECG451, or 2N4416. The transistors 2N3904 or 2N2222 are suitable for Q2, Q3, and Q4. Transistor Q4 converts Q3's moderate output impedance into a low impedance, providing adequate drive for a receiver's 50-ohm antenna input impedance.
The active antenna circuit outlined is designed to enhance the reception of RF signals, particularly in the short-wave band. The circuit typically includes a few key components: transistors, resistors, capacitors, and a JFET. The JFET serves as the primary amplification device, leveraging its high input impedance and low output impedance characteristics to maximize signal gain while minimizing signal loss.
The transistors Q2, Q3, and Q4 work in a cascading configuration to amplify the received signal. Q2 acts as the initial amplifier, receiving the weak RF signal from the antenna. The output from Q2 is fed into Q3, which further amplifies the signal. Q4 then converts the output from Q3 into a lower impedance, suitable for matching with a standard 50-ohm input of most receivers. This impedance transformation is crucial for ensuring maximum power transfer and efficient signal reception.
The circuit may also incorporate bypass capacitors to stabilize the power supply and filter out any unwanted noise, ensuring a clean signal is delivered to the receiver. The gain characteristics of the circuit are designed to provide optimal performance across a range of frequencies, making it versatile for various short-wave applications.
In summary, this active antenna circuit is a practical solution for those needing enhanced signal reception without the space for a larger antenna. Its design allows for effective impedance matching and signal amplification, making it suitable for a wide range of short-wave frequencies.A very simple active antenna can be designed using this electronic circuit diagram. This active antenna is based on transistors and other few common electronic components. Because in practice of frequency short-wave reception, the general rule is that if the used antenna is longer, the stronger the received signal will be we need in some cases ( when we can not built a big antenna, because of some factors ). Antennas that are much shorter than 1/4 wavelength present a very small and highly relative impedance that is dependent on the received frequency. It is difficult to match impedances over a decade of frequency coverage. For this RF circuit a gain of 20dB is typical from 1-18 MHz, decreasing to 14dB at 30MHz. For this active antenna circuit many different types of JFET`s may be used, such as the MPF102, NTE451, ECG451 or 2N4416 and 2N3904 or 2N2222 transistor works well for Q2, Q3, and Q4.
Transistor Q4 transform Q3`s relatively moderate output impedance into a low impedance, thereby providing sufficient drive for a receiver`s 50-ohm antenna-input impedance.
The active antenna circuit outlined is designed to enhance the reception of RF signals, particularly in the short-wave band. The circuit typically includes a few key components: transistors, resistors, capacitors, and a JFET. The JFET serves as the primary amplification device, leveraging its high input impedance and low output impedance characteristics to maximize signal gain while minimizing signal loss.
The transistors Q2, Q3, and Q4 work in a cascading configuration to amplify the received signal. Q2 acts as the initial amplifier, receiving the weak RF signal from the antenna. The output from Q2 is fed into Q3, which further amplifies the signal. Q4 then converts the output from Q3 into a lower impedance, suitable for matching with a standard 50-ohm input of most receivers. This impedance transformation is crucial for ensuring maximum power transfer and efficient signal reception.
The circuit may also incorporate bypass capacitors to stabilize the power supply and filter out any unwanted noise, ensuring a clean signal is delivered to the receiver. The gain characteristics of the circuit are designed to provide optimal performance across a range of frequencies, making it versatile for various short-wave applications.
In summary, this active antenna circuit is a practical solution for those needing enhanced signal reception without the space for a larger antenna. Its design allows for effective impedance matching and signal amplification, making it suitable for a wide range of short-wave frequencies.A very simple active antenna can be designed using this electronic circuit diagram. This active antenna is based on transistors and other few common electronic components. Because in practice of frequency short-wave reception, the general rule is that if the used antenna is longer, the stronger the received signal will be we need in some cases ( when we can not built a big antenna, because of some factors ). Antennas that are much shorter than 1/4 wavelength present a very small and highly relative impedance that is dependent on the received frequency. It is difficult to match impedances over a decade of frequency coverage. For this RF circuit a gain of 20dB is typical from 1-18 MHz, decreasing to 14dB at 30MHz. For this active antenna circuit many different types of JFET`s may be used, such as the MPF102, NTE451, ECG451 or 2N4416 and 2N3904 or 2N2222 transistor works well for Q2, Q3, and Q4.
Transistor Q4 transform Q3`s relatively moderate output impedance into a low impedance, thereby providing sufficient drive for a receiver`s 50-ohm antenna-input impedance.

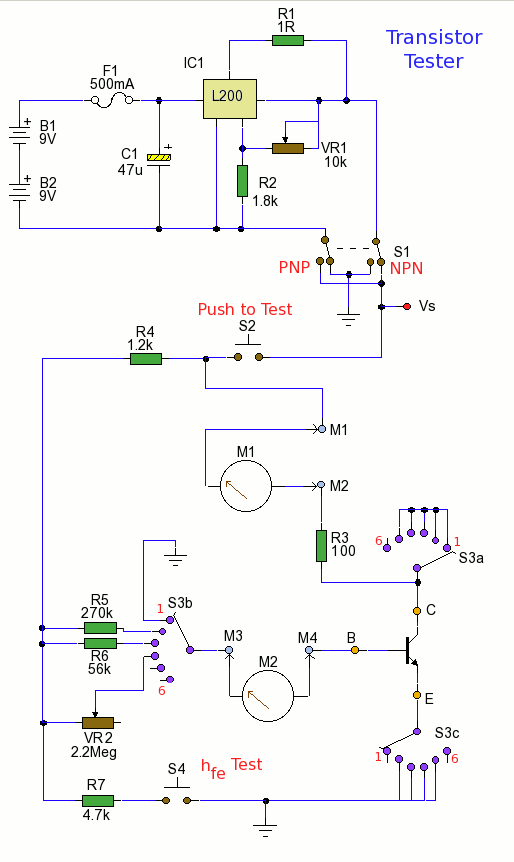

Transistor Tester
This circuit can measure both small signal hfe and DC current gain hFE of a low to medium power transistor.
The circuit is designed to evaluate the current gain characteristics of low to medium power transistors by measuring both the small...
Flasher Circuits
The basic two-transistor flasher has become widely utilized in various applications due to its simplicity and versatility. It has been employed in circuits such as a micropower low battery indicator, a lightning detector, an off-line switching power supply, a micropower...

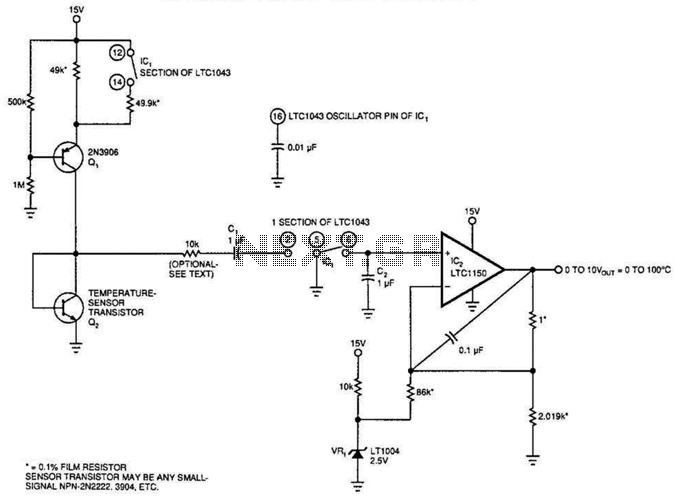

Transistor Sensor Temperature Measurer
Using the fact that the VRE of a transistor shifts 59.16 mV per decade of current at 25°C. This constant is 0.33%/°C. This V5E-vs.-current relationship holds true regardless of the FBe absolute value. IC, an LT1043, acts as an oscillator...
The Transistor Amplifier
Time would be better spent explaining transistor and MOSFET behavior in a simpler manner and focusing on digital circuitry and microcontroller projects. A transistor cannot simply be placed into a circuit and expected to yield calculated results. The gain of...

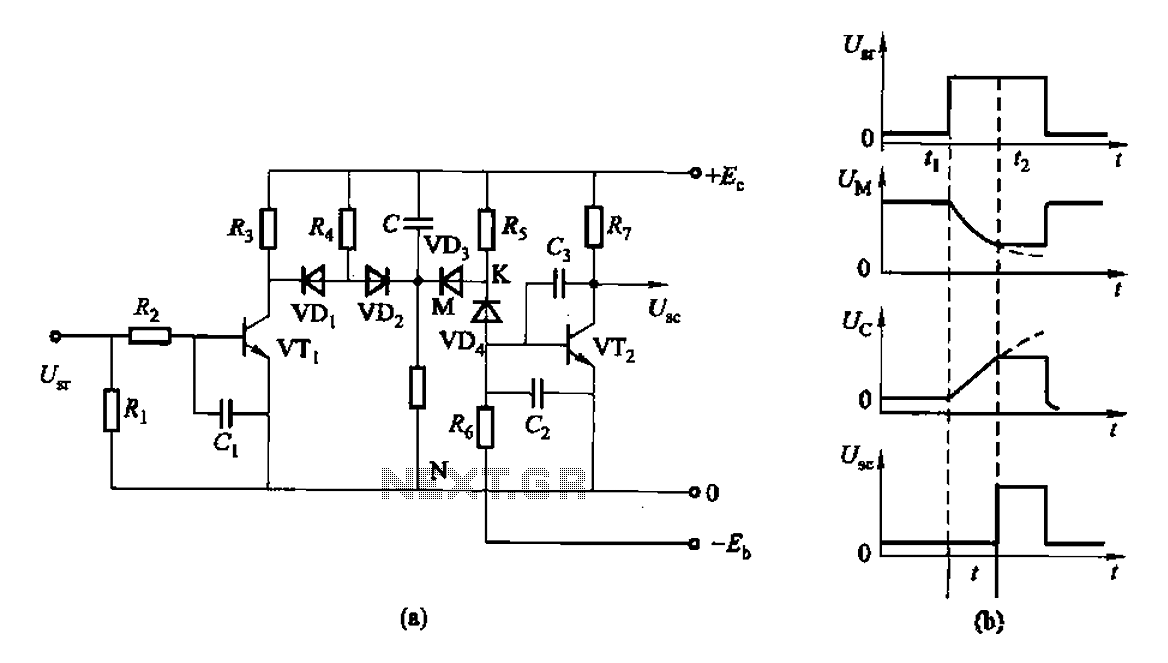

As of control rechargeable delay circuit
This is a control rechargeable delay circuit. Under normal circumstances, when there is no input signal, the transistor VTi is off. VTz is conducting, resulting in a low output potential (U). When a signal is applied, VTi turns on, VTz...

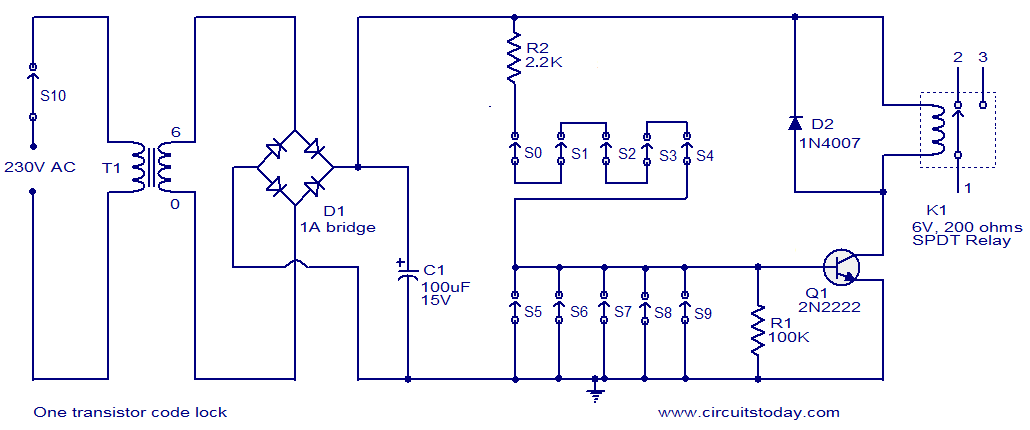

One transistor code lock
This is a simple electronic code lock circuit that can be easily constructed. The circuit consists of one transistor, a relay, and several passive components. Its simplicity does not compromise performance, and it functions effectively. The circuit operates as a...

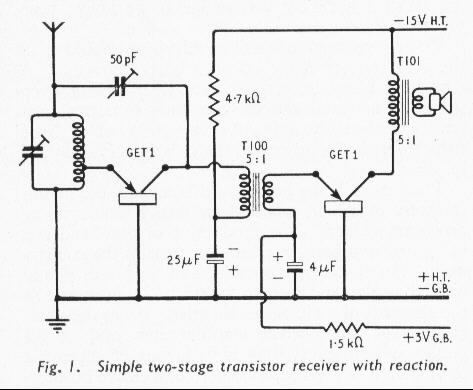

early GEC transistor radio
The world's first practical crystal amplifying device was introduced in 1948, marking the beginning of commercially available transistor radios in Britain. At that time, an average radio enthusiast or constructor would have been adjusting to new miniature glass valves, exploring...

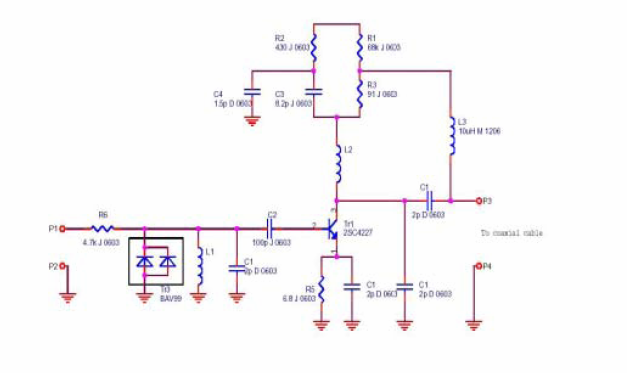

mobile active antenna power circuit
A flat mobile active car antenna is being tested with a Terratec Cinergy DT USB XS Diversity digital tuner. The antenna is designed to enhance signal reception for mobile digital television.
The flat mobile active car antenna is engineered to optimize...

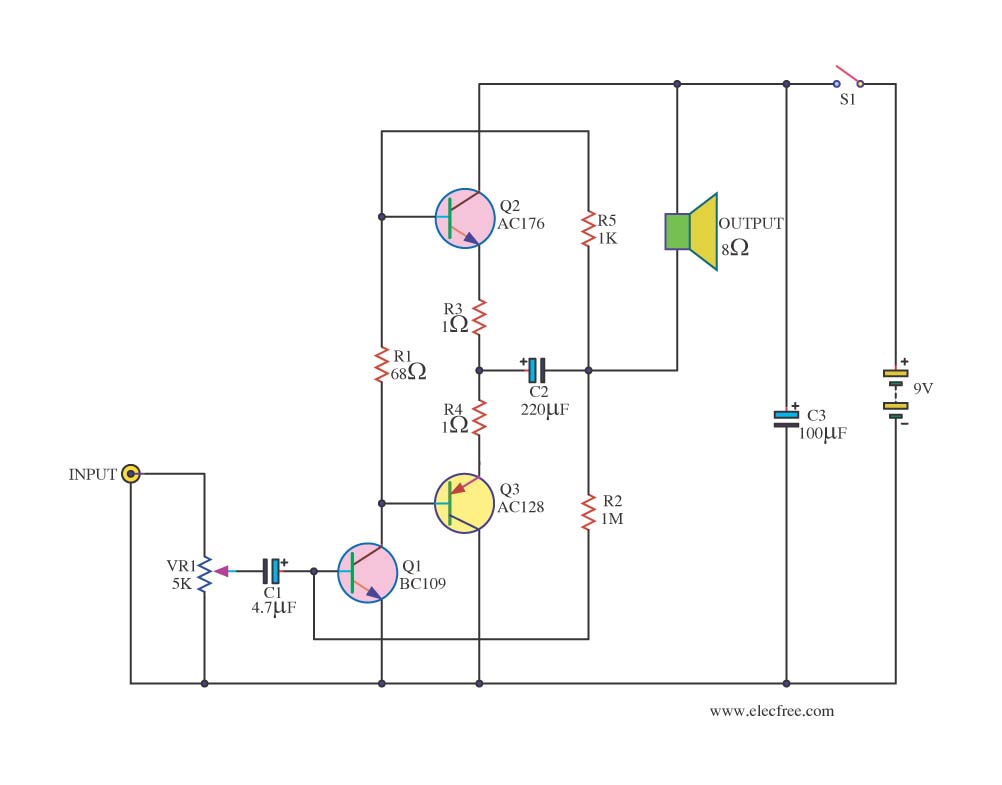

Small transistor amplifier Ideals
