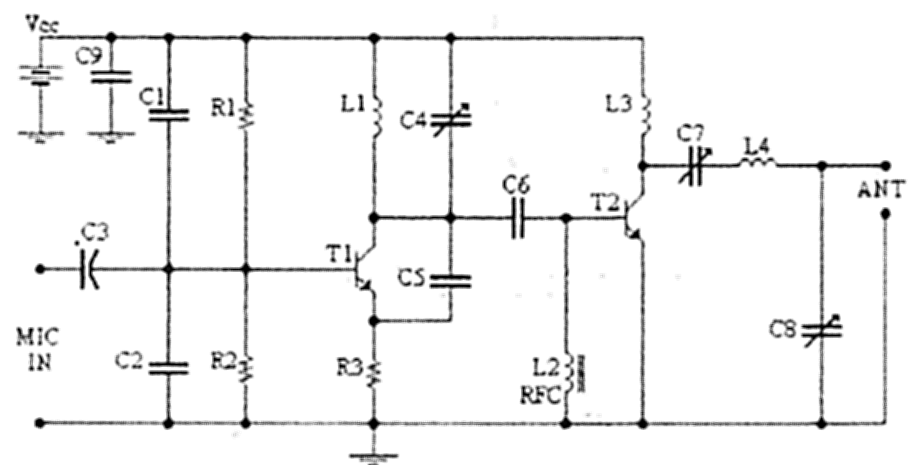

Description: This 2 Watt FM transmitter is capable of providing a range of up to 10 kilometers under optimal weather conditions. For maximum range, a dipole antenna should be utilized. The transmitter can be tuned to frequencies between 88 and 108 MHz using capacitor C5. The BB204 component can be substituted with a conventional large LED, which will not emit light when reverse-biased in the correct polarity. A 9V power supply is suitable for achieving a 2km transmission range with good sound quality, while an 18V power supply can extend the range to 10 kilometers. The RF transistors 2N3553 may be replaced with 2N4427 or 2N3866.
The 2 Watt FM transmitter circuit is designed for efficient transmission within the FM broadcast band, specifically between 88 MHz and 108 MHz. The circuit typically includes an oscillator stage, which generates the RF signal, followed by a modulator stage that combines audio input with the RF signal. The output stage amplifies the modulated signal to the desired power level, allowing it to drive the dipole antenna effectively.
The choice of a dipole antenna is crucial, as it provides optimal radiation characteristics for FM transmission. The antenna's design should ensure that it is properly tuned to the frequency of operation, enhancing the overall range and signal clarity.
Capacitor C5 plays a vital role in tuning the transmitter. Adjusting this component allows fine-tuning of the oscillator to lock onto the desired frequency. The inclusion of a BB204 diode, which can be replaced with a reverse-biased LED, adds versatility to the circuit. The LED serves as a visual indicator when correctly biased, indicating the operational status of the transmitter.
Power supply considerations are essential for maintaining signal integrity. A 9V supply is adequate for shorter transmission distances (up to 2km), but increasing the voltage to 18V enhances the output power, enabling longer-range transmission (up to 10km). The RF transistors, specifically the 2N3553, are instrumental in amplifying the RF signal. Alternatives such as the 2N4427 or 2N3866 can be used, depending on availability and specific performance characteristics required for the application.
This transmitter design is suitable for various applications, including amateur radio and educational projects, where understanding the principles of FM transmission and circuit design is essential. Proper assembly and tuning of the components will ensure reliable operation and optimal performance.This 2 Watt FM transmitter will provide 10km range in good weather conditions. Use dipole antenna for maximum range. Transmitter can be tuned between 88-108 MHz with c5. BB204 could be replaced with conventional led (big) with reverse bias (no light given in correct polarity). 9v power for 2km transmission with good sound quality and up to 18v for 10km range. 2N3553 RF transistors may be replaced with 2N4427 or 2N3866
