2400 MHz RF amplifier circuit diagram using PM2107
#RF amplifier
#2400 MHz
#ISM band
#PM2107
#microstrip
#RFIC
#saturated output power
#efficiency
#two stage amplifier
#5 volt supply

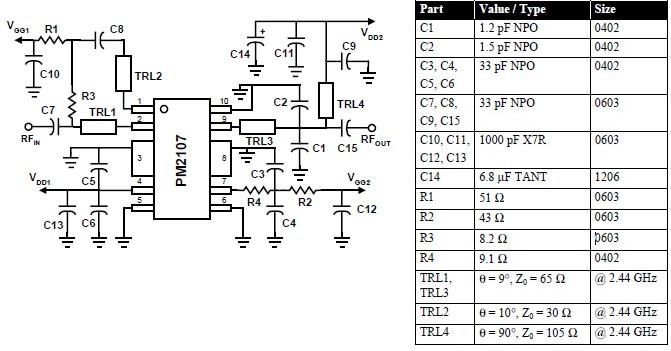

Description: This RFIC amplifier operates in the 2400 MHz ISM band and features a two-stage design that is off-chip matched to ensure optimal performance across various applications. Powered by a 5-volt supply, the PM2107 can deliver 1 watt of saturated output power with a typical efficiency of 45%. It is crucial to minimize inductance to the microstrip ground plane when grounding the pins. Pin 1 must be connected to ground via a transmission line to achieve the necessary input match and enhance in-band stability. The remaining ground pins (5, 6, 10) should also be grounded through low inductance paths. The input matching network is created using TRL1, TRL2, C8, and R3, while TRL2 serves to provide ground isolation between the two stages, thereby improving stability. The output matching network is composed of TRL3, C1, and C2.
The PM2107 RFIC amplifier is designed specifically for applications within the 2400 MHz ISM band, making it suitable for various wireless communication systems. The two-stage amplifier configuration allows for increased gain and improved linearity, essential for maintaining signal integrity in high-frequency applications. The off-chip matching technique enhances the amplifier's performance by optimizing the input and output impedance, which is critical for maximizing power transfer and minimizing signal reflection.
The power supply of 5 volts is standard for many RF applications, providing a balance between performance and power consumption. With the capability to deliver 1 watt of saturated output power, the PM2107 is well-suited for applications requiring robust signal transmission, such as in wireless sensor networks, Bluetooth devices, and other short-range communication systems.
Grounding plays a vital role in the performance of the amplifier. Pin 1, which is the primary input pin, must be grounded through a transmission line to achieve the desired input matching. This approach helps in minimizing reflections and enhancing stability within the operational bandwidth. The other ground pins (5, 6, 10) are also connected to ground through low inductance paths to ensure that the amplifier operates efficiently and reduces the risk of oscillations.
The input matching network, formed by TRL1, TRL2, C8, and R3, is designed to create a lossy match that effectively manages the impedance seen by the amplifier. This configuration allows for better signal handling and contributes to the overall stability of the amplifier. TRL2, in particular, is critical as it provides ground isolation between the two amplifier stages, which is essential for preventing unwanted feedback and ensuring that each stage operates independently.
The output matching network, consisting of TRL3, C1, and C2, is designed to optimize the output impedance of the amplifier to match the load, ensuring maximum power transfer. This network is crucial for maintaining the efficiency of the amplifier and minimizing distortions that could affect the quality of the transmitted signal.
Overall, the PM2107 RFIC amplifier is engineered for high-performance applications within the 2400 MHz ISM band, with careful attention given to grounding, matching networks, and stability, ensuring reliable operation in various wireless communication scenarios.applications in the 2400 MHz ISM band. This two stage RFIC amplifier is off-chip matched to provide optimum performance for a variety of applications. Operating from a 5 volt supply, the PM2107 can produce 1 watt of saturated output power with 45% typical efficiency.
The inductance to the microstrip ground plane should be as low as possible in gro unding these pins. Pin 1 should be grounded through a transmission line to achieve the required input match and improve inband stability. The other ground pins (5, 6, 10) should also be connected to ground through a low inductance path. A lossy input match is formed by TRL1, TRL2, C8, and R3. TRL2 provides ground isolation between the two stages to improve stability. The output matching network consists of TRL3, C1, and C2.
The PM2107 RFIC amplifier is designed specifically for applications within the 2400 MHz ISM band, making it suitable for various wireless communication systems. The two-stage amplifier configuration allows for increased gain and improved linearity, essential for maintaining signal integrity in high-frequency applications. The off-chip matching technique enhances the amplifier's performance by optimizing the input and output impedance, which is critical for maximizing power transfer and minimizing signal reflection.
The power supply of 5 volts is standard for many RF applications, providing a balance between performance and power consumption. With the capability to deliver 1 watt of saturated output power, the PM2107 is well-suited for applications requiring robust signal transmission, such as in wireless sensor networks, Bluetooth devices, and other short-range communication systems.
Grounding plays a vital role in the performance of the amplifier. Pin 1, which is the primary input pin, must be grounded through a transmission line to achieve the desired input matching. This approach helps in minimizing reflections and enhancing stability within the operational bandwidth. The other ground pins (5, 6, 10) are also connected to ground through low inductance paths to ensure that the amplifier operates efficiently and reduces the risk of oscillations.
The input matching network, formed by TRL1, TRL2, C8, and R3, is designed to create a lossy match that effectively manages the impedance seen by the amplifier. This configuration allows for better signal handling and contributes to the overall stability of the amplifier. TRL2, in particular, is critical as it provides ground isolation between the two amplifier stages, which is essential for preventing unwanted feedback and ensuring that each stage operates independently.
The output matching network, consisting of TRL3, C1, and C2, is designed to optimize the output impedance of the amplifier to match the load, ensuring maximum power transfer. This network is crucial for maintaining the efficiency of the amplifier and minimizing distortions that could affect the quality of the transmitted signal.
Overall, the PM2107 RFIC amplifier is engineered for high-performance applications within the 2400 MHz ISM band, with careful attention given to grounding, matching networks, and stability, ensuring reliable operation in various wireless communication scenarios.applications in the 2400 MHz ISM band. This two stage RFIC amplifier is off-chip matched to provide optimum performance for a variety of applications. Operating from a 5 volt supply, the PM2107 can produce 1 watt of saturated output power with 45% typical efficiency.
The inductance to the microstrip ground plane should be as low as possible in gro unding these pins. Pin 1 should be grounded through a transmission line to achieve the required input match and improve inband stability. The other ground pins (5, 6, 10) should also be connected to ground through a low inductance path. A lossy input match is formed by TRL1, TRL2, C8, and R3. TRL2 provides ground isolation between the two stages to improve stability. The output matching network consists of TRL3, C1, and C2.
Circuit for power linear RF amplifier with BLY90
This circuit functions as an RF power amplifier designed to operate with a power supply capable of delivering 13 volts at a current of 10 amperes. Careful assembly of the power source is essential. It utilizes a shielded transformer and...
250mw 16 db vhf amplifier

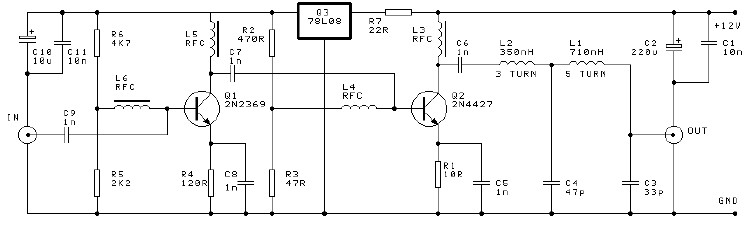

This project involves a 250mW RF power amplifier circuit. It is designed to amplify the output of approximately 7mW wideband FM transmitters to a final output level of about 250mW. The circuit utilizes a simple two-transistor VHF power amplifier configuration,...
RF Fm 88-108 MHz radio amplifier BLF 245
This FM 88-108 MHz radio amplifier is equipped with a BLF 245 and can be used with a heatsink from a processor and a cooler. The BLF 245 datasheet can be downloaded.
The FM 88-108 MHz radio amplifier utilizing the BLF...
Crystal Radio RF Amplifier
The circuit presented is a straightforward yet efficient amplifier that can provide notable performance enhancements. This amplifier can demonstrate negative resistance at lower settings of the 500-ohm potentiometer, resulting in increased gain or even oscillation. Consequently, the circuit can be...
SA9614 RF AMPLIFIER FOR DIGITAL SERVO SYSTEM

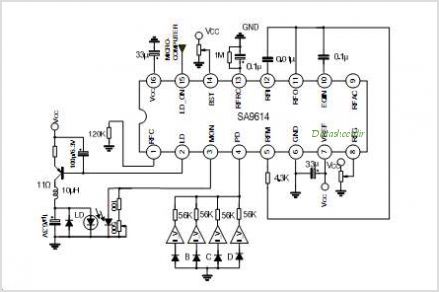

The SA9618A is designed for ALPC and signal conversion between a CD optical pickup and a decoding chip. This integrated circuit (IC) features an interconnection for a general CD optical pickup photodiode bias voltage VREF generation circuit, an RF amplifier,...
20w rf fm amplifier circuit

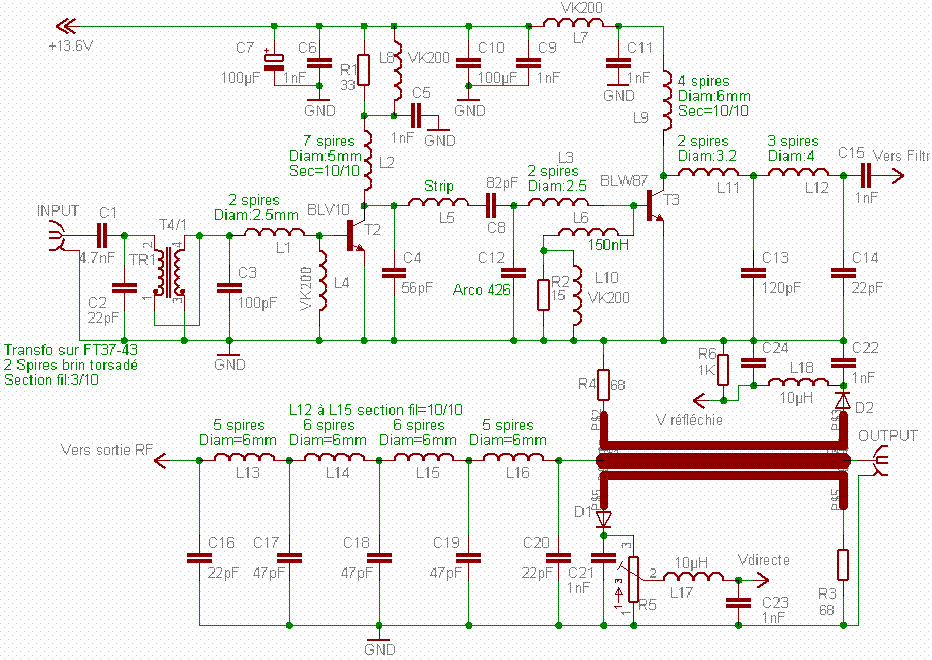

This FM RF amplifier utilizes two transistors from Philips: the BLV 10 and the BLW 87. The two RF transistors are configured in a chic C arrangement, providing an overall gain of 21 dB (100 times) with an efficiency of...
Wideband Rf Amplifier
This RF amplifier features a wide bandwidth and dynamic range. It provides a gain of 10 dB, with a noise figure of less than 5 dB. The third-order intercept point (IP3) is -40 dB at an output of +22 dBm...
2W RF Amplifier with MOSFET LF2810A

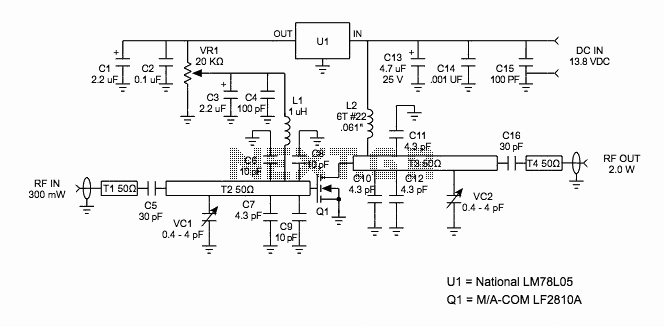

This is a 2W RF amplifier circuit built with the power MOSFET LF2810A. The schematic of the microstrip single-stage RF amplifier is shown in Figure A. The amplifier utilizes the M/A-Com LF2810A MOSFET, which is rated for a power output...
