43 dB antenna amplifier circuit diagram
#antenna amplifier
#transistors
#RF amplifier
#high gain
#low non-linearity
#75 ohms impedance
#BF183
#BF200
#frequency band
#signal boost

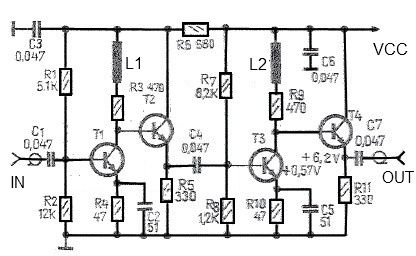

Description: This antenna amplifier is effective for the frequency range of 35 kHz to 150 MHz. The circuit utilizes transistors and features a low 3 dB non-linearity along with a high gain of 43 dB. The input and output impedance of this RF amplifier is 75 ohms. All transistors used in the design are of the same type, which can include BF183, BF200, or other similar variants. The total power consumption of this RF amplifier is minimal, requiring only 20 mA.
The antenna amplifier circuit is designed to enhance signal strength within the specified frequency range, making it suitable for various applications such as broadcasting, telecommunications, and amateur radio. The choice of transistors, such as BF183 or BF200, is critical as they provide the necessary gain and bandwidth characteristics required for efficient operation.
The circuit typically consists of a common-source or common-emitter configuration, depending on the design preference. This configuration allows for significant voltage gain while maintaining low distortion levels, as indicated by the low 3 dB non-linearity. The amplifier's input and output impedance of 75 ohms is standard for RF applications, ensuring compatibility with typical antenna systems and transmission lines.
Power supply considerations are also essential in the design of this amplifier. The low current requirement of 20 mA allows for the use of compact power supplies, which can be beneficial in portable or battery-operated applications. Additionally, proper bypass and coupling capacitors should be implemented to ensure stability and prevent oscillations, which can degrade performance.
Overall, this antenna amplifier circuit is a robust solution for enhancing RF signals across a wide frequency range while maintaining efficiency and low power consumption.This antenna amplifier is very useful for 35kHz-150Mhz frequency band. This antenna amplifier circuit is based on transistors and has a low 3dB non-linearity and a high gain of 43 dB. The input and output impedance for this rf amplifier is 75 ohms. All used transistors are of the same type and can be BF183, BF200 or other similar type. The tot al consumption of this rf amplifier is very low, the circuit will need only 20 mA.
The antenna amplifier circuit is designed to enhance signal strength within the specified frequency range, making it suitable for various applications such as broadcasting, telecommunications, and amateur radio. The choice of transistors, such as BF183 or BF200, is critical as they provide the necessary gain and bandwidth characteristics required for efficient operation.
The circuit typically consists of a common-source or common-emitter configuration, depending on the design preference. This configuration allows for significant voltage gain while maintaining low distortion levels, as indicated by the low 3 dB non-linearity. The amplifier's input and output impedance of 75 ohms is standard for RF applications, ensuring compatibility with typical antenna systems and transmission lines.
Power supply considerations are also essential in the design of this amplifier. The low current requirement of 20 mA allows for the use of compact power supplies, which can be beneficial in portable or battery-operated applications. Additionally, proper bypass and coupling capacitors should be implemented to ensure stability and prevent oscillations, which can degrade performance.
Overall, this antenna amplifier circuit is a robust solution for enhancing RF signals across a wide frequency range while maintaining efficiency and low power consumption.This antenna amplifier is very useful for 35kHz-150Mhz frequency band. This antenna amplifier circuit is based on transistors and has a low 3dB non-linearity and a high gain of 43 dB. The input and output impedance for this rf amplifier is 75 ohms. All used transistors are of the same type and can be BF183, BF200 or other similar type. The tot al consumption of this rf amplifier is very low, the circuit will need only 20 mA.
inverter circuit diagram

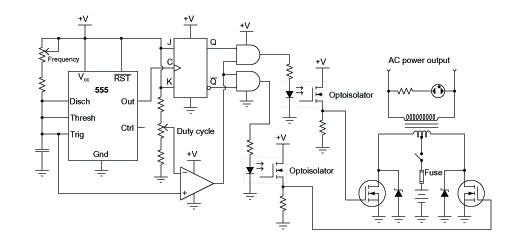

A common topology for DC-AC power converter circuits employs a pair of transistors to switch DC current through the center-tapped winding of a step-up transformer. Examine the check plot images from a PCB drafting program for a control board based...
RF amplifier and filter for 144 MHz

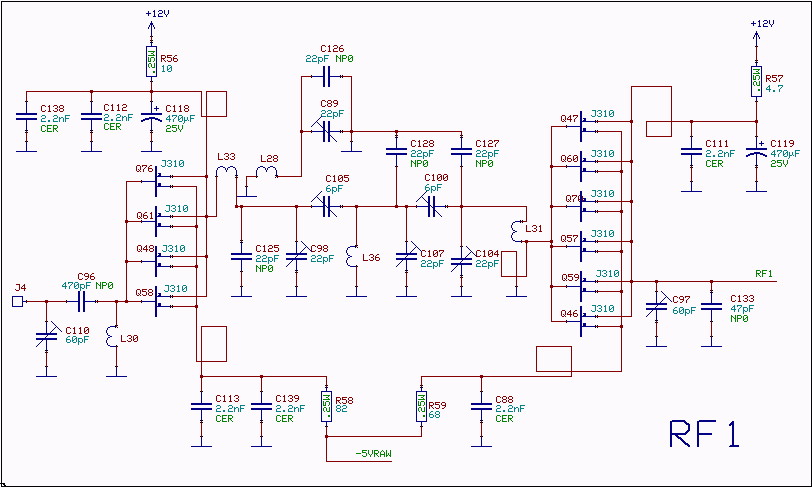

The RF amplifiers utilize noiseless feedback through the drain-gate capacitance, incorporating an inductor in the source lead to achieve the necessary 90-degree phase shift between the gate voltage and channel current. The first RF amplifier provides approximately 4 dB of...
Wideband Rf Amplifier

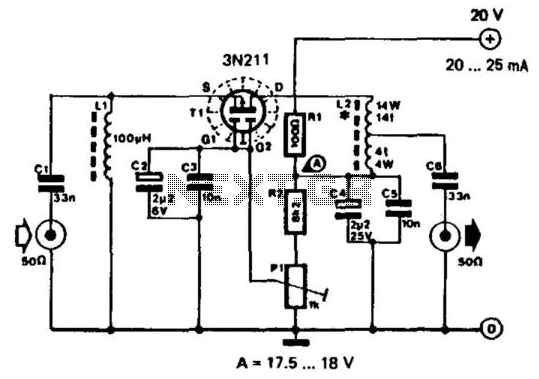

This RF amplifier features a wide bandwidth and dynamic range. It provides a gain of 10 dB, with a noise figure of less than 5 dB. The third-order intercept point (IP3) is -40 dB at an output of +22 dBm...
Circuit for power linear RF amplifier with BLY90

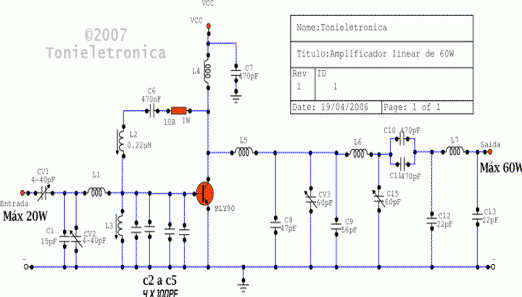

This circuit functions as an RF power amplifier designed to operate with a power supply capable of delivering 13 volts at a current of 10 amperes. Careful assembly of the power source is essential. It utilizes a shielded transformer and...
5w 150mhz rf amplifier circuit

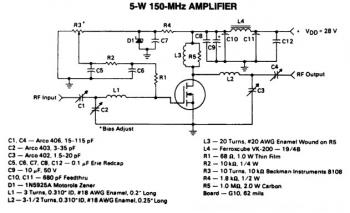

This is a 5W -150MHz RF amplifier circuit that utilizes the MRF123 TMOSFET. The MRF123 is a high-gain FET which may exhibit instability at both VHF and UHF frequencies; therefore, a 68 Ohm input loading resistor is employed to improve...

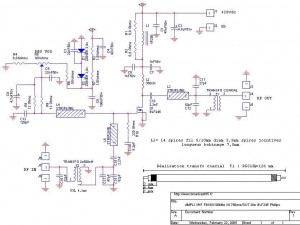

RF Fm 88-108 MHz radio amplifier BLF 245
This FM 88-108 MHz radio amplifier is equipped with a BLF 245 and can be used with a heatsink from a processor and a cooler. The BLF 245 datasheet can be downloaded.
The FM 88-108 MHz radio amplifier utilizing the BLF...
20dB antenna amplifier circuit diagram electronic project

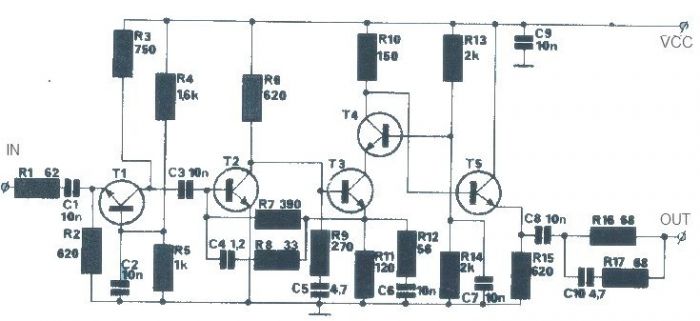

The T1 transistor must be of the BF200 type (or a similar variant), while the other transistors can be of the BF214 type. To achieve high efficiency, the antenna amplifier should be positioned at a short distance from the antenna....
broadband rf power amplifier 18 30 mhz

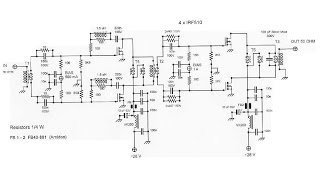

This is an RF Power Amplifier designed for low-cost QRP applications. The circuit operates over a broadband frequency range of 1.8 to 30 MHz, eliminating the need for tuning. The only adjustment required is to set the quiescent current bias...
