Description: The Tab antenna is a folded monopole that you miniaturize by forming it into an inverted L with a downward bend at the end. You can solder it perpendicular to a pc board or build it as part of a pc board and place it at a corner. The folded section transforms the 12.5Ω radiation resistance to 50Ω and provides second-harmonic suppression. Third-harmonic suppression comes from an open stub near the base of the antenna. More: Detailed NEC-2 modeling explores the sensitivity to changes in the dimensions and optimized harmonic suppression. Because NEC models wire antennas in a vacuum and the Tab antenna is built on FR-4, you must incorporate the dielectric properties of the diel.
The Tab antenna design is characterized by its compact structure, which is essential for applications requiring minimal space without compromising performance. The folded monopole configuration allows for a significant reduction in size while maintaining effective radiation characteristics. The inverted L shape, formed by the downward bend, optimizes the antenna's impedance matching, transforming the inherent 12.5Ω radiation resistance to a more standard 50Ω, which is suitable for most RF applications.
Soldering the antenna perpendicular to a printed circuit (PC) board or integrating it directly into the PCB layout provides flexibility in design. This placement can enhance the antenna's performance by minimizing the ground plane effects and optimizing the radiation pattern. The corner placement on the PCB is particularly advantageous as it can help in achieving a more uniform radiation pattern and reduce potential interference from other components.
The folded section of the Tab antenna not only aids in impedance transformation but also plays a crucial role in harmonic suppression. The design effectively suppresses second harmonics, which is vital for maintaining signal integrity in communication systems. Furthermore, the incorporation of an open stub near the base of the antenna provides additional third-harmonic suppression, further enhancing the antenna's performance and reducing unwanted emissions.
Advanced modeling techniques, such as NEC-2, are employed to analyze the antenna's performance under various conditions. This modeling takes into account the sensitivity of the antenna dimensions, allowing for optimization of harmonic suppression and overall efficiency. It is important to note that while NEC models assume a vacuum environment, the Tab antenna's actual performance must consider the dielectric properties of the FR-4 material used in its construction. This inclusion is critical for accurately predicting the antenna's behavior in real-world applications, ensuring reliable performance across the intended frequency range.The Tab antenna is a folded monopole that you miniaturize by forming it into an inverted L with a downward bend at the end (Figure 1). You can solder it perpendicular to a pc board or build it as part of a pc board and place it at a corner.
The folded section transforms the 12.5Ω radiation resistance to 50Ω and provides second-harmonic suppression. Third-harmonic suppression comes from an open stub near the base of the antenna. Detailed NEC-2 modeling explores the sensitivity to changes in the dimensions and optimized harmonic suppression. Because NEC models wire antennas in a vacuum and the Tab antenna is built on FR-4, you must incorporate the dielectric properties of the diel

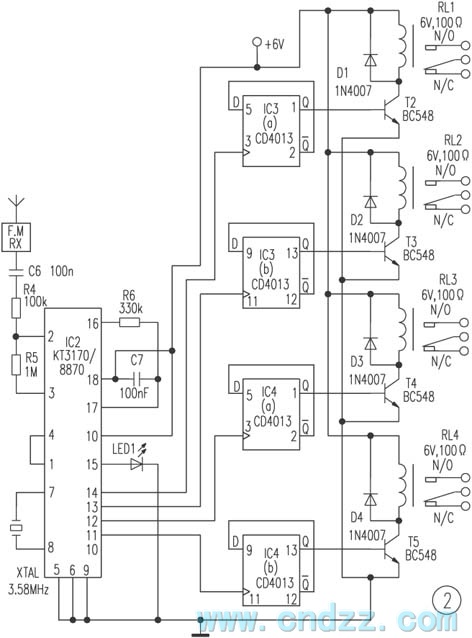

This example describes a wireless remote control switch featuring reliable operation and practical characteristics, capable of remotely controlling a 6-channel device within a 6-meter range for household electricity. The wireless remote control switch circuit consists of a wireless transmitter and...

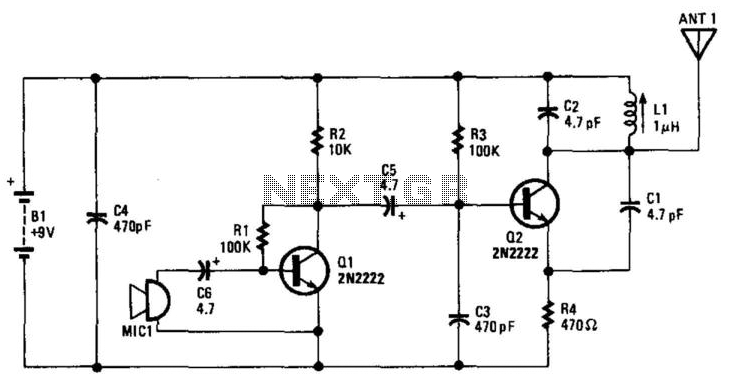

Q1 amplifies the output from an electret microphone (MIC1). The audio signal is fed into oscillator Q2, which modulates the signal. Additionally, L1 and C1 form a tank circuit designed for operation in the 88-MHz frequency range. The antenna consists...
The antenna tuning circuit can accommodate 1/2 wave length antennas or higher, for input resistances of 50 Ohms which make it suitable for CB (Citizen Band) transceivers. C1 is for fine tuning and C2 is just for tuning. Turning C3...
The remote control transmitter consists of a DTMF generator and an FM transmitter circuit. A UM91214B phone-specific integrated circuit (IC) is utilized to generate the DTMF signal, with a 3V power supply provided by a 3V zener diode (D1). The...
The TDC1808/TDC1809 is a pair of wireless remote control transmitter and receiver components. They utilize an internal antenna to transmit both digital and analog signals. These components are suitable for various wireless remote control devices. Key features include compact size,...

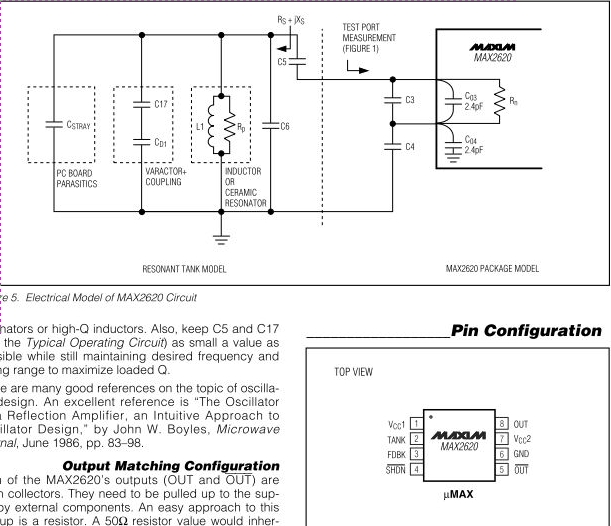

The MAX2620 integrates a low-noise oscillator with two output buffers in a cost-effective, plastic surface-mount, ultra-small uMAX package. This device combines functions that are typically achieved with discrete components.
