ADF4158 PLL strange moving spurs
Description: At the 10 MHz fundamental frequency, the HP8562E phase noise floor indicates that the TCXO phase noise is superior to the spectrum analyzer's noise floor. Harmonics have been measured from 20 MHz to 1 GHz, with detectable harmonics extending up to 2-3 GHz. The TCXO slew rate has been measured at approximately 2.5-3 ns/V, equivalent to 400 V/μs, which meets the minimum requirement, albeit slightly lower. Various sources have been tested without any noticeable change in the output phase noise. An improvement could involve utilizing an ECL gate between the TCXO and the ADF to drive the REFin. The reference pin on the op-amp appears clean, sourced from P3VA with a bridge resistor. This modification was implemented in the prototype, as the schematic indicates a connection to ground. A capacitor will be added to enhance performance if necessary. The PLL chip is positioned on top, with the OP184 located below. The PCB tracks are kept short, and grounding has been minimized. However, the PCB design, which contains mixed components, utilizes only one ground plane. Efforts have been made to separate dirty and clean signals by proper placement, but this may not be sufficient. Measurements are not taken on the P3VA side.
The circuit described involves a TCXO (Temperature Compensated Crystal Oscillator) operating at a fundamental frequency of 10 MHz, which is critical for precision timing applications. The phase noise performance of the TCXO is superior to that of the HP8562E spectrum analyzer, indicating a high-quality oscillator that minimizes jitter and improves signal integrity. The presence of measurable harmonics up to 2-3 GHz suggests that the TCXO can maintain signal purity across a wide frequency range, which is essential for applications requiring stable and accurate frequency generation.
The TCXO's slew rate, measured at approximately 2.5-3 ns/V, indicates its ability to transition between voltage levels, which is crucial for maintaining signal fidelity in high-speed applications. The measurement of 400 V/μs meets standard requirements, ensuring that the output can drive subsequent stages effectively. The exploration of using an ECL (Emitter Coupled Logic) gate to interface between the TCXO and the ADF (Analog Digital Frequency Synthesizer) highlights a potential strategy for improving output phase noise by providing better drive capability and reducing signal degradation.
The reference pin on the op-amp is derived from P3VA and utilizes a bridge resistor, ensuring a stable reference voltage. The modification from a ground connection to this configuration indicates a design evolution aimed at enhancing performance. The addition of a capacitor to this reference pin can further stabilize the voltage and reduce noise, which is crucial for maintaining the integrity of the PLL (Phase-Locked Loop) operation.
The layout of the PCB, with short tracks and minimized grounding, is a critical consideration in high-frequency designs to prevent unwanted inductance and capacitance that can adversely affect performance. The use of a single ground plane in a mixed-signal environment poses challenges, as it can lead to interference between clean and dirty signals. The designer's efforts to separate these signals through strategic placement are commendable, but further improvements may be necessary to ensure optimal performance, particularly in high-frequency applications where noise and signal integrity are paramount. Measurements taken on the P3VA side are not mentioned, suggesting that further analysis in that area may be warranted to fully understand the system's performance.On the 10 MHz fundamental I only measure the HP8562E PN flloor meaning that the TCXO phase noise is better than the spectrum analyzer noise floor. I`ve measured some harmonics from 20 MHz to 1 GHz. There are still measurable harmonics up to 2-3 GHz. 2. TCXO Slew rate have been measured at about 2. 5~3ns/V = 400V/us which is the minimum requirement or slightly lower. I`ve tried different sources without any change in the output phase noise. An improve might be to use an ECL gate for instance between the TCXO and the ADF to drive the REFin, right 4. apprently yes the ref pin on the opamp seems clean. It`s derived from P3VA with a bridge resistor. This is a modification brought on the prototype as the schematic above show a connection to GND. I`m going to add a capacitor on it to improve if needed. 5. Figure below is the PLL chip on top and the OP184 on bottom. tracks are short, grounding made as short as possible. On things which might be improved, the PCB which contains mixed parts has one GND plane only. I`ve tried to ensure that dirty and clean signals do not mix by locating them properly, but this could indeed be not enough.
But I do not measure things on P3VA side.
The circuit described involves a TCXO (Temperature Compensated Crystal Oscillator) operating at a fundamental frequency of 10 MHz, which is critical for precision timing applications. The phase noise performance of the TCXO is superior to that of the HP8562E spectrum analyzer, indicating a high-quality oscillator that minimizes jitter and improves signal integrity. The presence of measurable harmonics up to 2-3 GHz suggests that the TCXO can maintain signal purity across a wide frequency range, which is essential for applications requiring stable and accurate frequency generation.
The TCXO's slew rate, measured at approximately 2.5-3 ns/V, indicates its ability to transition between voltage levels, which is crucial for maintaining signal fidelity in high-speed applications. The measurement of 400 V/μs meets standard requirements, ensuring that the output can drive subsequent stages effectively. The exploration of using an ECL (Emitter Coupled Logic) gate to interface between the TCXO and the ADF (Analog Digital Frequency Synthesizer) highlights a potential strategy for improving output phase noise by providing better drive capability and reducing signal degradation.
The reference pin on the op-amp is derived from P3VA and utilizes a bridge resistor, ensuring a stable reference voltage. The modification from a ground connection to this configuration indicates a design evolution aimed at enhancing performance. The addition of a capacitor to this reference pin can further stabilize the voltage and reduce noise, which is crucial for maintaining the integrity of the PLL (Phase-Locked Loop) operation.
The layout of the PCB, with short tracks and minimized grounding, is a critical consideration in high-frequency designs to prevent unwanted inductance and capacitance that can adversely affect performance. The use of a single ground plane in a mixed-signal environment poses challenges, as it can lead to interference between clean and dirty signals. The designer's efforts to separate these signals through strategic placement are commendable, but further improvements may be necessary to ensure optimal performance, particularly in high-frequency applications where noise and signal integrity are paramount. Measurements taken on the P3VA side are not mentioned, suggesting that further analysis in that area may be warranted to fully understand the system's performance.On the 10 MHz fundamental I only measure the HP8562E PN flloor meaning that the TCXO phase noise is better than the spectrum analyzer noise floor. I`ve measured some harmonics from 20 MHz to 1 GHz. There are still measurable harmonics up to 2-3 GHz. 2. TCXO Slew rate have been measured at about 2. 5~3ns/V = 400V/us which is the minimum requirement or slightly lower. I`ve tried different sources without any change in the output phase noise. An improve might be to use an ECL gate for instance between the TCXO and the ADF to drive the REFin, right 4. apprently yes the ref pin on the opamp seems clean. It`s derived from P3VA with a bridge resistor. This is a modification brought on the prototype as the schematic above show a connection to GND. I`m going to add a capacitor on it to improve if needed. 5. Figure below is the PLL chip on top and the OP184 on bottom. tracks are short, grounding made as short as possible. On things which might be improved, the PCB which contains mixed parts has one GND plane only. I`ve tried to ensure that dirty and clean signals do not mix by locating them properly, but this could indeed be not enough.
But I do not measure things on P3VA side.
Phase Locked Loop (PLL) Oscillator Circuit 860 MHz
This 860 MHz Phase Locked Loop (PLL) oscillator circuit is designed for a 1200 MHz transverter's local oscillator with 435 MHz rigs. The oscillator utilizes Toshiba PLL synthesizer integrated circuits (ICs). The TC9122P serves as a preset counter for determining...
3 Channel Spectrum Analyzer
This three-channel, 15 LED spectrum analyzer is an excellent enhancement for any audio amplifier project. It generates impressive visual displays on three LED bars, each of which can be individually calibrated for specific frequency ranges. The circuit accepts line-level output...
An experiment in programming the AN6311NFA PLL
The objective was to modify this radio for functionality on the 70cm amateur radio band. However, this attempt failed because the voltage-controlled oscillator (VCO) did not oscillate at the required frequencies for 70cm operation, as the VCO control voltage reached...
150MHz to 170MHz in 25kHz steps using a LMX2306 PLL
Using SimPLL's new PLL Wizard, a new Phase-Locked Loop (PLL) can be designed with just a few clicks. A PLL has been designed that tunes from 150 MHz to 170 MHz in 25 kHz steps, utilizing the LMX2306 PLL integrated...

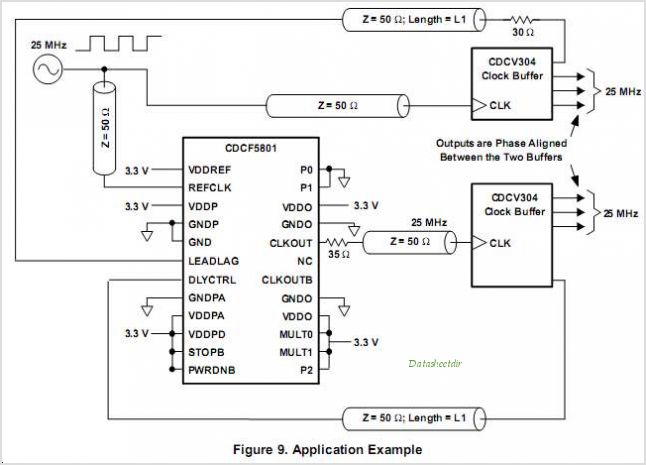

CDCF5801 Low Jitter PLL Based Multiplier/Divider With Programmable Delay Lines Down To Sub 10ps
The CF5019 series are high-frequency, third overtone crystal oscillator module ICs. They integrate an oscillator circuit and an output buffer that function at high frequencies on a single chip. The oscillator circuit utilizes CMOS inverters and a built-in damping resistor...
Using PLL Phase Locked Loop IC frequency N 1 to 10 of the multiplier circuit
The CMOS IC 4046 Phase-Locked Loop (PLL) operates with a maximum frequency of 1 MHz. It is connected to a programmable divider, allowing it to process input frequencies. As the frequency increases by a factor of t, the circuit's functionality...

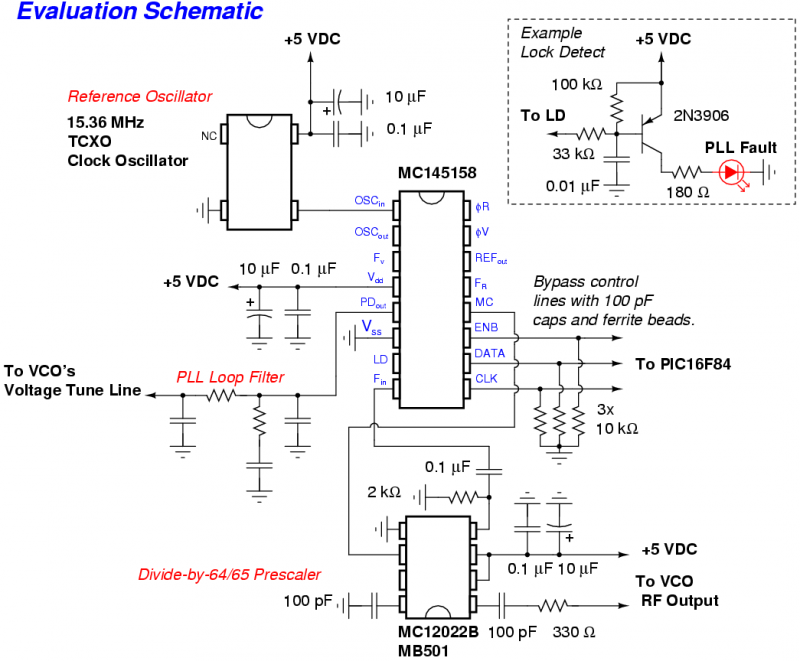

Using the MC145158 PLL Frequency Synthesizer
The Motorola MC145158 is a dual-modulus, serial-input PLL frequency synthesizer commonly utilized in older Motorola cellular phones. For detailed technical specifications, refer to the MC145158 datasheet. Although the MC145158 is no longer in production, it can occasionally be found in...

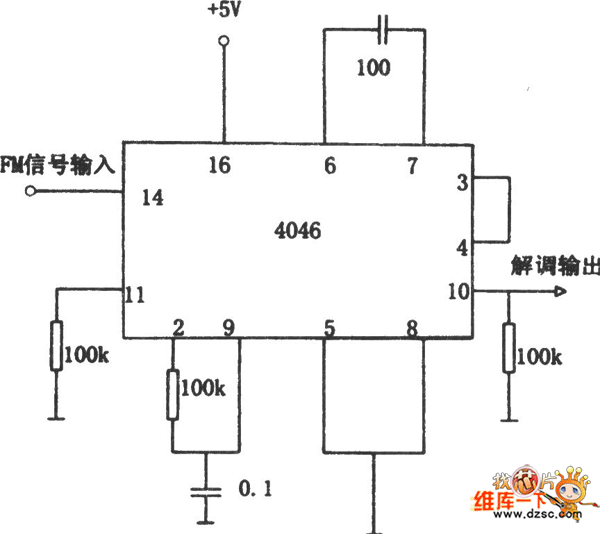

The PLL FM demodulator (4046) circuit
