Description: The CYWUSB6953 is a comprehensive Radio System-on-Chip (SoC) device that facilitates the implementation of various simple RF systems using a single chip and a few discrete components. It is specifically designed for low-cost wireless systems that operate within the global 2.4 GHz Industrial, Scientific, and Medical (ISM) frequency band, ranging from 2.400 GHz to 2.483 GHz.
The CYWUSB6953 integrates essential functionalities required for wireless communication, including a radio transceiver, baseband processor, and various interfaces, all within a compact package. This integration simplifies the design process, reduces the overall component count, and minimizes the footprint of the final product. The device supports multiple modulation schemes, enabling compatibility with various wireless protocols, which enhances its versatility in different applications.
The RF front-end of the CYWUSB6953 is optimized for performance within the ISM band, providing robust signal transmission and reception capabilities. The chip is designed to operate efficiently, with low power consumption, making it suitable for battery-powered devices and applications where energy efficiency is critical.
In addition to its RF capabilities, the CYWUSB6953 includes a range of peripheral interfaces, such as SPI, I2C, and GPIO, facilitating easy integration with other components in a system. This feature enables designers to build complex systems that require additional sensors or actuators while maintaining a streamlined design.
Overall, the CYWUSB6953 serves as a versatile solution for developers looking to create cost-effective wireless products in various sectors, including consumer electronics, industrial automation, and medical devices. Its combination of integrated features, low power consumption, and ease of use makes it an attractive choice for modern wireless applications.The CYWUSB6953 is a complete Radio System-on-Chip device, enabling many simple RF systems to be implemented with a single device and a handful of Discrete components. The CYWUSB6953 is designed to implement low cost Wireless systems operating in the worldwide 2. 4-GHz Industrial, Scien- tific, and Medical (ISM) frequency band (2. 400 GHz2. 483 GHz). By Cypress Semiconductor Corp.

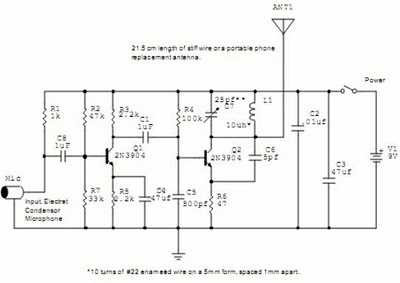

Q1 amplifies the output from an electret microphone (MIC1). The audio signal is fed into oscillator Q2, which modulates the signal. Additionally, L1 and C1 form a tank circuit designed for operation in the 88-MHz frequency range. The antenna consists...
Transistor Q1 functions as an amplifier for the condenser microphone MIC1. The output from Q1 is fed to the base of transistor Q2 through a 4.7 µF capacitor. Capacitors C2 and L1 form an LC tank circuit, which is utilized...
This fairly simple circuit makes it possible to place such a wall as a conduit to locate. It is a conduit for power, no water or gas-seeker. The only requirement is that there is tension on the line. The antenna...
The transmitter circuit is activated by pressing the SB button. Components D1, D2, R2, R3, and C4 form a low-frequency oscillator that controls an audio oscillator made up of D3, D4, D5, and D6, allowing them to operate alternately. The...
This wireless infrared (IR) headphones circuit project enables the transmission of audio signals through an infrared connection. The circuit consists of two main components: a transmitter and a receiver. Unlike radio frequency (RF) transmitters, both parts of this application must...

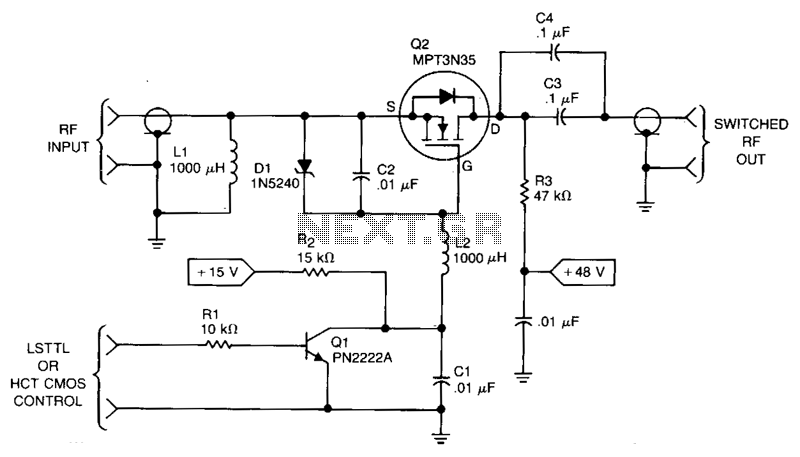

This RF power switch operates at 1.7 MHz with a 50-V source and load. Its on-loss is 0.2 dB, and its off-isolation is 30 dB. It provides 40-W PEP, 45 V_RMS, and 0.9 A_PEAK. The control input can come from...
The following circuit illustrates a Wireless Car Alarm Circuit Schematic Diagram. Features include the ability to detect sounds within a 20-meter radius, a 1/16 wavelength antenna, and the capability to transmit radio signals up to 2 kilometers. Q1 serves as...
This circuit is designed to test the presence of mains voltage without direct electrical contact with the mains line. The core component of this circuit is the CMOS IC CD4033, which features a five-stage decade Johnson counter and an output...
The Wireless Keylogger consists of two main building blocks: the transmitter and the receiver. The actual keylogging takes place in the transmitter, which is in fact a PS/2 hardware keylogger, with a built-in 2.4 GHz wireless module. Captured keystroke data...
