drm direct mixer ef956ak5
Description: This hybrid DRM receiver with a single valve and a single transistor exhibits excellent large-signal stability. The EP95 (US equivalent: 6AK5) functions as a mixer, with the oscillator signal introduced via the screen grid. The crystal oscillator is constructed around a single transistor. The entire circuit operates from a 6-V power supply. The receiver achieves a signal-to-noise ratio of up to 24 dB for DRM signals, indicating that the valve performs comparably to an NE612 IC mixer. The component values specified in the schematic have been chosen for the RTL2 DRM channel at 5990 kHz, allowing for the use of a cost-effective 6-MHz crystal. The input circuit is designed with a fixed inductor, while two trimmer capacitors enable optimization of antenna matching. The operating point is determined by the value of the cathode resistor. Increasing the cathode resistor's value can enhance grid bias and input impedance, although satisfactory performance can also be attained with the cathode directly connected to ground.
This hybrid DRM receiver circuit integrates a single valve (EP95) and a single transistor to provide robust performance characterized by significant large-signal stability. The EP95 valve operates as a mixer, enabling the processing of DRM signals. The oscillator signal is injected into the mixer via the screen grid, which is a critical point for achieving the desired mixing process. The crystal oscillator, essential for frequency stability, is implemented using a single transistor, which contributes to the overall compactness and efficiency of the design.
The circuit is powered by a 6-V supply, making it suitable for various applications where low power consumption is essential. The receiver's design allows it to achieve an impressive signal-to-noise ratio of up to 24 dB, making it competitive with more complex integrated solutions such as the NE612 IC mixer. This performance metric is crucial for ensuring clear reception of DRM signals, especially in environments with potential interference.
The component values in the schematic are specifically tailored for the RTL2 DRM channel operating at 5990 kHz. This careful selection allows for the use of an economical 6-MHz crystal, which is a significant advantage in terms of cost-effectiveness and availability. The input circuit employs a fixed inductor, which aids in maintaining circuit stability and performance consistency.
Two trimmer capacitors are incorporated into the design to facilitate antenna matching optimization. This feature is vital for maximizing the receiver's sensitivity and overall performance, enabling it to adapt to varying antenna characteristics and environmental conditions. The operating point of the valve is controlled by the cathode resistor value, which is a critical parameter in determining the receiver's performance. Adjusting the cathode resistor can enhance the grid bias and input impedance, allowing for fine-tuning of the receiver's response. However, it is notable that satisfactory operation can still be achieved with the cathode directly grounded, providing flexibility in circuit design and implementation.This hybrid DRM receiver with a single valve and a single transistor features good large-signal stability. The EP95 (US equivalent: 6AK5) acts as a mixer, with the oscillator signal being injected via the screen grid.
The crystal oscillator is built around a single transistor. The entire circuit operates from a 6-V supply. The receiver achieves a signal-to-noise ratio of up to 24 dB for DRM signals. That means the valve can hold its own against an NE612 IC mixer. The component values shown in the schematic have been selected for the RTL2 DRM channel at 5990 kHz. That allows an inexpensive 6-MHz crystal to be used. The input circuit is built using a fixed inductor. Two trimmer capacitors allow the antenna matching to be optimized. The operating point is set by the value of the cathode resistor. The grid bias and input impedance can be increased by increasing the value of the cathode resistor. However, good results can also be achieved with the cathode connected directly to ground.
This hybrid DRM receiver circuit integrates a single valve (EP95) and a single transistor to provide robust performance characterized by significant large-signal stability. The EP95 valve operates as a mixer, enabling the processing of DRM signals. The oscillator signal is injected into the mixer via the screen grid, which is a critical point for achieving the desired mixing process. The crystal oscillator, essential for frequency stability, is implemented using a single transistor, which contributes to the overall compactness and efficiency of the design.
The circuit is powered by a 6-V supply, making it suitable for various applications where low power consumption is essential. The receiver's design allows it to achieve an impressive signal-to-noise ratio of up to 24 dB, making it competitive with more complex integrated solutions such as the NE612 IC mixer. This performance metric is crucial for ensuring clear reception of DRM signals, especially in environments with potential interference.
The component values in the schematic are specifically tailored for the RTL2 DRM channel operating at 5990 kHz. This careful selection allows for the use of an economical 6-MHz crystal, which is a significant advantage in terms of cost-effectiveness and availability. The input circuit employs a fixed inductor, which aids in maintaining circuit stability and performance consistency.
Two trimmer capacitors are incorporated into the design to facilitate antenna matching optimization. This feature is vital for maximizing the receiver's sensitivity and overall performance, enabling it to adapt to varying antenna characteristics and environmental conditions. The operating point of the valve is controlled by the cathode resistor value, which is a critical parameter in determining the receiver's performance. Adjusting the cathode resistor can enhance the grid bias and input impedance, allowing for fine-tuning of the receiver's response. However, it is notable that satisfactory operation can still be achieved with the cathode directly grounded, providing flexibility in circuit design and implementation.This hybrid DRM receiver with a single valve and a single transistor features good large-signal stability. The EP95 (US equivalent: 6AK5) acts as a mixer, with the oscillator signal being injected via the screen grid.
The crystal oscillator is built around a single transistor. The entire circuit operates from a 6-V supply. The receiver achieves a signal-to-noise ratio of up to 24 dB for DRM signals. That means the valve can hold its own against an NE612 IC mixer. The component values shown in the schematic have been selected for the RTL2 DRM channel at 5990 kHz. That allows an inexpensive 6-MHz crystal to be used. The input circuit is built using a fixed inductor. Two trimmer capacitors allow the antenna matching to be optimized. The operating point is set by the value of the cathode resistor. The grid bias and input impedance can be increased by increasing the value of the cathode resistor. However, good results can also be achieved with the cathode connected directly to ground.
Two Transistor (Boys Radio) Schematic and Theory of Operation
An analysis of certain radios reveals the impressive engineering by Japanese designers, particularly in creating a radio capable of driving a speaker with only two transistors. The first transistor (Q1) serves a dual function; it operates as an RF amplifier...
lamp flasher circuit
This is a simple two-transistor lamp flasher circuit that can be used to flash a 6-volt lamp. The circuit is compact and can be easily fitted into a small enclosure. It utilizes two transistors: one is an NPN BC549, and...
Direct Coupled Discrete Astable Multivibrator circuit
This flip-flop circuit functions as a free-running astable multivibrator, where the bases and collectors of both emitter-biased transistors are directly coupled. The switching action is facilitated by a capacitor in each emitter circuit, resulting in the generation of triangle waves...
The NOT gate
The single-transistor inverter circuit discussed earlier is too simplistic for practical use as a gate. Real inverter circuits utilize multiple transistors to enhance voltage gain, ensuring that the final output transistor is either in full cutoff or full saturation, while...
Low Noise 4 Channel Guitar Mixer Circuit

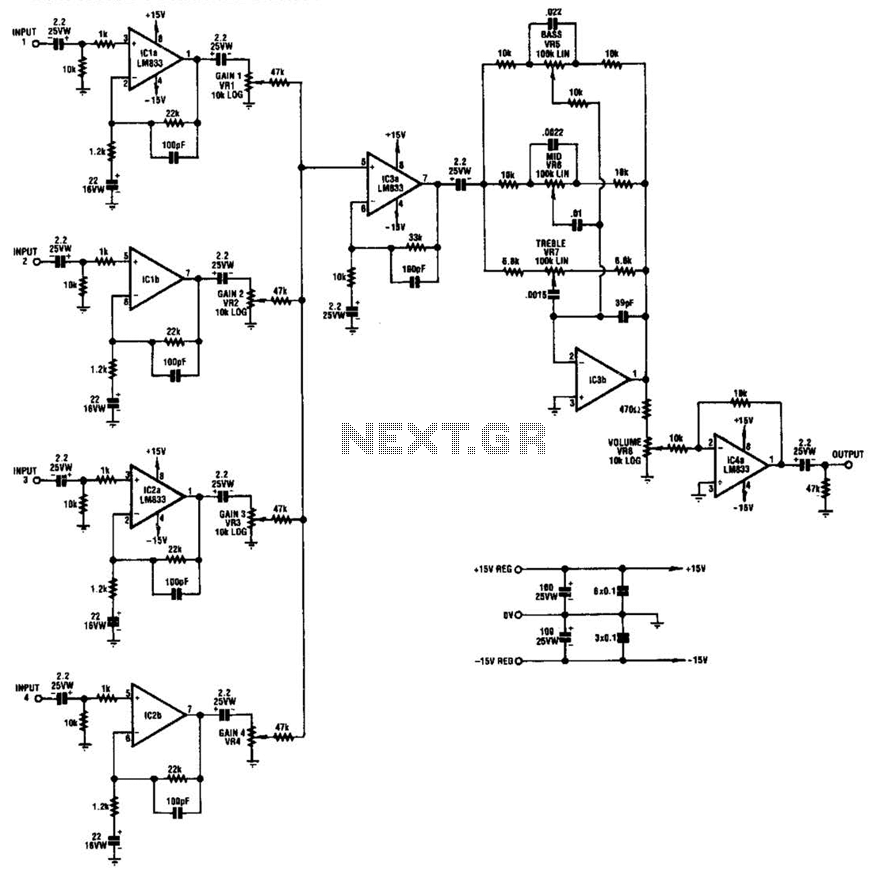

IC1-a, IC1-b, IC2-a, and IC2-b all operate with a gain of approximately 19. Their outputs are combined through level-control potentiometers, and the resulting signal is amplified by IC3-a before being sent to the tone-control stage IC3-b. Finally, the output from...
High-level four-channel mixer

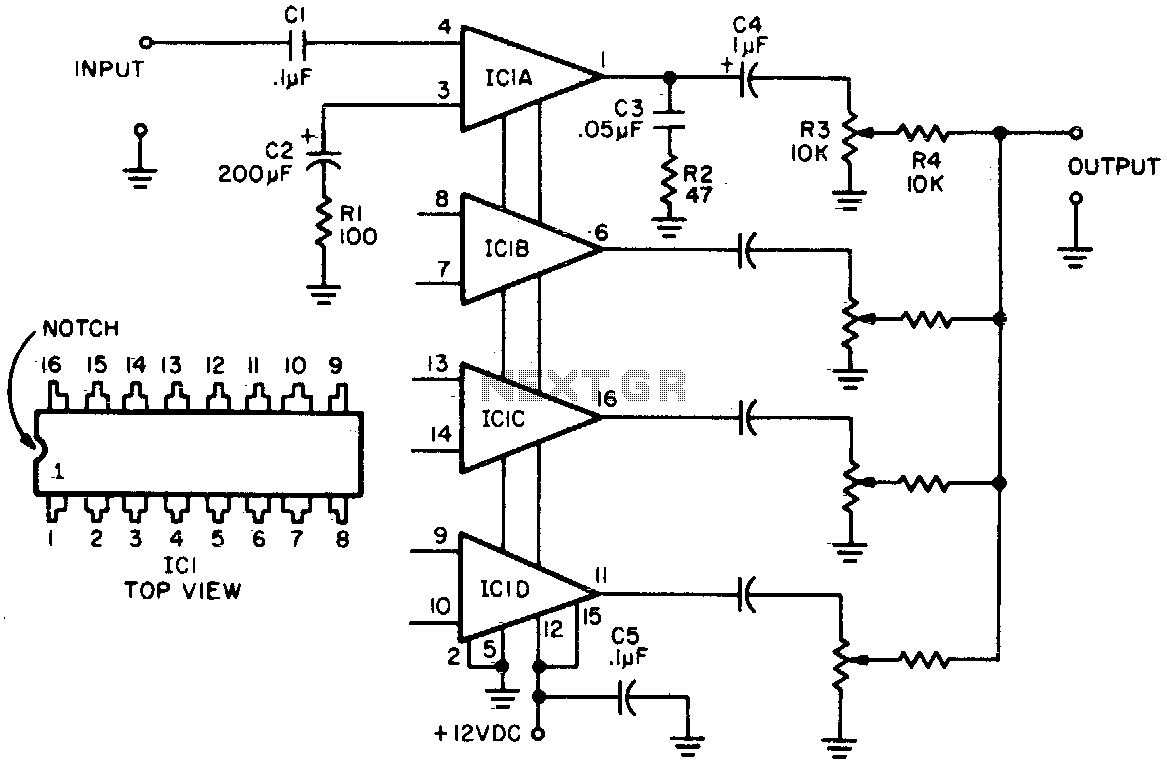

This four-channel mixer amplifier is designed to ensure a good signal-to-noise ratio by controlling the signal levels after amplification and mixing them to produce a combined output. It is compatible with dynamic microphones ranging from 50 ohms to 50 k...
rising pitch siren
A two-transistor electronic siren breadboard circuit that produces an audible rising pitch on a loudspeaker. This circuit serves as a tutorial for beginners in electronics.
The two-transistor siren circuit operates by utilizing the properties of transistors to create an oscillating signal...
handheld RF-Powermeter for multiple sensors up to 12 GHz

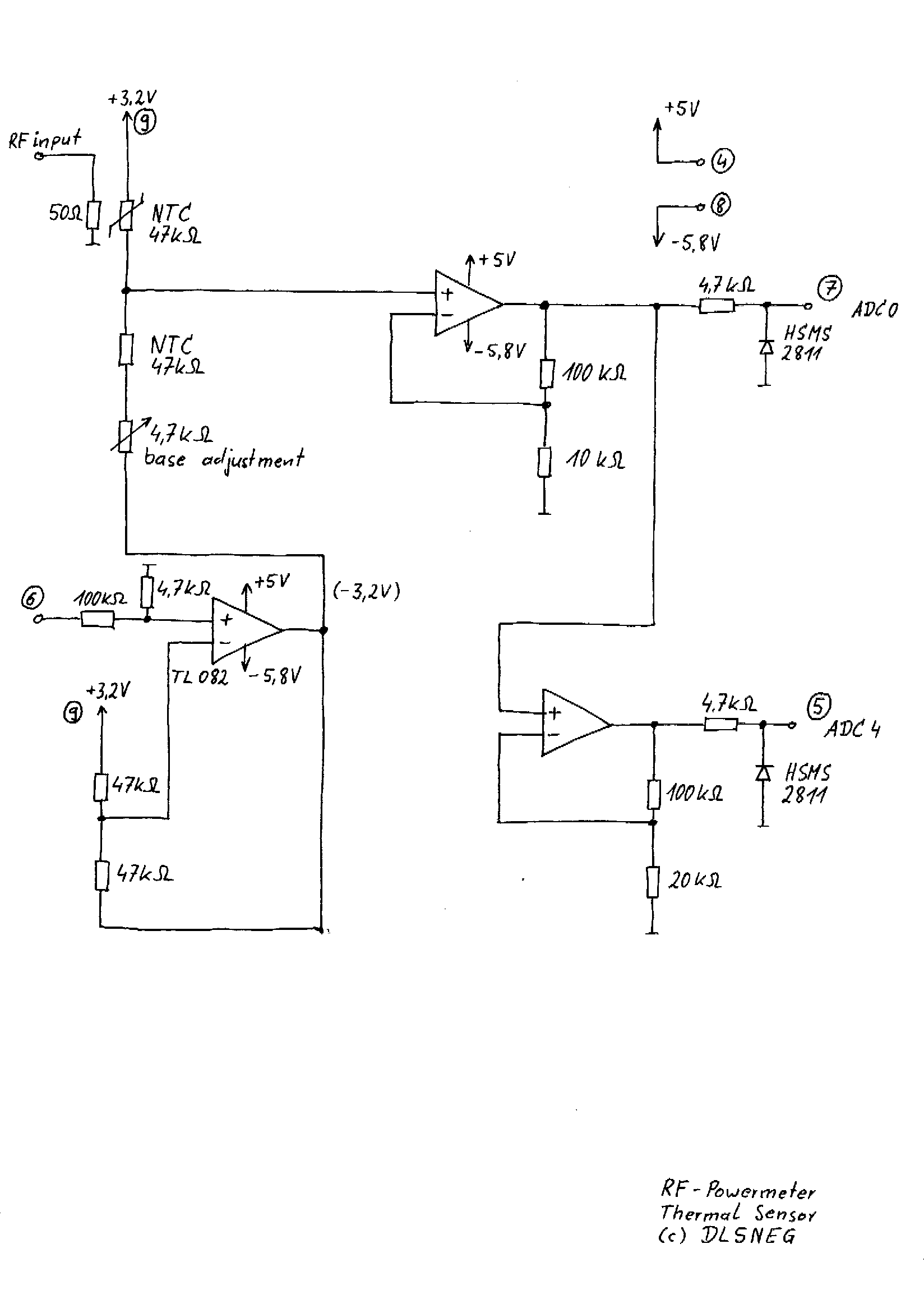

A few years ago, a diode-sensor based RF power meter was built using a 68HC11 microprocessor. Prior to that, an analog RF power meter with a thermal power sensor was developed. The datasheets for logarithmic amplifiers, which promised a measurement...
