PLL 1 Watt FM transmitter
#FM transmitter
#PLL
#RF power
#microphone amplifier
#digital tuning
#wide-band FM
#50-75 ohm
#87.5-108 MHz
#1 Watt
Description: This small FM transmitter includes a limiter, a microphone amplifier, and a PLL digital tuning. All the parts are placed on one circuit board. The RF power is switchable between 1 W (HI) and 0.2 W (LO). Technical specifications: Supply voltage: 12 V from accumulator or regulated power supply. Supply current (HI/LO): 270/170 mA. RF power HI: 1 W. RF power LO: 0.2 W. Impedance: 50-75 ohm. Frequency range: 87.5-108 MHz. Modulation type: wide-band FM. Modulation inputs: line, mic, RDS/MPX. PCB dimensions: 11.3 x 8.8 cm. The schematic diagram is divided into three parts: RF part (numbered from 1), PLL (numbered from 30), and audio part (numbered from 50). Connect a 6 V / 0.1 A bulb to the output and set the right frequency on PLL. Set the RF power to HI. Now turn on the transmitter. You should tune it on a receiver. Maybe you might stretch coils of the L1. Fix the L1 in position when the tuning voltage (on Q3) is in the range of 4-9 V. Then use C15, C16, and C17 to adjust the highest power (the highest light of the bulb). Then you can connect the antenna and audio signal. Adjust R1 until the audio sounds as loud as the other stations. Complete parts list.
This FM transmitter circuit is designed to provide a compact and efficient means of transmitting audio signals over a short range. The device operates in the FM frequency range of 87.5 to 108 MHz, making it suitable for personal broadcasting applications. The power output can be adjusted between two levels, 1 W for higher range and 0.2 W for lower range, allowing flexibility depending on the application and regulatory requirements.
The circuit is structured into three main sections: the RF section, the Phase-Locked Loop (PLL) section, and the audio section. The RF section is responsible for generating the radio frequency signal, utilizing components such as transistors and capacitors to create stable oscillations at the desired frequency. The PLL section ensures that the transmitter can lock onto a specific frequency, providing precise tuning capabilities. This is particularly important for minimizing interference with other radio stations and ensuring clear audio transmission.
The audio section includes a microphone amplifier and modulation circuitry, allowing for the input of audio signals from various sources, including microphones and line inputs. The modulation type used is wide-band FM, which provides better sound quality and less distortion compared to narrow-band FM.
The circuit board is designed to accommodate all components in a compact layout, with dimensions of 11.3 x 8.8 cm. The use of a 12 V power supply, either from an accumulator or a regulated source, ensures adequate power for operation, with current consumption varying based on the selected RF power output.
For assembly, the parts list includes a variety of resistors, capacitors, and semiconductors, each selected for their specific roles within the circuit. Notably, the use of trimmer capacitors allows for fine-tuning of the circuit parameters, ensuring optimal performance. The inclusion of connectors for audio input, antenna connection, and power supply facilitates ease of use and integration into various setups.
Overall, this FM transmitter circuit provides a comprehensive solution for personal audio broadcasting, combining essential features in a compact design suitable for hobbyists and engineers alike.This small FM transmitter includes a limiter, a microphone amplifier and a PLL digital tuning. All the parts are placed on one circuit board. The RF power is switchable between 1 W (HI) and 0,2 W (LO). Technical specifications: Supply voltage: 12 V from accumulator or regulated power supply. Supply current (HI/LO): 270/170 mA. RF power HI: 1 W. RF power LO: 0,2 W. Impedance: 50-75 ohm. Frequency range: 87,5-108 MHz. Modulation type: wide-band FM. Modulation inputs: line, mic, RDS/MPX. PCB dimensions: 11,3 x 8,8 cm. The schematic diagram is divided into three parts: RF part (numbered from 1), PLL (numbered from 30) and audio part (numbered from 50). Connect a 6 V / 0,1 A bulb to the output and set the right frequency on PLL. Set the RF power to HI. Now turn on the transmitter. You should tune it on a receiver. Maybe you might stretch coils of the L1. Fix the L1 in position when the tuning voltage (on Q3) is in range 4-9 V. Then use C15, C16 and C17 to adjust the highest power (the highest light of the bulb). Then you can connect antenna and audio signal. Adjust R1 until the audio sounds as loud as the other stations. Complete parts list Resistors: 1x 10 1x 47 1x 100 1x 270 2x 220 3x 470 1x 820 5x 1k 1x 1,5 k 1x 4,7 k 9x 10 k 3x 22 k 3x 27 k 1x 56 k 1x 47 k 1x 180 k 1x 240 k 1x 10 M 3x pot.
5 k log. Capacitors: 1x 8,2 pF 2x 10 pF 3x 22 pF 5x 100 pF 8x 1 nF 1x 1 nF plastic 2x 2,2 nF 5x 10 nF 2x 47 nF 4x 100 nF mini 1x 150 nF 1x 0,47 uF 2x 1 uF 2x 2,2 uF 1x 4,7 uF 4x 10 uF 1x 47 uF 1x 100 uF 1x 220 uF 2x 470 uF 2x 1 uF tantal 1x 10 uF tantal 1x trimmer 47 pF 2x trimmer 60 pF Semiconductors: 1x BC547C (BC548C, BC547B) 1x BFR91A 1x BFR96 1x 2SC1971 1x BC556B 1x BF245C 2x LM386 1x SAA1057 1x PIC16F84A-04 + socket 1x 78L05 1x Yellow LED 3 mm 2x BB109G, BBY31 or BB409 Misc: 1x 4 MHz crystal 2x switch 1x button 1x jumpers 2x8 pins or DIP switches 1x power supply connector 3x jack 3,5 mm 1x antenne connector 1x plastic case thin shielded cables
This FM transmitter circuit is designed to provide a compact and efficient means of transmitting audio signals over a short range. The device operates in the FM frequency range of 87.5 to 108 MHz, making it suitable for personal broadcasting applications. The power output can be adjusted between two levels, 1 W for higher range and 0.2 W for lower range, allowing flexibility depending on the application and regulatory requirements.
The circuit is structured into three main sections: the RF section, the Phase-Locked Loop (PLL) section, and the audio section. The RF section is responsible for generating the radio frequency signal, utilizing components such as transistors and capacitors to create stable oscillations at the desired frequency. The PLL section ensures that the transmitter can lock onto a specific frequency, providing precise tuning capabilities. This is particularly important for minimizing interference with other radio stations and ensuring clear audio transmission.
The audio section includes a microphone amplifier and modulation circuitry, allowing for the input of audio signals from various sources, including microphones and line inputs. The modulation type used is wide-band FM, which provides better sound quality and less distortion compared to narrow-band FM.
The circuit board is designed to accommodate all components in a compact layout, with dimensions of 11.3 x 8.8 cm. The use of a 12 V power supply, either from an accumulator or a regulated source, ensures adequate power for operation, with current consumption varying based on the selected RF power output.
For assembly, the parts list includes a variety of resistors, capacitors, and semiconductors, each selected for their specific roles within the circuit. Notably, the use of trimmer capacitors allows for fine-tuning of the circuit parameters, ensuring optimal performance. The inclusion of connectors for audio input, antenna connection, and power supply facilitates ease of use and integration into various setups.
Overall, this FM transmitter circuit provides a comprehensive solution for personal audio broadcasting, combining essential features in a compact design suitable for hobbyists and engineers alike.This small FM transmitter includes a limiter, a microphone amplifier and a PLL digital tuning. All the parts are placed on one circuit board. The RF power is switchable between 1 W (HI) and 0,2 W (LO). Technical specifications: Supply voltage: 12 V from accumulator or regulated power supply. Supply current (HI/LO): 270/170 mA. RF power HI: 1 W. RF power LO: 0,2 W. Impedance: 50-75 ohm. Frequency range: 87,5-108 MHz. Modulation type: wide-band FM. Modulation inputs: line, mic, RDS/MPX. PCB dimensions: 11,3 x 8,8 cm. The schematic diagram is divided into three parts: RF part (numbered from 1), PLL (numbered from 30) and audio part (numbered from 50). Connect a 6 V / 0,1 A bulb to the output and set the right frequency on PLL. Set the RF power to HI. Now turn on the transmitter. You should tune it on a receiver. Maybe you might stretch coils of the L1. Fix the L1 in position when the tuning voltage (on Q3) is in range 4-9 V. Then use C15, C16 and C17 to adjust the highest power (the highest light of the bulb). Then you can connect antenna and audio signal. Adjust R1 until the audio sounds as loud as the other stations. Complete parts list Resistors: 1x 10 1x 47 1x 100 1x 270 2x 220 3x 470 1x 820 5x 1k 1x 1,5 k 1x 4,7 k 9x 10 k 3x 22 k 3x 27 k 1x 56 k 1x 47 k 1x 180 k 1x 240 k 1x 10 M 3x pot.
5 k log. Capacitors: 1x 8,2 pF 2x 10 pF 3x 22 pF 5x 100 pF 8x 1 nF 1x 1 nF plastic 2x 2,2 nF 5x 10 nF 2x 47 nF 4x 100 nF mini 1x 150 nF 1x 0,47 uF 2x 1 uF 2x 2,2 uF 1x 4,7 uF 4x 10 uF 1x 47 uF 1x 100 uF 1x 220 uF 2x 470 uF 2x 1 uF tantal 1x 10 uF tantal 1x trimmer 47 pF 2x trimmer 60 pF Semiconductors: 1x BC547C (BC548C, BC547B) 1x BFR91A 1x BFR96 1x 2SC1971 1x BC556B 1x BF245C 2x LM386 1x SAA1057 1x PIC16F84A-04 + socket 1x 78L05 1x Yellow LED 3 mm 2x BB109G, BBY31 or BB409 Misc: 1x 4 MHz crystal 2x switch 1x button 1x jumpers 2x8 pins or DIP switches 1x power supply connector 3x jack 3,5 mm 1x antenne connector 1x plastic case thin shielded cables

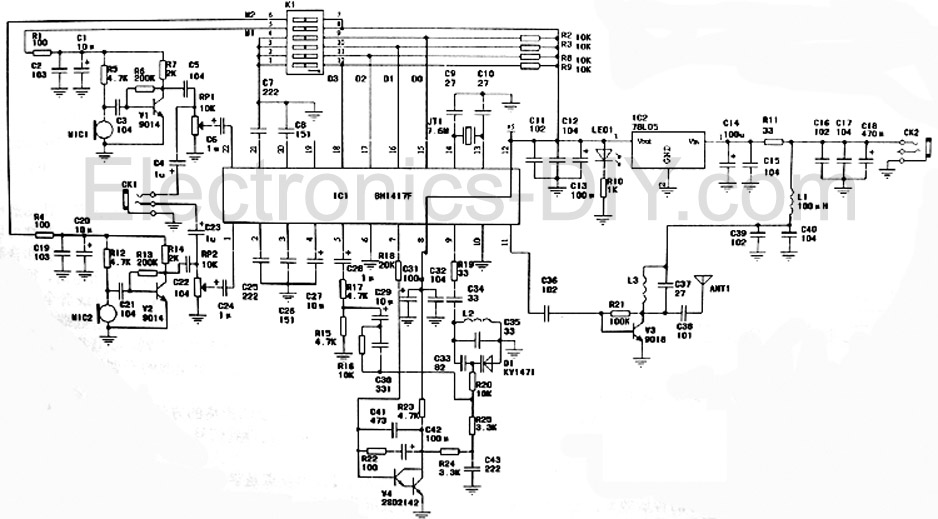

50mW BH1417 Stereo PLL FM Transmitter
This is a high-fidelity stereo PLL FM transmitter designed for various audio sources including computers, sound cards, game consoles, CDs, DVDs, MP3 players, and stereo mixers. The board features two microphone amplifiers, enabling high-fidelity FM stereo radio transmission when paired...

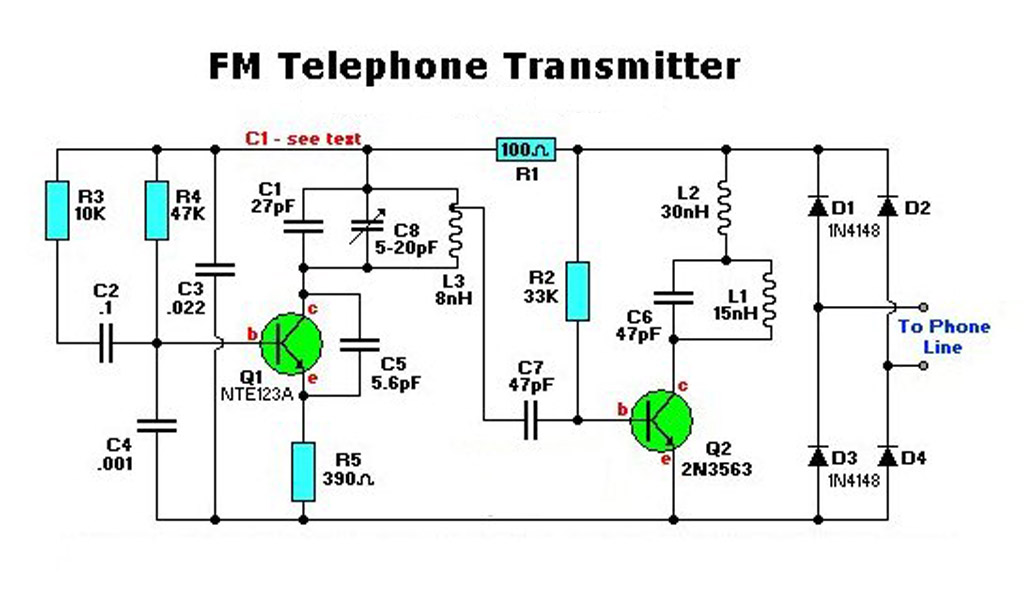

Schematic Diagram Electronic FM Telephone Transmitter Circuit
Electronic FM Telephone Transmitter Schematic. The following schematic design illustrates a circuit diagram for an FM telephone transmitter built on a compact PC board layout. This small design allows it to be easily integrated within the housing of a telephone,...
PLL FM Demodulator
A Phase Locked Loop (PLL) can be utilized to create a Frequency Modulation (FM) demodulator. The PLL circuit tracks the input frequency by adjusting the voltage input of a Voltage-Controlled Oscillator (VCO).
The Phase Locked Loop (PLL) is a critical component...
Simple FM Transmitter
A simple FM transmitter utilizing a single transistor. Mini FM transmitters are commonly regarded as one of the fundamental circuit types for beginners in amateur electronics. When constructed correctly, they offer clear wireless sound transmission via a standard FM radio...
FM Transmitter Circuits - Best Of
Maxim has introduced a series of five integrated oscillator building blocks in the MAX260x series, covering a frequency range of 45 to 650 MHz. The MAX2606 is designed for the VHF band, allowing frequency variation of approximately ±3 MHz around...
4 Watt FM Transmitter
This is a compact yet powerful FM transmitter featuring three RF stages and an audio preamplifier for enhanced modulation. It delivers an output power of 4 Watts and operates on 12-18 VDC, making it highly portable. This project is ideal...
AN6591FJM Transmission / Reception Single Chip Pll Ic For Phs Cordless Telephone Panasonic Semiconductor
The AN7158N is an integrated circuit designed for a power amplifier with an output of 7.5W (16V, 4Ω) that features low noise and low distortion. It is suitable for use in television sets with multi-sound capabilities. The design incorporates two...
mp3 fm transmitter
The car MP3 FM transmitter circuit is designed to broadcast audio signals to FM receivers. It incorporates a high-quality preamplifier circuit, ensuring that the sound quality of the broadcast is excellent.
The car MP3 FM transmitter circuit typically consists of several...

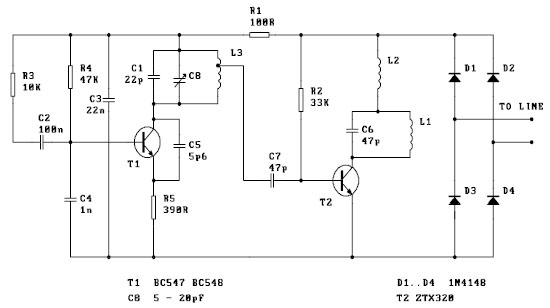

Spy Telephone
