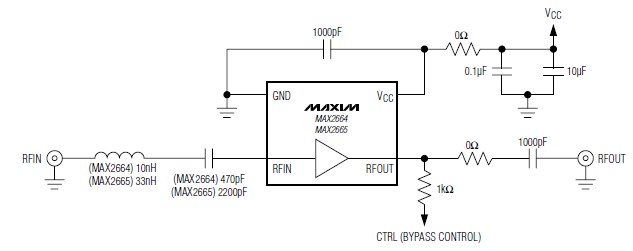

Description: A simple, low-cost, and ultra-compact VHF/UHF low-noise amplifier circuit can be designed using the MAX2664 and MAX2665 ultra-compact LNAs for VHF/UHF applications. These devices incorporate a broadband LNA with an integrated bypass switch. The MAX2664 covers the UHF frequency range from 470 MHz to 860 MHz, while the MAX2665 covers the VHF frequency range from 75 MHz to 230 MHz. Each device features a zero-power bypass mode for enhanced handling of high signal levels. The presented circuit diagram indicates that this RF project requires very few external components. Both integrated circuits (ICs) provide a high gain of approximately 15 dB and operate from a single power supply that can deliver an output voltage between 2.4 to 3.5 volts. The VHF/UHF low-noise amplifiers exhibit a low current consumption of 3.3 mA and are suitable for applications such as smartphones, MP3 players, home audio/video systems, and other portable navigation devices.
The circuit utilizes the MAX2664 and MAX2665 as the core components, which are designed to amplify weak radio frequency signals while minimizing noise. The MAX2664 is optimized for UHF applications, making it ideal for television and radio frequencies, while the MAX2665 is tailored for VHF applications, suitable for FM radio and other communication systems.
The low-noise amplifiers are configured in a common-source configuration, which provides significant voltage gain and a broad bandwidth. The integrated bypass switch allows the circuit to enter a low-power state when high signal levels are detected, effectively reducing power consumption during idle times. This feature is particularly beneficial in battery-operated devices where energy efficiency is critical.
External components required for the circuit are minimal, typically including a few resistors and capacitors for biasing and stability. The design can be easily integrated into compact PCB layouts, making it suitable for portable applications. The power supply requirements are flexible, allowing for operation from batteries or regulated power sources, which is advantageous for mobile devices.
The low current consumption of 3.3 mA ensures that the amplifiers can operate efficiently without significantly draining the battery, which is essential for devices such as smartphones and portable media players. The high gain of around 15 dB ensures that even weak signals can be amplified sufficiently for further processing, enhancing the overall performance of the system.
Overall, the MAX2664 and MAX2665 low-noise amplifiers present an effective solution for enhancing signal quality in VHF and UHF applications, making them a valuable addition to a wide range of electronic devices.A very simple low cost and ultra compact VHF UHF Low-Noise amplifiers circuit can be designed using the MAX2664 and MAX2665 ultra-compact LNAs for VHF/UHF applications. These devices incorporate a broadband LNA with an integrated bypass switch. The MAX2664 covers the UHF frequency range from 470MHz to 860MHz, and the MAX2665 covers the VHF frequen
cy range from 75MHz to 230MHz. Each device has a zero-power bypass mode for improved high-signal-level handling conditions. As you can see in the presented circuit diagram, this RF project requires very few external components. Both ICs has a high gain around 15dB and require a single power supply, that can provide an output voltage between 2.
4 to 3. 5 volts. VHF UHF Low-Noise amplifiers has a very low current consumption of 3. 3 mA and can be used in applications like: Smartphones/Handsets, MP3 Players, Home Audio/Video and other portable navigation devices.
By using transformers, both voltage feedback and current feedback can be applied. An article by DJ2LR Ulrich Rohde in Ham Radio, November 1979, provides details about this circuit. For the 2.5 MHz to audio converter, the transformation ratio from drain...
The following circuit illustrates a UHF Indicator Wavemeter Circuit Diagram. This circuit utilizes dual BF494 transistors. Features: the oscillator is...
The UHF Indicator Wavemeter Circuit is designed to measure and indicate the frequency of ultra-high frequency (UHF) signals. The circuit primarily...

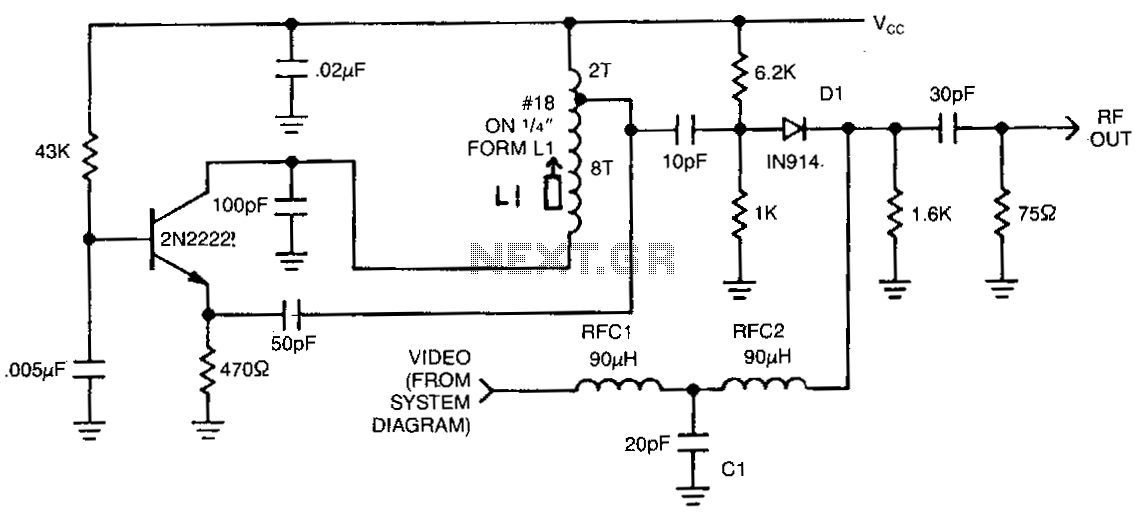

This circuit utilizes an oscillator (2N2222) and a diode (D1) as a nonlinear mixer. The frequency is determined by a slug in inductor (L1). Additionally, RFCl, C1, and RFC2 create a low-pass filter that allows video signals to pass while...
This kit, designed by Jan G0BBL and implemented and distributed by Tony KB9YIG, is a plug-in board for the Softrock Lite + Xtall RX V9.0 that down-converts VHF signals in the 2m and 6m bands to HF signals that can...
A few designs for remote control switches, using VG40T and VG40R remote control pair, are shown here. The miniature transmitter module shown in Fig. 1, which just measures 34 mm x 29 mm x 10 mm, can be used to...
The following circuit illustrates a VHF pre-amplifier circuit diagram. This circuit utilizes the BFS17 transistor. Features: designed for VHF applications.
The VHF pre-amplifier circuit is essential for enhancing weak radio frequency signals in the VHF (Very High Frequency) range, typically between...
This circuit is designed for a UHF TV antenna and provides a 15 dB preamplification. It is constructed using a transistor and minimal components. The schematic features the BF180 UHF transistor. The first stage consists of a band-pass filter created...

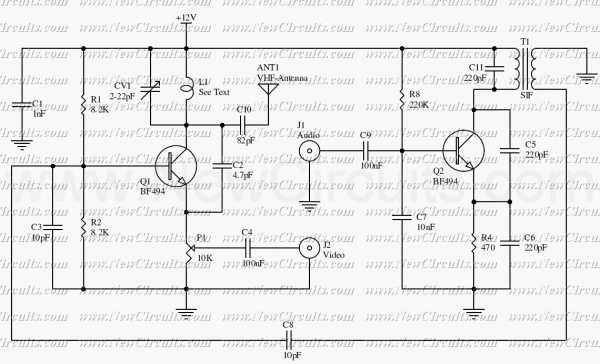

The circuit presented here is a simple audio/video transmitter with a range of 3 to 5 metres. The A/V signal source for the circuit may be a VCR, a satellite receiver or a video game etc. A mixer which also...
