Try signal conditioning the audio video for an RF modulator
Description: Although there is a need for an integrated circuit (IC), the interface between the modulator and audio-video signals has not yet been developed as an IC. This is primarily due to the complexity of such a design, the variations needed for different standards, and the variable levels required by the modulator itself. A discrete design serves as an alternative to an IC interface. The signal-conditioning requirements encompass low-pass and notch filtering for video, group-delay compensation for video, audio pre-emphasis, and level controls for both audio and video to adjust the modulation level. Many cable and satellite receivers, VCRs, DVDs, and TVs do not fully comply with these signal-conditioning requirements, resulting in poorer quality modulated signals for channels 3-4 compared to the baseband composite (Cvbs). The following discussion outlines the interface requirements and how to fulfill them using standard operational amplifiers and discrete components. This low-cost circuitry can also provide rear-panel outputs for various audio/video (A/V) appliances. For driving RF modulators in NTSC and PAL systems, the allowable video group-delay variation and required audio pre-emphasis are specified by ITU Recommendation BT. 470-6. Other specifications, which may not be as apparent, are summarized and extrapolated to include additional unstated design specifications (Tables 1-2). These entries are based on typical back-panel outputs for devices such as TVs, DVDs, or set-top boxes that have both baseband and RF-modulated A/V outputs (Figure 1). Certain requirements depend on the source; for instance, if the signals to the modulator originate from a digital-to-analog converter (DAC), they require reconstruction filtering to eliminate out-of-band modulation and to remove artifacts, noise, and aliased signals. In general, signals must also be amplified to account for back-terminated loads and variations in DAC outputs. Although the need for notch-filtering the video around the audio subcarrier is not explicitly stated, it is implied by the group-delay adjustment described in Figure 3 of ITU-470. Modulator chips typically recommend such notch filtering. Additionally, the rear-panel signals often have output levels that exceed the requirements for the modulator inputs, necessitating further attenuation. These conditions lead to specific requirements for the Audio Video Interface depicted in Figure 1, which includes a sound-subcarrier bandstop or notch filter centered on the sound subcarrier. This filtering results in significant group delay variation near the notch frequency, and both NTSC and PAL standards position the sound subcarrier above the video's minimum "3dB bandwidth" to facilitate this compensation.
The first step in addressing these requirements is implementing low-pass reconstruction filtering to suppress aliased outputs and out-of-band noise in the modulator's audio and video inputs. Active filters can elevate the DAC output to standard levels while driving the rear panel and the RF modulator. For audio, a low-pass filter (LPF) with a "3dB point of 22-24 kHz and sufficient gain to produce 2 VRMS at the rear panel is necessary. Assuming a gain of two, this can be achieved with a single passive RC filter. A second RC filter is designated for the audio modulator rather than reconstruction. The corresponding circuit (Figure 2) drives the rear panel outputs and the input to the audio section of the RF modulator. Video signal processing is more complex due to its lack of high oversampling, necessitating at least a 3-pole reconstruction filter. If this filter introduces excessive group-delay variation, compensation must be implemented, along with gain adjustments to address variations in the video DAC output and back-termination loss. The optimal solution is to utilize an active filter, with a suggested design for NTSC or PAL applications illustrated in Figure 3. These circuits offer the advantage of adjustable group delay (using R8) and can effectively drive the rear panel outputs.Despite the need for an IC, this ubiquitous interface between the modulator and audio-video signals has not been reduced to an integrated circuit. The major reasons for that deficiency are the difficulty of such a design, the variations required for different standards, and the variable levels required by the modulator itself.
The alternative to a n IC interface is a discrete design. The signal-conditioning requirements include lowpass and notch filtering of the video, group-delay compensation for the video, pre-emphasis for the audio, and (to adjust the modulation level) level controls for both audio and video. Because many cable and satellite receivers, VCRs, DVDs, and TVs don`t fully comply with these signal-conditioning requirements, the modulated signals of channels 3-4 have poorer quality than that of the baseband composite (Cvbs).
The discussion below explains the interface requirements and how to meet them using standard op amps and discrete components. The resulting low-cost circuitry can also provide rear-panel outputs for most audio/video (A/V) appliances.
For driving RF modulators in NTSC and PAL systems, the allowable video group-delay variation and required audio pre-emphasis are clearly specified by ITU Recommendation BT. 470-6. Most of the other specifications, not as obvious, are summarized and extrapolated to include other, unstated design specifications (Tables 1-2).
Those table entries are based on typical back-panel outputs for a TV, DVD, or set-top box having both baseband and RF-modulated A/V outputs (Figure 1). Some of these requirements depend on the source. If the signals to the modulator come from a DAC, for example, they obviously need reconstruction filtering to prevent out-of-band modulation and to remove artifacts, noise, and aliased signals.
In the general case, they must also be amplified to compensate for back-terminated loads and variation in the DAC outputs. The requirement to notch-filter the video around the audio subcarrier is not stated, but is implied by the group-delay adjustment described in Figure 3 of ITU-470.
Modulator chips usually recommend such notch filtering. Also requiring attenuation are the rear-panel signals, whose output levels are typically higher than required for the modulator inputs. These conditions lead to requirements for the Audio Video Interface of Figure 1: A sound-subcarrier bandstop or notch filter, centered on the sound subcarrier.
This filtering causes a large variation in group delay near the notch frequency. (To make this compensation possible, both NTSC and PAL place the sound subcarrier above the video`s minimum "3dB bandwidth. ) The first thing to be done is lowpass-reconstruction filtering, to suppress aliased outputs and out-of-band noise in the modulator`s audio and video inputs.
Active filters for that purpose let you raise the DAC output to standard levels while driving the rear panel and the RF modulator. Audio requires a lowpass filter (LPF) with a "3dB point of 22- 24KHz, and enough gain to produce 2VRMS at the rear panel.
We assume a gain of two, and because audio is highly over-sampled, the requirement can be met with a single passive RC filter. As explained later, the second RC filter is for the audio modulator, not reconstruction. This circuit (Figure 2) drives the rear panel outputs and the input to the audio portion of the RF modulator.
Video is more difficult. It isn`t highly over-sampled, and therefore requires at least a 3-pole reconstruction filter. If this filter causes excessive group-delay variation, you must compensate for it and add gain, to make up for variations in the video DAC output and back-termination loss. Again, the best solution is an active filter. A suggested design for NTSC or PAL applications is shown in Figure 3. (See Maxim`s application note on this. ) A benefit of these circuits is adjustable group delay (using R8), and their ability to drive the rear

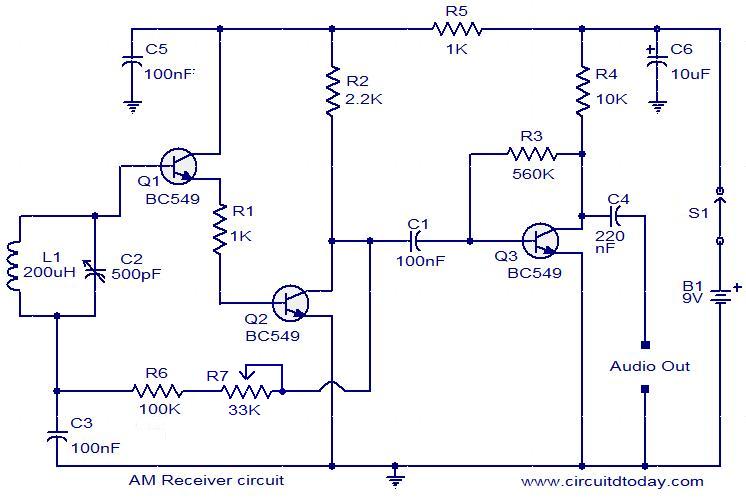

Circuit diagram of a modulator circuit in a transmitter and receiver of amplitude modulation.
The modulator circuit in an amplitude modulation (AM) transmitter and receiver plays a crucial role in the process of encoding information onto a carrier wave. In a...

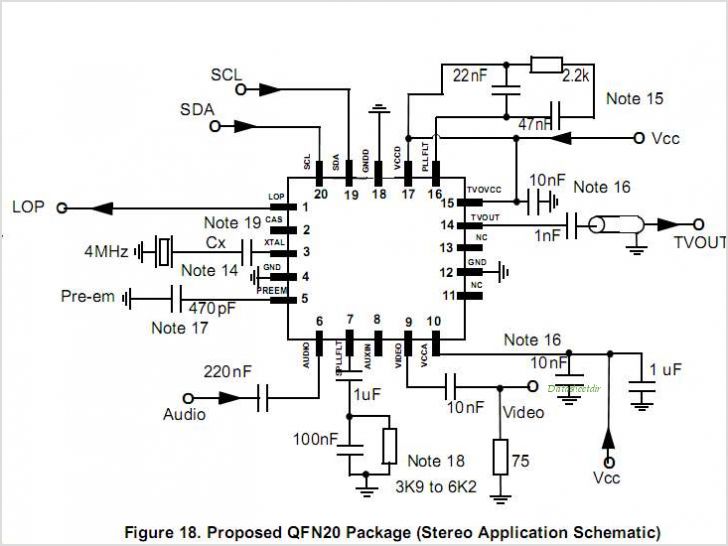

MC44BS374CA: PLL Tuned UHF and VHF Audio Video High Integration Modulator MC44BS374CA The MC44BS374CA Audio and Video Modulator is for use in VCRs, set-top boxes, and similar devices. By Freescale Semiconductor, Inc
The MC44BS374CA is a highly integrated audio and video...
The I/O board incorporates 16-bit resolution voltage analog inputs and outputs, along with a 4-20mA current loop transmitter and receiver for microcontroller applications. The document discusses amplifier circuits and schematics, including a signal conditioning variable gain amplifier, analog filter, and...
The LT1007 is capable of providing excitation current directly to bias the 350-0 bridge at 5 V. With only 5 V across the bridge, as opposed to the usual 10 V, total power dissipation and bridge warm-up drift is reduced....

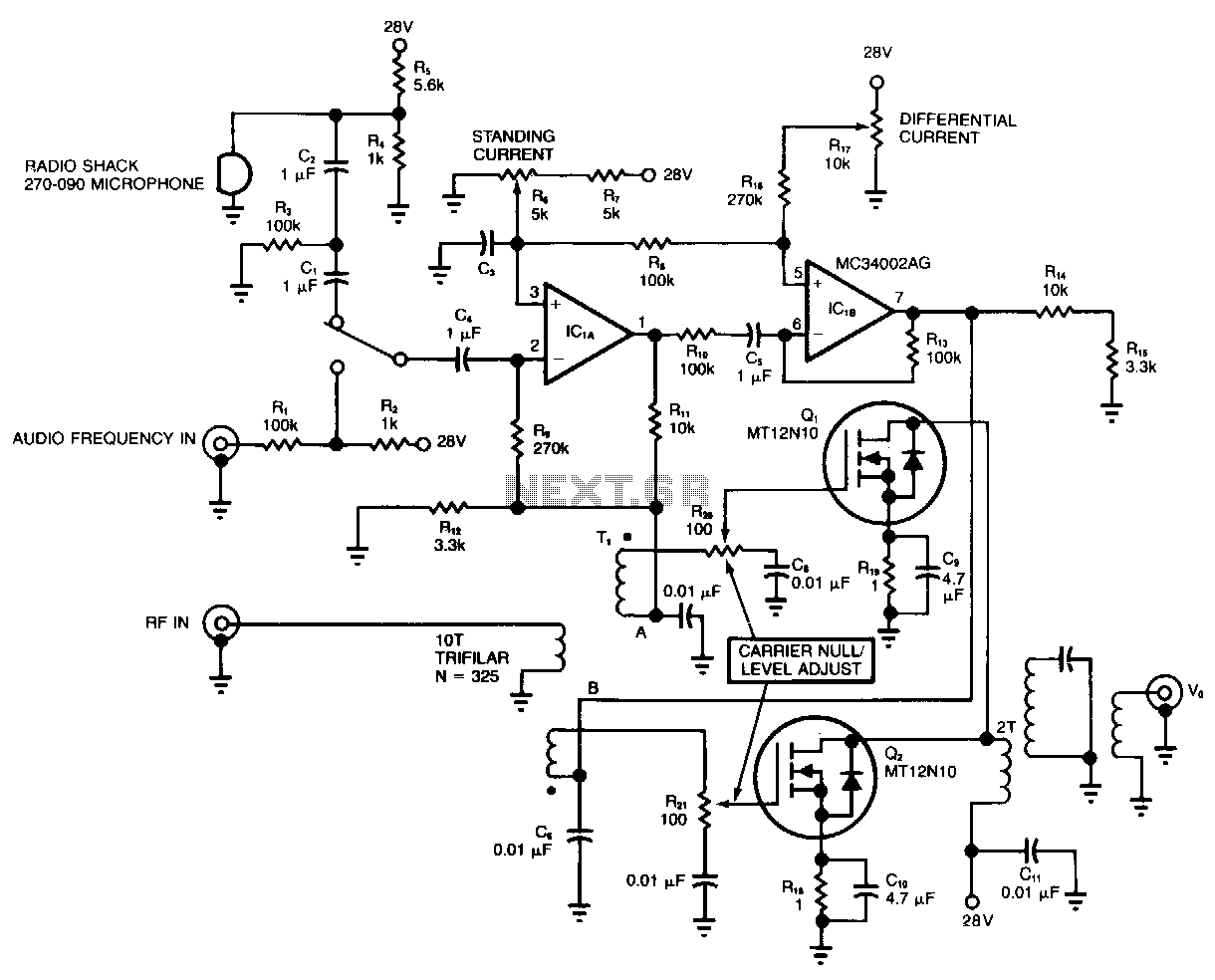

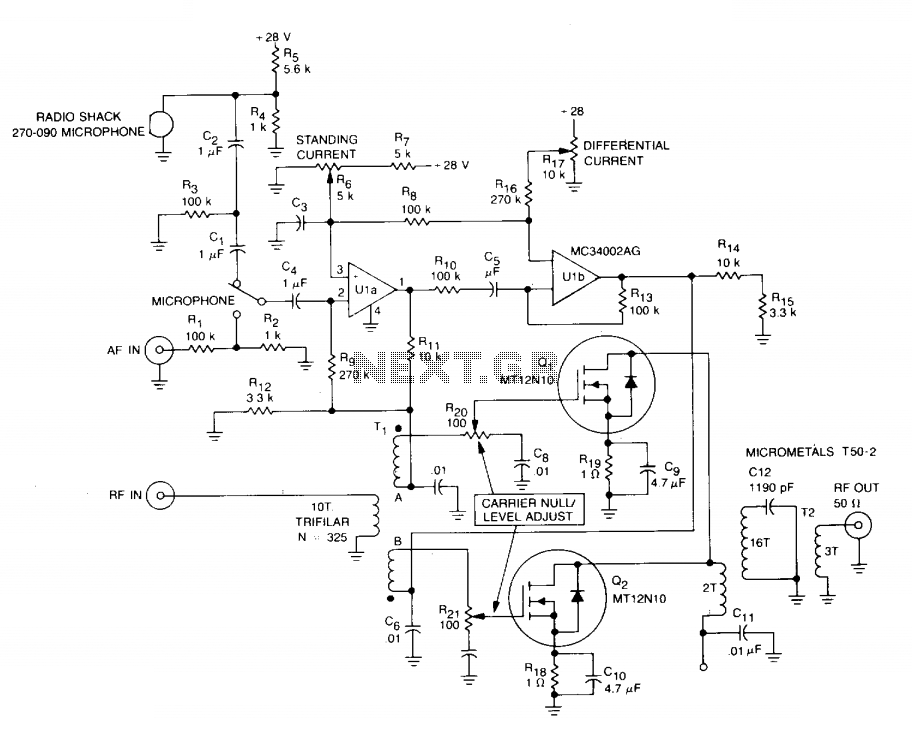

An RF input is applied to the primary of transformer T1, which provides equal amplitude, opposite phase RF drive to output FETs Q1 and Q2. In the absence of AF modulation at points A and B, the opposite phase RF...

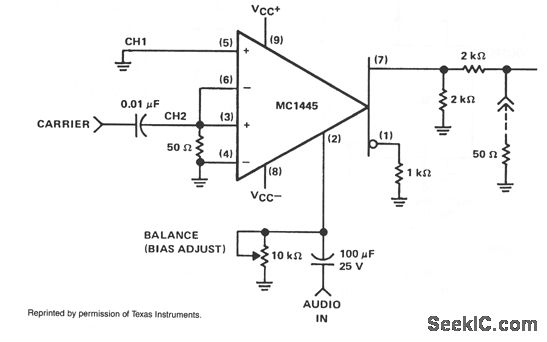

When the carrier level is sufficient to activate the cross-coupled pair of differential amplifiers, the modulation signal applied to the gate will switch at the carrier frequency between the collector loads. This switching process results in the modulation being multiplied...

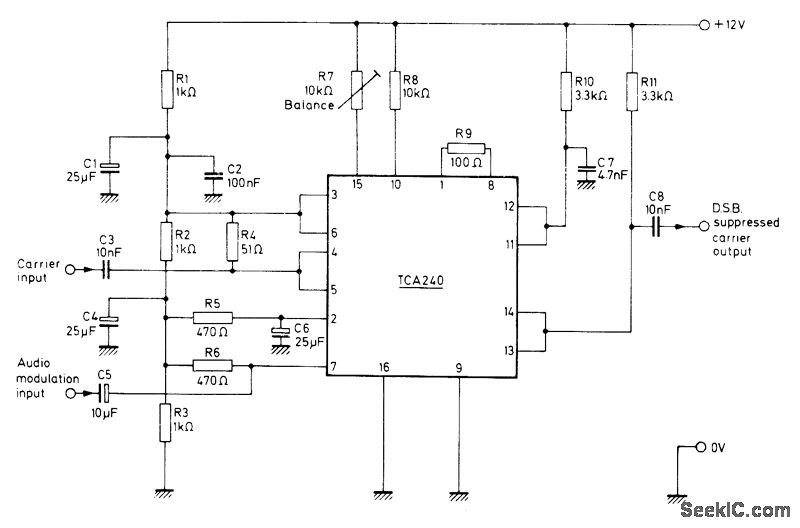

The Mullard TCA240 is a dual balanced modulator-demodulator that effectively suppresses the carrier frequency at the output, which is essential for Single Sideband (SSB) or Double Sideband (DSB) operation in transmitters. The bias resistor R7 is adjustable to achieve the...
Power MOSFETs provide high power gain at both audio and radio frequencies, making them valuable in various radio circuit designs. For RF applications, the large safe operating area of a MOSFET protects it from damage caused by reflected RF energy....

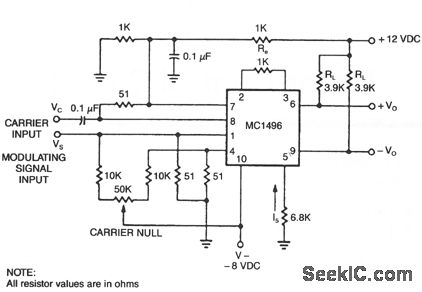

The basic current allows no carrier to be present in the output. By adding offsets to the carrier differential pairs, controlled amounts of carrier appear at the output. The amplitude becomes a function of the modulation signal—AM modulation.
