Description: I wanted a robust, portable, compact antenna usable for horizontal and vertical polarisation to take along with my FT-817 when I go on vacation, camping etc. I also wanted the dipole to cover the VHF and UHF bands and if possible with some gain! As everybody knows a dipole has about 3dB gain over a quarter wave antenna, is why my preference went to a simple dipole. To make it portable I used two identical telescopic antennas of 80 cm slid out and only 14 cm when pushed in. More: What you need to make this handy portable wide band dipole is: Two chrome-plated telescopic antennas (14cm/80cm), A robust PVC box of 75x50x22 mm and 1.5mm thick, a silver plated stereo mini switch.
The described portable dipole antenna is designed for use with VHF and UHF bands, making it suitable for various applications, including amateur radio operations with devices such as the FT-817 transceiver. The antenna's construction utilizes two telescopic antennas, which can be extended to 80 cm for optimal performance and retracted to a compact 14 cm for easy transportation. This design allows for versatility in both horizontal and vertical polarization, enhancing its usability in different environments.
The dipole antenna's core principle relies on its length, which should ideally be a half-wavelength for the desired frequency bands. The use of chrome-plated telescopic antennas aids in reducing weight while maintaining structural integrity, which is essential for portable applications. The choice of materials, including the silver-plated stereo mini switch, is significant as it minimizes signal loss and ensures reliable operation.
The robust PVC enclosure, measuring 75x50x22 mm with a thickness of 1.5 mm, serves to protect the internal components from environmental factors during outdoor use. This enclosure can house the connection points and the switch, allowing for easy toggling between horizontal and vertical polarization without the need for external tools or adjustments.
For assembly, the two telescopic antennas are connected to the PVC box, where the switch facilitates the selection of the desired polarization. The design should ensure that the connections are secure and that the antenna can be easily deployed and retracted as needed. Additionally, the overall design aims to achieve a gain of approximately 3 dB over quarter-wave antennas, providing enhanced performance in signal reception and transmission.
This portable dipole antenna is a practical solution for enthusiasts seeking a reliable and effective antenna for use in various outdoor settings.I wanted a robust, portable, compact antenna usable for horizontal and vertical polarisation to take along with my FT-817 when I go on vacation, camping etc. I also wanted the dipole to cover the VHF and UHF bands and if possible with some gain! As everybody knows a dipole has about 3dB gain over a quartre wave antenna, is why my preference went to a simple dipole.
To make it portable I used two identical telescopic antennas of 80 cm slid out and only 14 cm when pushed in. What you need to make this handy portable wide band dipole is:
*
Two chrome-plated telescopic antenna`s (14cm/80cm)
*
A robust PVC box of 75x50x22 mm and 1,5mm thick
*
a silver plated stereo mini switch

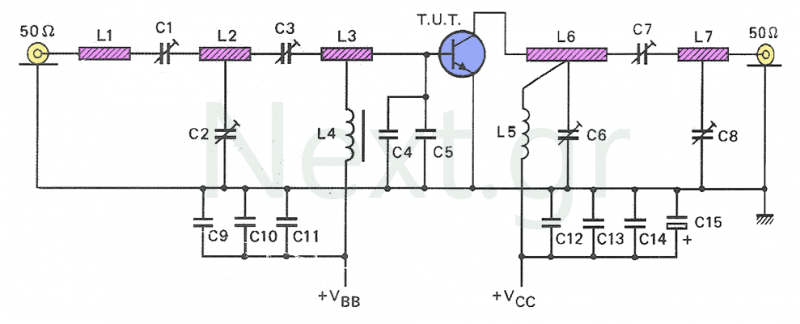

This circuit serves as an amplifier for small transmitters operating within the UHF band, specifically in the 450-800 MHz range. The amplifier operates in Class A, utilizing the well-known Philips BLW33 transistor. Although the construction is relatively simple, it requires...

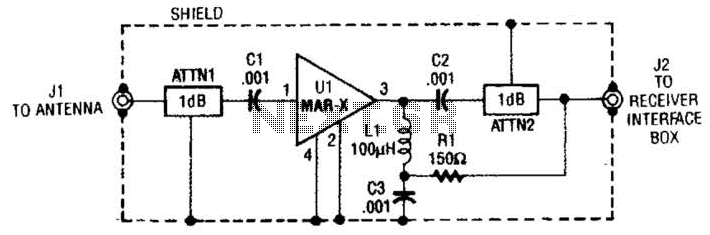

The MAR-x preamplifier is designed to operate within a frequency range of up to 1.5 or 2 GHz, depending on the selected MAR-x integrated circuit (IC). For applications requiring a low noise figure, ATTN1 should be omitted. Both ATTN1 and...
Circuit description of a VHF pre-amplifier using a grounded base configuration.
The VHF pre-amplifier circuit utilizing a grounded base configuration is designed to amplify very high-frequency signals while maintaining a low noise figure and high input impedance. This configuration is particularly...

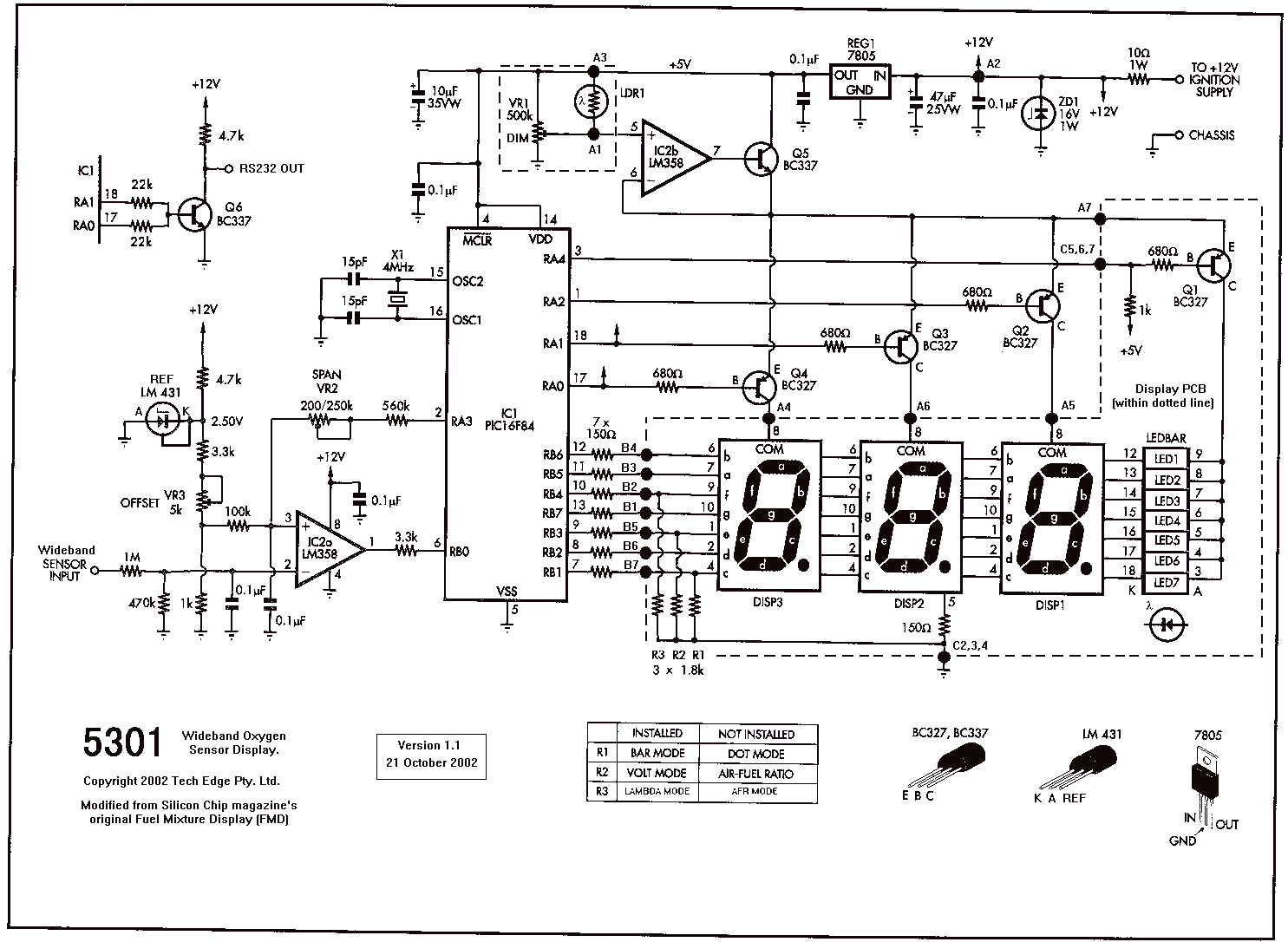

This is the construction guide for the 5301 wideband fuel mixture display kit. The 5301 is the Tech Edge version (rather than the Jaycar version) of the modified Silicon Chip FMD design, and it features, compared to the original kit,...

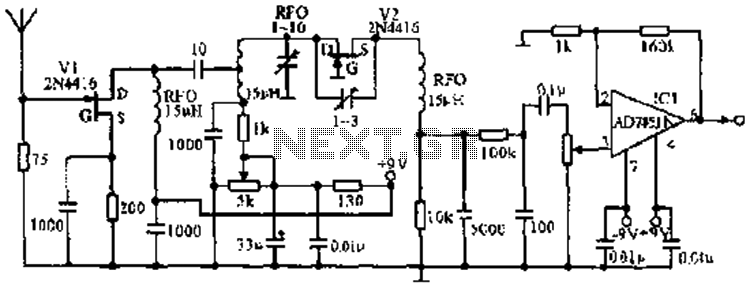

The image illustrates the JFET VHF band super-regenerative receiver circuit. It features high discharge tubes V1 and V2, which serve as the super-regenerative detector tubes. IC1 functions as a low-frequency amplifier. The circuit exhibits a sensitivity of better than 1...

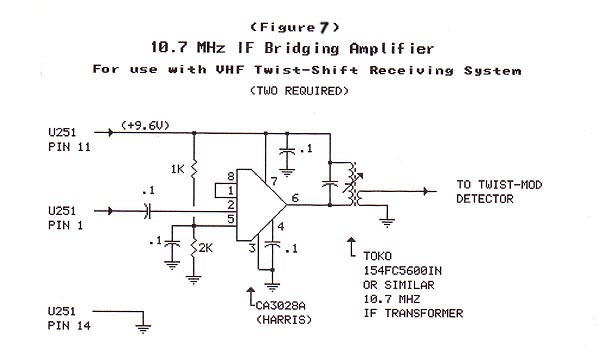

The material in this section demonstrates the construction of the Twist-Shift system for VHF utilizing commonly available surplus land mobile VHF transceivers that have been modified to operate on the 2-meter ham band. The radios employed in this project were...

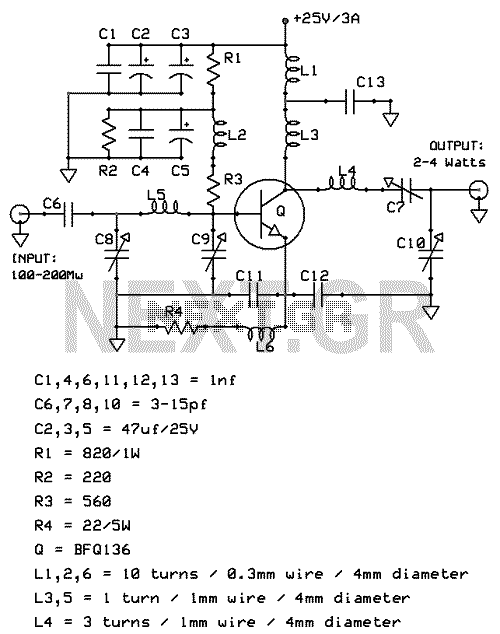

That Circuit is a UHF TV linear amplifier for small TV transmitters with output around 100-200mW. The transistor BGQ136 comes with SOT-122 case has gain of 13dB at 800MHz. So with input 100mW you get 2W output and for 200mW...

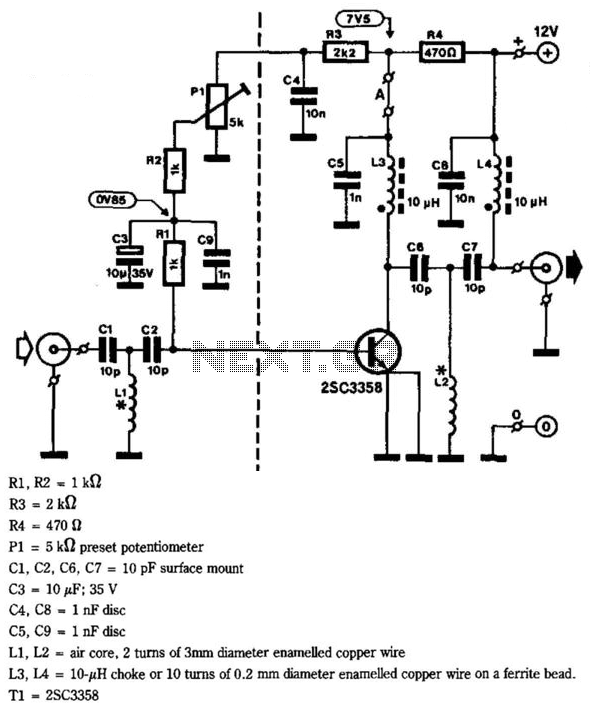

This circuit provides a gain of 10 to 15 dB from 400 to 850 MHz, making it particularly effective in scenarios where the television signal is weak. Additionally, the filters can be customized to meet individual user requirements. Construction is...

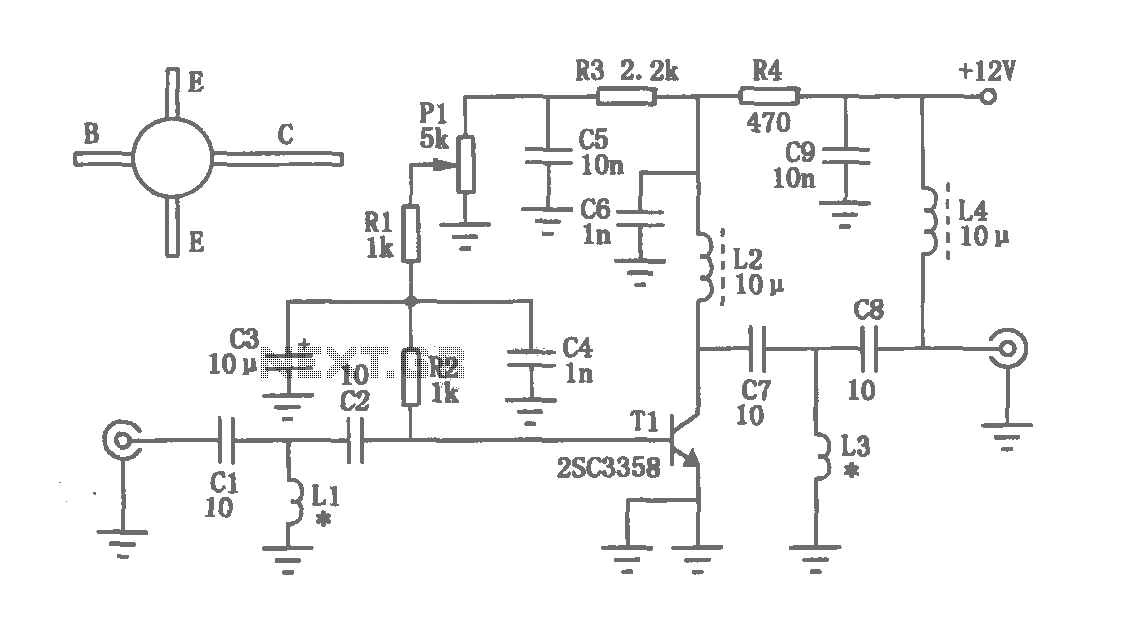

The circuit depicted in the figure operates within a frequency range of 400 to 850 MHz, designed as a UHF amplifying circuit. For optimal performance and results, it is recommended that the circuit be manufactured using silver-tin processing techniques.
The UHF...
