Description: The following circuit illustrates photovoltaic light sensors in a solar tracker. Features include accuracy, low cost, simplicity, and a single-axis electronic design.
The photovoltaic light sensor circuit is designed to optimize the alignment of solar panels with respect to the sun's position, thereby enhancing energy capture efficiency. The core of the system consists of multiple photovoltaic cells that detect light intensity from different angles. These cells generate a voltage output proportional to the light they receive.
In a typical single-axis solar tracker, two or more light sensors are strategically placed on the surface of the solar panel. The output from these sensors is processed by a microcontroller or comparator circuit, which compares the voltage levels produced by each sensor. When one sensor detects more light than the other, the microcontroller sends a signal to a motor driver circuit, which adjusts the angle of the solar panel to face the light source directly.
The circuit design emphasizes cost-effectiveness by utilizing readily available components such as operational amplifiers for signal comparison and low-cost DC motors for adjustment. The simplicity of the design allows for easy implementation and maintenance, making it suitable for both residential and commercial solar applications.
To ensure accurate tracking, the circuit may include additional features such as hysteresis to prevent rapid oscillations in panel position due to fluctuating light levels. Furthermore, it may incorporate a feedback mechanism to monitor the panel's position and adjust it accordingly, ensuring optimal performance throughout the day.
Overall, this photovoltaic light sensor circuit exemplifies a practical solution for maximizing solar energy harvesting through efficient tracking mechanisms.The following circuit shows about Photovoltaic Light Sensors In Solar Tracker. Features: accurate, low cost, simple, single axis electronic solar ..
This light sensor circuit, utilizing a photosensor, serves as a bridge between light and electronics. It is constructed using an operational amplifier and the PIC16C63 microcontroller to control the sensor. While the circuit is not intended for precision applications, it...

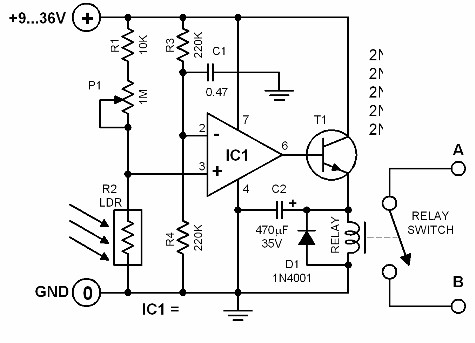

This is a light sensor circuit designed to detect light and activate a relay. The circuit is straightforward and requires only a few components. The operation of the circuit is simple: when the photoresistor detects light, it will turn on...

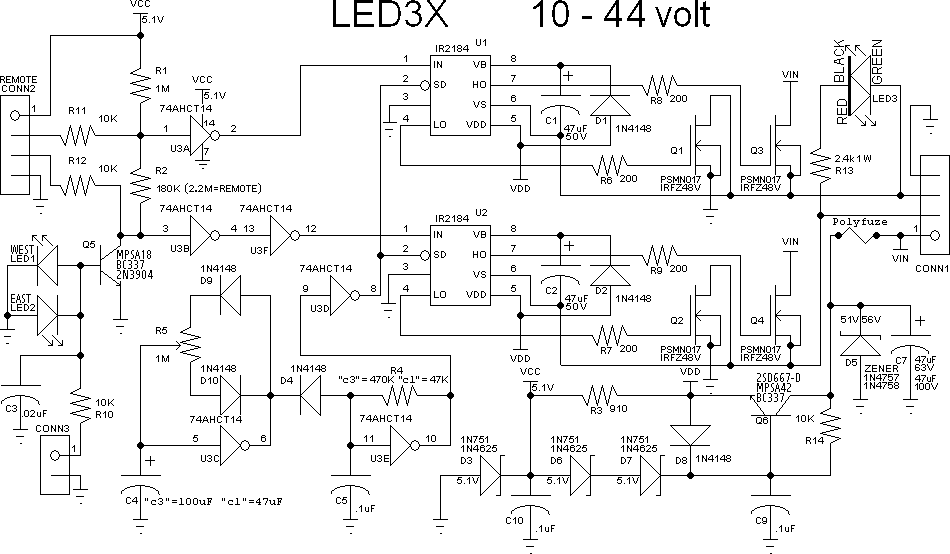

The table provided is useful for determining the capabilities of the MOSFETs across various versions. However, the connectors used in the LED3X "c" series are not rated for high continuous currents; they are technically rated for 7 amps. While 10...
The brightness of the surrounding light controls the function of this circuit. The light sensor used in this circuit is a light-dependent resistor (LDR). This LDR is connected to the non-inverting input of the 741 op-amp IC. Once the intensity...
This compact circuit is capable of distinguishing between light and darkness, making it highly beneficial for controlling the operation of signs, porch lights, or other devices in response to changing light conditions.
The circuit operates using a light-dependent resistor (LDR) as...

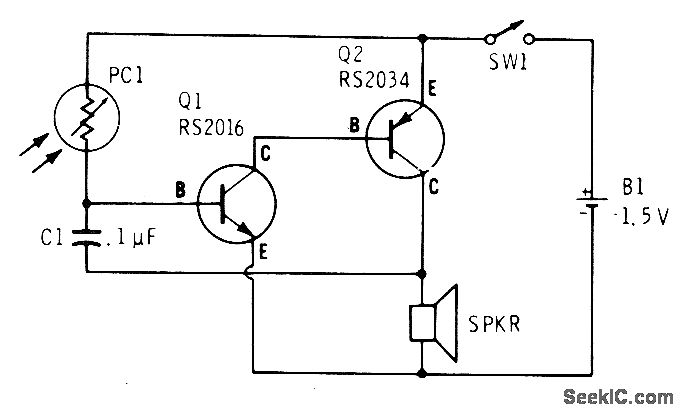

A low light condition on a cadmium sulfide photocell (Radio Shack 276-116) generates a series of clicks in a miniature 8-ohm loudspeaker. As the light intensity increases, these clicks coalesce into an audio tone that escalates in frequency with rising...

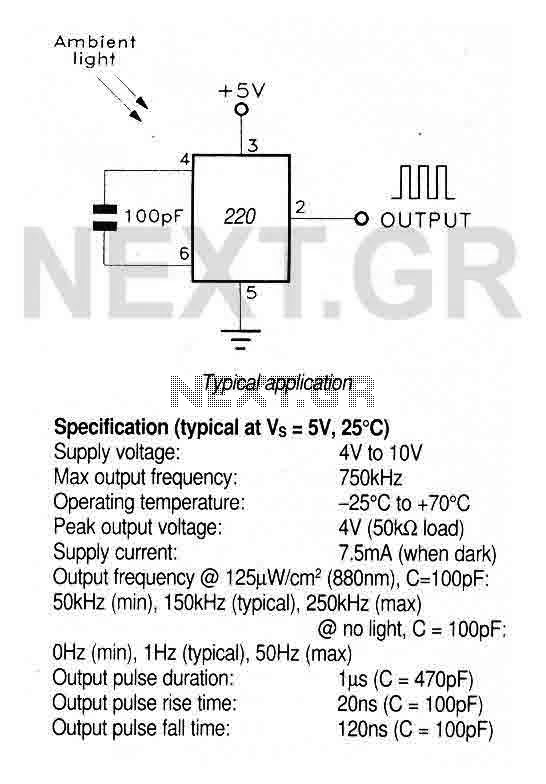

A large area photodiode and current-to-frequency converter integrated into a clear plastic 8-pin DIL package. The output generates a pulse train whose frequency is directly proportional to the light intensity. It is CMOS compatible (a 3.3kΩ pulldown resistor is recommended...

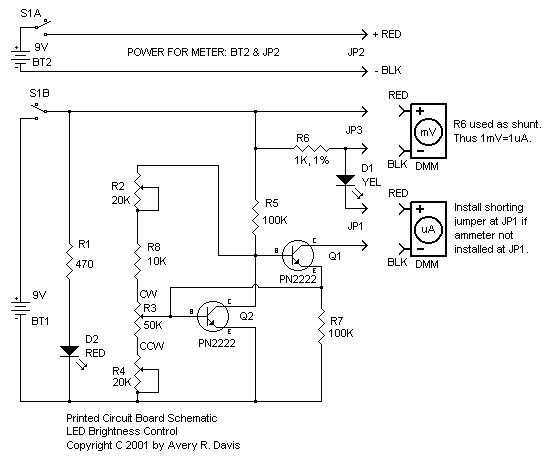

My circuit adds a transistor, to add feedback, and two resistors, to tailor the range of the control, with the result that a single-turn potentiometer gives a control range of about 2 to 30 microamps. I installed my circuit in...

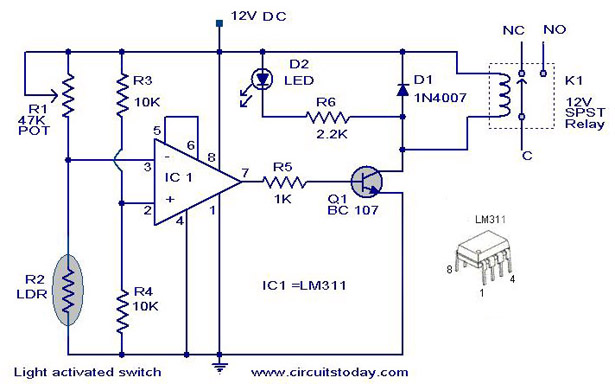

The following circuit illustrates a Light Activated Switch Circuit Diagram. This circuit is based on the LM311 integrated circuit, which functions as a voltage comparator.
